黑砷磷室温太赫兹探测器

董卓^{1, 2,},
陈捷^{2, 3},
朱一帆^{1, 4},
杨洁⁵,
王中长^6,,,
张凯^2,,

1.
中国科学技术大学纳米技术与纳米仿生学院，安徽合肥 230026
2.
中国科学院苏州纳米技术与纳米仿生研究所国际实验室，江苏苏州 215123
3.
上海大学材料科学与工程学院，上海 200444
4.
中国科学院苏州纳米技术与纳米仿生研究所纳米器件与应用重点实验室，江苏苏州 215123
5.
新加坡国立大学化学与生物分子工程系，新加坡 117585
6.
伊比利亚国际纳米科技实验室葡萄牙布拉加 4715-330

详细信息

中图分类号:TN382
计量
- 文章访问数:1897
- HTML全文浏览量:532
- PDF下载量:172
- 被引次数:0
出版历程
- 收稿日期:2020-09-30
- 修回日期:2020-10-13
- 网络出版日期:2020-12-25
- 刊出日期:2021-01-25

Room-temperature terahertz photodetectors based on black arsenic-phosphorus

doi:10.37188/CO.2020-0175

DONG Zhuo^{1, 2,},
CHEN Jie^{2, 3},
ZHU Yi-fan^{1, 4},
YANG Jie⁵,
WANG Zhong-chang^6,,,
ZHANG Kai^2,,

1.
School of Nano-Tech and Nano-Bionics, University of Science and Technology of China, Hefei 230026, China
2.
i-Lab, Suzhou Institute of Nano-Tech and Nano-Bionics, Chinese Academy of Sciences, Suzhou 215123, China
3.
School of Materials Science and Engineering, Shanghai University, Shanghai 200444, China
4.
Key Laboratory of Nanodevices and Applications, Suzhou Institute of Nano-tech and Nano-bionics, Chinese Academy of Sciences, Suzhou 215123, China
5.
Department of Chemical and Biomolecular Engineering, National University of Singapore, Singapore 117585, Singapore
6.
International Iberian Nanotechnology Laboratory (INL), Avenida Mestre José Veiga s/n, Braga 4715-330, Portugal

Funds:Supported by National Natural Science Foundation of China (No. 61927813，No. 61875223，No. 61922082); National Key R & D Program of China (No. 2016YFE015700)

More Information

Author Bio:
DONG Zhuo (1994—), male, born in Yingcheng City, Hubei province, Ph. D candidate, School of Nano-Tech and Nano-Bionics, University of Science and Technology of China. He got his bachelor's degree from Hubei University in 2017. His research interests are room-temperature terahertz photodetectors based on two-dimensional materials. E-mail:zdong2018@sinano.ac.cn
ZHANG Kai (1983—), male, born in Xiantao City, Hubei province Ph. D, Professor, Nano-Tech and Nano-Bionics, Chinese Academy of Science. He got his Ph. D. from Hong Kong Polytechnic University in 2011. His research interests are in the areas of narrow-gap two-dimensional (2D) materials and devices, with research activities ranging from the exploration and controllable growth of narrow-gap 2D semiconductors (such as black phosphorus) and topological materials, as well as the development of infrared & terahertz lasers and photodetectors. E-mail:kzhang2015@sinano.ac.cn

Corresponding author:zhongchang.wang@inl.int;kzhang2015@sinano.ac.cn

摘要

摘要:由于太赫兹波与众多物质之间存在着丰富的相互作用，太赫兹技术在众多领域均有应用需求。因此，基于独特物理机制和优异材料特性的高灵敏度、便携式太赫兹探测器的研制刻不容缓。黑砷磷是一种新型二维材料，其带隙和输运特性随化学组分可调，在光电探测领域被广泛关注。目前基于黑砷磷的研究集中在红外探测方面，而对于太赫兹探测的应用未见报道。本文介绍了一种基于黑砷磷的天线耦合太赫兹探测器。实验结果表明，在探测过程中存在两种不同的探测机制，并且两者之间存在竞争关系。通过改变黑砷磷的化学组分可以定制不同的探测机制，使其达到最优响应性能。在平衡材料带隙和载流子迁移率的情况下，探测器实现了室温下对0.37 THz电磁波的灵敏探测，其电压响应度和噪声等效功率分别为28.23 V/W和0.53 nW/Hz ^1/2。
- 二维材料/
- 太赫兹/
- 黑砷磷/
- 天线耦合探测器
Abstract:Terahertz technology is indispensable in plenty of fields due to the abundant interactions between terahertz waves and matter. In order to meet the needs of terahertz applications, the development of highly sensitive and portable terahertz detectors based on distinctive physical mechanisms and various materials with excellent properties are urgently required. Black arsenic-phosphorus is a novel two-dimensional material that has a tunable band gap and transport characteristics with varying chemical composition, which has gained widespread interest in optoelectronic applications. Recent research on b-As _xP _1-xmainly focuses on infrared detection, while the detection of terahertz has not yet been applied. Herein, an antenna-coupled terahertz detector based on exfoliated multilayer black arsenic-phosphorus is demonstrated. The terahertz response performance of the detector reflects two different mechanisms, which have a competitive relationship in the detection process. In particular, the detection mechanism can be tailored by varying the chemical composition of black arsenic-phosphorus. By balancing the band gap and carrier mobility, a responsivity of over 28.23 V/W and a noise equivalent power of less than 0.53 nW/Hz ^1/2are obtained at 0.37 THz. This implies that black arsenic-phosphorus has great potential in terahertz technology.
- two-dimensional material/
- terahertz/
- black arsenic-phosphorus/
- antenna-coupled detector

HTML全文

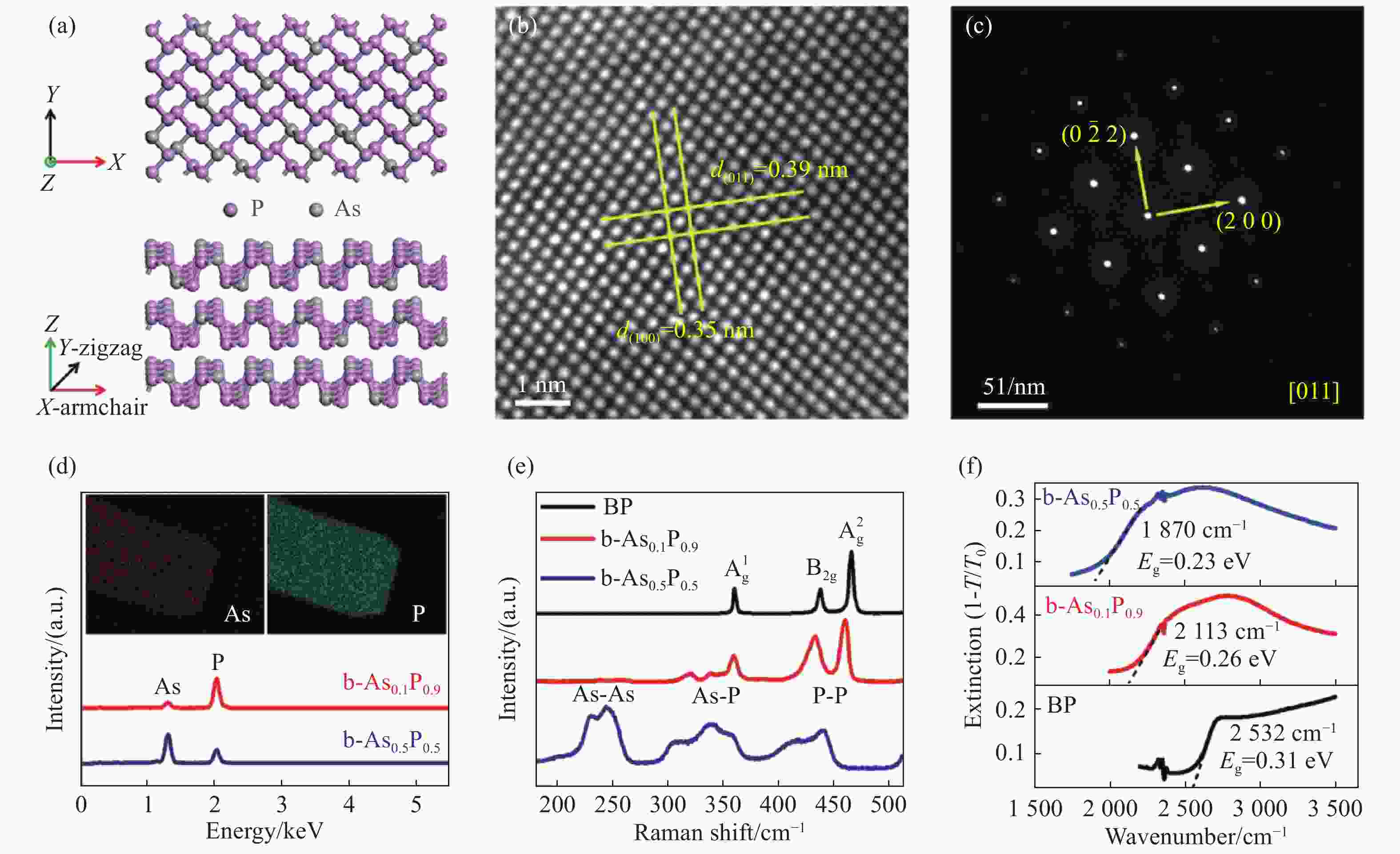

Figure 1.(a) Top view and side view of the b-As_xP_1−xcrystal structure. (The armchair (X) and zigzag (Y) crystal axis are shown on the graph) (b) The HRTEM image of the b-As_0.1P_0.9. (c) The corresponding SAED pattern of the b-As_0.1P_0.9. (d) EDX result of the b-As_xP_1−x(x=0.1 and 0.5) flakes, insert: EDS elemental mapping of the b-As_0.1P_0.9. (e) Raman spectra of b-As_xP_1−xwith different chemical compositions. (f) Plots of infrared absorption of different b-As_xP_1−xsamples

下载: 全尺寸图片幻灯片

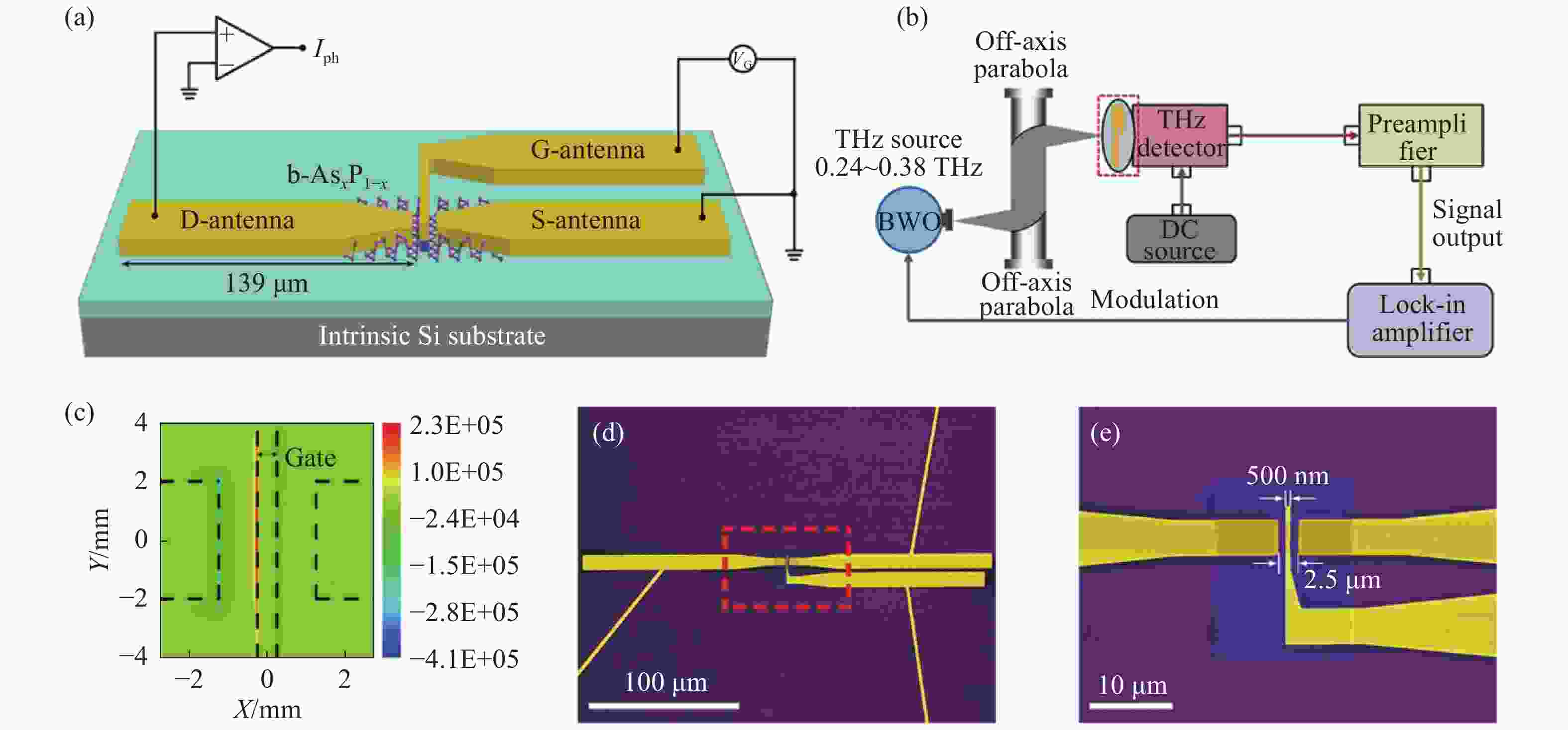

Figure 2.(a) Schematic diagram of the b-As_xP_1−xdetector, including the measurement circuit. (b) Schematic diagram of the measurement system. (c) Spatial distributions of the field enhancement factors for the THz antenna. (d, e) False-color SEM image of the b-As_xP_1−xdetector

下载: 全尺寸图片幻灯片

Figure 3.(a, c) Output characteristics of the b-As_0.1P_0.9detector (a) and b-As_0.5P_0.5detector (c), withV_Granging from −6 V to 6 V with steps of 3 V. Transfer characteristics for the b-As_0.1P_0.9detector (b) and the b-As_0.5P_0.5detector (d) with a fixedV_DS= 50 mV

下载: 全尺寸图片幻灯片

The electrical properties of the as-fabricated BP detector. (a) Output characteristics of the BP detector as function of differentV_Gfrom −8 V to 8 V with steps of 4 V. It shows a good Ohmic contact and a large tunable of carrier density by gate voltage. (b) Transfer characteristics for the BP detector with a fixedV_DS=100 mV. It exhibits a typical p-type ambipolar transport behavior. The field-effect hole mobility measured from the transfer curve is about 725 cm²/V·s.

下载: 全尺寸图片幻灯片

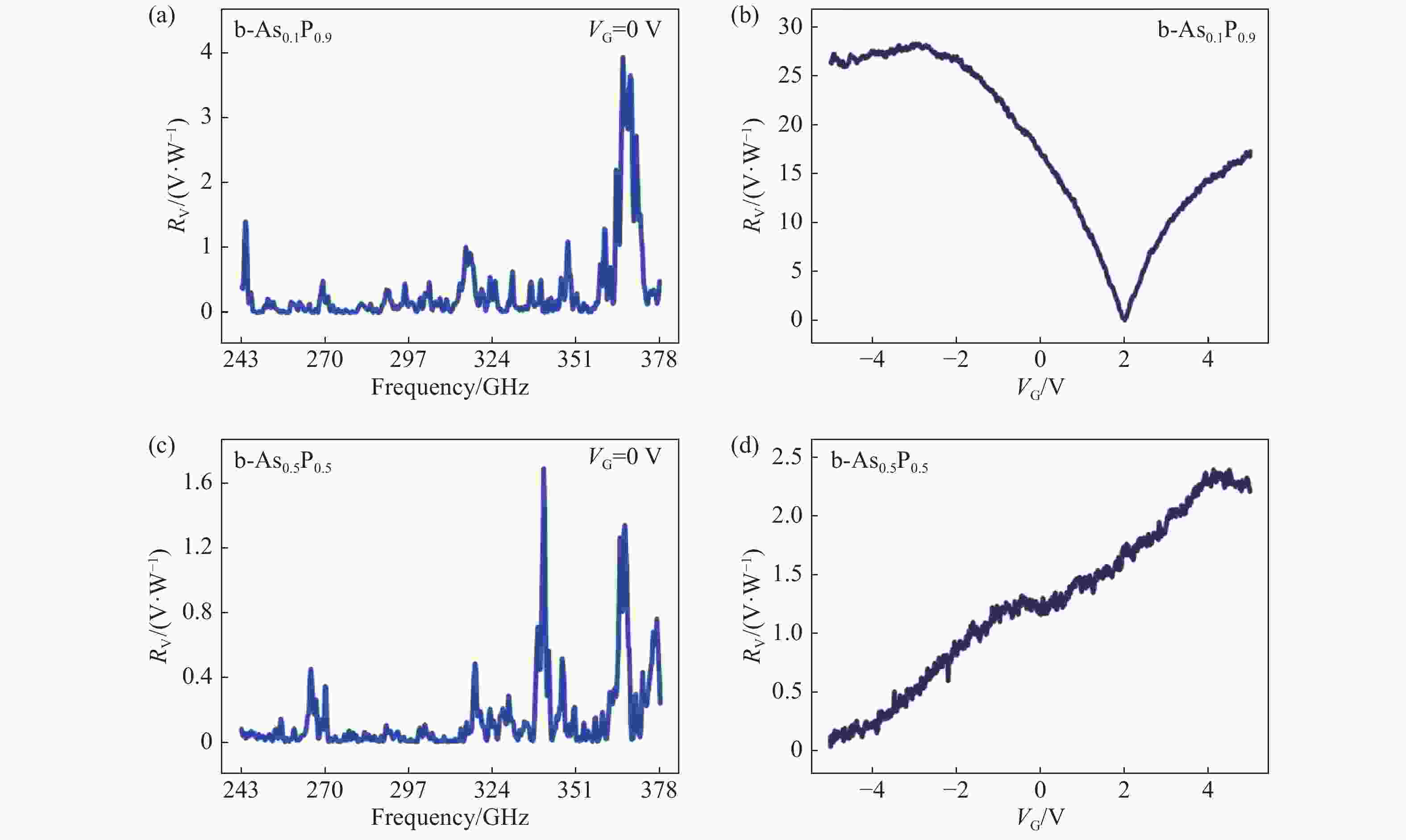

Figure 4.Frequency dependence of the responsivity for the b-As_0.1P_0.9detector (a) and b-As_0.5P_0.5detector (c), measured atV_G= 0 V. Gate bias dependence of the responsivity for the b-As_0.1P_0.9detector (b) and the b-As_0.5P_0.5detector (d), measured at the optimal frequency as obtained from (a) and (c), respectively

下载: 全尺寸图片幻灯片

Figure 5.(a) Schema of the detector based on the self-mixing theory. (b) Photo-excitation and relaxation processes of the carriers in the b-As_xP_1−xflakes irradiated by terahertz photons and the schematic diagram of the MSM structure based on EIW theory

下载: 全尺寸图片幻灯片

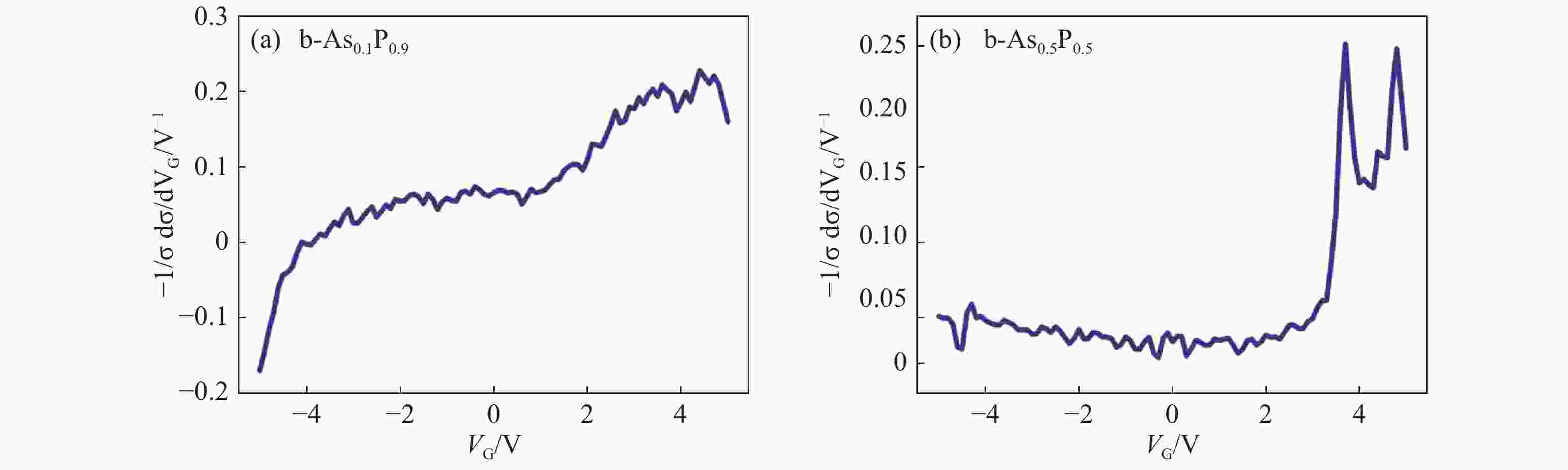

Derivative of conductivity multiplied by the resistance, as a function ofV_G, in b-As_0.1P_0.9(a) and b-As_0.5P_0.5(b) detector. This is the expected responsivity following a plasma-wave detection mechanism. If the domain mechanism is the PW mechanism, the measured shape of theR_Vcurve should be in excellent agreement with that curves.

下载: 全尺寸图片幻灯片

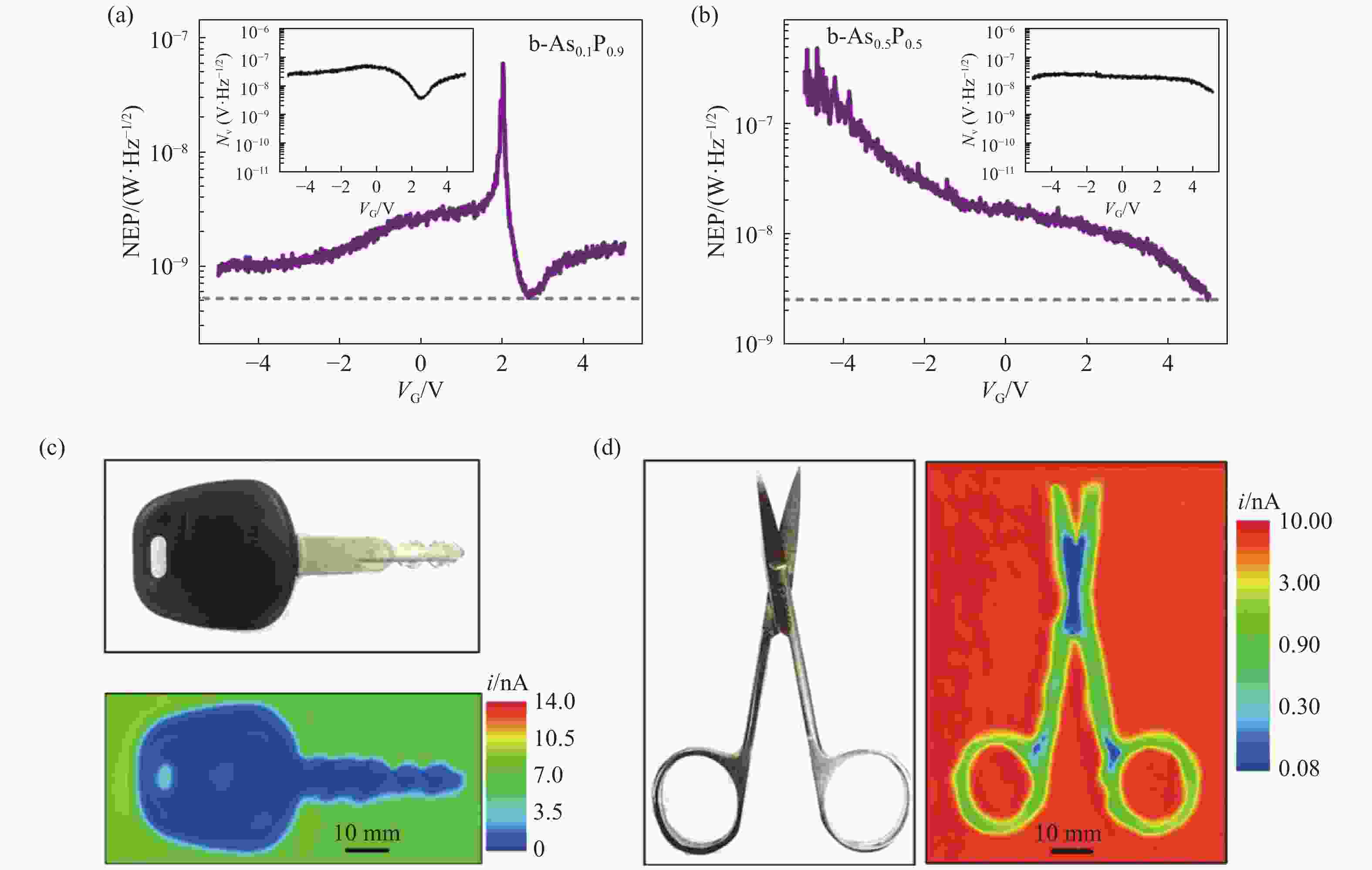

Figure 6.NEP as a function of the gate voltage for b-As_0.1P_0.9detector(a) and b-As_0.5P_0.5detector (b), insert:N_Vas a function of theV_G.Transmission images of a key (c) and a pair of metal scissors (d) inside an envelope by the b-As_0.1P_0.9detector at 0.37 THz

下载: 全尺寸图片幻灯片

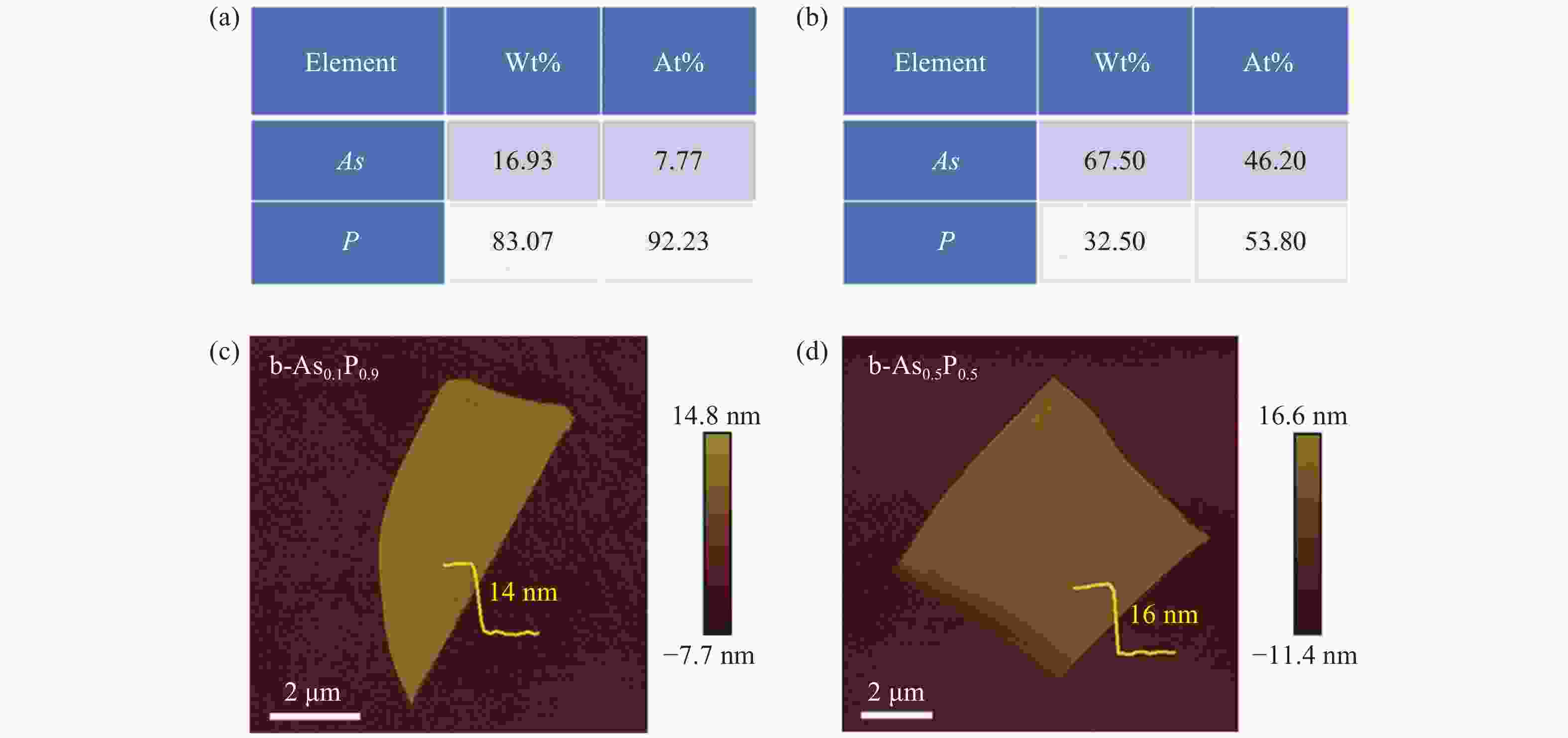

(a, b) Atomic ratio ofAsandPelements for the b-As_0.1P_0.9and b-As_0.5P_0.5, respectively. It proves the b-As_0.1P_0.9and b-As_0.5P_0.5have an accurate elemental ratio of about 1:9 and 5:5. (c, d) The AFM images of few-layer b-As_0.1P_0.9and b-As_0.5P_0.5nanoflakes on a Si substrate with 285 nm SiO₂. It shows clean surface and flat shape, proving the high quality of the mateials. And the corresponding linear scan analysis of height display in the images with a thickness of 14 nm and 16 nm for b-As_0.1P_0.9and b-As_0.5P_0.5nanoflakes, respectively.

下载: 全尺寸图片幻灯片

The terahertz response characteristics of the same BP detector. (a) Frequency dependence of the voltage responsivityfor BP detector atV_G= 0 V. It shows several clear response peaks for the detector and the maximum voltage responsivity located at 0.27 THz.(b, c) Voltage responsivity and noise equivalent power as a function of the gate voltage at 0.27 THz. The maximumR_Vand minimumNEPof about 8.1 V/W and 1.08 nW/Hz^1/2were measured from the curve, respectively.

下载: 全尺寸图片幻灯片
