Brightness correction and color restoration of seabed image obtained by active optical detection
-
摘要:
主动光学成像探测是海底形貌与环境探测的重要方式，广泛应用于大洋勘探、海底探测等领域。然而，由于海水对光的衰减作用，造成光学影像照度不均、颜色失真、对比度低等质量退化问题。本文依据水下主动光学成像探测的特点，提出了一种基于相对辐射校正原理的水下图像增强方法。该方法将增强过程分为亮度补偿和色彩恢复两个阶段。在亮度补偿阶段，依据水下点光源的成像特点和辐射衰减机制，采用相对辐射校正原理对水下图像分通道进行补偿，消除因光源不均、光程不同等因素造成的亮度畸变。在色彩恢复阶段，首先对红通道图像进行自适应补偿和色彩粗平衡，在此基础上进一步利用Retinex模型对图像进行色彩恢复。利用实际的海底勘探图像进行实验验证，结果表明本文方法的增强结果亮度均匀、色彩自然，有效提升了图像质量。相较现有方法，本文方法的结果无论主观感受还是客观评价整体更优。同时，由于本文方法不需要光源、相机等特性参数，仅利用实际观测图像本身进行校正，因而具有更好的适应性。
Abstract:Active optical imaging detection is an important method for seabed topography and environment detection, which is widely used in ocean exploration. However, due to the attenuation effect of light in seawater, the optical images often suffer uneven illumination, color distortion and low contrast. According to the property of underwater active optical imaging, an underwater image enhancement method based on relative radiometric correction is proposed in this paper. The procedure is divided into brightness compensation and color restoration. In brightness compensation, according to the imaging characteristics and radiation attenuation mechanism of a point light source, the relative radiation correction is used to compensate for the channels of underwater images. This stage eliminates the brightness distortion caused by an uneven light source, varying optical paths and so on. In the color restoration, adaptive compensation and rough color balance are performed first on the red channel. Then, the Retinex model is used to restore colors. The real seabed images are used for experiments. The results show that the enhanced images by the proposed method have uniform brightness and natural look. Compared with the other methods, the results of the proposed method are better overall both subjectively and objectively. At the same time, the method proposed in this paper does not need the properties of light source, camera and others. Only the real detection images themselves are used for correction, and achieve better adaptability.
-

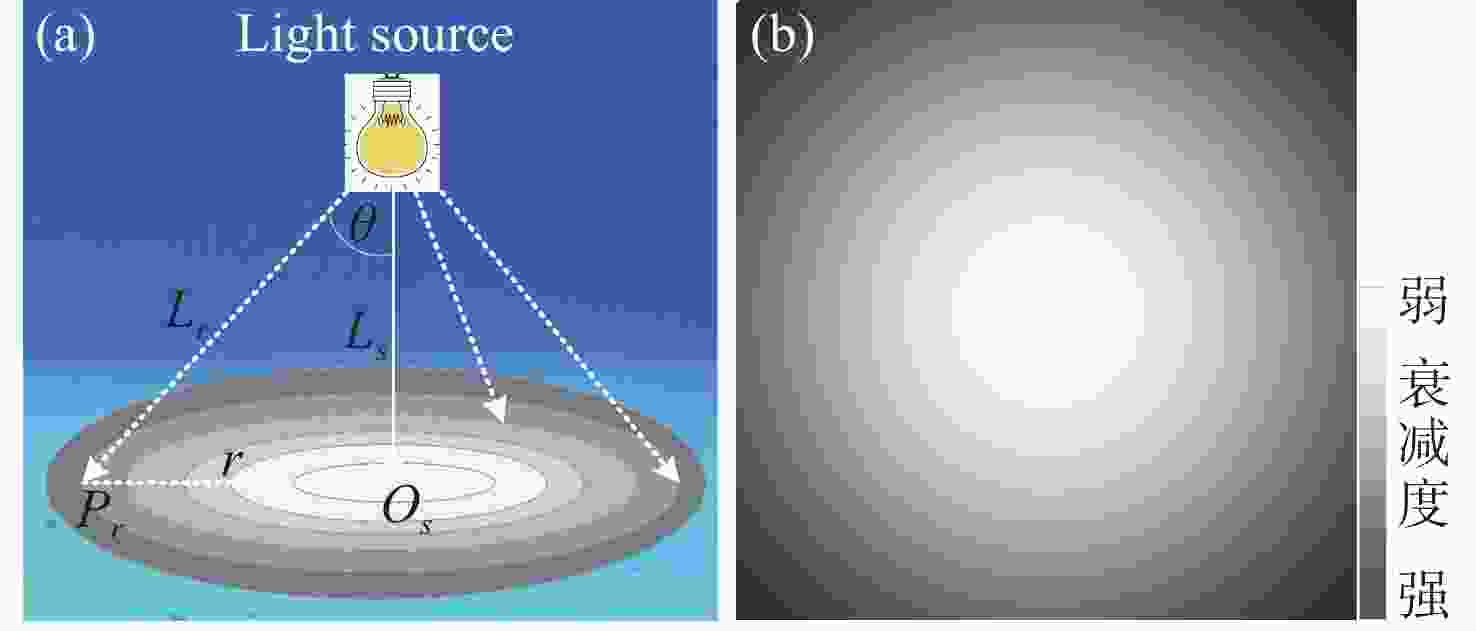

图 1点光源垂直照射下的照度相对分布示意图。（a）理想点光源垂直照射示意图；（b）光照强度衰减示意图
Figure 1.Relative distribution of illuminance under vertical illumination of the point light source . (a) Schematic of vertical illumination of the ideal point light source and (b) schematic of light intensity attenuation
图 3点光源照明下的均匀海底光学图像
Figure 3.Underwater optical image of a uniform seafloor illuminated by the point light source

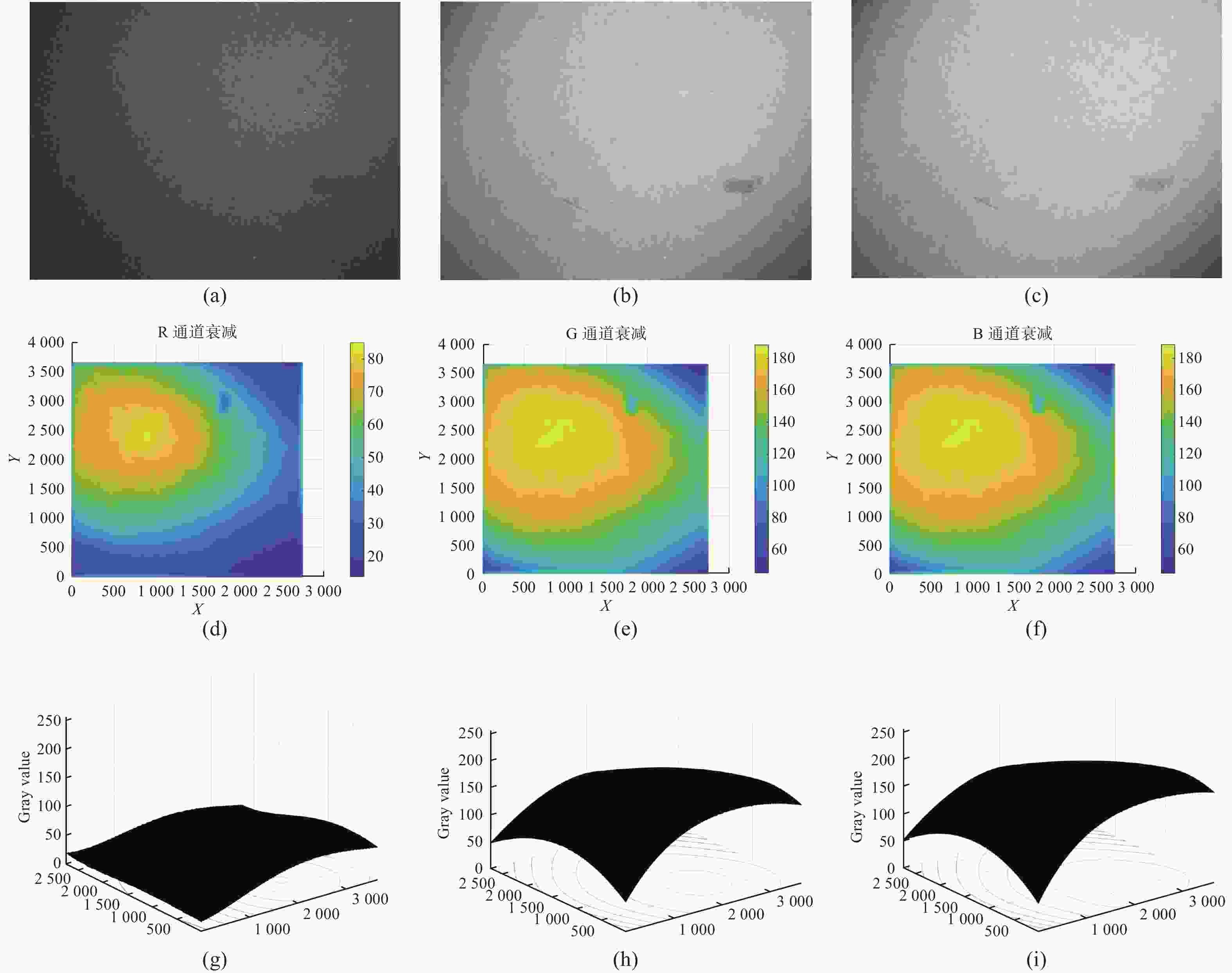

图 4参考图像的各通道图像及其亮度拟合曲面。（a）~（c）参考图像的红、绿、蓝通道；（d）~（f）红、绿、蓝通道的三维俯视图；（g）~（i）红、绿、蓝通道的拟合曲面
Figure 4.Each channel of the reference image and their brightness fitting surface (a)−(c) red, green, blue channels of the reference image; (d)−(f) 3D top view of the red, green and blue channels; (g)−(i) fitting surface of the red, green, blue channels

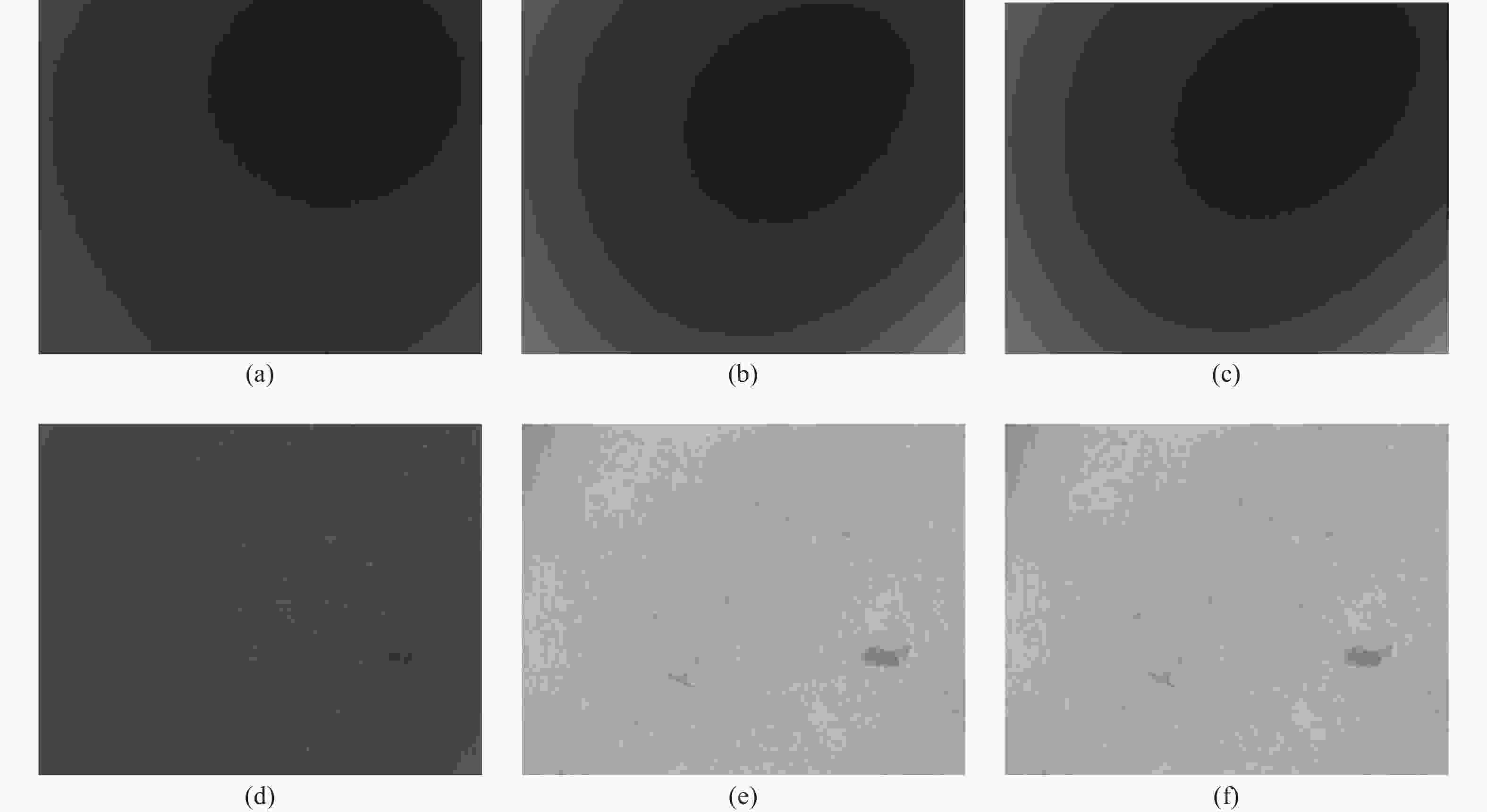

图 5参考图像分通道亮度补偿结果。（a）~（c）分别为红、绿、蓝三通道的亮度补偿量；（d）~ （f）补偿后的红、绿、蓝单通道影像
Figure 5.Individual brightness compensation for each channel of the reference image (a)−(c) Degree of compensation of the red, green and blue channels; (d)−(f) compensated red, green and blue single channel images
图 6采用参考图像校正参数对同批次的图像补偿。（a）~（c）红绿蓝三通道原始灰度图像；（d）~（f）补偿后的红绿蓝影像
Figure 6.The compensation process of the image in the same batch with reference image correction parameters. (a)−(c) Original gray images of the red, green and blue channels, (d)−(f) compensated images of the three channels

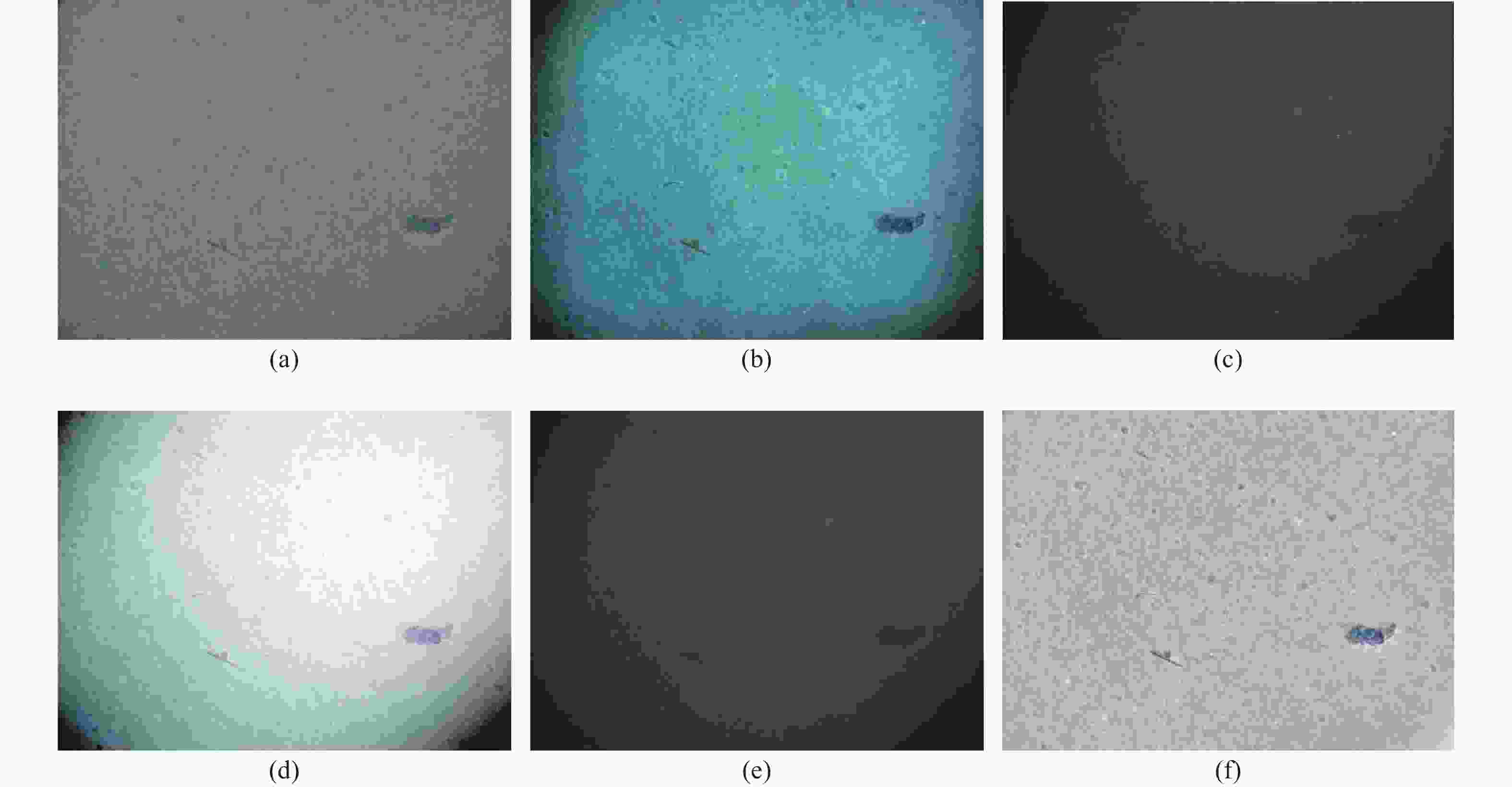

图 8不同算法对参考图像校正的结果。（a）MSR；（b）CLAHE；（c）RCP；（d）RWCGC；（e）UWCNN；（f）本文方法
Figure 8.Comparison of correction results of the underwater image processed by different algorithms. (a) MSR; (b) CLAHE; (c) RCP; (d) RWCGC; (e) UWCNN; (f) The proposed method

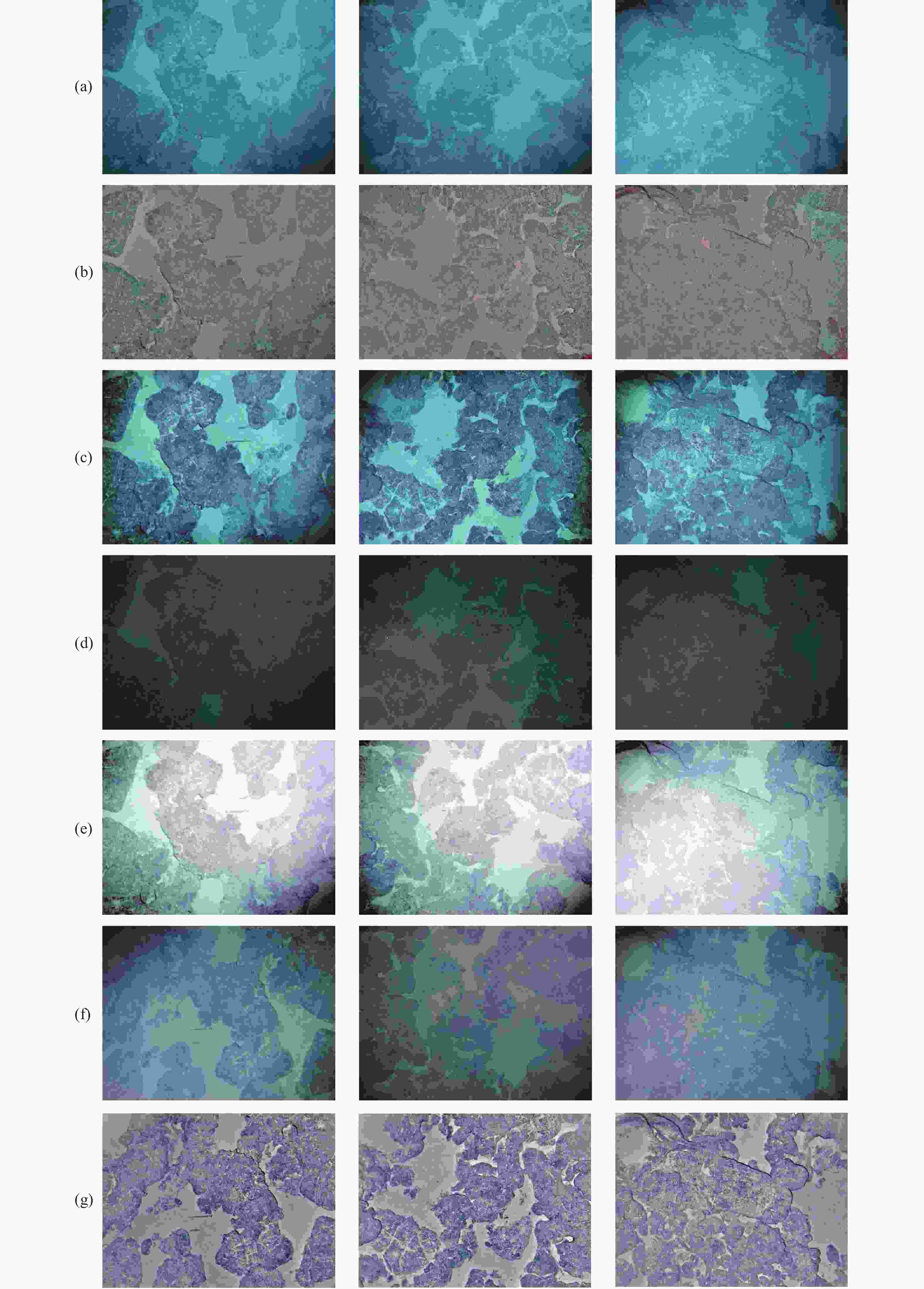

图 9水下图像常用增强处理算法的结果对比。（a）原始图片；（b）~（g）分别使用MSR、CLAHE、RCP、RWCGC、UWCNN和本文方法的增强结果
Figure 9.Comparison of underwater image enhancement processed by different algorithms. (a) Original images; (b)−(g) the results obtained by MSR, CLAHE, RCP, RWCGC, UWCNN and the proposed method

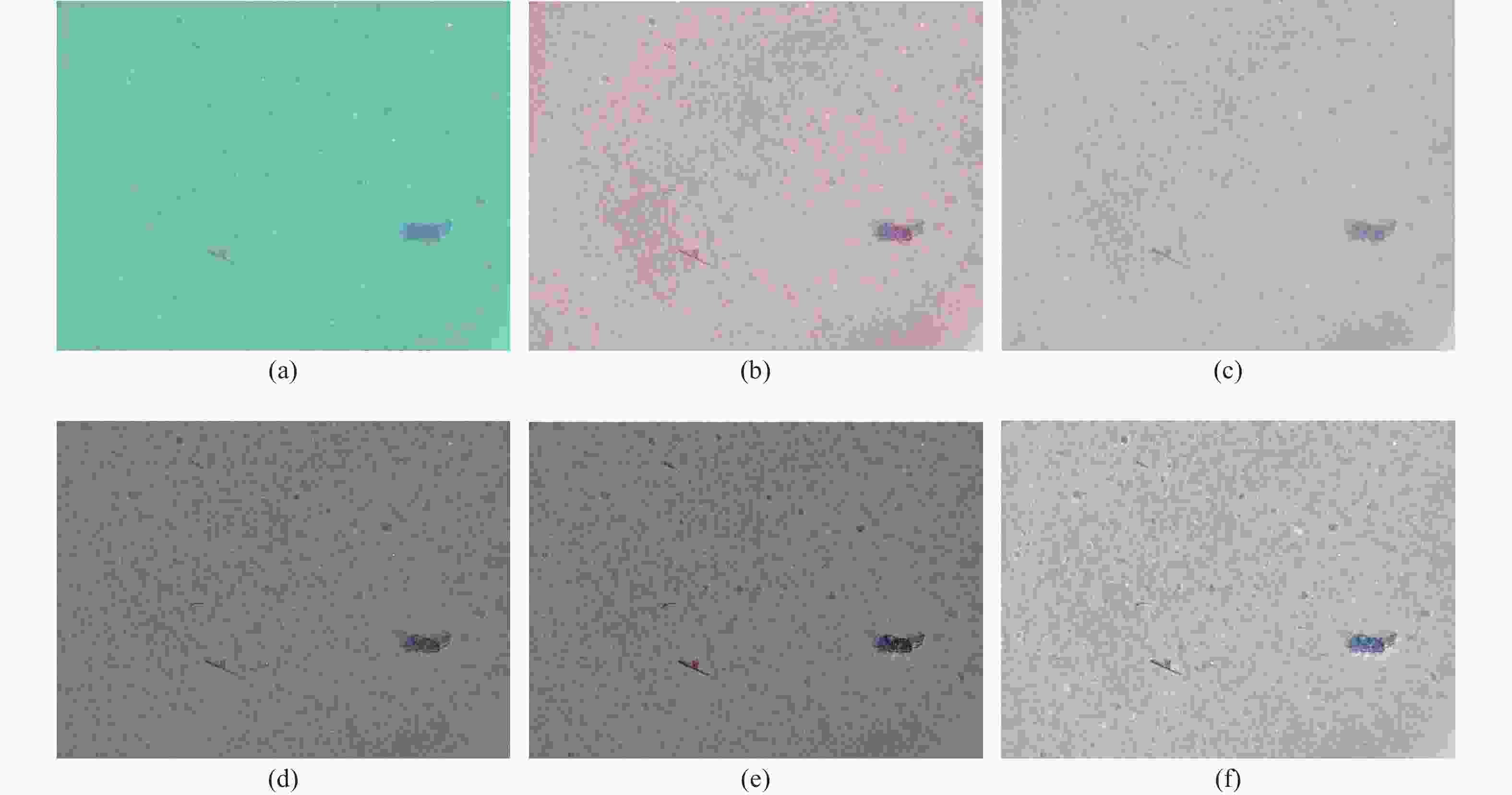

图 7不同图像增强方法效果对比。（a）预补偿输入图像；（b）~（f）分别是灰色世界、本文预处理方法、MSR、灰色世界算法+MSR、本文预处理方法+MSR方法结果
Figure 7.Comparison of image enhancement with different pre-processing methods. (a) Pre-compensation image; (b)−(f) compensated results with Gray world, the proposed pre-processing method, MSR, Gray world + MSR, and the proposed pre-processing method + MSR methods
表 1参考图像各通道灰度曲面四次多项式拟合参数
Table 1.Quartic polynomial fitting parameters of the gray surface of each channel of the reference image
参数 R通道 G通道 B通道 a00 19.25 46.32 50.18 a10 −0.1006 0.4208 0.4696 a01 −0.1152 0.3904 0.4299 a20 1.005×10−3 −4.915×10−4 −7.192×10−4 a11 1.038×10−3 −6.395×10−4 −8.548×10−4 a02 1.002×10−3 −4.785×10−4 −6.328×10−4 a30 −2.241×10−6 1.353×10−7 6.774×10−7 a21 −1.584×10−6 −2.121×10−7 −1.141×10−7 a12 −7.252×10−7 2.581×10−6 3.145×10−6 a03 −2.75×10−6 −8.219×10−7 −5.752×10−7 a40 1.391×10−9 −8.548×10−10 −1.382×10−9 a31 3.485×10−10 3.321×10−9 4.136×10−9 a22 2.072×10−9 −4.899×10−9 −6.476×10−9 a13 −1.332×10−9 4.571×10−10 1.053×10−9 a04 2.382×10−9 3.993×10−10 7.139×10−11
下载:
导出CSV
表 2参考图像及其在不同算法处理后的客观评价结果
Table 2.Objective image quality evaluation results of the reference image and images processed by different algorithms
指标 参考图像 MSR CLAHE RCP RWCGC UWCNN Ours UIQM 0.9322 3.809 2.3193 3.3535 3.1508 1.4238 4.0546 UCIQE 20.3988 24.9813 25.6173 24.0433 28.7847 21.4546 28.2705 注：加粗字体为每行最优值。 下载:
导出CSV
表 3对于图9第一列影像不同算法的客观评价结果
Table 3.Objective image quality evaluation results of the first column of Fig. 9 processed by different algorithms
指标 图9第一列原图 MSR CLAHE RCP RWCGC UWCNN Ours UIQM 1.0147 3.8557 2.9908 2.6969 3.6444 3.0211 4.5062 UCIQE 18.2575 28.0713 24.3802 22.4397 29.3778 21.9017 29.8468 注：加粗字体为每行最优值。 下载:
导出CSV
表 4对于图9第二列影像不同算法的客观质量评价指标
Table 4.Objective image quality evaluation indexes of the second column of Fig. 9 processed by different algorithms
指标 图9第二列原图 MSR CLAHE RCP RWCGC UWCNN Ours UIQM 1.0147 3.8557 2.9908 2.6969 3.6444 3.0211 4.5583 UCIQE 20.5561 27.6709 27.5439 24.2877 29.0778 20.9523 29.5887 注：加粗字体为每行最优值 下载:
导出CSV
表 5对于图9第三列影像不同算法的客观质量评价指标
Table 5.Objective image quality evaluation indexes of the third column of Fig. 9 processed by different algorithms
图9第三列原图 MSR CLAHE RCP RWCGC UWCNN Ours UIQM 0.6739 3.7142 2.8359 2.4611 3.12146 2.6183 4.3095 UCIQE 20.0312 28.1392 25.5831 23.8943 29.0996 22.8868 29.1635 注：加粗字体为每行最优值 下载:
导出CSV
-
