基于机器学习的过焦扫描显微测量方法研究

doi:10.37188/CO.2022-0009

李冠楠^1,,
石俊凯^1,,,
陈晓梅¹,
高超^{1, 2},
姜行健¹,
崔成君¹,
朱强^{1, 2, 3},
霍树春¹,
周维虎^{1, 2}

1.
中国科学院微电子研究所, 光电技术研发中心, 北京100094
2.
中国科学院大学, 北京100049
3.
中钞印刷技术研究院有限公司, 北京 100070

基金项目:国家重点研发计划（No. 2019YFB2005603）；清华大学精密测试技术及仪器国家重点实验室开放基金（No. TH20-01）；国家自然科学基金（No. 51905528）；精密测试及仪器国家重点实验室开放基金（No. pilab2102）

详细信息

作者简介:
李冠楠（1994—），女，内蒙古赤峰人，硕士，助理工程师，2017年于哈尔滨工业大学获得光电信息科学与工程专业学士学位，2020年于中国科学院大学获得光学工程硕士学位，主要从事微纳测量和光学检测方面的研究。E-mail：liguannan@ime.ac.cn
石俊凯（1986—），男，天津宁河人，博士，副研究员，2015年于天津大学精仪学院获得博士学位，主要从事光学精密测量、微纳检测及飞秒方面的研究。E-mail：shijunkai@ime.ac.cn

中图分类号:TP181;P207+.1;TH744
计量
- 文章访问数:979
- HTML全文浏览量:643
- PDF下载量:185
- 被引次数:0
出版历程
- 收稿日期:2022-01-10
- 修回日期:2022-03-03
- 网络出版日期:2022-05-16

Through-focus scanning optical microscopy measurement based on machine learning

1.
Institute of Microelectronics of the Chinese Academy of Sciences, Optoelectronic R & D Center, Beijing 100094, China
2.
University of Chinese Academy of Sciences, Beijing 100049, China
3.
China Banknote Printing Technology Research Institute Co., LTD., Beijing 100070, China

Funds:Supported by the National Key R&D Program of China (No. 2019YFB2005603); the National Key Laboratory of Precision Testing Techniques and Instrument (Tsinghua University) (No. TH20-01); the National Natural Science Foundation of China (No. 51905528); State Key Laboratory of Precision Measuring Technology and Instruments (Tianjin University) (No. pilab2102)

More Information

Corresponding author:shijunkai@ime.ac.cn

摘要

摘要:
微电子机械系统（Micro-Electro-Mechanical System，MEMS）具有小型化、高集成度的特点，随着MEMS结构深宽比的不断增大，对MEMS结构尺寸的测量提出更高的要求。过焦扫描光学显微技术（Through-focus Scanning Optical Microscopy，TSOM）是一种高精度无损的光学测量方法，通过采集一组离焦图并沿扫描方向截取TSOM图像，利用库匹配的方法从中提取待测结构的尺寸信息。该方法对于纳米级结构测量有着极高的灵敏度，然而对于微米级特征尺寸存在建库困难且易受环境干扰的问题。本文针对微米级MEMS沟槽结构，在传统的光学显微镜基础上进行改造，建立了TSOM光学系统采集离焦图像，利用图像特征提取方法生成TSOM特征向量集，结合机器学习的方法建立不同槽宽尺寸的回归预测模型，对微米级MEMS槽宽尺寸实现纳米级测量精度，单点重复性测量2 μm槽宽的相对标准差（Relative Standard Deviation，RSD）在1%左右，10 μm和30 μm槽宽RSD分别低于0.2%和0.35%，结果表明该方法对于微米级MEMS沟槽测量具有极高的应用前景。
- MEMS/
- 机器学习/
- 过焦扫描光学显微法/
- 微纳测量
Abstract:
Micro-Electro-Mechanical Systems (MEMS) have the characteristics of miniaturization and high integration. As the high aspect ratio of MEMS increases, the measurement of MEMS feature size faces greater challenges. Through-focus Scanning Optical Microscopy (TSOM) technology is a high-precision and nondestructive optical measurement method. TSOM images are captured along the scanning direction by collecting a set of defocused images and the size information of the structure is extracted from TSOM images by the library matching method. This method is highly sensitive and suitable for nano-scale structure measurements, but it is difficult to build a database for micron-scale features and is susceptible to environmental interference. In this paper, a TSOM optical system is established and traditional optical microscopy is used to collect a set of defocused images. The TSOM’s feature vector set is obtained by the image feature extraction method and is combined with machine learning to establish MEMS groove regression prediction models with different feature sizes. The results show that the above method can achieve nano-scale high precision measurement of a MEMS groove width and the single point repeatability measurement has great performance. The Relative Standard Deviation (RSD) of 2 μm width is about 1%, and the RSD of 10 μm and 30 μm width are respectively lower than 0.2% and 0.35%. This method has very high application prospects for micron MEMS groove structure measurement.
- MEMS/
- machine learning/
- TSOM/
- micro-nano measuring

HTML全文

图 1TSOM流程示意图

Figure 1.Schematic diagram of the TSOM process

下载: 全尺寸图片幻灯片

图 2（a）TSOM实验装置；（b）、（c）、（d）槽宽2 μm、10 μm、30 μm的TSOM伪彩图，其中横向对应像素点，纵向对应离焦扫描位置

Figure 2.(a) TSOM experimental setup; TSOM pseudo color images with widths of (b) 2 μm, (c) 10 μm, and (d) 30 μm. The lateral axis represents pixels and the vertical axis represents through-focus positions

下载: 全尺寸图片幻灯片

图 3基于HOG-SVR的MEMS槽宽预测流程图

Figure 3.MEMS widths prediction flowchart based on HOG-SVR

下载: 全尺寸图片幻灯片

图 4HOG特征提取

Figure 4.HOG feature extraction

下载: 全尺寸图片幻灯片

图 5SVR原理图

Figure 5.Schematic diagram of SVR

下载: 全尺寸图片幻灯片

图 6数据集获取流程

Figure 6.Processes of dataset acquirement

下载: 全尺寸图片幻灯片

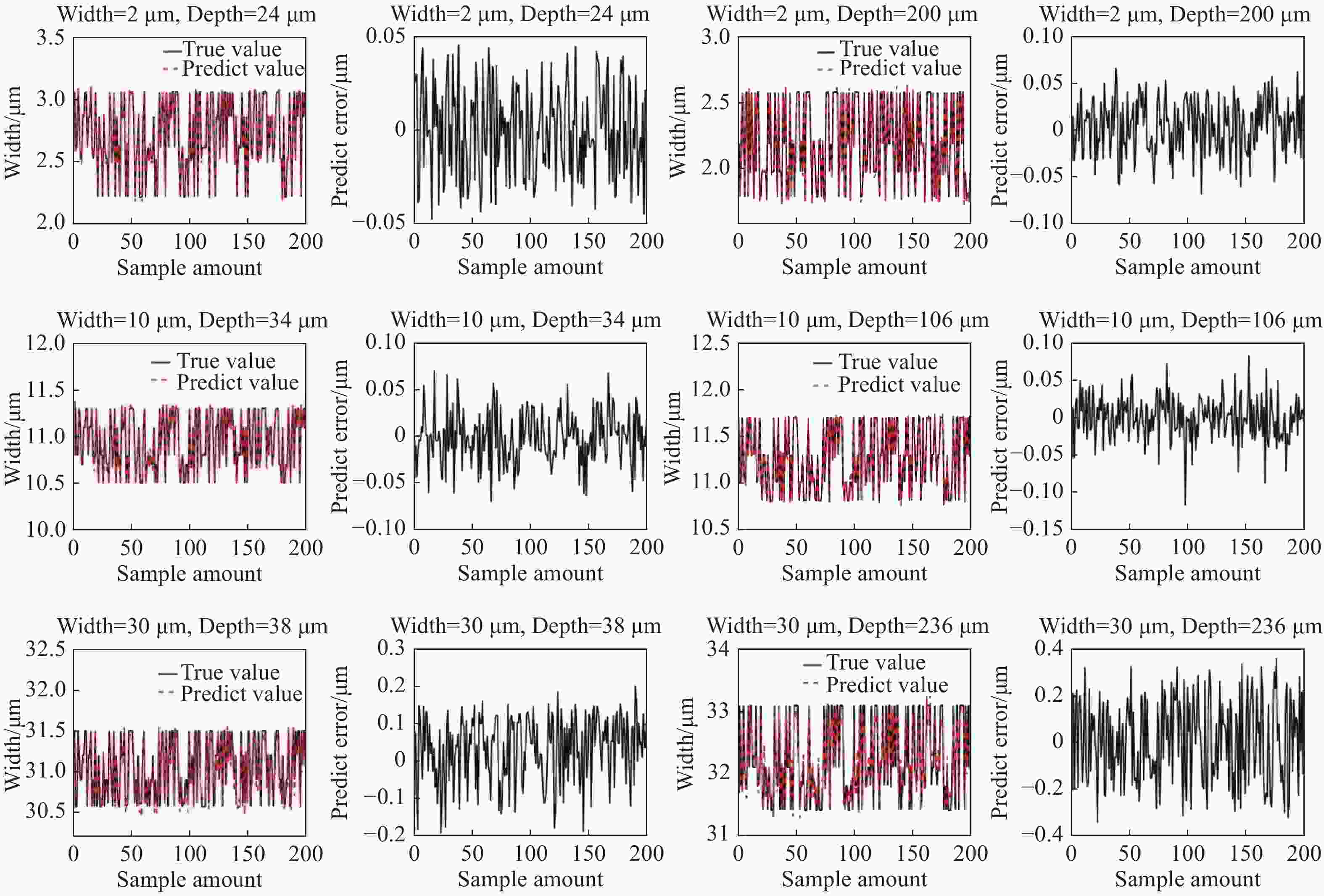

图 7不同槽宽和槽深的MEMS沟槽基于SVR的预测结果

Figure 7.Prediction results of MEMS groove with different widths and depths based on SVR

下载: 全尺寸图片幻灯片

图 8模型预测性能评价指标

Figure 8.Evaluation indicators of prediction performance of the model

下载: 全尺寸图片幻灯片

图 9模型单点重复性预测结果

Figure 9.Prediction results of single point repeatability of the mode

下载: 全尺寸图片幻灯片

表 1样品参数

Table 1.Sample parameters

样品编号	设计槽宽/μm	槽深/μm	深宽比	电镜实测槽宽/μm
1	2	24	12∶1	2.21/2.52/2.61/2.86/3.06
2	2	200	100∶1	1.79/1.98/2.19/2.58
3	10	34	3.4∶1	10.5/10.7/10.8/11.1/11.3
4	10	106	10.6∶1	10.8/11/11.3/11.7
5	30	38	1.3∶1	30.6/30.9/31/31.2/31.5
6	30	236	7.9∶1	31.4/31.8/32.1/33.1

下载: 导出CSV
