基于层析成像的 强度分布测量方法

王倩,蔡伟伟,陶波

downloadPDF
王倩, 蔡伟伟, 陶波. 基于层析成像的 强度分布测量方法[J]. , 2023, 16(4): 743-752. doi: 10.37188/CO.2022-0016
引用本文: 王倩, 蔡伟伟, 陶波. 基于层析成像的 强度分布测量方法[J]. , 2023, 16(4): 743-752.doi:10.37188/CO.2022-0016
WANG Qian, CAI Wei-wei, TAO Bo. Laser intensity distribution measurement method based on tomographic imaging[J]. Chinese Optics, 2023, 16(4): 743-752. doi: 10.37188/CO.2022-0016
Citation: WANG Qian, CAI Wei-wei, TAO Bo. Laser intensity distribution measurement method based on tomographic imaging[J].Chinese Optics, 2023, 16(4): 743-752.doi:10.37188/CO.2022-0016

基于层析成像的 强度分布测量方法

doi:10.37188/CO.2022-0016
基金项目:国家重点实验室开放基金(No. SKLLIM1809)
详细信息
    作者简介:

    王 倩(1997—),女,陕西咸阳人,博士研究生,2018年于四川大学获得工学学士学位,2018年9月至今博士就读于上海交通大学机械与动力工程学院,专业为动力工程及工程热物理,主要从事燃烧诊断方面的研究。E-mail:wangqian_xdd@sjtu.edu.cn

    蔡伟伟(1985—),男,浙江温州人,上海交通大学机械与动力工程学院特别研究员,博士生导师,致力于计算成像与燃烧诊断技术的交叉与融合,形成了具有特色的热物性与热物理测试研究方向。近年来,相继在Science、PECS等期刊发表论文90余篇。2016年入选国家高层次人才引进计划、2018年获得德国埃尔朗根高等光学研究院青年科学家奖。E-mail:cweiwei@sjtu.edu.cn

    陶 波(1986—),男,安徽舒城人,西北核技术研究所副研究员,主要从事 参数测量及诊断方面的研究工作。E-mail:taobo@nint.ac.cn

  • 中图分类号:TP394.1;TH691.9

Laser intensity distribution measurement method based on tomographic imaging

Funds:Supported by State Key Laboratory of Laser Interaction with Matter Research Fund (No. SKLLIM1809)
More Information
  • 摘要:

    为了对 光强分布进行准确测量,本文提出基于层析成像技术的 光强分布测量方法。首先,通过数值仿真计算,对采用的成像模型的准确性以及重建算法的收敛性进行验证。对不同 光强分布模型以及不同随机噪声等级时的重建精度进行评估。经计算,采用不同典型 光强模型时其重建误差均小于等于7.02%;在施加10%以内随机噪声时,重建误差均小于8.5%。设计并搭建了层析成像系统,采用定制的一分七光纤束实现7七个角度信号的测量。7个角度分布在垂直于 光束平面内的近半圆周内,各个角度距重建区域的距离约为160 mm,且7个角度的角度覆盖范围约为150°。实验通过探测 光束穿过若丹明-乙醇溶液之后的体 诱导荧光信号,结合后续的数据处理过程间接实现 光强三维分布的反演。在数据处理过程中,采用交替迭代重建算法对探测信号进行吸收矫正的三维重建,可间接地获得 光强分布。为了定量评估测量精度,在进行重建时仅采用其中6个角度,将余下一角度的重建反投影以及投影数据间的相关性用来间接证明此重建方法的可行性。计算结果表明,该角度投影以及反投影之间的相关性系数为0.9802,可间接的验证该方法的可行性。可以预见,本工作提出的 光强三维测量方案在 应用领域具有广泛的前景。

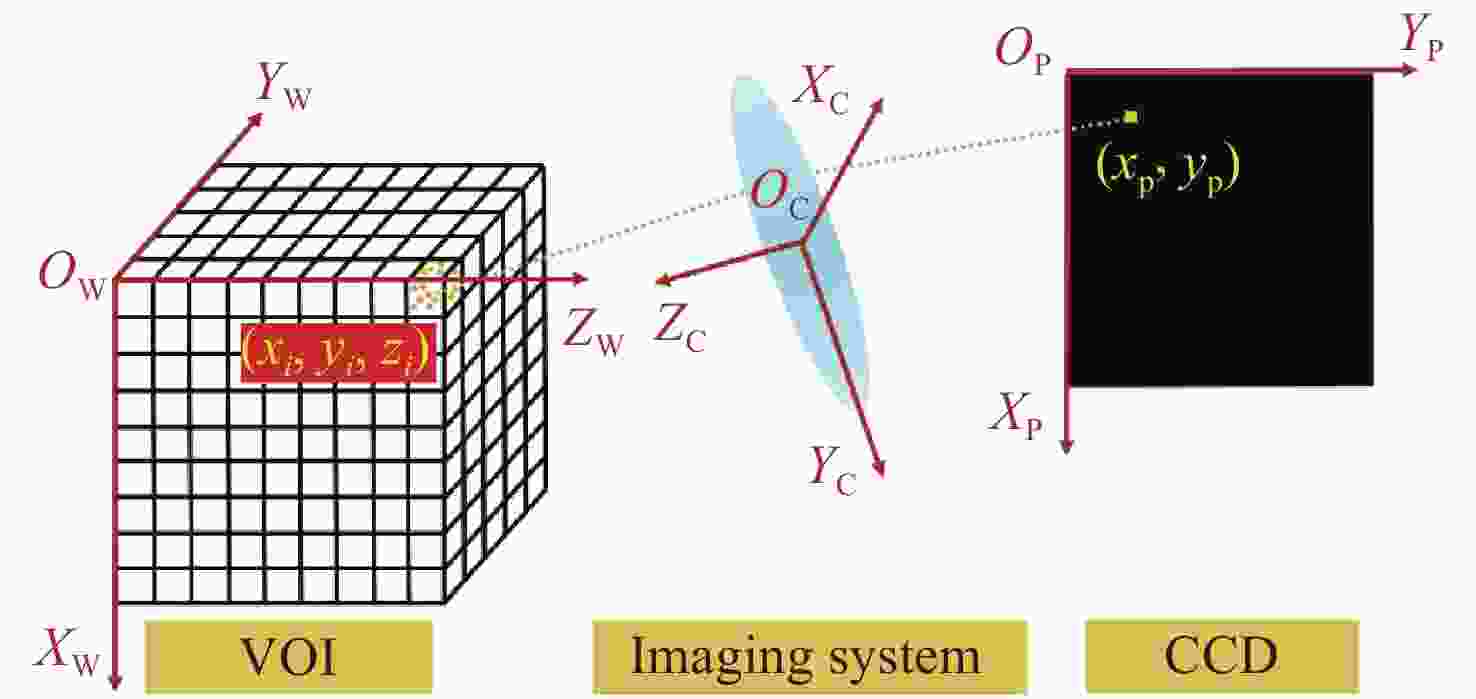

  • 图 1成像过程原理图

    Figure 1.Illustration of the imaging process

    图 2不同 光强三维分布phantom及其重建结果等值面示意图:(a−b)为沿着光束传播方向光强无变化的高斯分布;(c−d)为沿着光束传播方向光强分布有变化的分布;(e−f)为沿着光束传播方向光强无变化的非高斯分布;(a)、(c)、(e)为原始phantom,(b)、(d)、(f)为对应的重建结果

    Figure 2.Isosurfaces of laser intensity distribution 3D phantoms and the corresponding reconstructions: (a−b) laser intensity with Gaussian distribution, kept unhanged along the propagation direction of the beam; (c−d) laser intensity with Gaussian distribution, changed along the propagation direction of the beam; (e−f) laser intensity with non-Gaussian distribution, unhanged along the propagation direction of the beam; (a), (c) and (e) are original phantoms and (b), (d) and (f) are the corresponding reconstructions

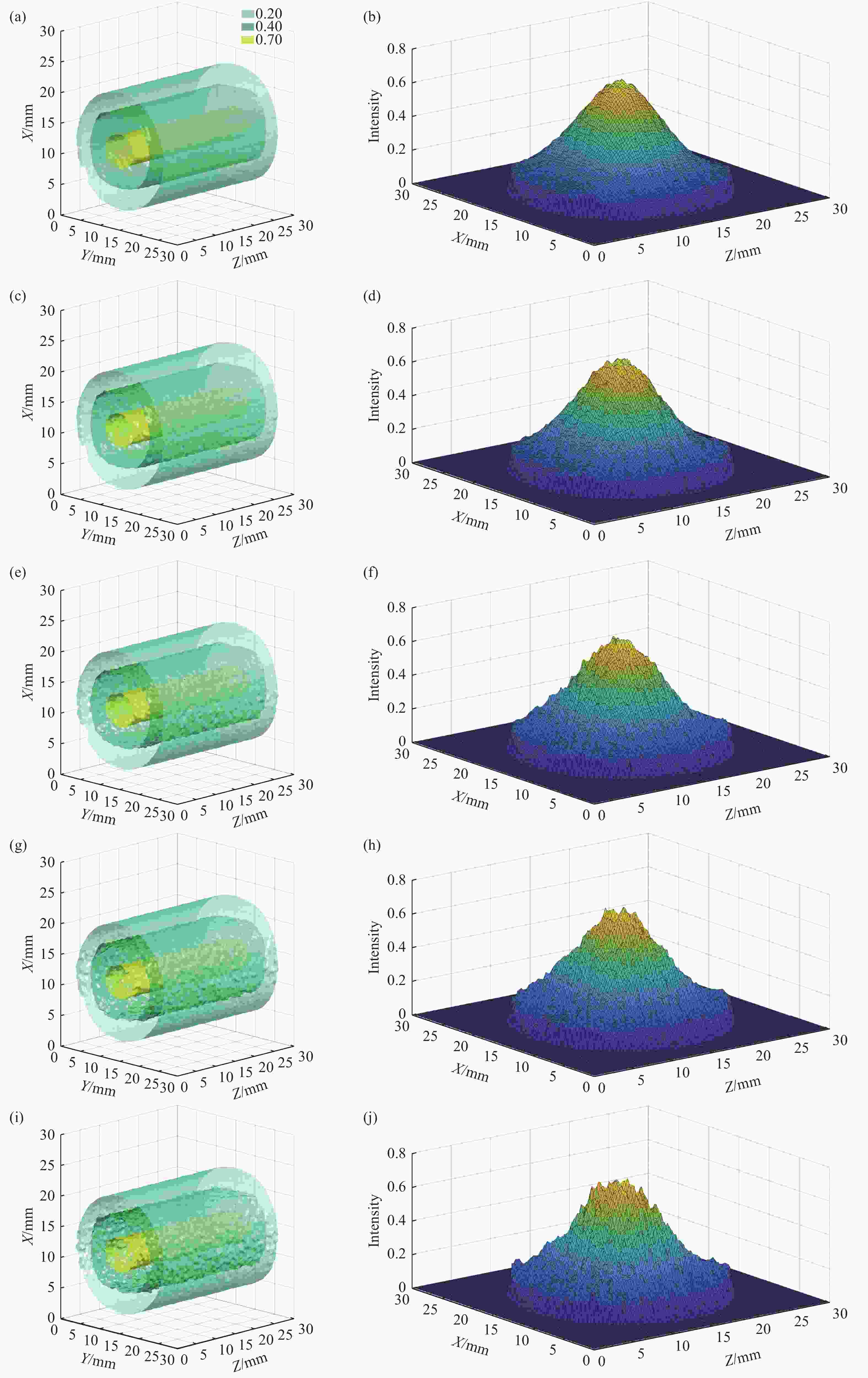

    图 3不同信噪比下 光强分布三维重建等值面结果及中间截面 光强二维分布示意图:(a−b)、(c−d)、(e−f)、(g−h)和(i−j)分别为施加2%, 4%, 6%, 8%和10%的随机噪声

    Figure 3.Isosurfaces of laser intensity distribution 3D reconstructions under different signal-to-noise ratios and the corresponding 2D slices for the middle section: (a−b), (c−d), (e−f), (g−h) and (i−j) are corresponding to adding 2%, 4%, 6%, 8% and 10% random noise, respectively

    图 4不同信噪比下的重建误差曲线

    Figure 4.Curve of the reconstruction error corresponding to different noise levels

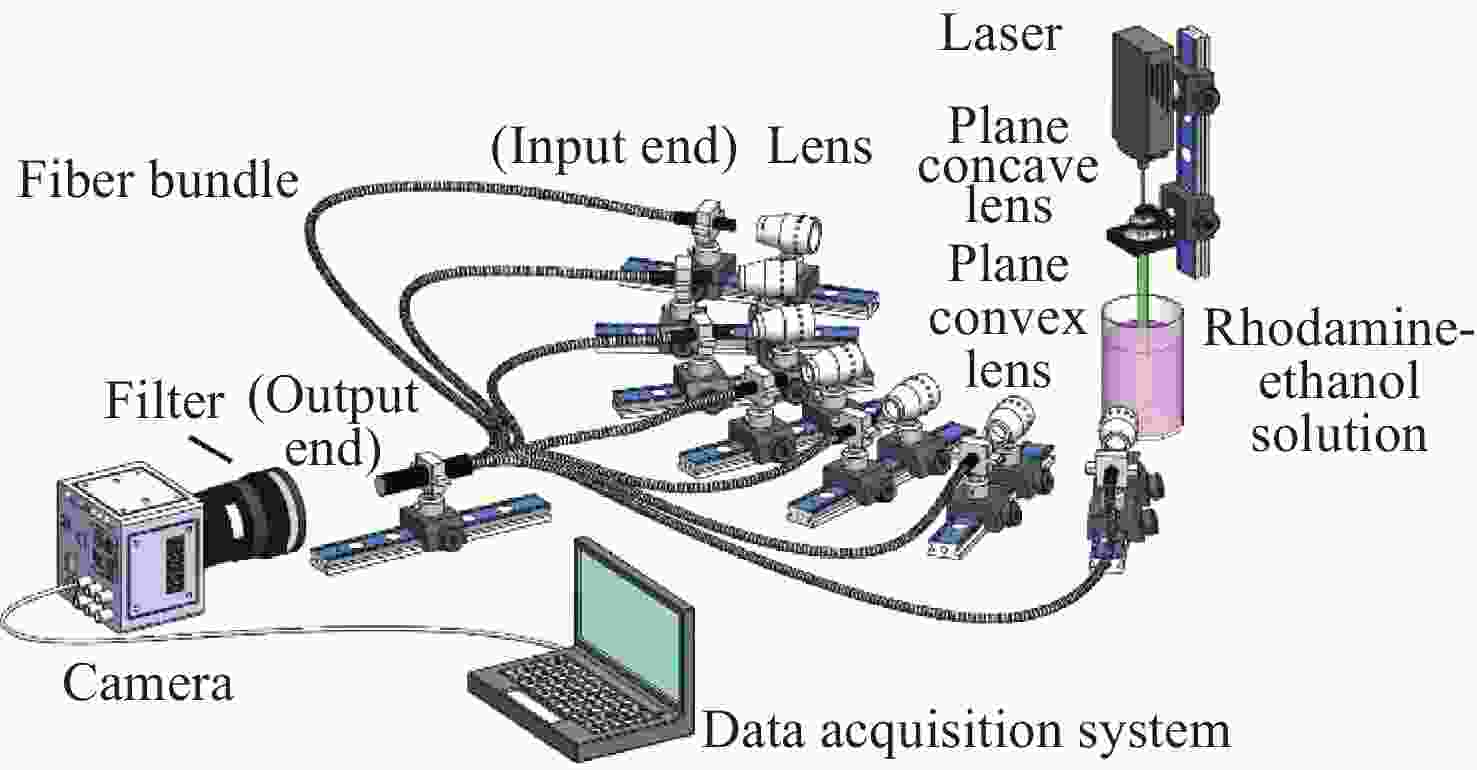

    图 5实验装置示意图

    Figure 5.Illustration of the experiment setup

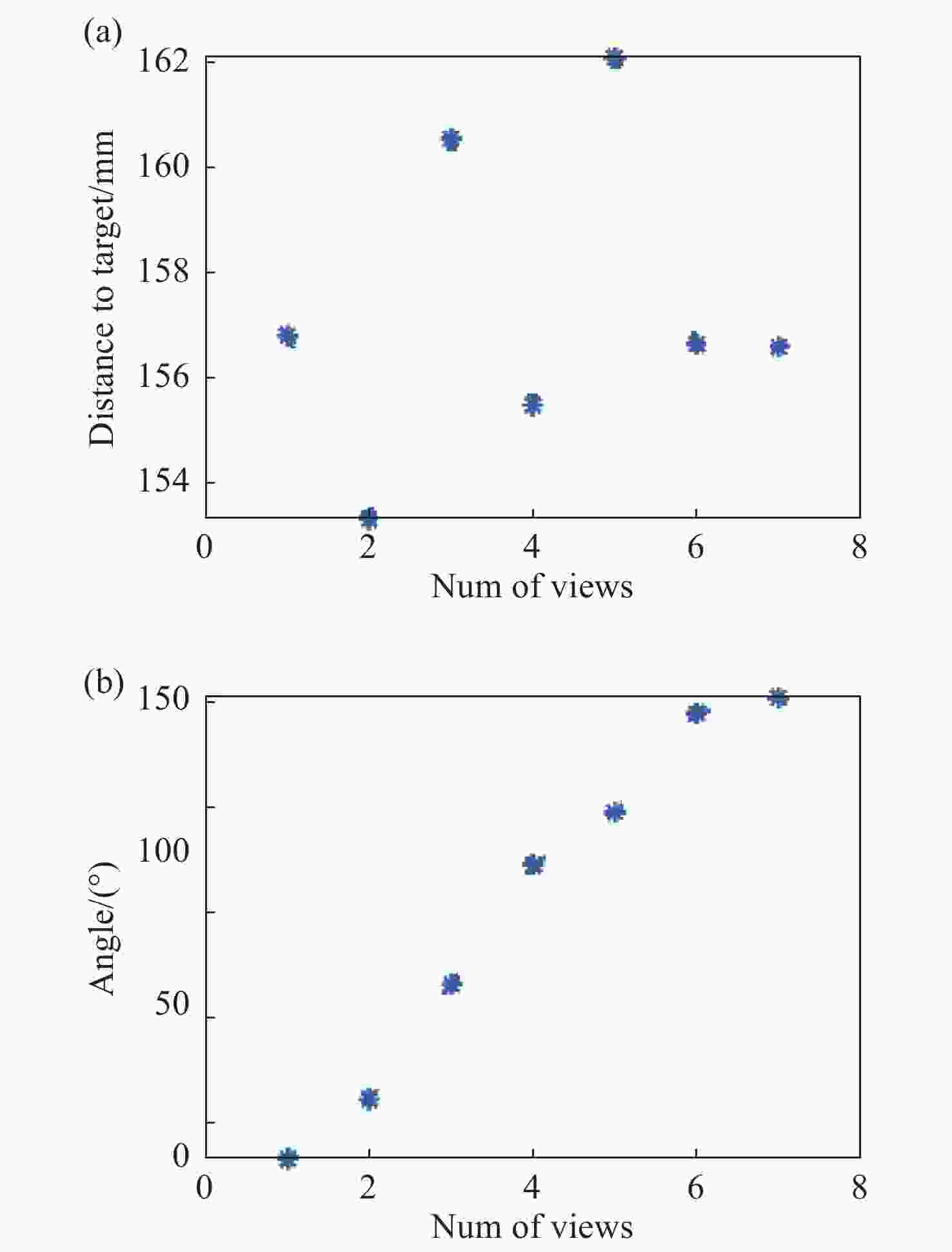

    图 6各角度位置示意图

    Figure 6.Schematic diagram of the position for different views

    图 7(a)三维 光强重建结果示意图; (b)某中间截面 光强二维分布示意图

    Figure 7.(a) 3D reconstruction results of the laser light intensity; (b) 2D center slice of the 3D reconstruction

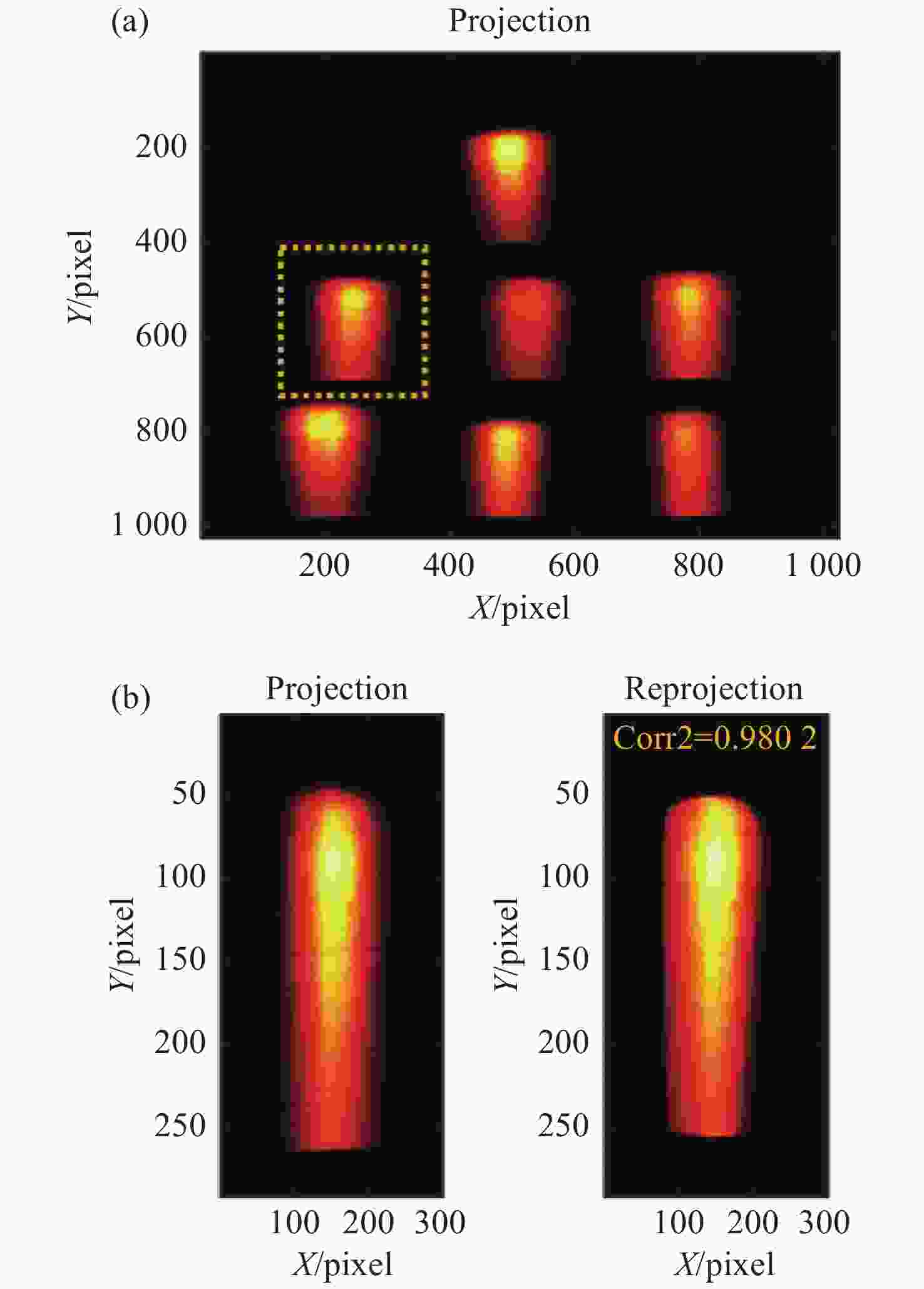

    图 8投影与反投影对比示意图。(a)实验测得7个角度 光强投影; (b)某角度投影与反投影(其中,投影和反投影相关系数为0.9802)

    Figure 8.Contrast of projection and re-projection. (a) Projections from seven views obtained experimentally;(b) projection and re-projection from a specific view (r=0.980 2)

  • [1] 王家乐. 基于光斑图像的 能量密度分布测量技术[D]. 长春: 长春理工大学, 2013

    WANG J L. Measurement technology of energy density distribution based on spot image[D]. Changchun: Changchun University of Science and Technology, 2013. (in Chinese)
    [2] 王艳茹, 王建忠, 冉铮惠, 等. 高能 光束质量β因子的影响因素分析[J]. 中国光学,2021,14(2):353-360.doi:10.37188/CO.2020-0137

    WANG Y R, WANG J ZH, RAN ZH H,et al. Analysis of effects on the beam qualityβfactor of high power laser[J].Chinese Optics, 2021, 14(2): 353-360. (in Chinese)doi:10.37188/CO.2020-0137
    [3] 郜魏柯, 杜小平, 王阳, 等. 散斑目标探测技术综述[J]. 中国光学,2020,13(6):1182-1193.doi:10.37188/CO.2020-0049

    GAO W K, DU X P, WANG Y,et al. Review of laser speckle target detection technology[J].Chinese Optics, 2020, 13(6): 1182-1193. (in Chinese)doi:10.37188/CO.2020-0049
    [4] 文康, 李和章, 马壮, 等. 光斑尺寸对连续 辐照铝合金温度响应影响研究[J]. 中国光学,2020,13(5):1023-1031.doi:10.37188/CO.2020-0022

    WEN K, LI H ZH, MA ZH,et al. Effects of spot size on the temperature response of an aluminum alloy irradiated by a continuous laser[J].Chinese Optics, 2020, 13(5): 1023-1031. (in Chinese)doi:10.37188/CO.2020-0022
    [5] 庞淼, 袁学文, 高学燕, 等. 散射成像法测量 强度分布中的光斑畸变校正[J]. 光学学报,2010(2):5.doi:CNKI:SUN:GXXB.0.2010-02-029

    PANG M, YUAN X W, GAO X Y,et al. Spot distortion calibration in measurement of laser intensity distribution based on imaging by scattering[J].Chinese Physics B, 2010(2): 5. (in Chinese)doi:CNKI:SUN:GXXB.0.2010-02-029
    [6] 王飞, 徐作冬, 戢运峰, 等. 采用扫描式漫反射成像法的 强度分布测量装置[J]. 红外与 工程,2014,43(7):4.doi:10.3969/j.issn.1007-2276.2014.07.033

    WANG F, XU Z D, JI Y F,et al. Measurement system for laser intensity distribution based on scanning diffuse reflection imaging[J].Infrared and Laser Engineering, 2014, 43(7): 4. (in Chinese)doi:10.3969/j.issn.1007-2276.2014.07.033
    [7] ZHU ZH, WANG Y ZH, YI Y X,et al. Novel direct-detection scheme for measuring energy distribution of laser spots in outfield[J].Opto-Electronic Engineering, 2005, 32(11): 49-53.
    [8] CHO K Y, SATIJA A, POURPOINT T L,et al. High-repetition-rate three-dimensional OH imaging using scanned planar laser-induced fluorescence system for multiphase combustion[J].Applied Optics, 2014, 53(3): 316-326.doi:10.1364/AO.53.000316
    [9] NYGREN J, HULT J, RICHTER M,et al. Three-dimensional laser induced fluorescence of fuel distributions in an HCCI engine[J].Proceedings of the Combustion Institute, 2002, 29(1): 679-685.doi:10.1016/S1540-7489(02)80087-6
    [10] 陈琦, 徐熙平, 姜肇国, 等. 基于光场相机的深度面光场计算重构[J]. 光学 精密工程,2018,26(3):708-714.doi:10.3788/OPE.20182603.0708

    CHEN Q, XU X P, JIANG ZH G,et al. Light field computational reconstruction from focal planes based on light field camera[J].Optics and Precision Engineering, 2018, 26(3): 708-714. (in Chinese)doi:10.3788/OPE.20182603.0708
    [11] SUN J, XU CH L, ZHANG B,et al. Three-dimensional temperature field measurement of flame using a single light field camera[J].Optics Express, 2016, 24(2): 1118-1132.doi:10.1364/OE.24.001118
    [12] LILLO P M, GREENE M L, SICK V. Plenoptic single-shot 3D imaging of in-cylinder fuel spray geometry[J].Zeitschrift für Physikalische Chemie, 2015, 229(4): 549-560.
    [13] SAMARASINGHE J, PELUSO S, SZEDLMAYER M,et al. Three-dimensional chemiluminescence imaging of unforced and forced swirl-stabilized flames in a lean premixed multi-nozzle can combustor[J].Journal of Engineering for Gas Turbines and Power, 2013, 135(10): 101503.doi:10.1115/1.4024987
    [14] CAI W W, LI X S, MA L. Practical aspects of implementing three-dimensional tomography inversion for volumetric flame imaging[J].Applied Optics, 2013, 52(33): 8106-8116.doi:10.1364/AO.52.008106
    [15] CAI W W, LI X S, LI F,et al. Numerical and experimental validation of a three-dimensional combustion diagnostic based on tomographic chemiluminescence[J].Optics Express, 2013, 21(6): 7050-7064.doi:10.1364/OE.21.007050
    [16] SHI SH X, WANG J H, DING J F,et al. Parametric study on light field volumetric particle image velocimetry[J].Flow Measurement and Instrumentation, 2016, 49: 70-88.doi:10.1016/j.flowmeasinst.2016.05.006
    [17] ZHOU G X, LI F, WANG K L,et al. Research on a quantitative method for three-dimensional computed tomography of chemiluminescence[J].Applied Optics, 2020, 59(17): 5310-5318.doi:10.1364/AO.393225
    [18] WINDLE C I, ANDERSON J, BOYD J,et al.In situimaging of 4D fire events in a ground vehicle testbed using customized fiber-based endoscopes[J].Combustion and Flame, 2021, 224: 225-232.doi:10.1016/j.combustflame.2020.11.022
    [19] WANG Q, YU T, LIU H C,et al. Optimization of camera arrangement for volumetric tomography with constrained optical access[J].Journal of the Optical Society of America B, 2020, 37(4): 1231-1239.doi:10.1364/JOSAB.385291
    [20] LIU H C, PAOLILLO G, ASTARITA T,et al. Computed tomography of chemiluminescence for the measurements of flames confined within a cylindrical glass[J].Optics Letters, 2019, 44(19): 4793-4796.doi:10.1364/OL.44.004793
    [21] ZHANG ZH Y. Flexible camera calibration by viewing a plane from unknown orientations[C].Proceedings of the Seventh IEEE International Conference on Computer Vision, IEEE, 1999: 666-673.
    [22] YU T, LIU H C, CAI W W. On the quantification of spatial resolution for three-dimensional computed tomography of chemiluminescence[J].Optics Express, 2017, 25(20): 24093-24108.doi:10.1364/OE.25.024093
    [23] YU T, TIAN B, CAI W W. Development of a beam optimization method for absorption-based tomography[J].Optics Express, 2017, 25(6): 5982-5999.doi:10.1364/OE.25.005982
    [24] WEI CH Y, PINEDA D I, PAXTON L,et al. Mid-infrared laser absorption tomography for quantitative 2D thermochemistry measurements in premixed jet flames[J].Applied Physics B, 2018, 124(6): 123.doi:10.1007/s00340-018-6984-z
    [25] YU T, LI Z M, RUAN C,et al. Development of an absorption-corrected method for 3D computed tomography of chemiluminescence[J].Measurement Science and Technology, 2019, 30(4): 045403.doi:10.1088/1361-6501/ab01c1
    [26] LIU H C, SUN B, CAI W W. kHz-rate volumetric flame imaging using a single camera[J].Optics Communications, 2019, 437: 33-43.doi:10.1016/j.optcom.2018.12.036
    [27] LIU H C, YU T, ZHANG M,et al. Demonstration of 3D computed tomography of chemiluminescence with a restricted field of view[J].Applied Optics, 2017, 56(25): 7107-7115.doi:10.1364/AO.56.007107
