用于量子传感的窄线宽无磁垂直腔面发射器

doi:10.37188/CO.2022-0135

张星^{1, 2,,},
张建伟^{1, 2},
周寅利^{1, 2},
薛洪波³,
宁永强¹,
王立军¹

1.
中国科学院长春光学精密机械与物理研究所, 吉林长春 130033
2.
长春中科长光时空光电技术有限公司, 吉林长春 130102
3.
中国科学院国家空间科学中心, 北京 100190

基金项目:国家重点研发计划（No. 2018YFB2002401）；国家自然科学基金项目（No. 62090060, No. 52172165）；中国科学院科技网络服务计划项目（No. KFJ-STS-QYZD-2021-15-001）；中国科学院青年创新促进会（No. 2017260, No. 2018181）

详细信息

作者简介:
张　星（1983—），男，吉林辉南人，博士，硕士生导师，2005年于吉林大学获得学士学位；2011年于中国科学院长春光学精密机械与物理研究所获得博士学位，主要从事窄线宽垂直腔面发射器芯片研究。E-mail：zhangx@ciomp.ac.cn

中图分类号:TN248.4
计量
- 文章访问数:665
- HTML全文浏览量:500
- PDF下载量:201
- 被引次数:0
出版历程
- 收稿日期:2022-06-17
- 修回日期:2022-06-28
- 网络出版日期:2022-08-03

Narrow line width and magnetism-free vertical-cavity surface-emitting lasers for quantum sensing

1.
Changchun Institute of Optics, Fine Mechanics and Physics, Chinese Academy of Sciences, Changchun 130033, China
2.
CGPhoton Inc., Changchun 130102, China
3.
National Space Science Center, Chinese Academy of Sciences, Beijing 100190, China

Funds:Supported by National Key Research and Development Program (No. 2018YFB2002401); National Natural Science Foundation of China (No. 62090060, No. 52172165); Science and Technology Service Network Program of the Chinese Academy of Sciences (No. KFJ-STS-QYZD-2021-15-001); Youth Innovation Promotion Association of the Chinese Academy of Sciences (No. 2017260, No. 2018181)

More Information

Corresponding author:zhangx@ciomp.ac.cn

摘要

摘要:
为了研制出表面微透镜集成外腔的垂直腔面发射器（VCSEL），实现窄线宽无磁输出，满足原子磁强计等量子传感器应用要求，本文设计并生长了适合于表面集成微透镜的VCSEL外延结构，完成了表面微透镜集成外腔VCSEL器件制备，在电极材料方面选取无磁材料以满足应用要求。实验结果表明：研制的VCSEL器件工作温度达到90 °C，波长为896.3 nm，功率为1.52 mW，边模抑制比为36.3 dB，线宽为38 MHz，封装为模组后的磁场强度低于0.03 nT。结果表明本文研制的窄线宽无磁VCSEL满足量子传感的应用需求。
- 垂直腔面发射器/
- 量子传感/
- 高温/
- 窄线宽/
- 无磁
Abstract:
In order to realize single mode, narrow linewidth and low magnetism field intensity operation of lasers, Vertical-Cavity Surface-Emitting Lasers (VCSEL) with integrated micro-lens extended cavity was designed and fabricated. First, an epitaxial structure suitable for the micro-lens integration was designed and grown by Metal Organic Chemical Vapor Deposition (MOCVD). The fabrication steps of the micro-lens integrated VCSEL was carried out and the magnetism-free material was used in the electrode deposition. Experimental results indicate that the operating temperature is 90 °C, the laser wavelength is 896.3 nm, the laser power is 1.52 mW, the side mode suppression ratio is as high as 36.3 dB and the operating magnetic field intensity is less than 0.03 nT. A narrow line width and magnetism-free VCSEL suitable for quantum sensing was demonstrated.
- Vertical-Cavity Surface-Emitting Laser (VCSEL)/
- quantum sensing/
- high temperature/
- narrow linewidth/
- magnetism-free

HTML全文

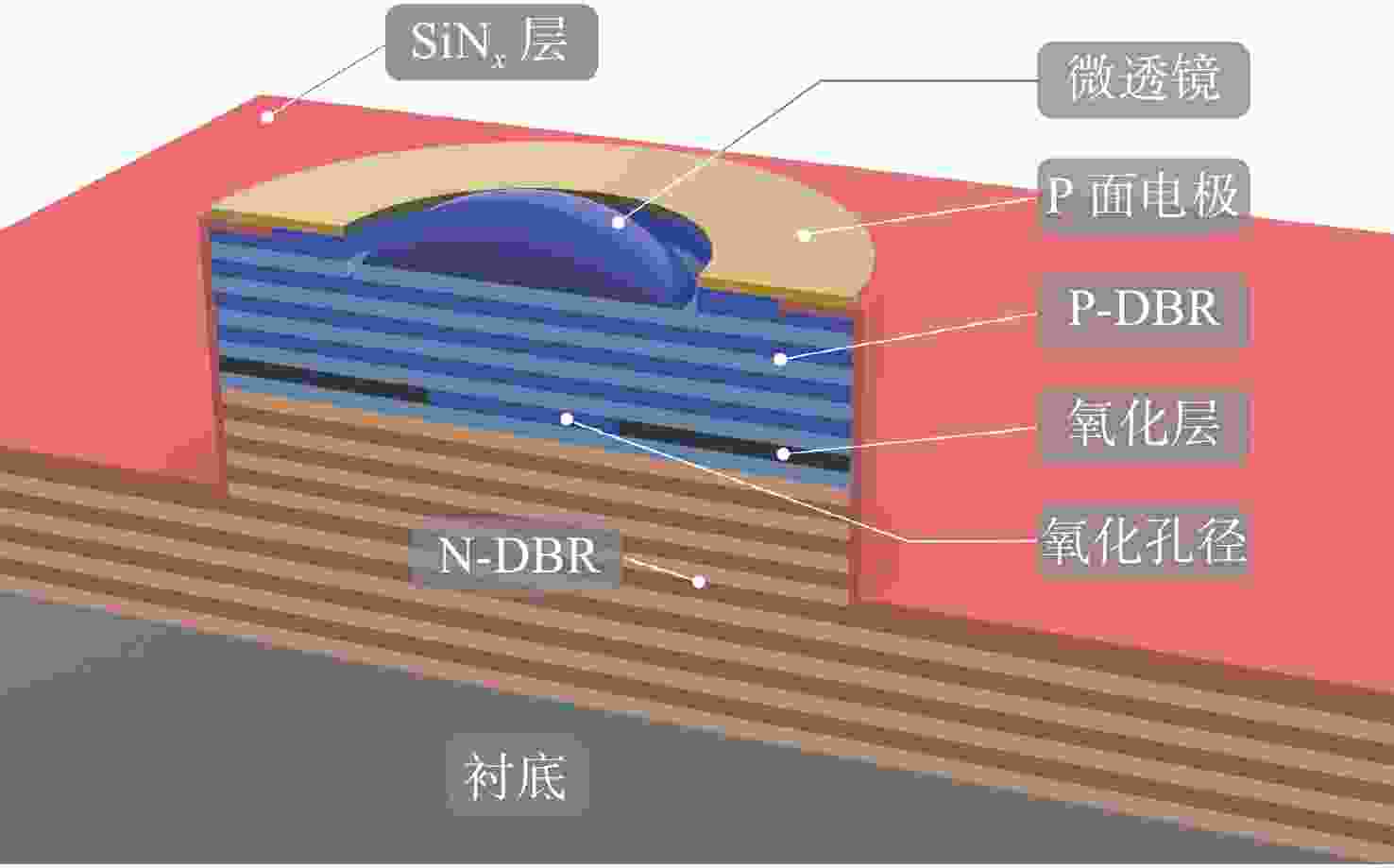

图 1VCSEL器件结构示意图

Figure 1.Schematic diagram of VCSEL structure

下载: 全尺寸图片幻灯片

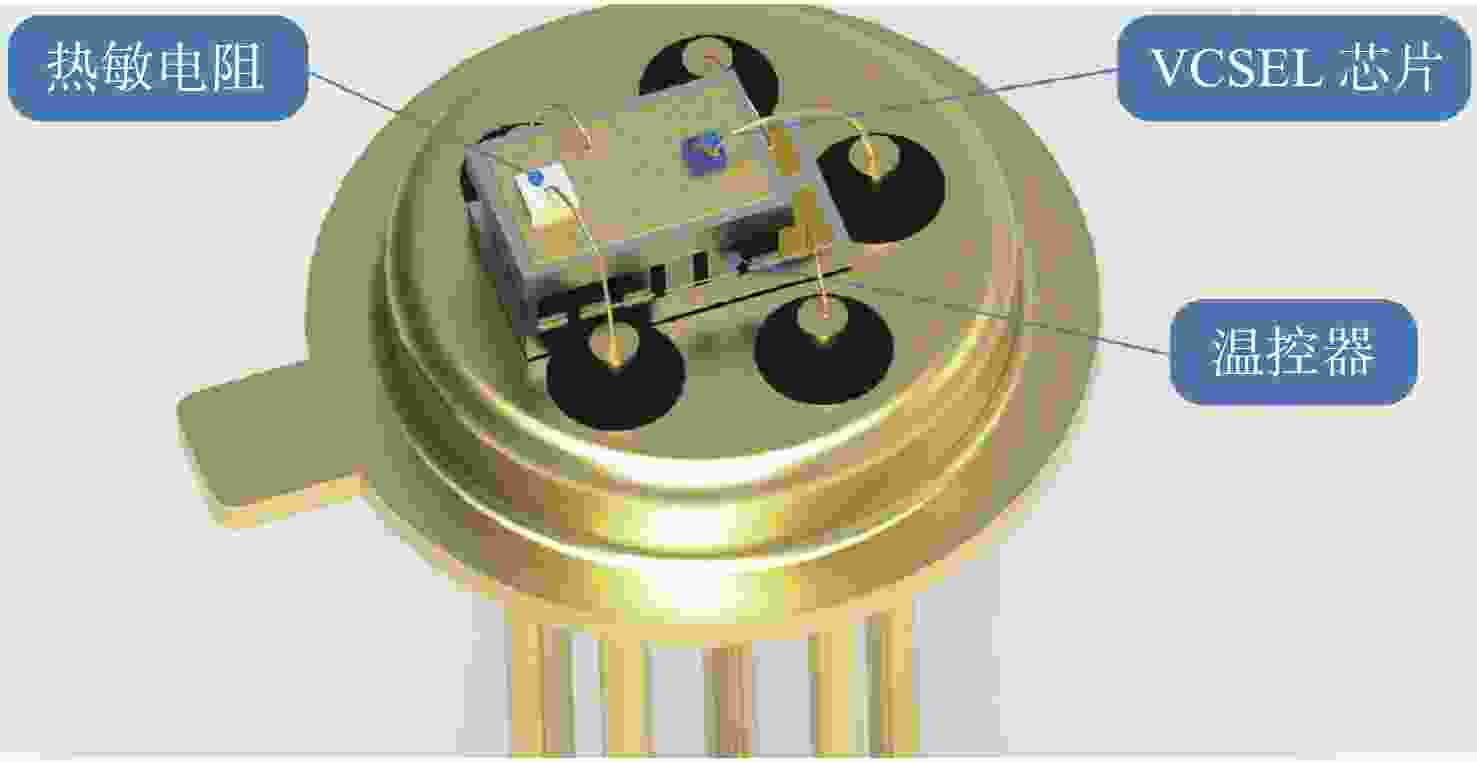

图 2封装后的VCSEL

Figure 2.The packaged VCSEL

下载: 全尺寸图片幻灯片

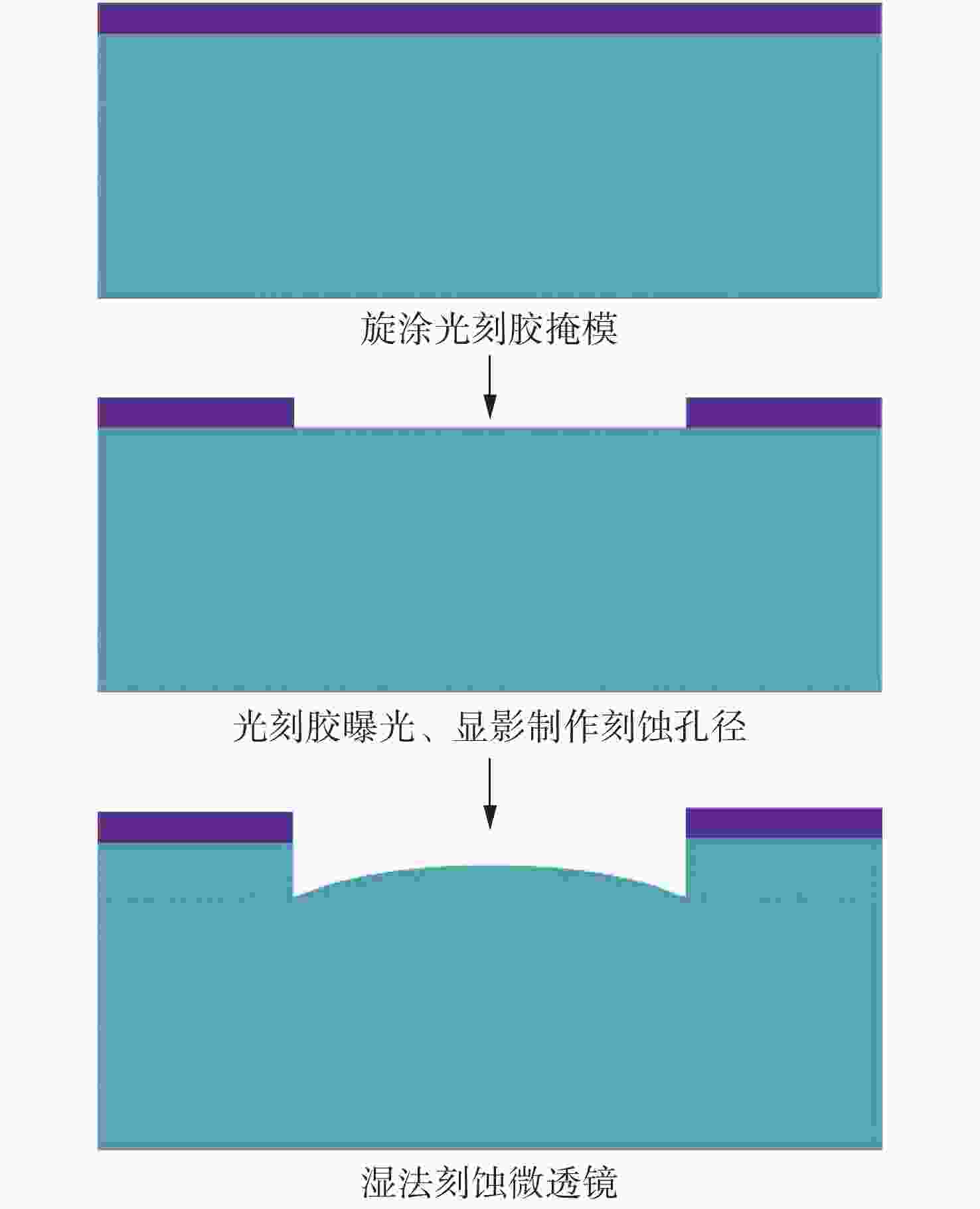

图 3湿法刻蚀微透镜的工艺流程

Figure 3.Fabrication steps of micro-lens wet etching

下载: 全尺寸图片幻灯片

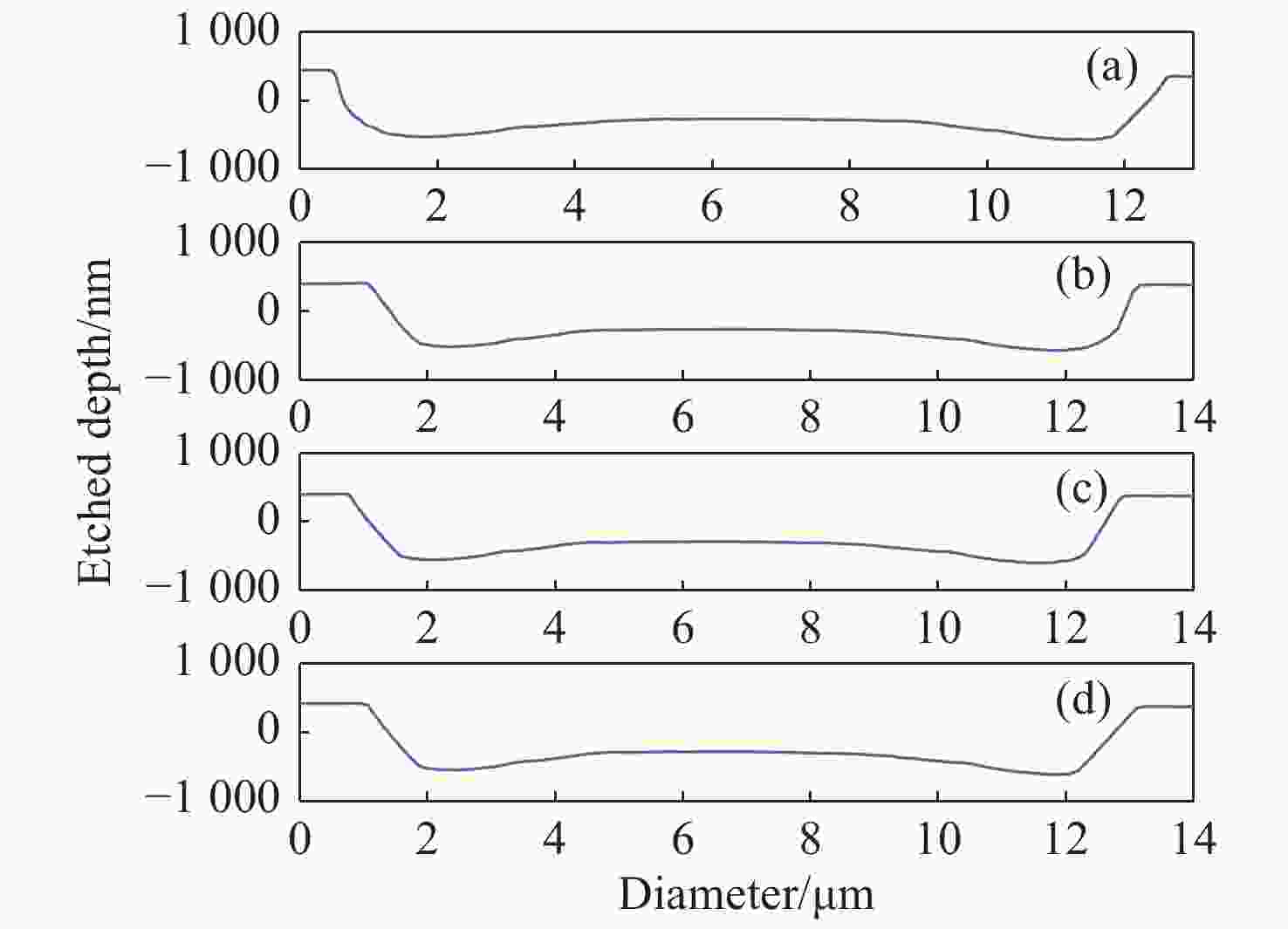

图 4微透镜表面形貌AFM测试结果

Figure 4.Surface morphology of the micro-lens by AFM

下载: 全尺寸图片幻灯片

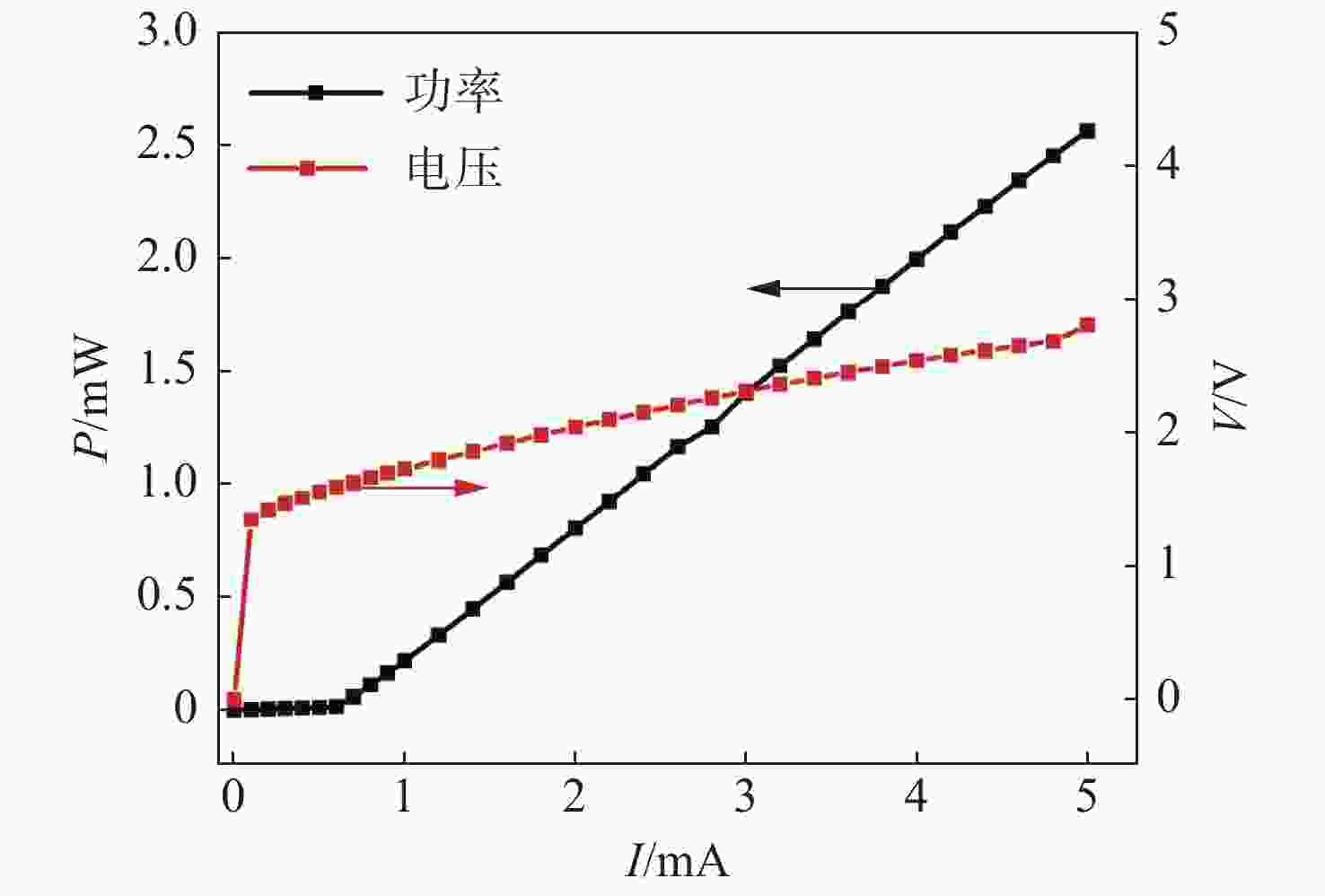

图 525 °C下测试得到的功率-电流-电压曲线

Figure 5.P-I-Vcharacteristics at room temperature (25 °C)

下载: 全尺寸图片幻灯片

图 620~90 °C下测试得到的功率-电流曲线

Figure 6.P-Icharacteristics under 20~90 °C

下载: 全尺寸图片幻灯片

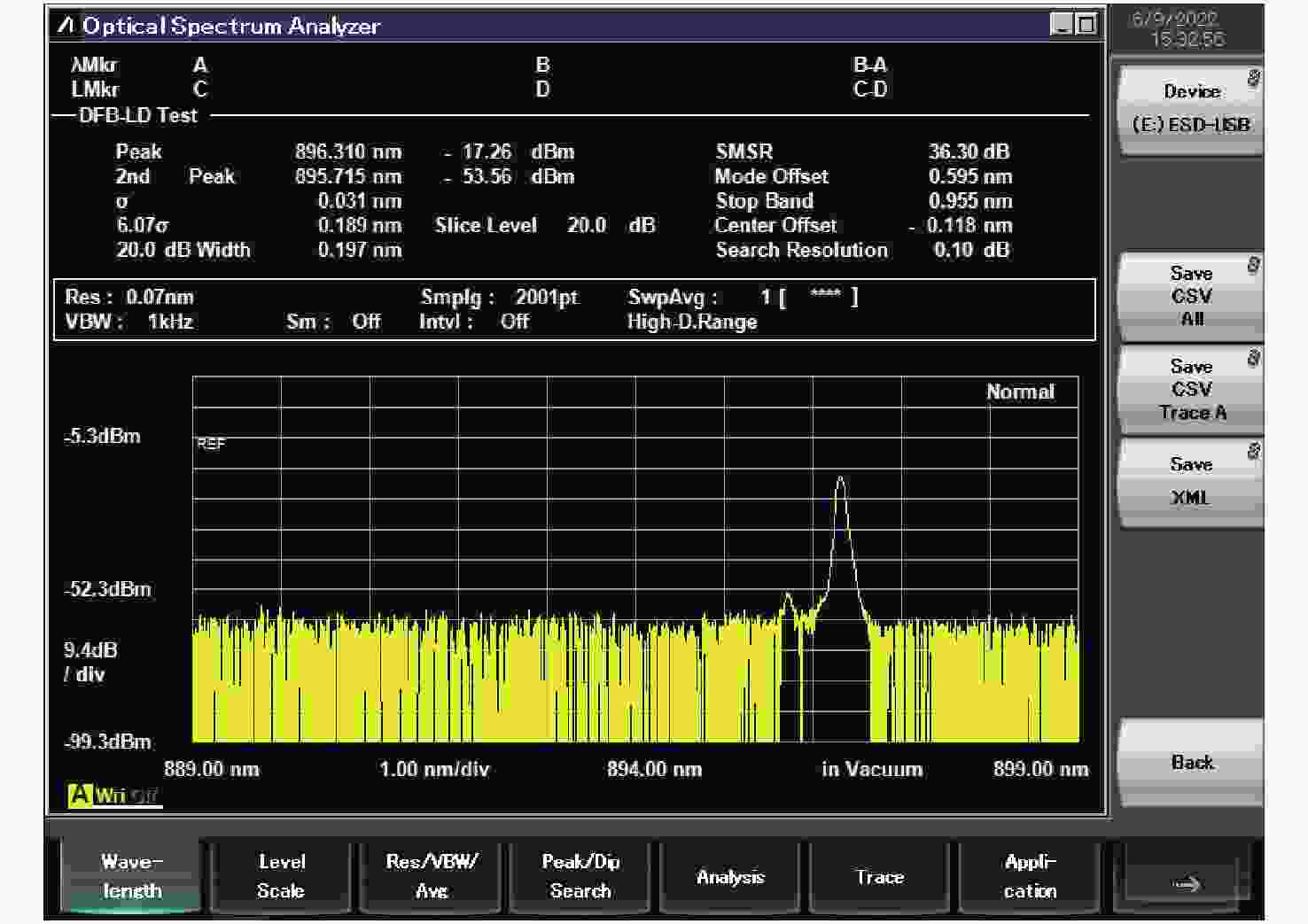

图 7VCSEL的输出光谱测试结果

Figure 7.Measured output spectrum of the VCSEL

下载: 全尺寸图片幻灯片

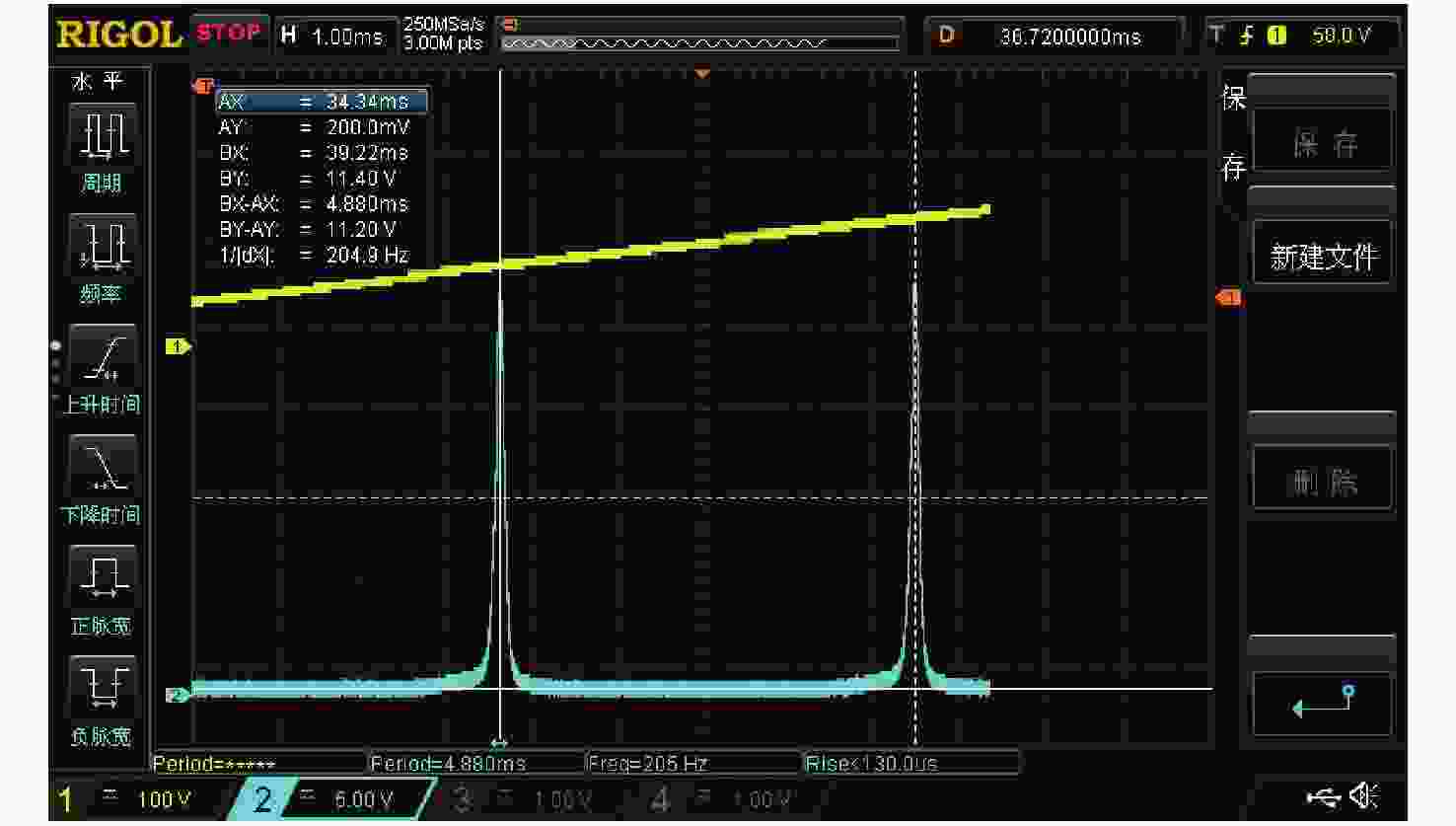

图 8VCSEL线宽测试结果

Figure 8.Measured frequency line width of the VCSEL

下载: 全尺寸图片幻灯片

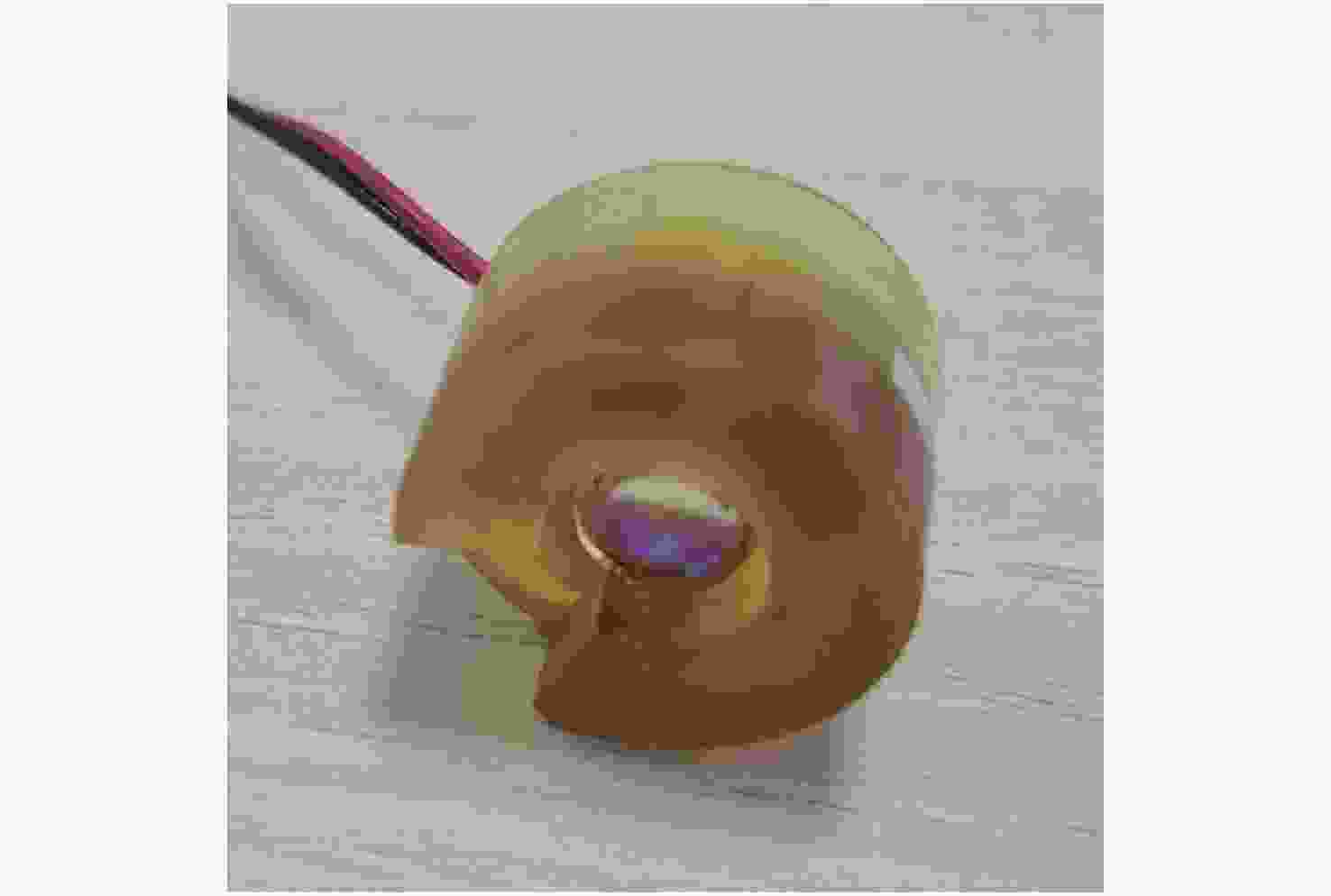

图 9无磁封装VCSEL光源模组

Figure 9.Packaged VCSEL magnetism-free module

下载: 全尺寸图片幻灯片

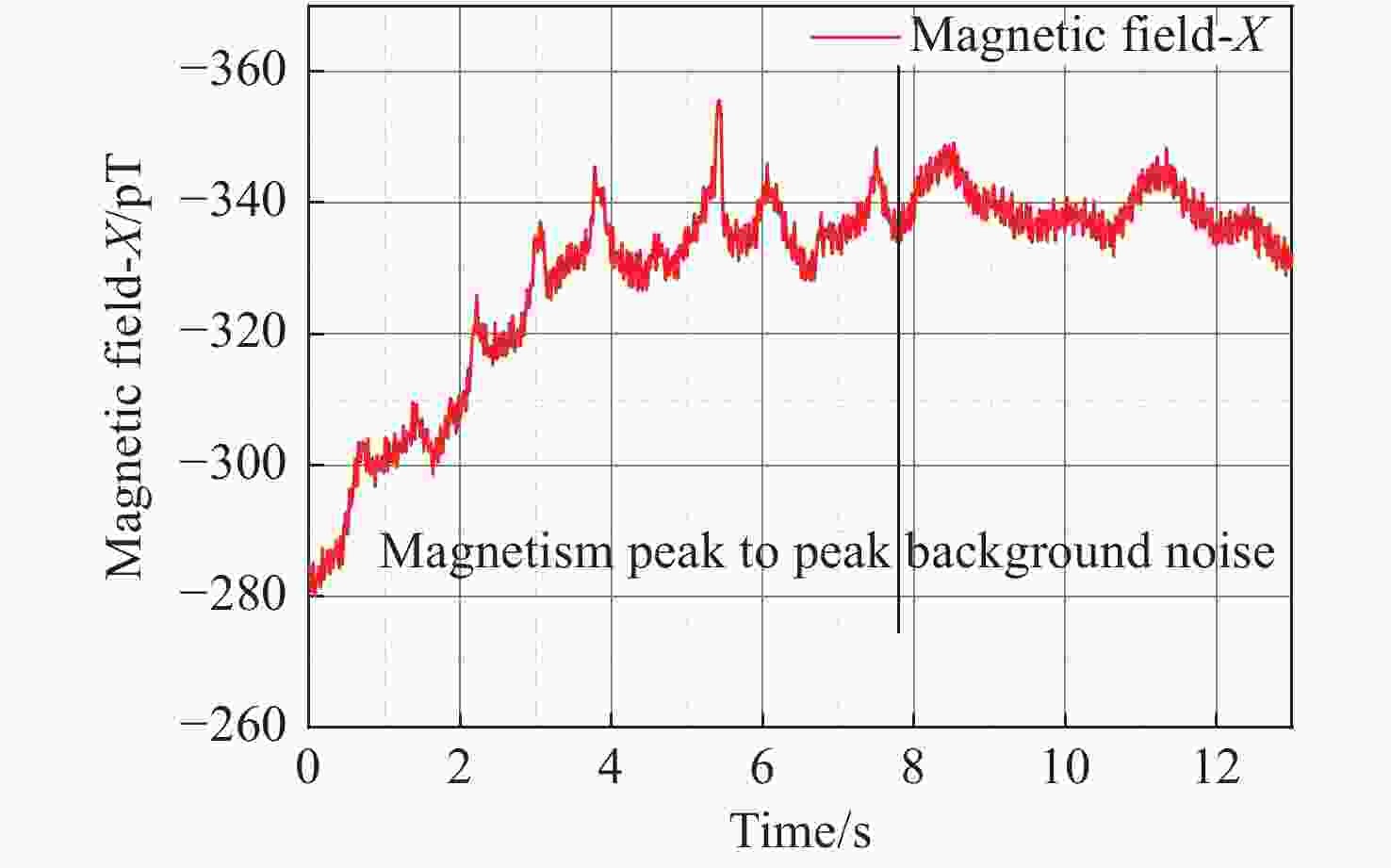

图 10VCSEL模组剩磁测试结果

Figure 10.Testing results of the remaining magnetic field intensity of VCSEL

下载: 全尺寸图片幻灯片

参考文献 (18)

[1]	SODA H, IGA K I, KITAHARA C,et al. GaInAsP/InP surface emitting injection lasers[J].Japanese Journal of Applied Physics, 1979, 18(12): 2329-2330.doi:10.1143/JJAP.18.2329
[2]	张继业, 李雪, 张建伟, 等. 垂直腔面发射器研究进展[J]. 发光学报,2020,41(12):1443-1459.doi:10.37188/CJL.20200339 ZHANG J Y, LI X, ZHANG J W,et al. Research progress of vertical-cavity surface-emitting laser[J].Chinese Journal of Luminescence, 2020, 41(12): 1443-1459. (in Chinese)doi:10.37188/CJL.20200339
[3]	张建伟, 宁永强, 张星, 等. 高温工作垂直腔面发射半导体器现状与未来(特邀)[J]. 光子学报,2022,51(2):0251201.doi:10.3788/gzxb20225102.0251201 ZHANG J W, NING Y Q, ZHANG X,et al. Development and future of vertical cavity surface emitting lasers operated at high temperatures (invited)[J].Acta Photonica Sinica, 2022, 51(2): 0251201. (in Chinese)doi:10.3788/gzxb20225102.0251201
[4]	LARSSON A. Advances in VCSELs for communication and sensing[J].IEEE Journal of Selected Topics in Quantum Electronics, 2011, 17(6): 1552-1567.doi:10.1109/JSTQE.2011.2119469
[5]	刘安金. 单模直调垂直腔面发射器研究进展[J]. 中国 ,2020,47(7):0701005.doi:10.3788/CJL202047.0701005 LIU A J. Progress in single-mode and directly modulated vertical-cavity surface-emitting lasers[J].Chinese Journal of Lasers, 2020, 47(7): 0701005. (in Chinese)doi:10.3788/CJL202047.0701005
[6]	IGA K. Forty years of vertical-cavity surface-emitting laser: invention and innovation[J].Japanese Journal of Applied Physics, 2018, 57(8S2): 08PA01.doi:10.7567/JJAP.57.08PA01
[7]	HONG K B, HUANG W T, CHUNG H C,et al. High-speed and high-power 940 nm flip-chip VCSEL array for LiDAR application[J].Crystals, 2021, 11(10): 1237.doi:10.3390/cryst11101237
[8]	刘畅, 肖垚, 刘恒, 等. 多结级联垂直腔面发射器失效分析[J]. 发光学报,2022,43(3):388-395.doi:10.37188/CJL.20210396 LIU CH, XIAO Y, LIU H,et al. Failure analysis of multi-junction cascade vertical cavity surface emitting laser[J].Chinese Journal of Luminescence, 2022, 43(3): 388-395. (in Chinese)doi:10.37188/CJL.20210396
[9]	何晓颖, 董建, 胡帅, 等. 采用BCB平整技术的高速850 nm垂直面发射器[J]. 中国光学,2018,11(2):190-197.doi:10.3788/co.20181102.0190 HE X Y, DONG J, HU SH,et al. High-speed 850 nm vertical-cavity surface-emitting lasers with BCB planarization technique[J].Chinese Optics, 2018, 11(2): 190-197. (in Chinese)doi:10.3788/co.20181102.0190
[10]	周广正, 兰天, 李颖, 等. 高温稳定25 Gbit/s 850 nm垂直腔面发射器[J]. 发光学报,2019,40(5):630-634.doi:10.3788/fgxb20194005.0630 ZHOU G ZH, LAN T, LI Y,et al. High temperature-stable 25 Gbit/s 850 nm vertical-cavity surface-emitting lasers[J].Chinese Journal of Luminescence, 2019, 40(5): 630-634. (in Chinese)doi:10.3788/fgxb20194005.0630
[11]	KHAN Z, CHANG Y H, PAN T L,et al. High-brightness, high-speed, and low-noise VCSEL arrays for optical wireless communication[J].IEEE Access, 2022, 10: 2303-2317.doi:10.1109/ACCESS.2021.3133436
[12]	DEGEN C L, REINHARD F, CAPPELLARO P. Quantum sensing[J].Reviews of Modern Physics, 2017, 89(3): 035002.doi:10.1103/RevModPhys.89.035002
[13]	王宇, 赵惟玉, 康翔宇, 等. SERF原子磁强计最新进展及应用综述[J]. 光学仪器,2021,43(6):77-86. WANG Y, ZHAO W Y, KANG X Y,et al. The latest development and application of SERF atomic magnetometer: a review[J].Optical Instruments, 2021, 43(6): 77-86. (in Chinese)
[14]	张星, 张建伟, 张建, 等. 原子传感用垂直腔面发射器研究进展[J]. 导航与控制,2020,19(1):116-124.doi:10.3969/j.issn.1674-5558.2020.01.013 ZHANG X, ZHANG J W, ZHANG J,et al. Progress on vertical-cavity surface-emitting laser for atomic sensing applications[J].Navigation and Control, 2020, 19(1): 116-124. (in Chinese)doi:10.3969/j.issn.1674-5558.2020.01.013
[15]	张福领, 付丽珊, 胡丕丽, 等. 795 nm亚波长光栅耦合腔垂直腔面发射器的超窄线宽特性[J]. 物理学报,2021,70(22):224207.doi:10.7498/aps.70.20210293 ZHANG F L, FU L SH, HU P L,et al. Ultra-narrow linewidth characteristics of 795-nm subwavelength grating-coupled cavity vertical cavity surface emitting laser[J].Acta Physica Sinica, 2021, 70(22): 224207. (in Chinese)doi:10.7498/aps.70.20210293
[16]	ZHANG J W, ZHANG X, ZHU H B,et al. High-temperature operating 894.6 nm-VCSELs with extremely low threshold for Cs-based chip scale atomic clocks[J].Optics Express, 2015, 23(11): 14763-14773.doi:10.1364/OE.23.014763
[17]	宋金伟, 张峰, 郭艳玲, 等. 基于非磁性材料Cr/Au的VCSEL欧姆接触特性[J]. 微纳电子技术,2020,57(6):430-435,449.doi:10.13250/j.cnki.wndz.2020.06.002 SONG J W, ZHANG F, GUO Y L,et al. Ohmic contact properties of VCSEL based on non-magnetic material Cr/Au[J].Micronanoelectronic Technology, 2020, 57(6): 430-435,449. (in Chinese)doi:10.13250/j.cnki.wndz.2020.06.002
[18]	WANG ZH F, NING Y Q, ZHANG Y,et al. High power and good beam quality of two-dimensional VCSEL array with integrated GaAs microlens array[J].Optics Express, 2010, 18(23): 23900-23905.doi:10.1364/OE.18.023900
