轻量型YOLOv5s车载红外图像目标检测

刘彦磊 李孟喆 王宣宣

刘彦磊, 李孟喆, 王宣宣. 轻量型YOLOv5s车载红外图像目标检测[J]. , 2023, 16(5): 1045-1055. doi: 10.37188/CO.2022-0254
引用本文: 刘彦磊, 李孟喆, 王宣宣. 轻量型YOLOv5s车载红外图像目标检测[J]. , 2023, 16(5): 1045-1055. doi: 10.37188/CO.2022-0254
LIU Yan-lei, LI Meng-zhe, WANG Xuan-xuan. Lightweight YOLOv5s vehicle infrared image target detection[J]. Chinese Optics, 2023, 16(5): 1045-1055. doi: 10.37188/CO.2022-0254
Citation: LIU Yan-lei, LI Meng-zhe, WANG Xuan-xuan. Lightweight YOLOv5s vehicle infrared image target detection[J]. Chinese Optics, 2023, 16(5): 1045-1055. doi: 10.37188/CO.2022-0254

轻量型YOLOv5s车载红外图像目标检测

doi: 10.37188/CO.2022-0254
基金项目: 国家自然科学基金(No. 61905068)
详细信息
    作者简介:

    刘彦磊(1986—),男,河南中牟人,博士,讲师,2011年,2014年于河南师范大学分别获得学士、硕士学位,2018年6月于北京理工大学获得博士学位,主要从事红外光谱测量及应用技术方面的研究。E-mail:liuyanlei@htu.edu.cn

  • 中图分类号: TP391.4

Lightweight YOLOv5s vehicle infrared image target detection

Funds: Supported by National Natural Science Foundation of China (No. 61905068)
More Information
  • 摘要:

    车载红外图像的目标检测是自动驾驶进行道路环境感知的重要方式。针对现有车载红外图像目标检测算法中内存利用率低、计算复杂和检测精度低的问题,提出了一种改进YOLOv5s的轻量型目标检测算法。首先,将C3Ghost和Ghost模块引入YOLOv5s检测网络,以降低网络复杂度。其次,引进αIoU损失函数,以提升目标的定位精度和训练效率。然后,降低网络结构下采样率,并利用KMeans聚类算法优化先验框大小,以提高小目标检测能力。最后,分别在主干网络和颈部引入坐标注意力(Coordinate Attention,CA)和空间深度卷积模块进一步优化模型,提升模型特征的提取能力。实验结果表明,相对于原YOLOv5s算法,改进算法的模型大小压缩78.1%,参数量和每秒千兆浮点运算数分别减少84.5%和40.5%,平均检测精度和检测速度分别提升4.2%和10.9%。

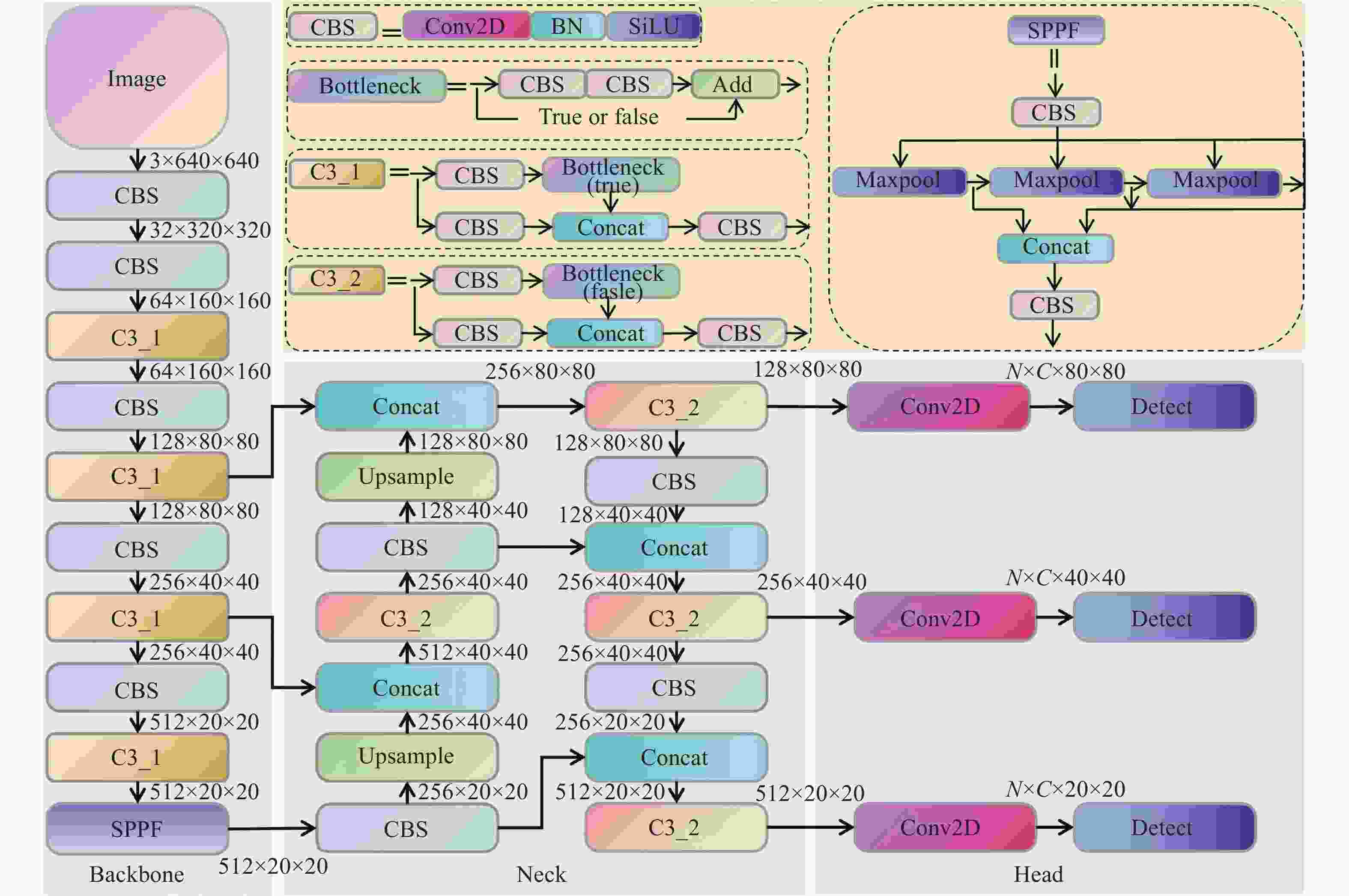

  • 图 1  YOLOv5s算法结构

    Figure 1.  YOLOv5s algorithm structure

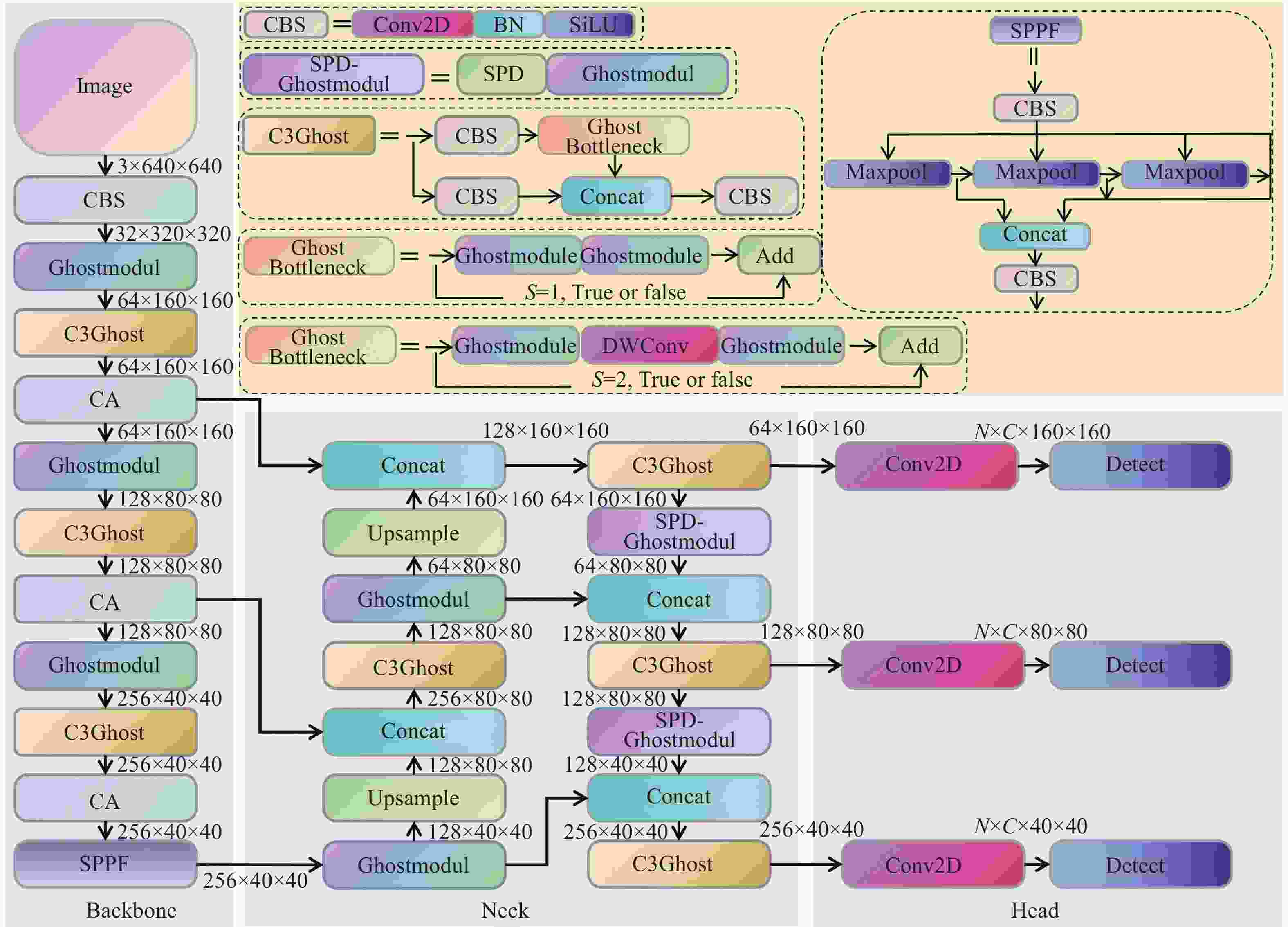

    图 2  改进YOLOv5s算法结构

    Figure 2.  Improved YOLOv5s algorithm structure

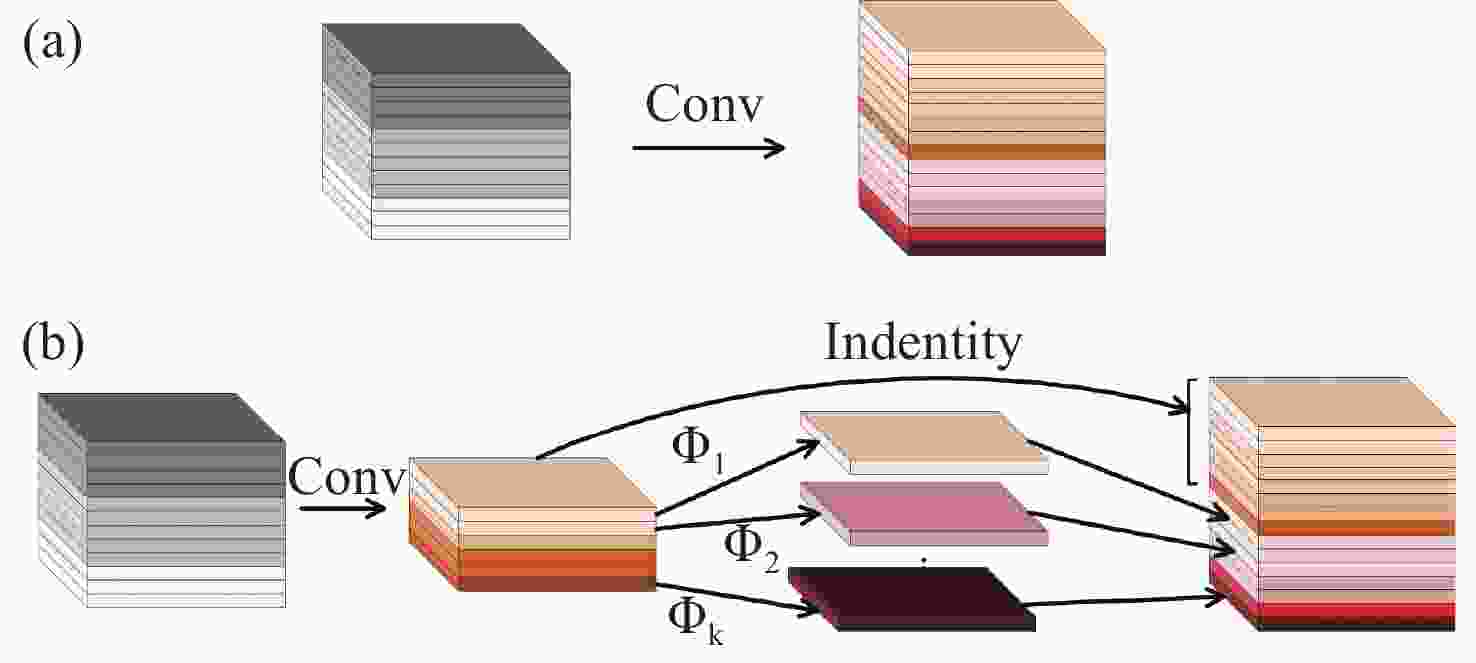

    图 3  (a)普通卷积和(b)Ghost卷积(Φ为线性操作)

    Figure 3.  (a) Ordinary convolution and (b) Ghost convolution (Φ is a linear operation)

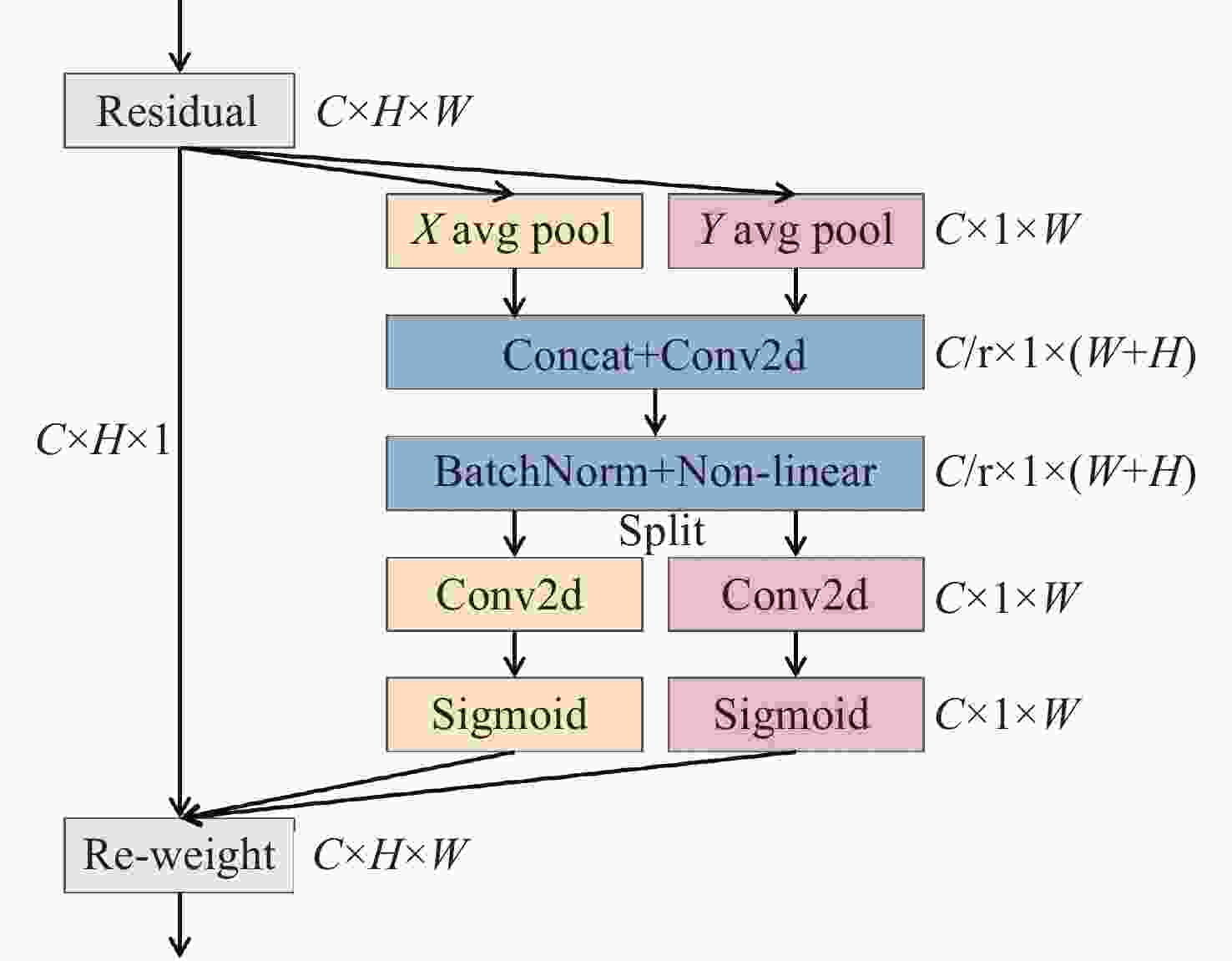

    图 4  CA结构

    Figure 4.  CA structure

    图 5  空间深度卷积(Scale=2)

    Figure 5.  SPD-Conv (Scale=2)

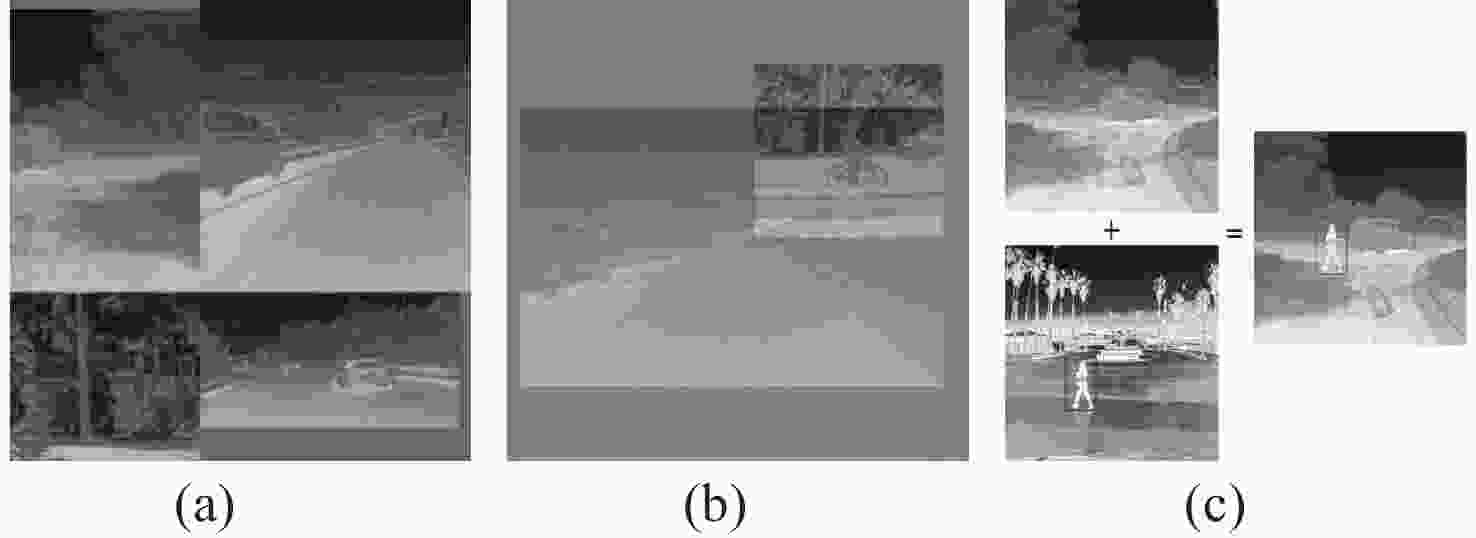

    图 6  数据增强结果。(a)Mosaic增强;(b)MixUp增强;(c)Copy-Paste增强

    Figure 6.  Data augmentation results. (a) Mosaic augmentation; (b) MixUp augmentation; (c) Copy-Paste augmentation

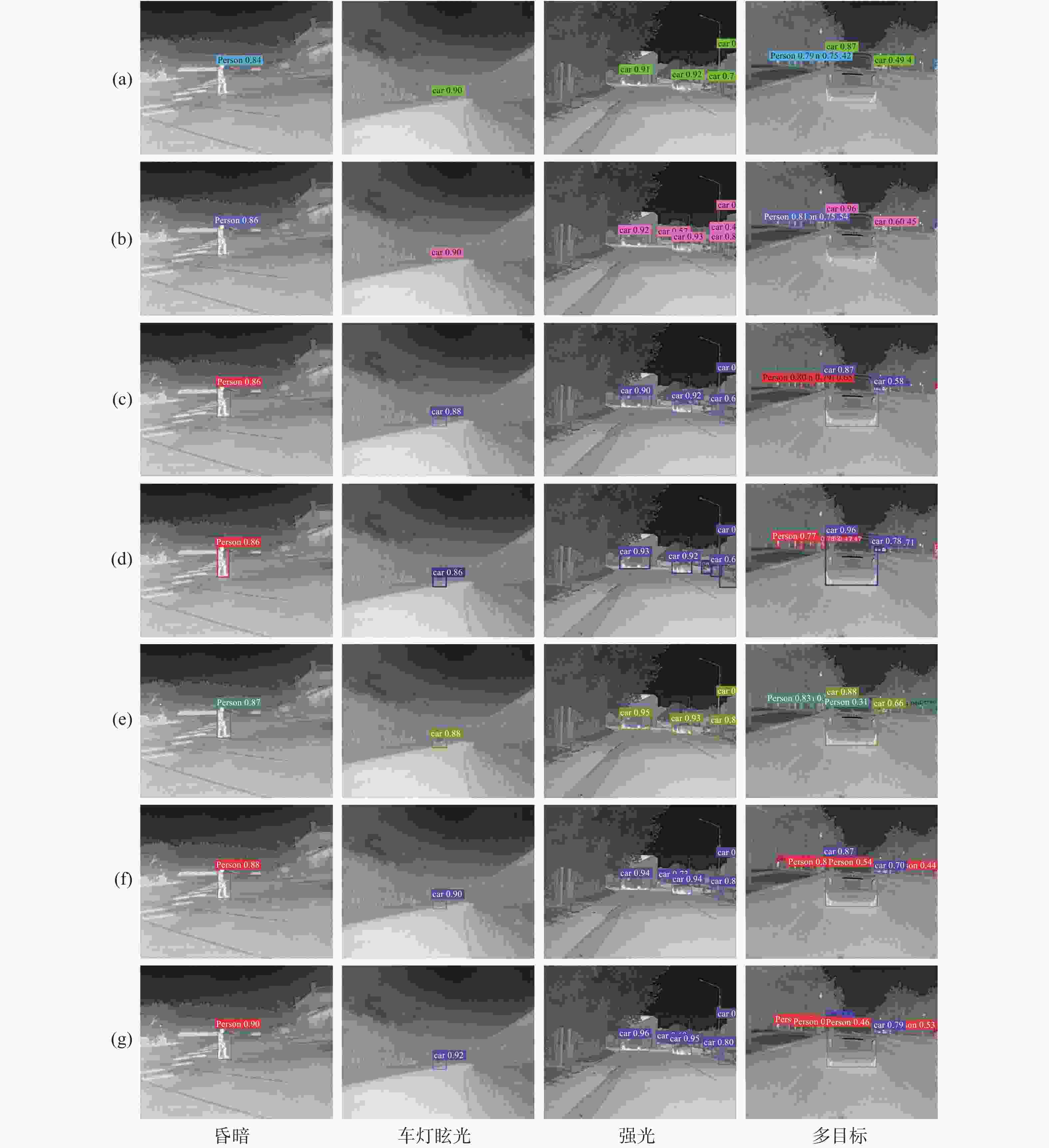

    图 7  几种不同算法的检测效果。(a)YOLOv3-tiny;(b)YOLOv4-tiny;(c)YOLOv5n;(d)YOLOv6-N;(e)YOLO7-tiny;(f)YOLO5s;(g)本文算法

    Figure 7.  Detection results of different algorithms. (a) YOLOv3-tiny; (b) YOLOv4-tiny; (c) YOLOv5n; (d) YOLOv6-N; (e) YOLO7-tiny; (f) YOLO5s; (g) proposed in this paper

    表  1  优化后先验框大小

    Table  1.   Optimized prior anchor size

    特征图尺度160×16080×8040×40
    感受野大小
    [6,8][14,37][35,94]
    先验框[7,19][31,26][96,68]
    [15,13][50,37][154,145]
    下载: 导出CSV

    表  2  YOLOv5s和YOLOv5s-G轻量化性能对比

    Table  2.   Performance comparison of lightweight for YOLOv5s and YOLOv5s-G

    Modelt/hoursSize/MBParams/MGFLOPsP(%)R(%)mAP(%)FPS
    YOLOv5s48.7713.707.0215.887.169.880.8119
    YOLOv5s-G30.257.463.688.086.166.377.5137
    下载: 导出CSV

    表  3  不同损失函数性能对比

    Table  3.   Performance comparison of different loss functions

    Modelt/hoursP(%)R(%)mAP(%)FPS
    YOLOv5s-G30.2586.166.377.5137
    YOLOv5s-G-EIoU24.3184.568.778.9141
    YOLOv5s-G-SIoU24.6285.867.277.8139
    YOLOv5s-G-αIoU23.5085.969.379.8147
    下载: 导出CSV

    表  4  多尺度融合性能对比

    Table  4.   Performance comparison of multi-scale fusion

    Modelt/hoursSize/MBParams/MGFLOPsP(%)R(%)mAP(%)FPS
    YOLOv5s-G-αIoU23.507.463.688.085.969.379.8147
    YOLOv5s-G1-αIoU26.898.603.759.686.073.683.6125
    YOLOv5s-G2-αIoU24.562.730.957.284.572.882.9154
    YOLOv5s-G2-αIoU-KMeans25.622.730.957.285.572.483154
    下载: 导出CSV

    表  5  不同注意力机制性能对比

    Table  5.   Performance comparison of different attention mechanisms

    Modelt/hoursSize/MBParams/MGFLOPsP(%)R(%)mAP(%)FPS
    YOLOv5s-G2-αIoU-KMeans25.622.730.957.285.572.483154
    YOLOv5s-G2-αIoU-KMeans-SE30.952.750.967.286.073.584.1149
    YOLOv5s-G2-αIoU-KMeans-ECA26.062.730.957.285.573.884.2145
    YOLOv5s-G2-αIoU-KMeans-CBAM28.212.760.967.385.773.484135
    YOLOv5s-G2-αIoU-KMeans-CA28.622.760.967.386.673.684.3139
    下载: 导出CSV

    表  6  空间深度卷积效果

    Table  6.   SPD-Conv effect

    Modelt/hoursSize/MBParams/MGFLOPsP(%)R(%)mAP(%)FPS
    YOLOv5s-G2-αIoU-Kmeans-CA28.622.760.967.386.673.684.3139
    YOLOv5s-G2-αIoU-Kmeans-CA-SPD30.283.01.099.487.474.685.0132
    下载: 导出CSV

    表  7  与其他先进算法对比

    Table  7.   Comparison with other advanced algorithms

    ModelSize/MBParams/MGFLOPsP(%)R(%)mAP(%)FPS
    SSD186.023.70115.768.955.763.288
    EfficientDet302.039.40107.572.858.467.852
    YOLOv4+GhostNet150.339.3025.681.166.977.7112
    YOLOv5-MobileNetV37.94.09.383.767.576.9128
    YOLOv3-tiny16.68.6712.979.354.962.9175
    YOLOv4-tiny12.96.2716.278.957.367.2149
    YOLOv5n3.71.765.183.666.176.6164
    YOLOv6-N9.34.3011.184.871.580.3208
    YOLOv7-tiny12.36.0213.284.274.783.6143
    YOLOv5s13.77.0215.887.169.880.8119
    proposed in this paper3.01.099.487.474.685.0132
    下载: 导出CSV
