双波长纳秒
清洗技术在大理石文物上的应用

李晨毓; 胡文哲; 张雪雁; 刘瀚文; 刘晓龙; 曲亮; 祝萌; 段鸿莺; ParaskeviPouli

doi:10.37188/CO.2024-0002

双波长纳秒清洗技术在大理石文物上的应用

doi: 10.37188/CO.2024-0002

李晨毓^{1, 2,},
胡文哲^{2, 3, 4},
张雪雁^{1, 2},
刘瀚文^{1, 2},
刘晓龙^{2, 3, 4},
曲亮^{1, 2, ,},
祝萌⁵,
段鸿莺⁵,
ParaskeviPouli^{2, 6}

1.
故宫博物院文物保护标准化研究所, 北京 100009
2.
中国-希腊文物保护技术"一带一路"联合实验室, 北京 100009
3.
中国科学院空天信息创新研究院, 北京 100094
4.
中国科学院大学光电学院, 北京 100094
5.
故宫博物院古建部, 北京 100009
6.
希腊研究与技术基金会电子结构与研究所伊拉克利翁 71110

基金项目: 国家重点研发计划专项资助（No. 2020YFE0204600）

详细信息

作者简介:
李晨毓（1989—），女，黑龙江安达人，博士，馆员，2018年于首都师范大学获得博士学位，主要从事诱导击穿光谱、清洗和太赫兹在文物上的应用方面的研究。E-mail：lichenyu032007@163.com

曲　亮（1981—），男，北京人，硕士，研究馆员，2010年于北京科技大学获得硕士学位，主要从事可移动文物保护与分析检测方面的研究。E-mail：lionat528@hotmail.com

中图分类号: O439
计量
- 文章访问数: 97
- HTML全文浏览量: 78
- PDF下载量: 37
- 被引次数: 0
出版历程
- 收稿日期: 2024-01-02
- 修回日期: 2024-01-25
- 录用日期: 2024-03-27
- 网络出版日期: 2024-04-13

Application of dual-wavelength nanosecond laser cleaning technology on stone artifacts

LI Chen-yu^{1, 2
,},
HU Wen-zhe^{2, 3, 4},
ZHANG Xue-yan^{1, 2},
LIU Han-wen^{1, 2},
LIU Xiao-long^{2, 3, 4},
QU Liang^{1, 2
, ,},
ZHU Meng⁵,
DUAN Hong-ying⁵,
Paraskevi Pouli^{2, 6}

1.
Conservation Standards Research Institute, The Palace Museum, Beijing 100009, China
2.
China-Greece Belt and Road Joint Laboratory on Cultural Heritage Conservation Technology, Beijing 100009, China
3.
Aerospace Information Research Institue, Chinese Academy of Science, Beijing 100094, China
4.
School of Optoelectronics, Chinese Academy of Science, Beijing 100094, China
5.
Department of Architectural Heritage, The Palace Museum, Beijing 100009, China
6.
Institute of Electronic Structure and Laser, Foundation for Research and Technology-Hellas (IESL- FORTH), Heraklion 71110, Greece

Funds: Supported by the National Key Research and Development Project (No. 2020YFE0204600)

More Information

Corresponding author: lionat528@hotmail.com

摘要

摘要:
传统的清洗方法不能对文物表面较小污染颗粒进行清洗，并且容易造成文物表面不可逆的损伤。为提高清洗污染物的能力，清洗技术逐渐应用于不同类型文物的清洗。本文研制了纳秒清洗系统并对故宫博物院的大理石模拟样品和大理石碎片进行清洗，清洗的对象是黑色结壳污染物。为了避免变黄效应，采用波长为1064 nm近红外光与355 nm紫外相结合的方法对大理石模拟样本进行清洗。当两者的能量密度比值为3∶2时，显微观测系统的照片显示有较好的清洗效果。将此比值应用于大理石碎片样本，利用显微拉曼光谱仪对清洗效果进行分析。实验结果证实了清洗的优势，也为清洗大理石表面污染物提供参数和评价方法参考。本文研究也为清洗技术在其他石质文物表面的清洗提供借鉴。
- 清洗技术 /
- 大理石 /
- 双波长
Abstract:
Traditional cleaning methods can not clean small pollution particles on the surface of cultural relics. Moreover it can easily cause irreversible damage. In order to improve the ability to clean pollutants, laser cleaning technology has been gradually applied to the cleaning of different types of cultural relics. In this paper, we develop a nanosecond laser cleaning system to clean the simulated marble samples and marble fragments in the Palace Museum. The object of the cleanout is black crust pollutants. To avoid the yellowing effect, a dual wavelength combination of 1064 nm near-infrared and 355 nm ultraviolet light is used for laser cleaning of simulated marble samples. When the energy density ratio of these two wavelengths is 3∶2, photos from the microscopic observation system show a good cleaning effect. This ratio (3∶2) is then applied to marble fragments samples. The micro-Raman spectrometer is utilized to evaluate the cleaning effect. The experimental results confirm the advantages of laser cleaning and also provide reference parameters and evaluation methods for laser cleaning of pollutants on marble surface. At the same time, it also offer insights for the application of laser cleaning technology to the cleaning of other stone artifacts.
- laser cleaning technology /
- marble /
- dual-wavelength

HTML全文

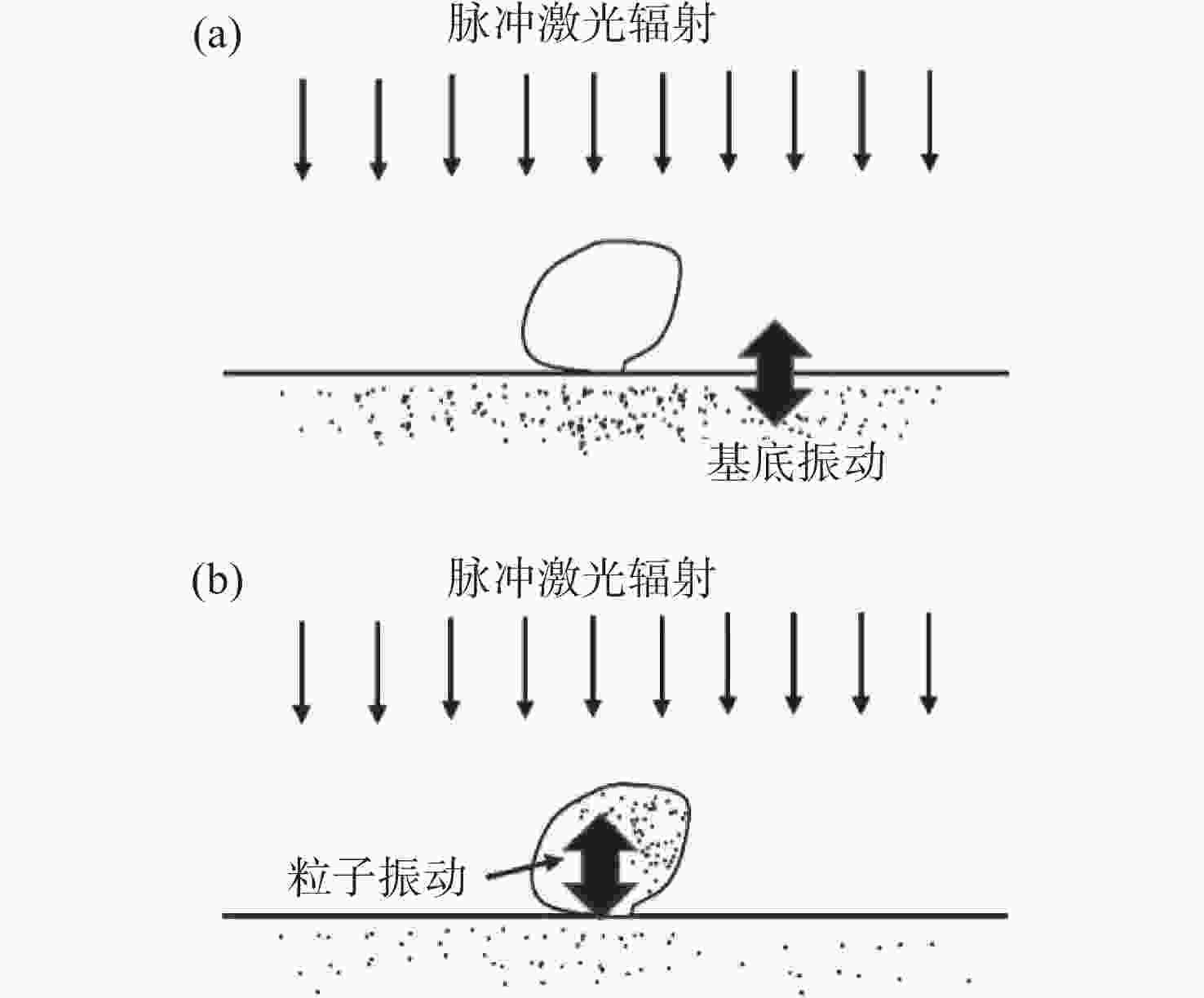

图 1 干式清洗示意图。(a)强基底吸收示意图；(b)强粒子吸收示意图

Figure 1. Schematic diagram of laser dry cleaning. (a) Schematic diagram of strong substrate absorption; (b) schematic diagram of strong particle absorption

下载: 全尺寸图片幻灯片

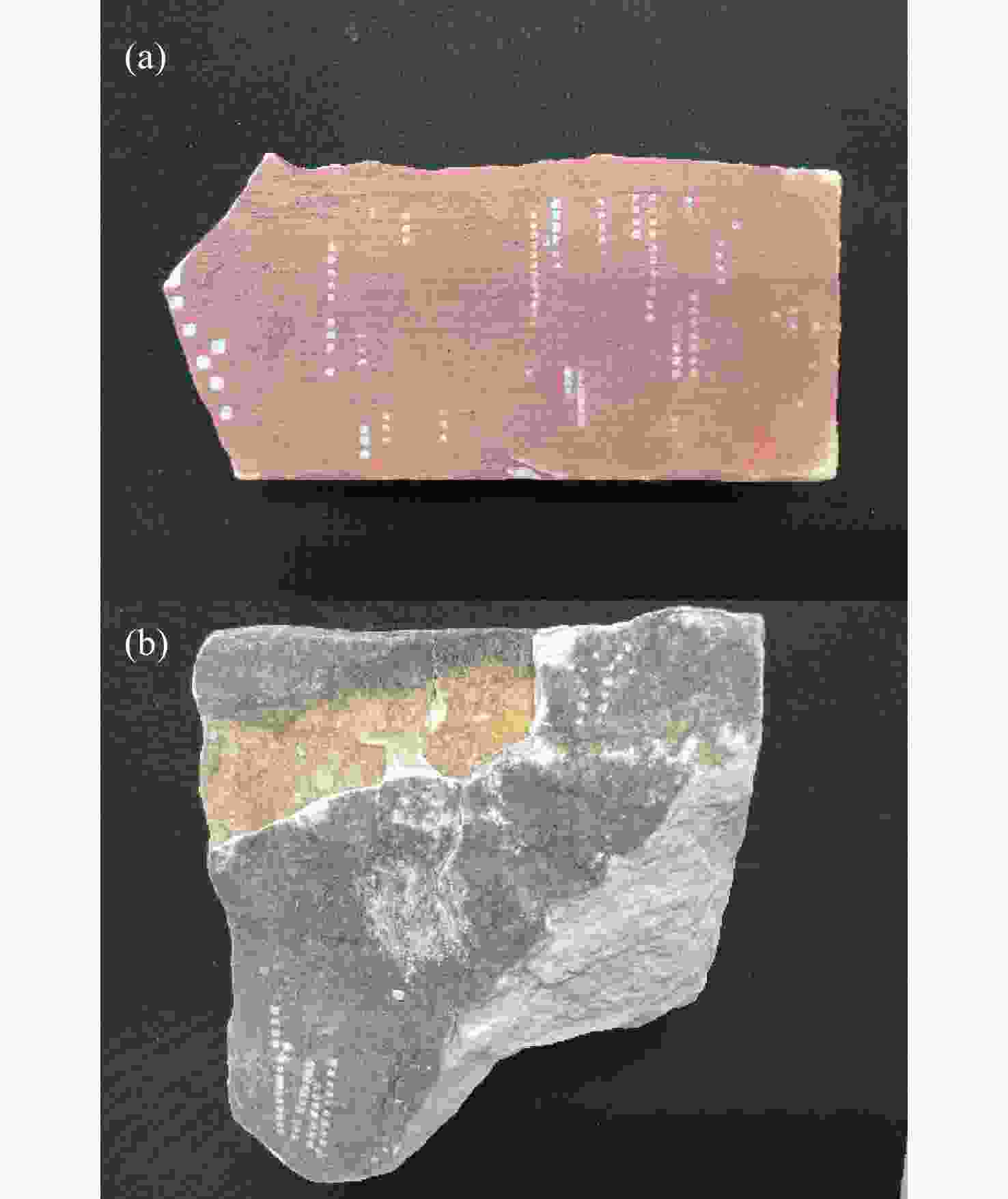

图 2 (a)模拟样本及(b)大理石碎片样本

Figure 2. (a) Simulated samples and (b) marble fragment sample

下载: 全尺寸图片幻灯片

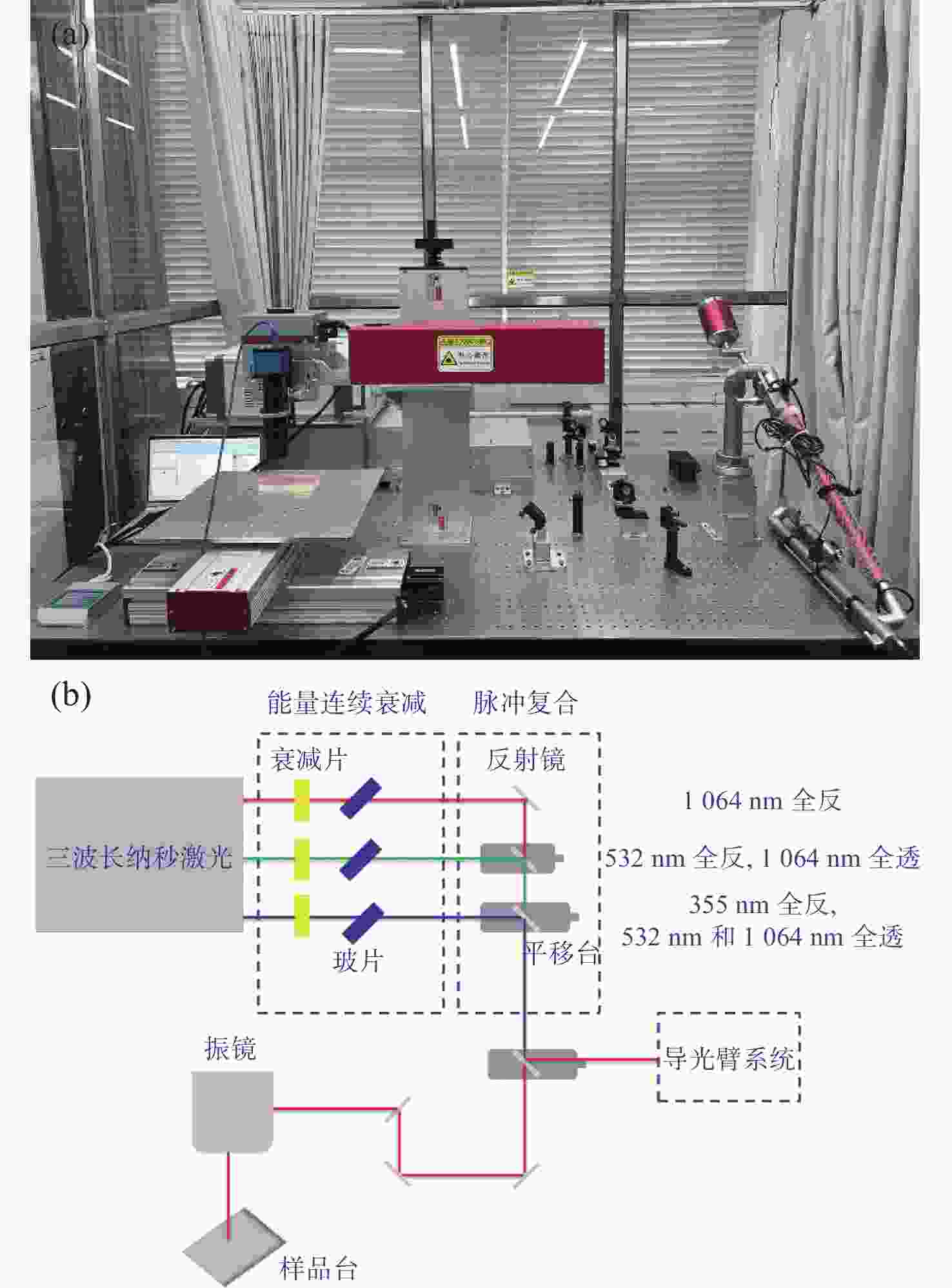

图 3 三波长纳秒清洗系统(a)实物图及(b)光路图

Figure 3. (a) Physical image and (b) optical path diagram of three-wavelength nanosecond laser cleaning system

下载: 全尺寸图片幻灯片

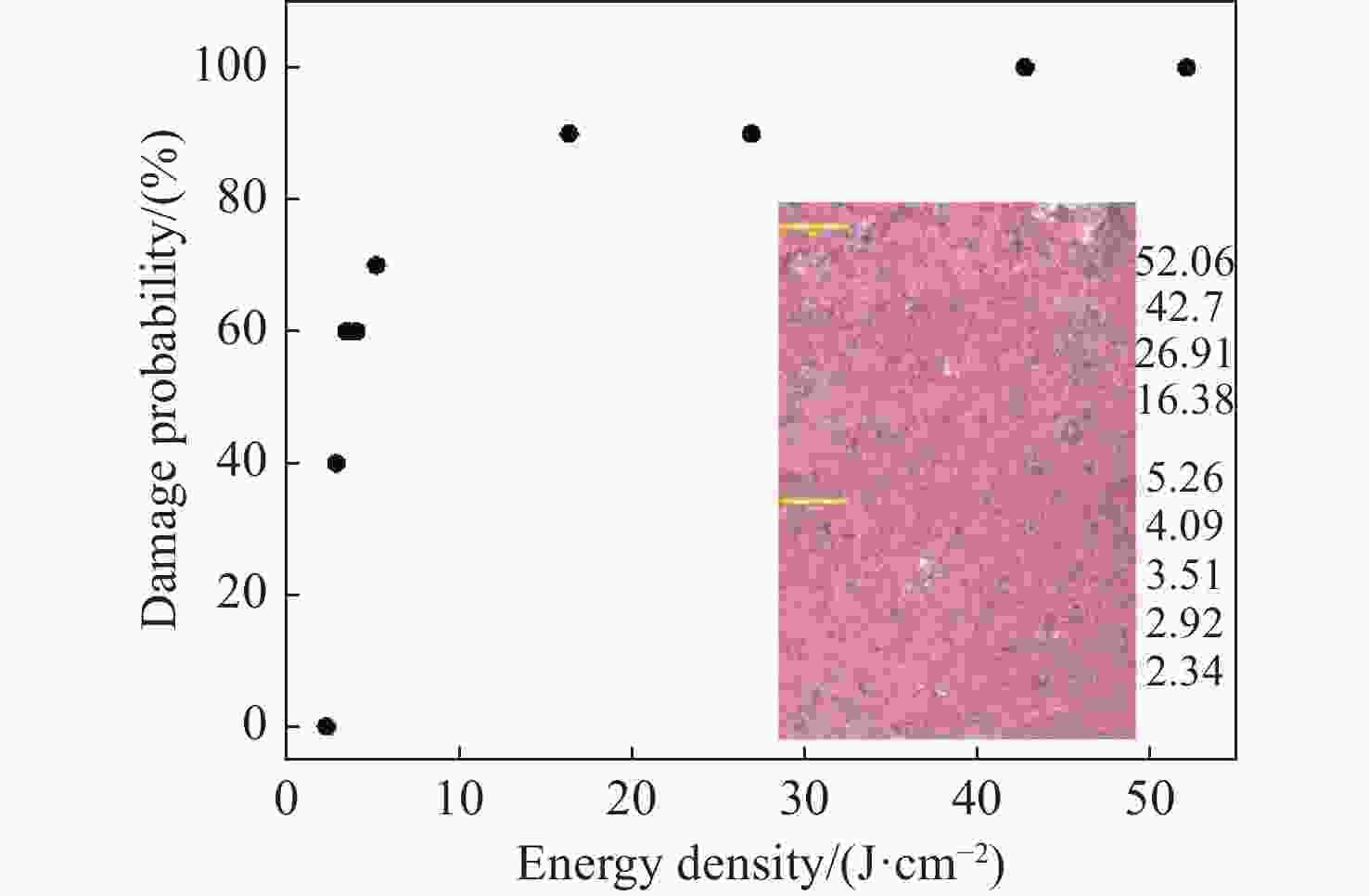

图 4 1064 nm 清洗污染物不同部位的能量密度与损伤概率的关系

Figure 4. Relationship between energy density and damage probability for cleaning different parts of pollutants by 1064-nm laser

下载: 全尺寸图片幻灯片

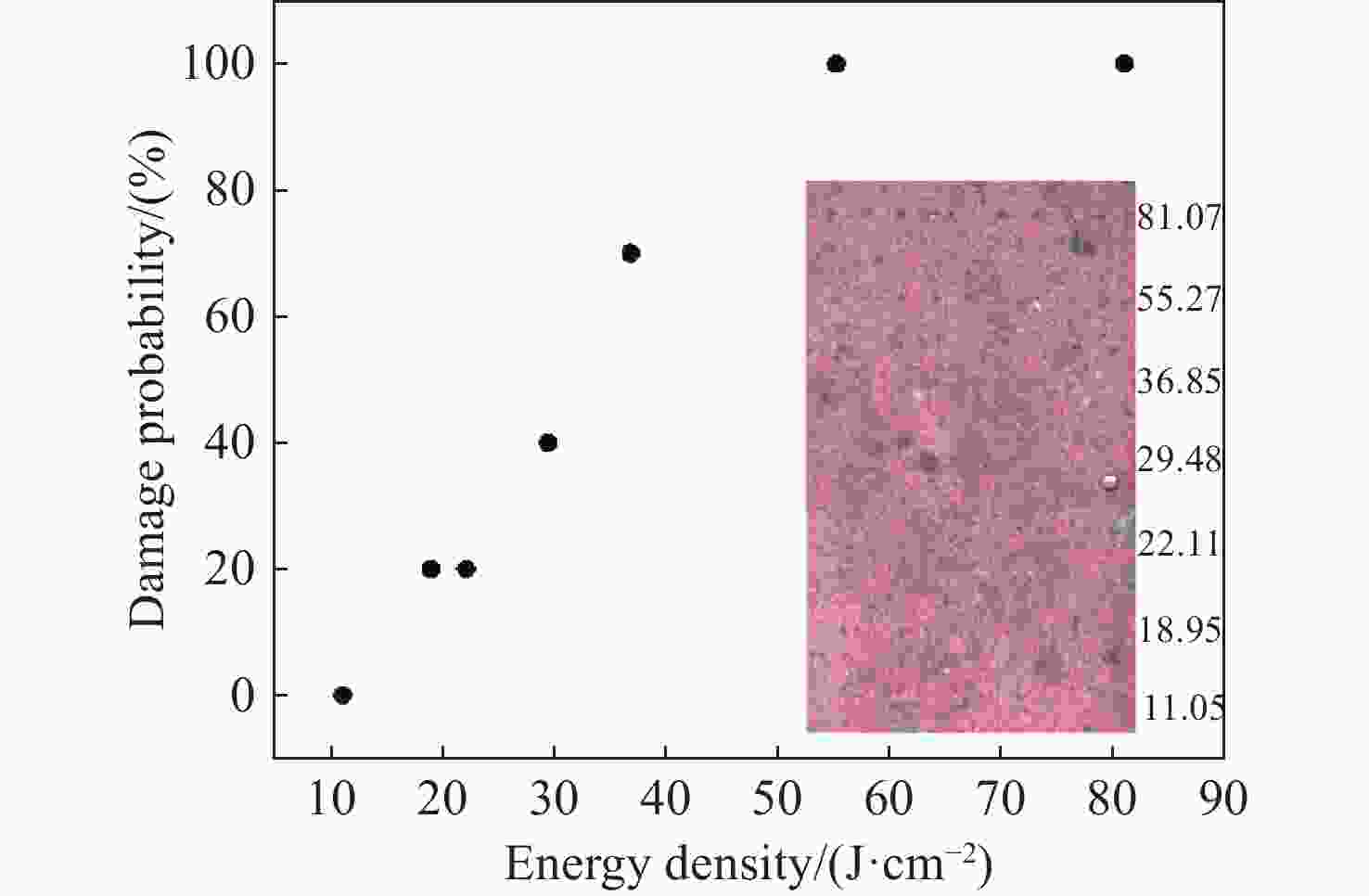

图 5 355 nm 清洗污染物不同部位的能量密度与损伤概率关系

Figure 5. Relationship between energy density and damage probability for cleaning different parts of pollutants by 355-nm laser

下载: 全尺寸图片幻灯片

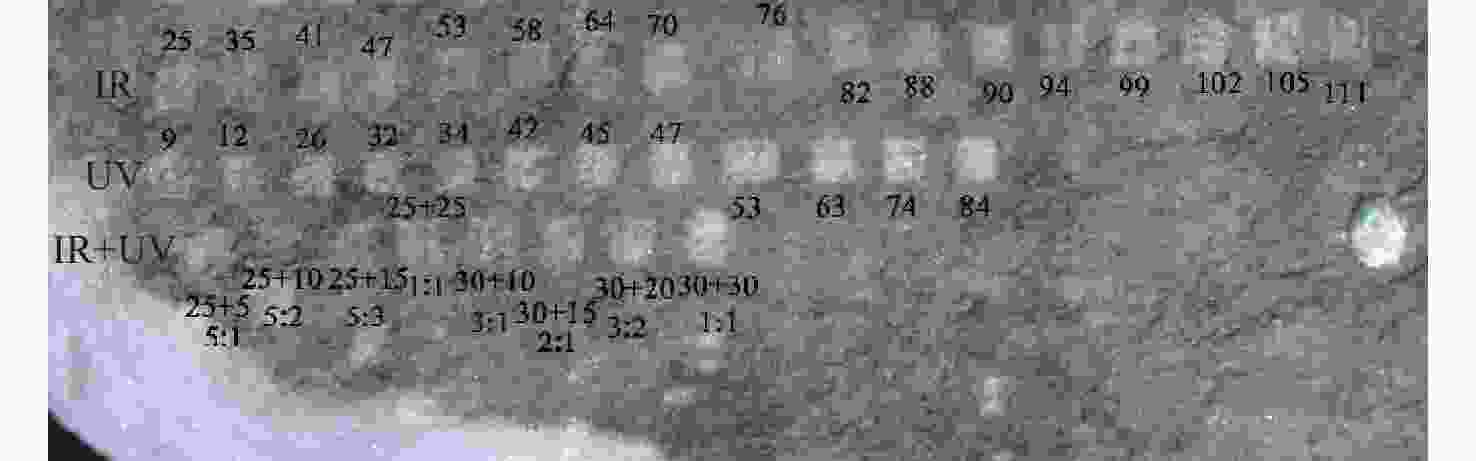

图 6 利用显微监测系统测试1064 nm、355 nm 和1064 nm与355 nm双波段在不同能量密度下的清洗效果显微照片

Figure 6. Microscopic photos of cleaning effects of 1064 nm laser, 355 nm laser and 1064 nm and 355 nm dual-wavelength laser at different energy densities tested by using a microscopic monitoring system

下载: 全尺寸图片幻灯片

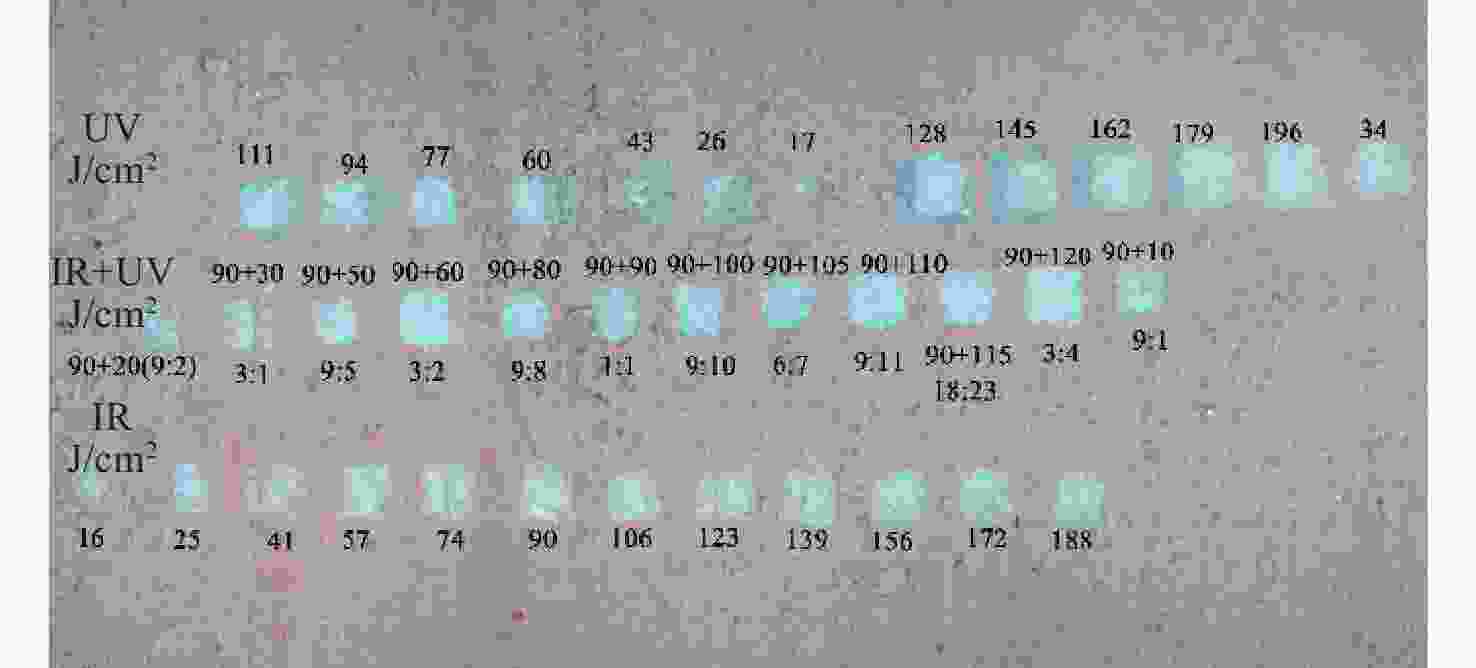

图 7 不同能量密度下清洗石质文物表面的对比图

Figure 7. Comparison of stone cultural relics’ surface cleaned by laser with different energy densities

下载: 全尺寸图片幻灯片

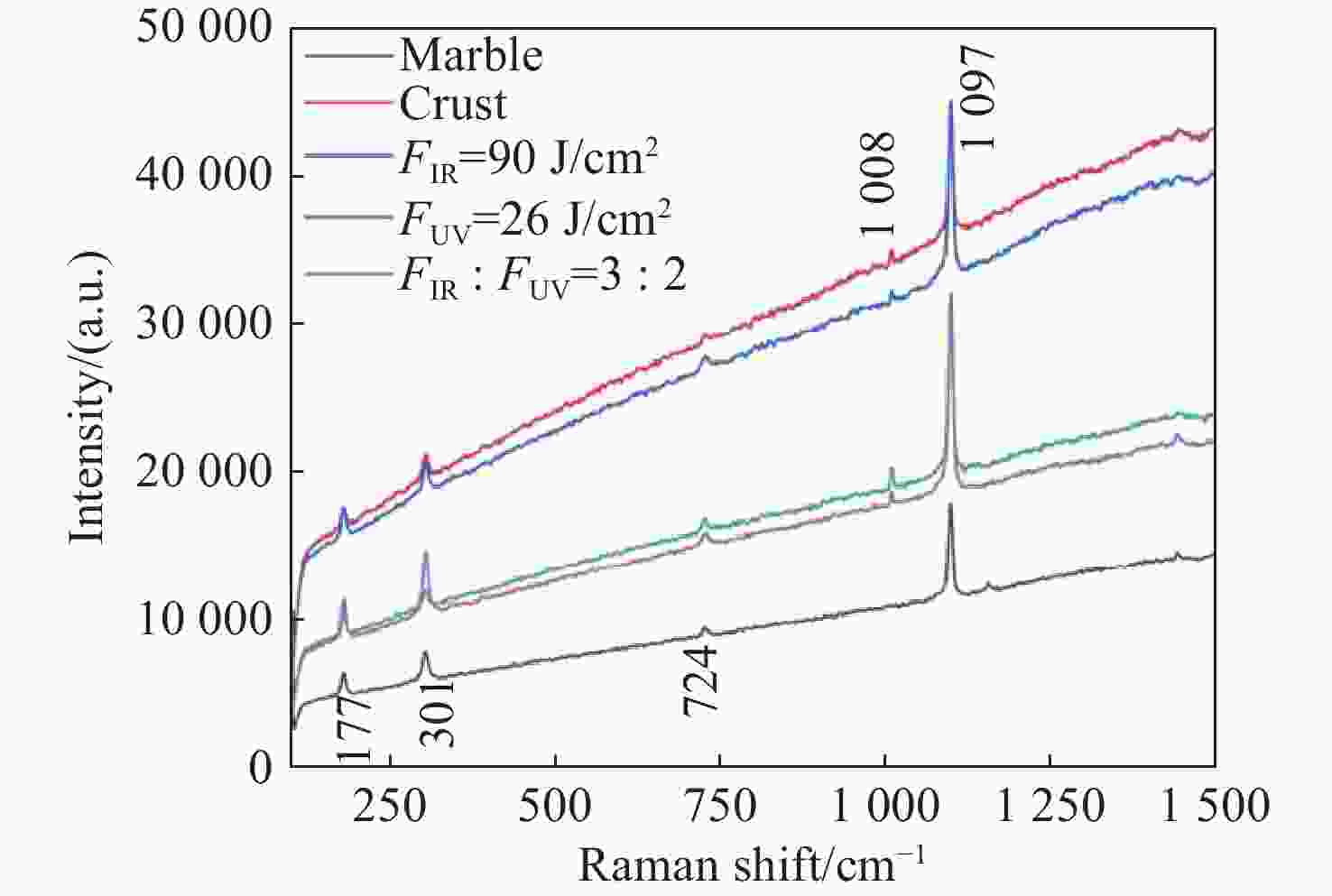

图 8 无污染物的大理石、有污染物大理石未经清洗、单独用1064 nm近红外光清洗（F_IR=90 J/cm²）、单独用355 nm紫外光清洗（F_UV=26 J/cm²）及1064-nm和355-nm（F_IR/F_UV=3/2）双波段清洗后的拉曼光谱

Figure 8. Raman spectra of marble without crust, marble with crust, laser cleaning separately with 1064 nm (F_IR=90 J/cm²), laser cleaning separately with 355 nm (F_UV=26 J/cm2), laser cleaning with 1064 nm and 355 nm (F_IR/F_UV=3/2) at the same time

下载: 全尺寸图片幻灯片

表 1 1064 nm 清洗污染物不同部位的单脉冲能量、能量密度及损伤概率表

Table 1. Single pulse energy, energy density, and damage probability for cleaning different parts of pollutants by 1064-nm laser

单脉冲能量(mJ)	能量密度(J·cm⁻²)	损伤概率(%)
0.89	52.06	100
0.73	42.7	100
0.46	26.91	90
0.28	16.38	90
0.09	5.26	70
0.07	4.09	60
0.06	3.51	60
0.05	2.92	40
0.04	2.34	0

下载: 导出CSV

表 2 355 nm 清洗污染物不同部位的单脉冲能量、能量密度、损伤概率表

Table 2. Single pulse energy, energy density, and damage probability for cleaning different parts of pollutants by 355-nm laser

单脉冲能量/mJ	能量密度(J·cm⁻²)	损伤概率(%)
0.154	81.07	100
0.105	55.27	100
0.07	36.85	70
0.056	29.48	40
0.042	22.11	20
0.036	18.95	20
0.021	11.05	0

下载: 导出CSV
