基于离轴自由曲面的通信光学天线设计

doi:10.3788/CO.2019-0157

谷茜茜^{1, 2, 3,},
崔占刚^{1, 2, 3,},
亓波^{1, 2, 3,,}

1.
中国科学院光束控制重点实验室，四川成都 610209
2.
中国科学院光电技术研究所，四川成都 610209
3.
中国科学院大学，北京 100049

基金项目:中国科学院创新基金（No. CXJJ-19S008）

详细信息

作者简介:
谷茜茜(1993—)，女，河北石家庄人，硕士研究生，2017年于长春理工大学获得学士学位，主要从事通信光学系统设计方面的研究。E-mail：gu_xi_xi@126.com
亓　波(1978—)，男，山东莱芜人，博士，研究员，博士生导师，主要从事光学工程，光学精密机械等方面的研究。E-mail：qibo@ioe.ac.cn

中图分类号:TP394.1；TH691.9
计量
- 文章访问数:2799
- HTML全文浏览量:1088
- PDF下载量:173
- 被引次数:0
出版历程
- 收稿日期:2019-07-25
- 修回日期:2019-09-15
- 刊出日期:2020-06-01

Design of optical antenna for laser communication based on an off-axis freeform surface

GU Xi-xi^{1, 2, 3,},
CUI Zhan-gang^{1, 2, 3,},
QI Bo^{1, 2, 3,,}

1.
Key Laboratory of Beam Control, Chinese Academy of Sciences, Chengdu 610209, China
2.
Institute of Optics and Electronics, Chinese Academy of Sciences, Chengdu 610209, China
3.
University of Chinese Academy of Sciences, Beijing 100049, China

Funds:Supported by CAS Innovation Project of China (No. CXJJ-19S008)

More Information

Corresponding author:qibo@ioe.ac.cn

摘要

摘要:为了提高空间通信系统的工作范围，简化光学系统的结构，提出了基于离轴自由曲面的大视场两镜无焦光学天线的设计形式。该光学天线采用无焦结构，无需再使用准直透镜元件，可以极大地简化系统结构，克服了传统聚焦光学天线体积过大、大功率光源情况下焦点处功率密度过高等问题。首先，基于三级像差理论，推导了两镜无焦系统的消像差公式，并对求解结果进行了分析总结。然后，根据求解结果和实际需求设计了一款无焦光学天线，该系统的有效通光口径为100 mm，放大倍率为5倍，波段为500~1 100 nm，全视场角为0.6°，主镜为凹抛物面的一部分，次镜采用XY多项式表征的自由曲面，并用MATLAB 对次镜自由曲面面形进行了仿真。结果表明，光学系统全视场的波像差优于λ/14（λ=500 nm），斯托列尔比大于0.8，系统能量集中度较高，像质接近衍射极限，光学视场相对于传统二次曲面系统增加了26.7%。因此，该种天线结构在通信领域具有较强的实用性和很好的发展前景。
- 光学天线设计/
- 大视场/
- 自由曲面/
- 离轴两镜无焦系统
Abstract:We propose a design for a large-field two-mirror afocal optical antenna based on an off-axis freeform surface to improve the working range of space laser communication systems and simplify the structure of optical systems. The optical antenna adopts an afocal structure without using collimating lens elements, which can greatly simplify the system structure, overcome the problems of traditional focusing optical antennae such as them being too large in volume or having a power density that is too high at the focus when using high power light source. First, based on third-order aberration theory, the aberration-free formula of this class of two-mirror afocal optical antenna is derived, and relative results are analyzed. Then, an afocal optical antenna is designed according to the analyzed results and practical requirements. The effective aperture of the system is 100 mm, the magnification is 5, the range of the wavelength is 500~1 100 nm, the full field of view is 0.6°, the primary mirror is part of the concave paraboloid and the secondary mirror is a freeform surface characterized by XY polynomials. MATLAB software is used to simulate the freeform surface of the secondary mirror. The design results show that the total field of view wavefront error of the optical system is better than λ/14 (λ=500 nm), the Strehl ratio is greater than 0.8, the system has a higher energy concentration, and the image quality is close to the diffraction limit. The field of view of the freeform surface optical system increased by 26.7% compared with that using traditional conic surface system. Therefore, this antenna structure is highly applicable and shows strong prospects for development in the field of laser communication.
- optical antenna design/
- large field of view/
- freeform surface/
- off-axis two-mirror afocal system

HTML全文

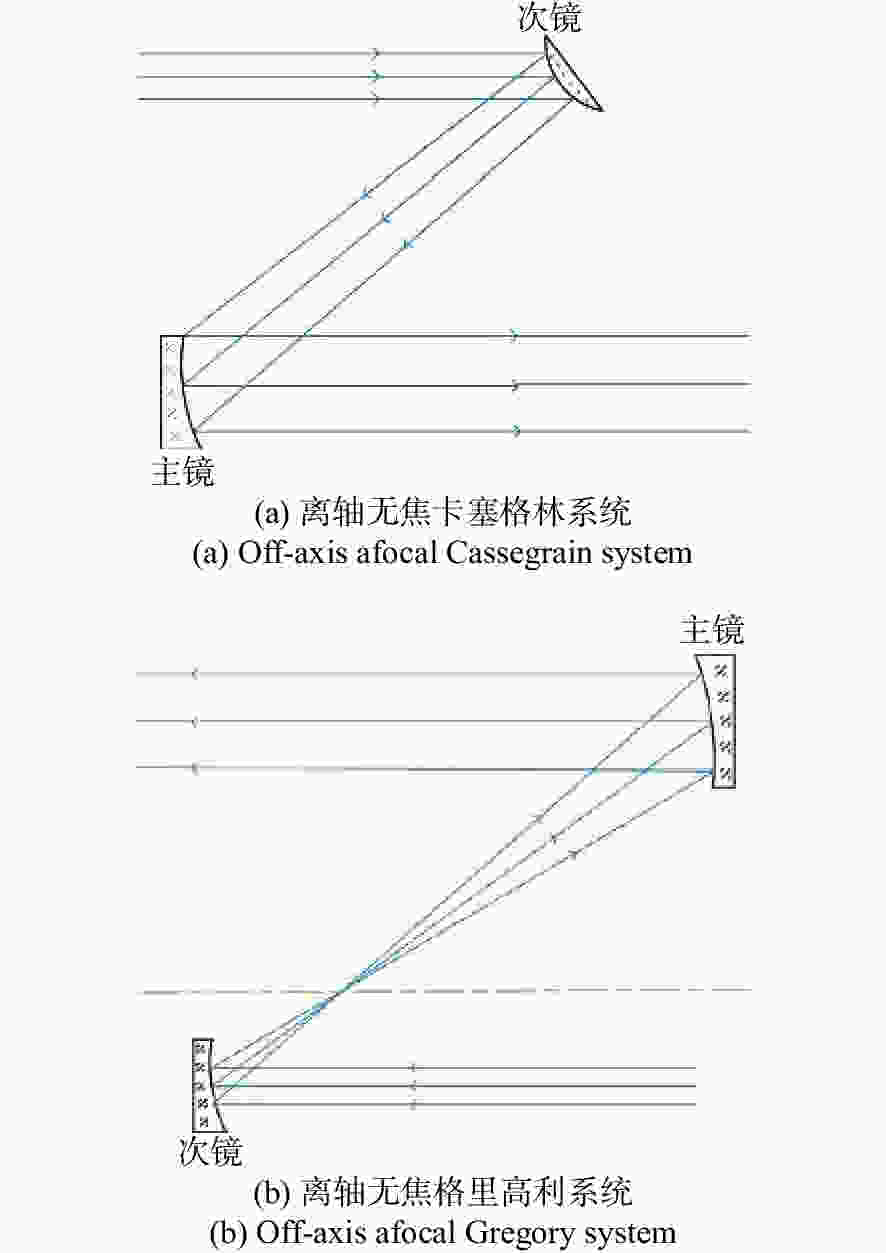

图 1离轴两镜无焦系统的两种结构

Figure 1.Structures of two kinds of off-axis two-mirror afocalsystems

下载: 全尺寸图片幻灯片

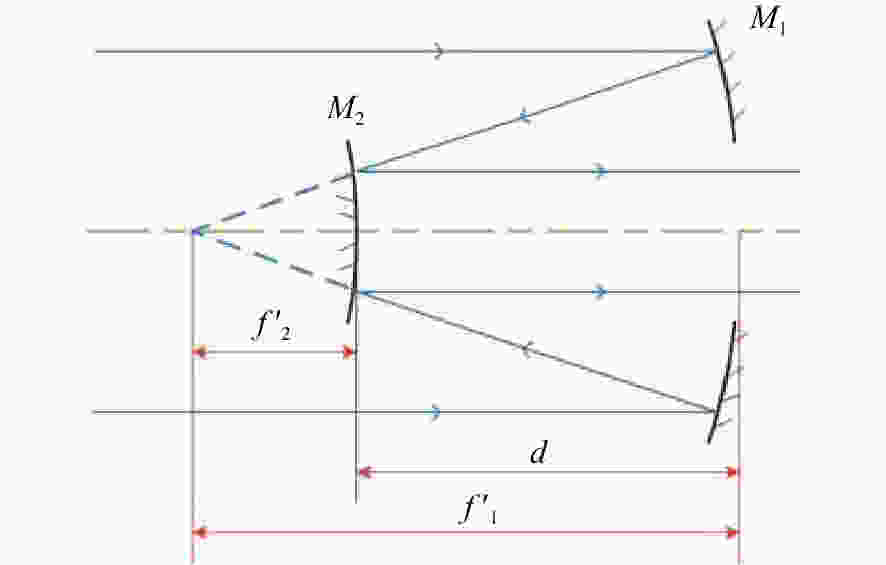

图 2同轴两镜无焦系统示意图

Figure 2.Schematic of coaxial two-mirror afocal system

下载: 全尺寸图片幻灯片

图 3离轴量示意图

Figure 3.Schematic of off-axis distance

下载: 全尺寸图片幻灯片

图 4视场采样图

Figure 4.Field sampling map

下载: 全尺寸图片幻灯片

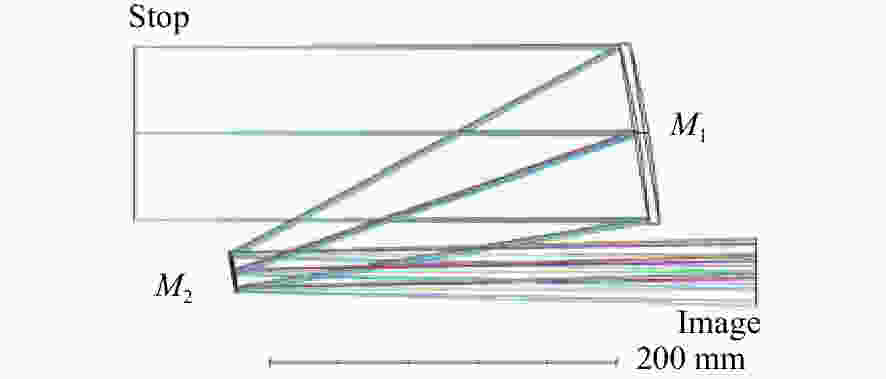

图 5光学系统结构图

Figure 5.Layout of the optical system

下载: 全尺寸图片幻灯片

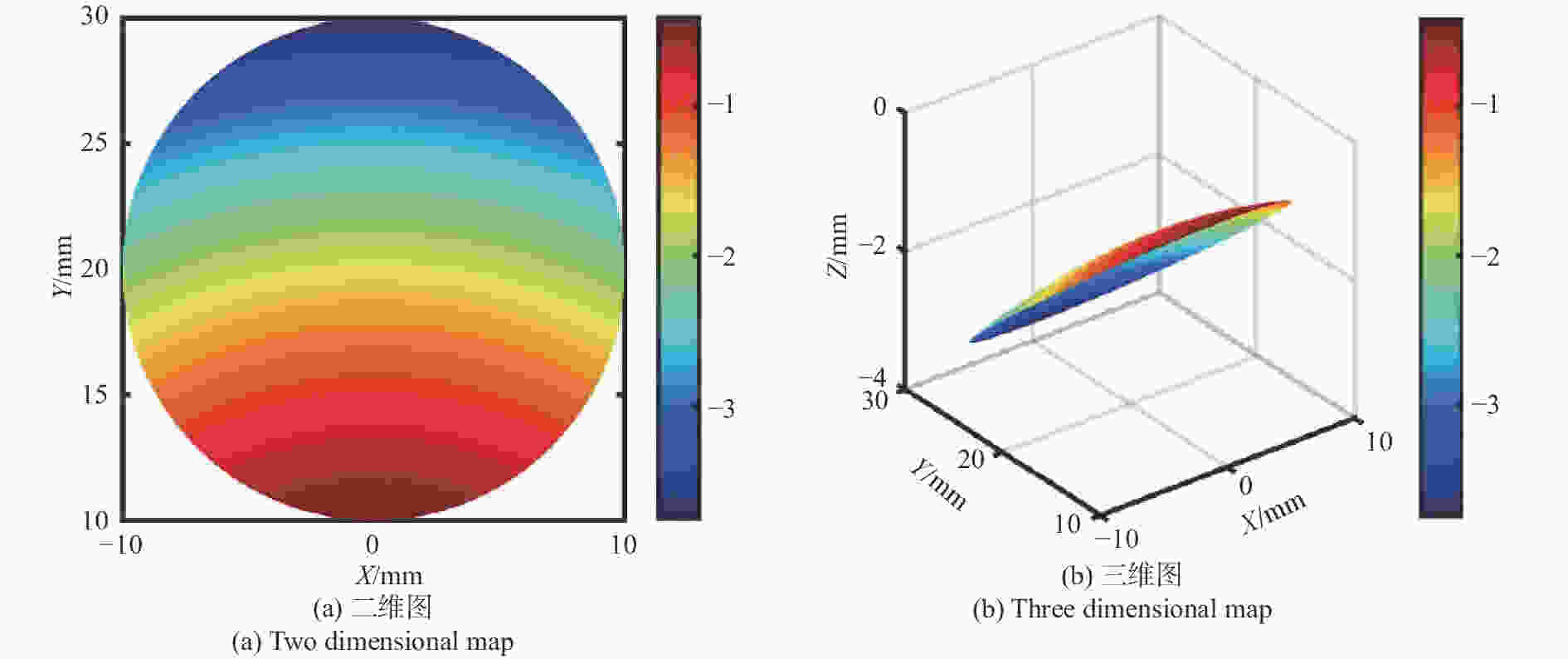

图 6次镜XY自由曲面的二维和三维面形图

Figure 6.2-D and 3-D profiles of XY freeform surface for secondary mirror

下载: 全尺寸图片幻灯片

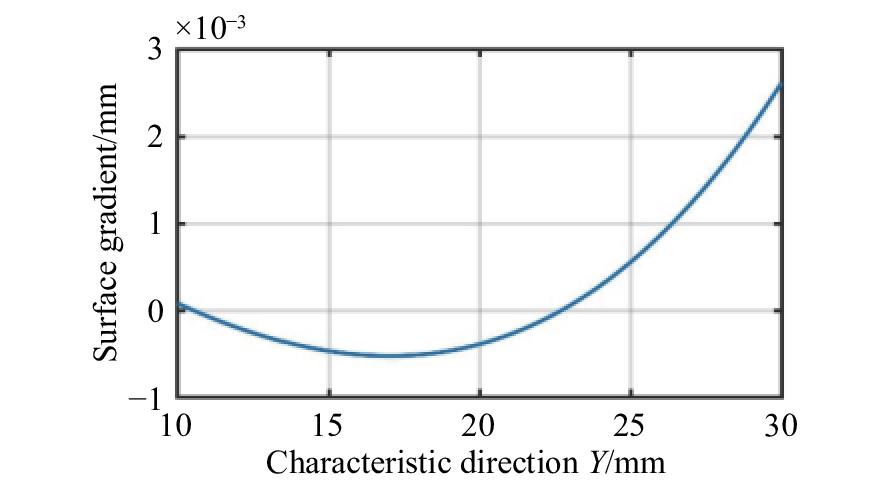

图 7次镜的面形梯度

Figure 7.Surface gradient of secondary mirror

下载: 全尺寸图片幻灯片

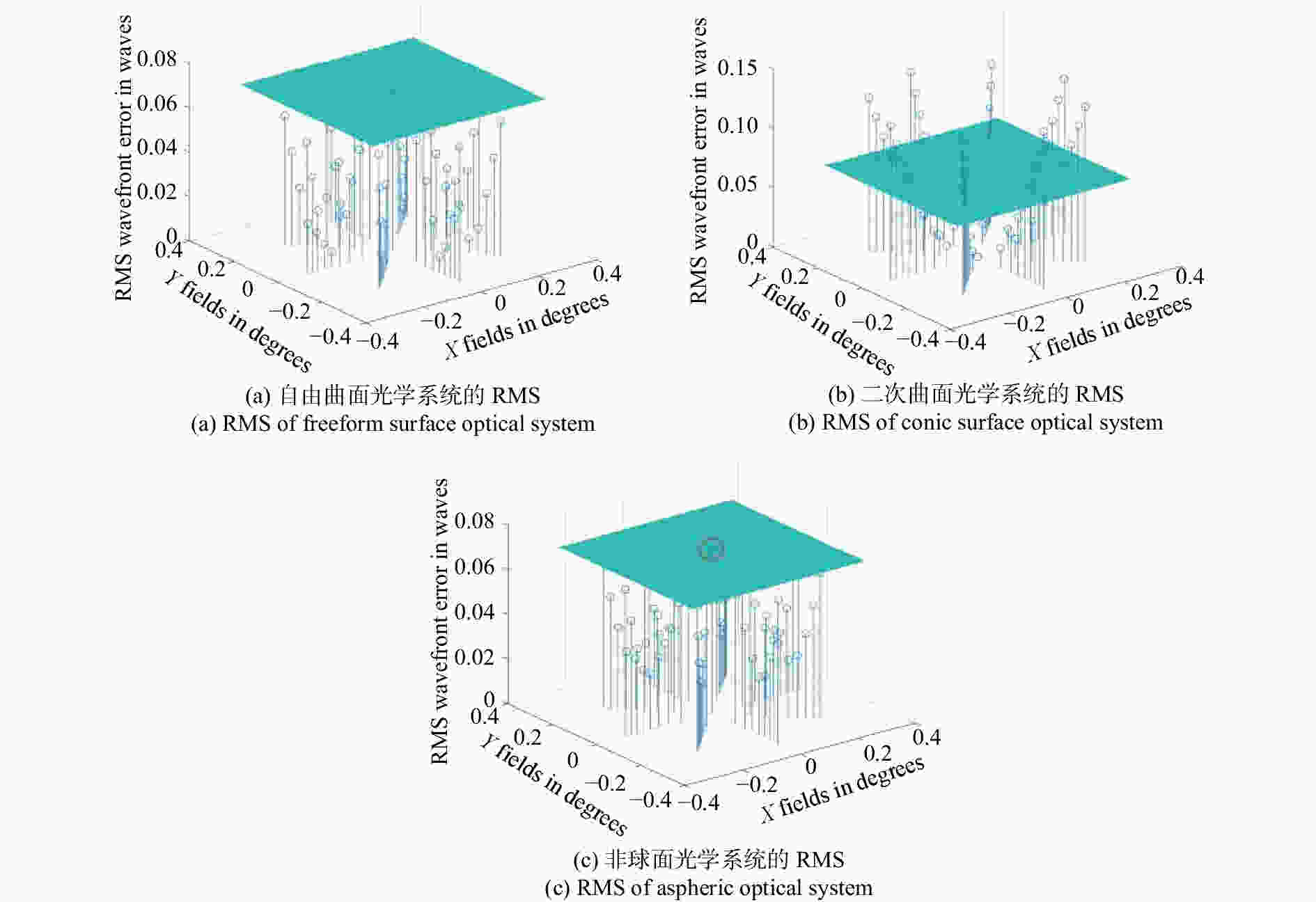

图 8光学系统的RMS波像差

Figure 8.RMS wavefront errors of different optical systems

下载: 全尺寸图片幻灯片

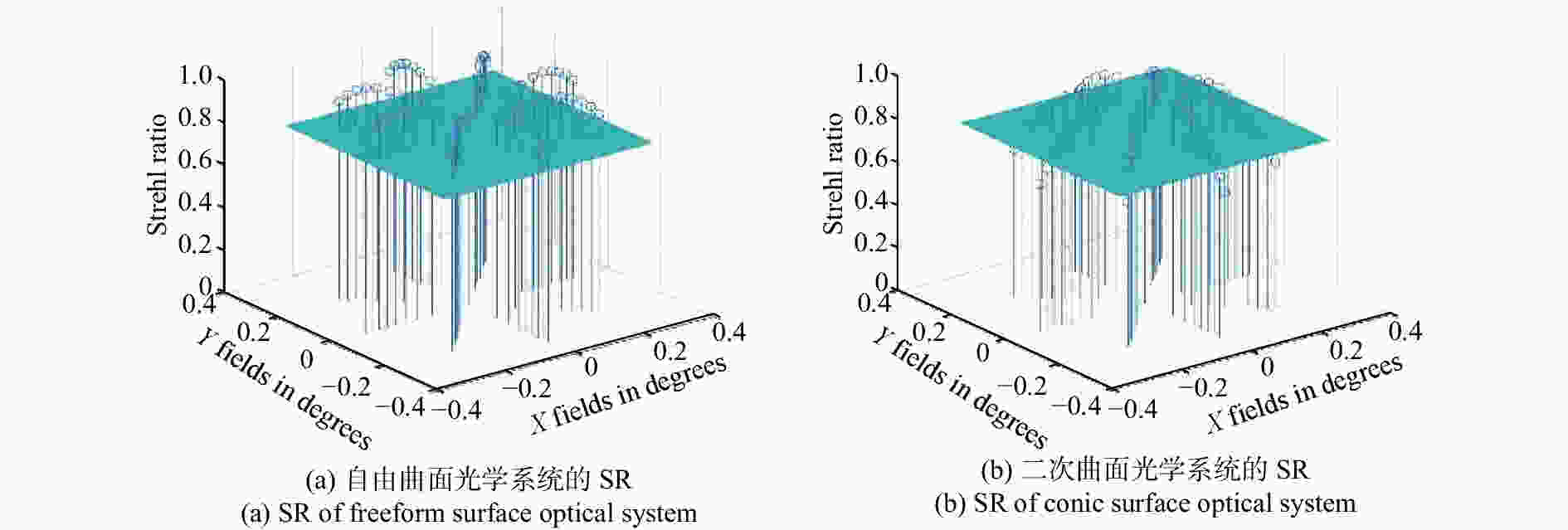

图 9光学系统的斯托列尔比（SR）

Figure 9.Strehl Ratios (SR) of different optical systems

下载: 全尺寸图片幻灯片

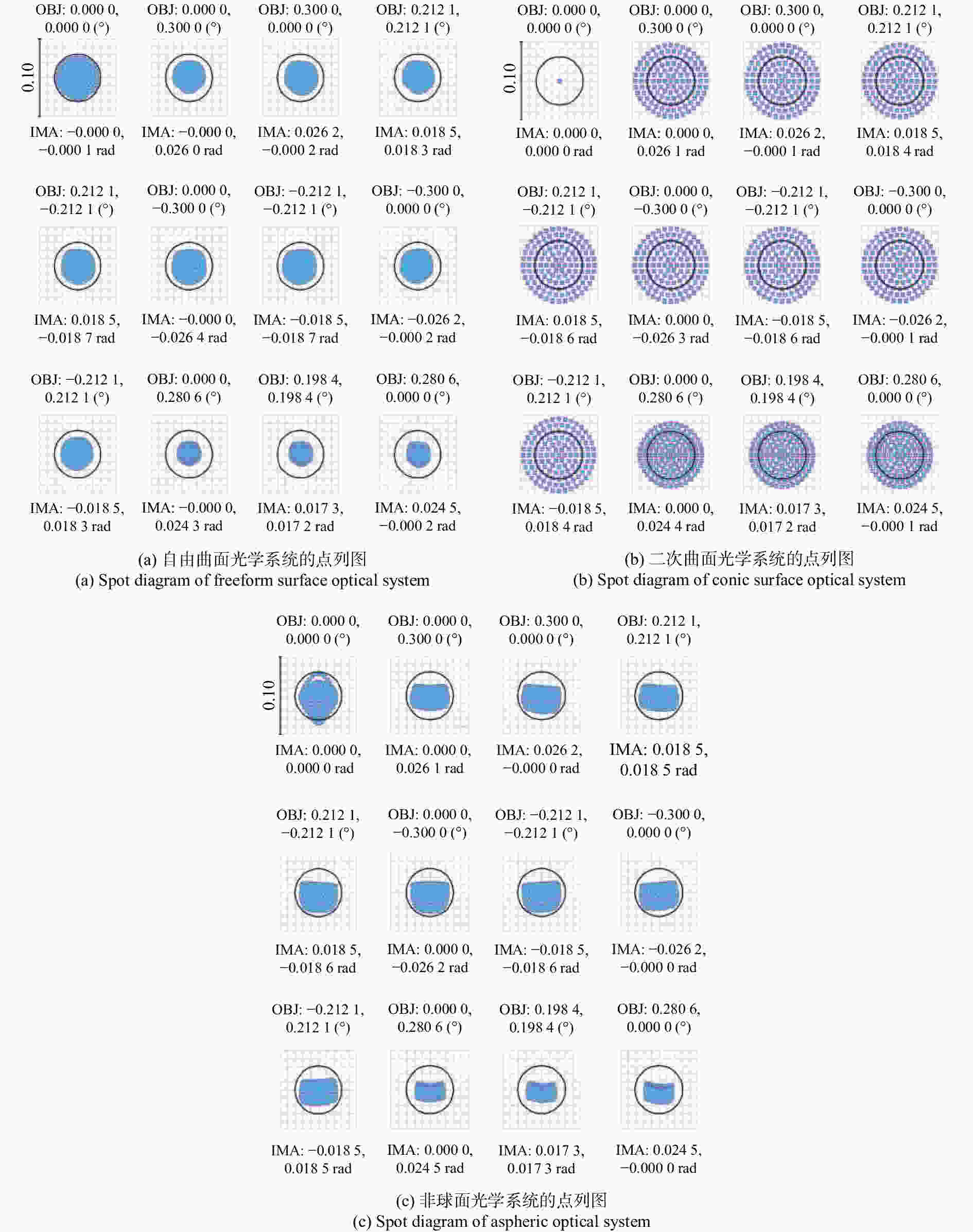

图 10光学系统点列图

Figure 10.Spot diagrams of different optical systems

下载: 全尺寸图片幻灯片

图 11不同光学系统的MTF

Figure 11.MTFs of different optical systems

下载: 全尺寸图片幻灯片

表 1次镜自由曲面参数

Table 1.Polynomial parameters of freeform surface for secondary mirror

Item	CoefficientA_i	Item	CoefficientA_i
X¹Y⁰	0	X³Y¹	0
X⁰Y¹	6.735 780×10^–5	X²Y²	6.216 308×10^–9
X²Y⁰	0	X¹Y³	0
X¹Y¹	0	X⁰Y⁴	1.616 430×10^–9
X⁰Y²	0	X⁵Y⁰	0
X³Y⁰	0	X⁴Y¹	−2.079 343×10^–11
X²Y¹	−1.055 768×10^–7	X³Y²	0
X¹Y²	0	X²Y³	−1.129 752×10^–10
X⁰Y³	−4.533 126×10^–8	X¹Y⁴	0
X⁴Y⁰	5.532 042×10^–11	X⁰Y⁵	−1.957 926×10^–11

下载: 导出CSV
