Modeling and numerical simulation of a semiconductor switching device applied in an ultra-short pulse CO2laser
-
摘要:本文开展了基于半导体光开关技术实现超短脉宽CO 2 输出的物理机制研究。首先，在分析光生载流子过程及载流子复合扩散机制的基础上，引入直接吸收、俄歇复合、等离激元辅助复合以及双极扩散等物理过程，并基于Drude理论，完善了半导体光开关理论模型。其次，利用该模型对两级半导体光开关产生超短CO 2脉冲机制进行了数值模拟及分析，结果显示该模型与国外最新实验结果一致，表明了模型的合理性与正确性。最后，利用该模型分析了控制光脉冲宽度对两级光开关工作效率的影响，发现短的控制光脉冲更有利于精确、高效地截取出高质量的超短CO 2脉冲。本文研究证明半导体光开关法是实现超短CO 2 脉宽可调输出的有效技术途径。Abstract:The physical mechanism are studied for ultra-short pulse CO 2laser output realized by semiconductor switching technology. Firstly, based on the analysis of the generation, recombination and diffusion mechanism of laser-produced carriers, we introduce direct absorption, Auger recombination, plasmon-assisted recombination, an ambipolar diffusion process and according to Drude theory, we improve the theoretical model of semiconductor switching. Secondly, we simulate and analyze the generation of ultra-short CO 2pulses by two-stage semiconductor optical switches employing this model. The results show that the model is in good agreement with the latest experimental results reported abroad, which implies the rationality and correctness of the model. Finally, the model is used to analyze the effect of control pulse duration on the efficiency of the two-stage switching. It is found that a short control pulse is more conducive to intercepting high-quality ultra-short CO 2pulses accurately and efficiently. Semiconductor switching is an effective technique to realize the output of an ultra-short CO 2laser with an adjustable pulse width.
-

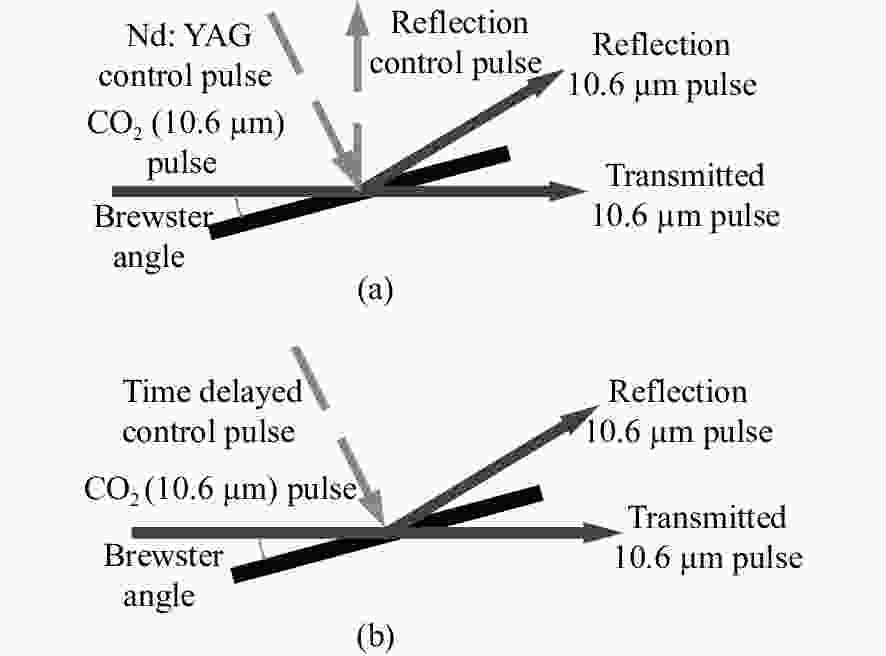

图 1(a)反射光开关(b)透射光开关示意图
Figure 1.Schematic diagrams of (a) reflection switch (b) transmission switch.

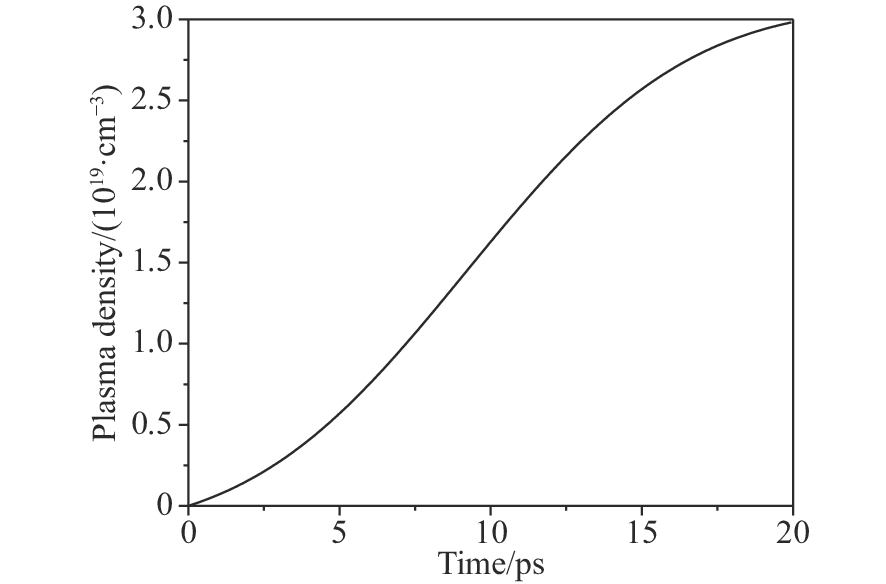

图 2脉宽为20 ps，能量密度为0.6 mJ/cm2，波长为1.06 μm控制光脉冲辐照下半导体表面等离子体密度随时间变化曲线
Figure 2.Surface density of plasma in germanium plotted as a function of time under the radiation of 1.06-μm control pulse with pulse width of 20 ps and energy density of 0.6 mJ/cm2.

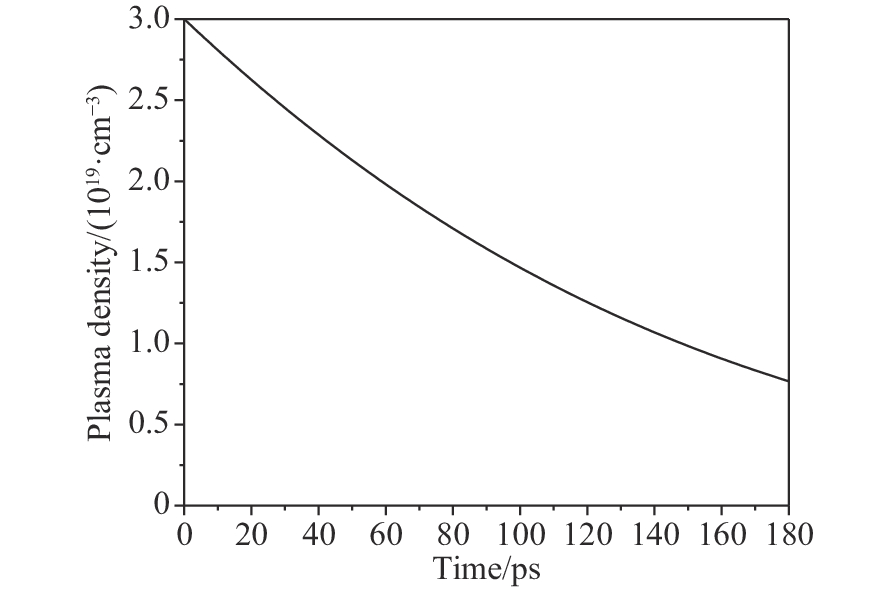

图 3控制光消失后表面等离子体密度随时间变化曲线
Figure 3.Surface density of plasma in germanium plotted as a function of time after the control pulse vanishing
图 4CO2光脉冲垂直入射反射光开关输出脉冲能量变化曲线
Figure 4.Calculated vertical reflected pulse energy plotted as a function of time

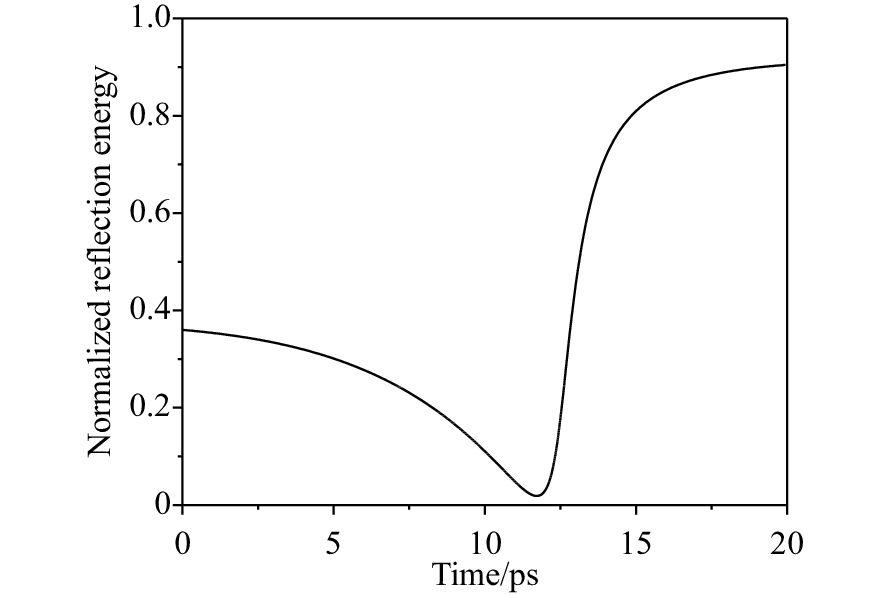

图 5CO2光脉冲以布鲁斯特角入射反射光开关输出脉冲能量变化
Figure 5.Calculated Brewster′s angle reflected pulse energy plotted as a function of time

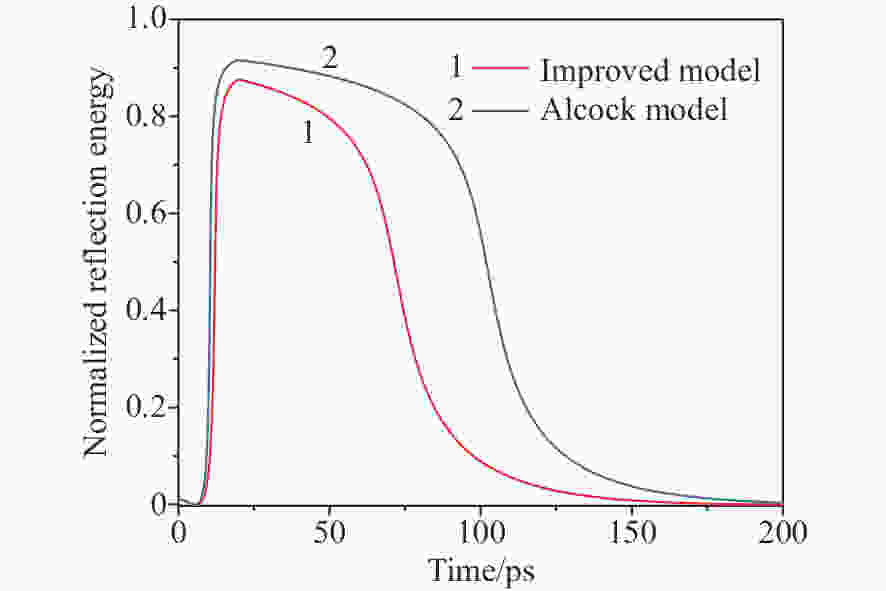

图 6单级半导体反射开关输出的CO2光脉冲
Figure 6.CO2pulse output from single-stage semiconductor switching

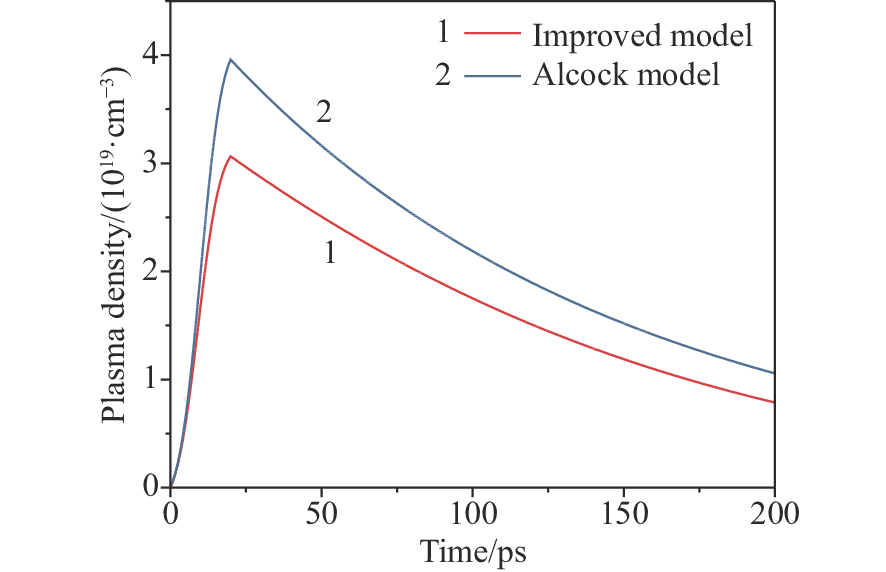

图 7单级半导体反射开关表面等离子体密度随时间变化曲线
Figure 7.Surface density of plasma in single-stage semiconductor switching plotted as a function of time

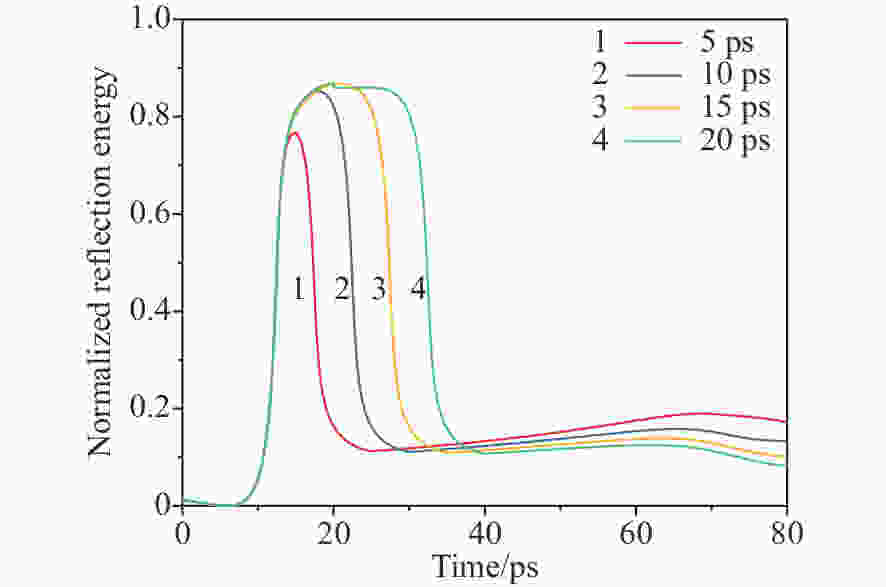

图 8两级半导体光开关在5、10、15、20 ps延迟时间下输出CO2脉冲能量
Figure 8.CO2pulse energy outputs from two-stage semiconductor switching with time delay of 5, 10, 15 and 20 ps

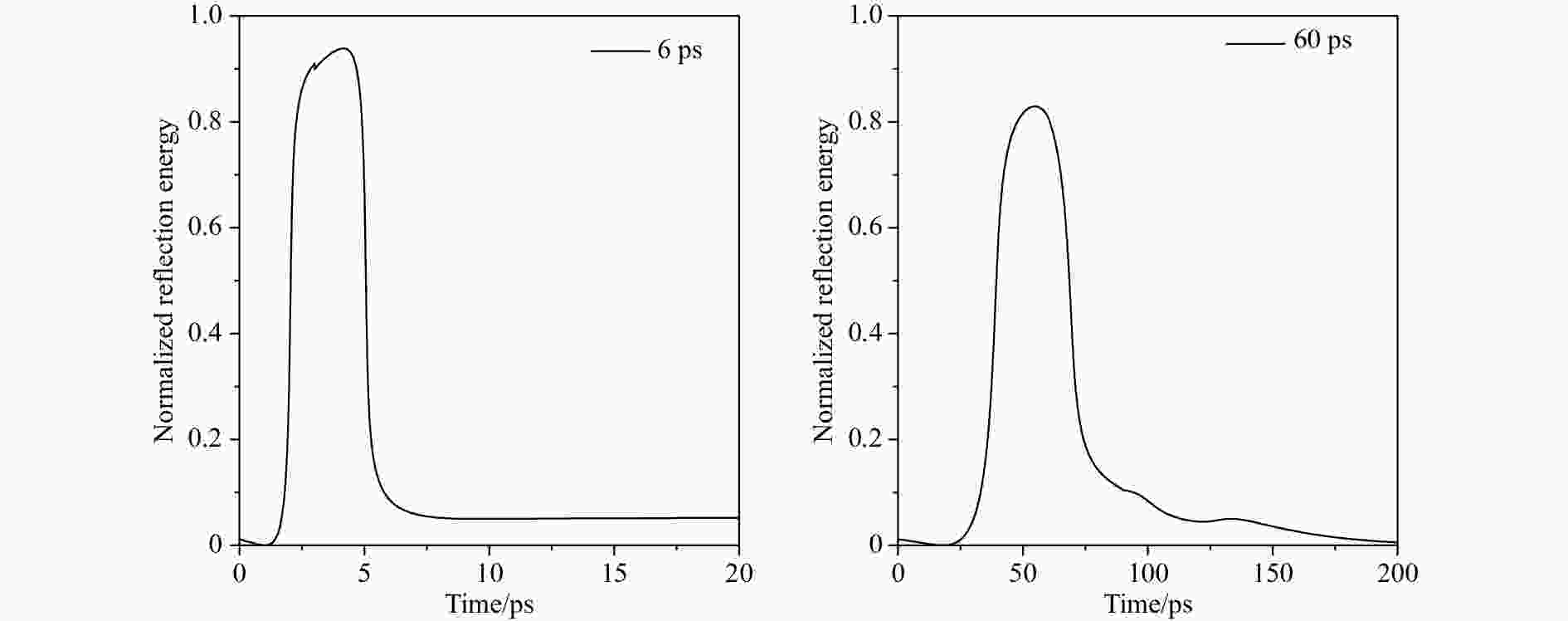

图 9脉宽为6、10、30、60 ps的控制光脉冲辐照单级反射开关得到CO2脉冲能量
Figure 9.CO2pulse energies obtained by using controlled light pulse with pulse widths of 6, 10, 30, 60 ps to radiate single–stage reflection switch
-
[1] POGORELSKY I V, YAKIMENKO V, POLYANSKIY M,et al. Ultrafast CO2laser technology: application in ion acceleration[J].Nuclear Instruments and Methods in Physics Research Section A:Accelerators,Spectrometers,Detectors and Associated Equipment, 2010, 6(20): 67-70. [2] PIGEON J J, TOCHITSKY S Y, GONG C,et al. Supercontinuum generation from 2 to 20 μm in GaAs pumped by picosecond CO2laser pulses[J].Optics Letters, 2014, 39(11): 3246-3249.doi:10.1364/OL.39.003246 [3] BABZIEN M, POGORELSKY I V, POLYANSKIY M. Design and applications of the Brookhaven 100 TW CO2laser[C].Research in Optical Sciences, OSA, 2014: JW2A.25. [4] SIEMON C, KHUDIK V, AUSTIN Y S,et al. Laser-seeded modulation instability in a proton driver plasma wake field accelerator[J].Physics of Plasmas, 2013, 20(10): 103111.doi:10.1063/1.4825245 [5] KESSELRING R, KALIN A W, SCHOTZAU H J,et al. Picosecond CO2laser-pulse generation and amplification[J].IEEE Journal of Quantum Electronics, 1993, 29(3): 997-1005.doi:10.1109/3.206584 [6] HABERBERGER D, TOCHITSKY S, JOSHI C. Fifteen terawatt picosecond CO2laser system[J].Optics Express, 2010, 18(17): 17865-17875.doi:10.1364/OE.18.017865 [7] 谢冀江, 李殿军, 张传胜, 等. 声光调Q CO2 器[J]. 光学 精密工程,2009,17(5):1008-1013.XIE J J, LI D J, ZHANG CH SH,et al. Acousto-optically Q-switched CO2laser[J].Optics and Precision Engineering, 2009, 17(5): 1008-1013. (in Chinese) [8] ALCOCK A J, CORKUM P B, JAMES D J. A fast scalable switching technique for high-power CO2laser radiation[J].Applied Physics Letters, 1975, 27(12): 680-682.doi:10.1063/1.88336 [9] POGORELSKY I V, BEN-ZVI I, BABZIEN M,et al. First picosecond terawatt CO2laser[J].Proceedings of SPIE, 1998, 3683: 15-24.doi:10.1117/12.334820 [10] APOLLONOV V V, KAZAKOV K K, PLETNYEV N V,et al. Picosecond terawatt CO2laser system: picasso-2[J].Proceedings of SPIE, 2003, 5120: 291-296. [11] JAMISON S A, NURMIKKO A V, GERRITSEN H J. Fast transient spectroscopy of the free-carrier plasma edge in Ge[J].Applied Physics Letters, 1976, 29(10): 640-643.doi:10.1063/1.88908 [12] HEIN P C, GALLANT M I, VAN DRIEL H M. Influence of excitation wavelength on the reflectivity of photogenerated plasmas in germanium[J].Solid State Communications, 1981, 39(4): 601-604.doi:10.1016/0038-1098(81)90330-6 [13] GALLANT M I, VAN DRIEL H M. Infrared reflectivity probing of thermal and spatial properties of laser-generated carriers in germanium[J].Physical Review B, 1982, 26(4): 2133-2146.doi:10.1103/PhysRevB.26.2133 [14] ALCOCK A J, CORKUM P B. Ultra-fast switching of infrared radiation by laser-produced carriers in semiconductors[J].Canadian Journal of Physics, 1979, 57(9): 1280-1290.doi:10.1139/p79-176 [15] 董文甫, 王启明, 杨沁清, 等. 锗硅量子阱中近带边光跃迁的理论和实验研究[J]. 发光学报,1996,17(4):311-316.doi:10.3321/j.issn:1000-7032.1996.04.004DONG W F, WANG Q M, YANG Q Q,et al. The theoretical and experimental research of the near-band-gap optical transition in SiGe/Si quantum well[J].Chinese Journal of Luminescence, 1996, 17(4): 311-316. (in Chinese)doi:10.3321/j.issn:1000-7032.1996.04.004 [16] 张希清, 秦伟平, 赵家龙, 等. 用非相干光时间延迟四波混频测量TiO2超微粒子的扩散系数及载流子复合时间[J]. 发光学报,1993,14(3):231-236.doi:10.3321/j.issn:1000-7032.1993.03.004ZHANG X Q, QIN W P, ZHAO J L,et al. Measuring carrier recombination time and diffusion coefficient of TiO2using time-delayed four-wave mixing with incoherent light[J].Chinese Journal of Luminescence, 1993, 14(3): 231-236. (in Chinese)doi:10.3321/j.issn:1000-7032.1993.03.004 [17] ELCI A, SCULLY M O, SMIRL A L,et al. Ultrafast transient response of solid-state plasmas. I. Germanium, theory, and experiment[J].Physical Review B, 1977, 16(1): 191-221.doi:10.1103/PhysRevB.16.191 [18] 刘恩科, 朱秉升, 罗晋生. 半导体物理学[M]. 7版. 北京: 电子工业出版社, 2008.LIU E K, ZHU B SH, LUO J SH.Semiconductor Physics[M]. 7th ed. Beijing: Publishing House of Electronics Industry, 2008. (in Chinese) [19] ZIMAN J M.Principles of the Theory of Solids[M]. Cambridge: Cambridge University Press, 1972. [20] MALVEZZI A M, HUANG C Y, KURZ H,et al. Time-resolved spectroscopy of plasma resonances in highly excited silicon and germanium[J].MRS Proceedings, 1985, 51: 201.doi:10.1557/PROC-51-201 [21] AUSTON D H, SHANK C V, LEFUR P. Picosecond optical measurements of band-to-band Auger recombination of high-density plasmas in germanium[J].Physical Review Letters, 1975, 35(15): 1022-1025.doi:10.1103/PhysRevLett.35.1022 [22] 米宝永. 锗的红外折射率精密测量[J]. 光学 精密工程,1998,6(4):123-126.MI B Y. Precision measurement of the infrared refractive index for germanium sample[J].Optics and Precision Engineering, 1998, 6(4): 123-126. (in Chinese) [23] RASOLT M, MALVEZZI A M, KURZ H. Plasmon-phonon-assisted electron-hole recombination in silicon at high laser fluence[J].Applied Physics Letters, 1987, 51(26): 2208-2210.doi:10.1063/1.98942 -
