In-situ monitoring of metal depositing in the fabrication of metallic grating

doi:10.3788/CO.20191203.0606

ZHU Chun-lin^{1, 2,},
HU Hao^{1, 2,},
JIAO Qing-bin^1,,
TAN Xin^1,,
Bayanheshig^1,,

1.
Changchun Institute of Optics, Fine Mechanics and Physics, Chinese Academy of Sciences, Changchun 130033, China
2.
University of Chinese Academy of Sciences, Beijing 100049, China

Funds:

the National Natural Science Foundation of China(NSFC)61227901

the National Natural Science Foundation of China(NSFC)61605197

More Information

Corresponding author:Bayanheshig, E-mail:bayin888@sina.com
Received Date:29 Oct 2018
Rev Recd Date:05 Dec 2018
Publish Date:01 Jun 2019

Abstract

Abstract

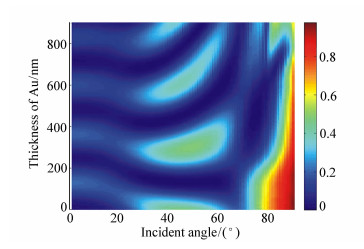

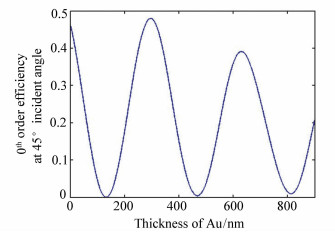

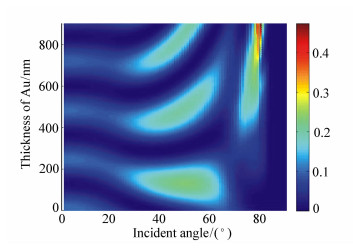

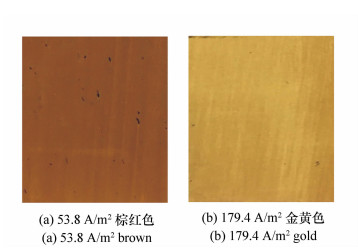

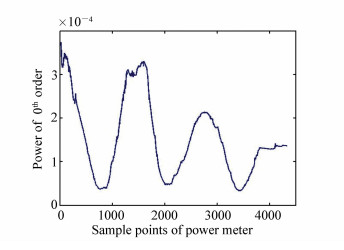

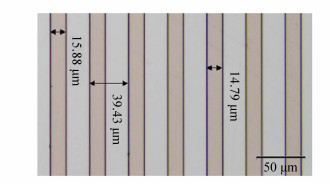

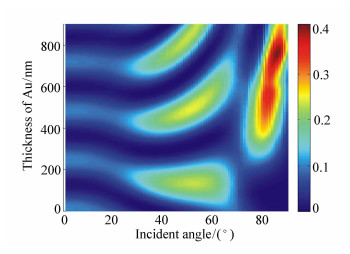

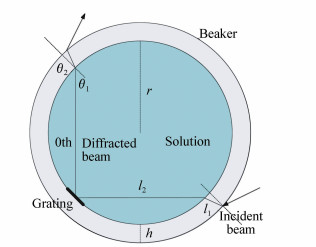

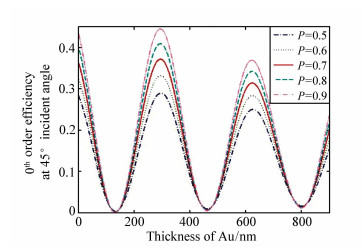

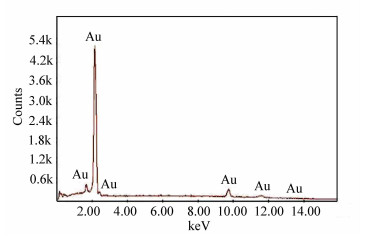

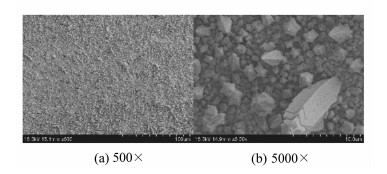

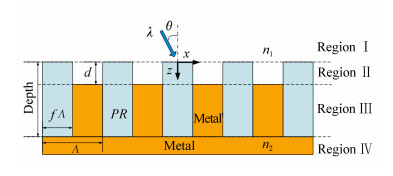

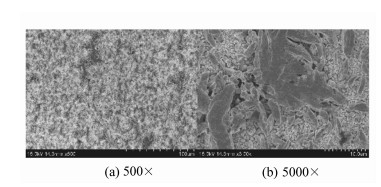

During the fabrication process of metallic gratings using electro-deposition, the thickness of deposited metal usually cannot be precisely controlled by the traditional timing method. In order to monitor the deposit thickness of grating bars and precisely stop depositing metal in a timely manner during the fabrication of metallic gratings, an in-situ monitoring system based on diffraction efficiency measurements was introduced. The change law of diffraction efficiency varying with Au deposition thickness was calculated using the rigorous coupled wave analysis(RCWA) method and the effect of the photoresistor grating's duty cycle and deposition current density on diffraction efficiency was discussed. The energy loss of monitoring lasers in the system was also calculated. The efficiency curve of the experiment coincides with simulation and the energy loss induced by the electro-deposition pool and solution was up to 94.88%. The experimental results indicate that the in-situ monitoring system is effective in estimating the thickness of deposited metal during the fabrication of metallic gratings. The duty cycle of photoresistor gratings has less influence on in-situ monitoring than that of deposition current density and a higher current density was more beneficial for monitoring.
- metallic grating,
- in-situ monitoring,
- RCWA,
- duty cycle,
- current density,
- energy loss

FullText(HTML)

References (22)

References

[1]	CHEN J, BOS P J, VITHANA H, et al.. An electro-optically controlled liquid crystal diffraction grating[J]. Applied Physics Letters, 1995, 67(18):2588-2590. doi:10.1063/1.115140
[2]	PFEIFFER F, WEITKAMP T, BUNK O, et al.. Phase retrieval and differential phase-contrast imaging with low-brilliance X-ray sources[J]. Nat. Phys., 2006, 2(4):258-261. doi:10.1038/nphys265
[3]	柳龙华, 刘刚, 熊瑛, 等.大高宽比、高线密度X射线透射光栅的制作[J].光学精密工程, 2009, 17(1):72-75. doi:10.3321/j.issn:1004-924X.2009.01.012 LIU L H, LIU G, XIONG Y, et al.. Fabrication of high-aspect-ratio and high-density X-ray transmission grating[J]. Opt. Precision Eng., 2009, 17(1):72-75.(in Chinese) doi:10.3321/j.issn:1004-924X.2009.01.012
[4]	罗跃川, 张志友, 石莎, 等.提高OLED光导出效率的异形金属光栅的设计与优化[J].发光学报, 2010, 31(6):784-789. http://d.old.wanfangdata.com.cn/Periodical/fgxb201006002 LUO Y CH, ZHANG ZH Y, SHI SH, et al.. Design and optimizing of an abnormal metal grating used to enhance the light-output efficiency of organic light-emitting diode[J]. Chinese Journal of Luminescence, 2010, 31(6):784-789.(in Chinese) http://d.old.wanfangdata.com.cn/Periodical/fgxb201006002
[5]	刘镜, 刘娟, 王涌天, 等.亚波长金属光栅的表面等离子体激元共振特性[J].中国光学, 2011, 4(4):363-368. doi:10.3969/j.issn.2095-1531.2011.04.007 LIU J, LIU J, WANG Y T, et al.. Resonant properties of sub-wavelength metallic gratings[J]. Chinese Optics, 2011, 4(4):363-368.(in Chinese) doi:10.3969/j.issn.2095-1531.2011.04.007
[6]	王子强.单级衍射光栅的设计与制作[D].长春: 长春理工大学, 2013. http://www.wanfangdata.com.cn/details/detail.do?_type=degree&id=Y2529828 WANG Z Q. The design and fabrication of single-order diffraction grating[D]. Changchun: Changchun University of Science and Technology, 2013.(in Chinese) http://www.wanfangdata.com.cn/details/detail.do?_type=degree&id=Y2529828
[7]	杜立群, 鲍其雷, 赵明, 等.在金属基底上制作高深宽比金属微光栅的方法[J].光学精密工程, 2015, 23(3):700-707. http://d.old.wanfangdata.com.cn/Periodical/gxjmgc201503013 DU L Q, BAO Q L, ZHAO M, et al.. Fabrication of metal micro-grating with high aspect ratio on metal substrate[J]. Opt. Precision Eng., 2015, 23(3)700-707.(in Chinese) http://d.old.wanfangdata.com.cn/Periodical/gxjmgc201503013
[8]	王鑫, 王永红, 吕有斌, 等.SU-8光刻胶应变分布光学全场检测方法[J].中国光学, 2016, 9(3):379-384. //www.illord.com/CN/abstract/abstract9452.shtml WANG X, WANG Y H, LV Y B, et al.. Whole field optical detection method of strain distribution of SU-8 photoresist[J]. Chinese Optics, 2016, 9(3):379-384.(in Chinese) //www.illord.com/CN/abstract/abstract9452.shtml
[9]	ROMANO L, VILA-COMAMALA J, KAGIAS M, et al. High aspect ratio metal microcasting by hot embossing for X-ray optics fabrication[C]. 42 ^ndMicro- and nano-engineering conference MNE, 2017, 176: 6-10. http://www.sciencedirect.com/science/article/pii/S0167931716305445
[10]	TIWARI P, MONDAL P, SRIVASTAVA A K, et al. Fabrication of high aspect ratio submicron gratings on 100 nm titanium membranes using electron beam lithography[J]. AIP Conference. Proceedings, 2017, 1832(1):060023. https://www.researchgate.net/publication/317144013_Fabrication_of_high_aspect_ratio_submicron_gratings_on_100nm_titanium_membranes_using_electron_beam_lithography
[11]	KENNTNER J, ALTAPOVA V, GRUND T, et al. Fabrication and characterization of analyzer gratings with high aspect ratios for phase contrast imaging using a Talbot interferometer[J]. AIP Conference. Proceedings, 2012, 1437(1):89-93. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=CC0213505348
[12]	DAVID C, BRUDER J, ROHBECK T, et al.. Fabrication of diffraction gratings for hard X-ray phase contrast imaging[J]. Microelectronic Engineering, 2007, 84(5-8):1172-1177. doi:10.1016/j.mee.2007.01.151
[13]	GREGUS J A, GREEN C A, YOON E, et al.. Real-time latent image monitoring during holographic fabrication of submicron diffraction gratings[J]. Journal of Vacuum Science& Technology B Microelectronics& Nanometer Structures, 1993, 11(6):2468-2472. https://www.researchgate.net/publication/224462820_Real-time_latent_image_monitoring_during_holographic_fabrication_of_submicron_diffraction_gratings
[14]	赵劲松, 李立峰, 吴振华.全息光栅实时显影监测曲线的理论模拟[J].光学学报, 2004, 24(8):1146-1150. doi:10.3321/j.issn:0253-2239.2004.08.027 ZHAO J S, LI L F, WU ZH H. Modeling of in-situ monitoring curves during development of holographic gratings[J]. Acta Optica Sinica, 2004, 24(8):1146-1150.(in Chinese) doi:10.3321/j.issn:0253-2239.2004.08.027
[15]	孔鹏, 巴音贺希格, 李文昊, 等.全息光栅非对称曝光显影的理论模拟及实时监测[J].光学学报, 2010, 30(1):65-69. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=gxxb201001012 KONG P, BAYANHESHIG, LI W H, et al.. Modeling and in-situ monitoring of the asymmetric exposure and development of holographic grating[J]. Acta Optica Sinica, 2010, 30(1):65-69.(in Chinese) http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=gxxb201001012
[16]	SVAKHIN A S, SYCHUGOV V A, TIKHOMIROV A E. Diffraction gratings with high optical strength for laser resonators[J]. Quantum Electronics, 1994, 24(3):233-235. doi:10.1070/QE1994v024n03ABEH000060
[17]	林华.介质膜光栅: 光刻胶掩模占宽比和离子束刻蚀槽深的监控[D].北京: 清华大学, 2005. http://cdmd.cnki.com.cn/Article/CDMD-10003-2007034923.htm LIN H. Multilayer dielectric gratings: in-situ monitoring of duty cycle of photoresist mask and ion-beam-etched groove depth[D]. Beijing: Tsinghua University, 2005.(in Chinese) http://cdmd.cnki.com.cn/Article/CDMD-10003-2007034923.htm
[18]	樊叔维.任意槽形光栅衍射特性的矢量理论分析与计算[J].光学精密工程, 2000, 8(1):5-10. doi:10.3321/j.issn:1004-924X.2000.01.012 FAN SH W. Vector theory analysis and numerical calculation for any shape profile dielectric gratings[J]. Opt. Precision Eng., 2000, 8(1):5-10.(in Chinese) doi:10.3321/j.issn:1004-924X.2000.01.012
[19]	陈勇.软X射线自支撑闪耀透射光栅的制作[D].合肥: 中国科学技术大学, 2013. http://cdmd.cnki.com.cn/Article/CDMD-10358-1014189421.htm CHEN Y. Fabrication of soft X-ray freestanding blazed transmission gratings[D]. Hefei: University of Science and Technology of China, 2013.(in Chinese) http://cdmd.cnki.com.cn/Article/CDMD-10358-1014189421.htm
[20]	YANG J, WANG ZH, WANG F, et al.. Atomically thin optical lenses and gratings[J]. Light: Science& Applications, 2016, 5(3):e16046. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=gkxyyy-e201602004
[21]	曹艳波, 艾华.亚波长闪耀光栅矢量衍射效率计算[J].中国光学与应用光学, 2010, 3(6):679-683. doi:10.3969/j.issn.2095-1531.2010.06.023 CAO Y B, AI H. Calculation of vectorial diffraction efficiency of subwavelength blazed gratings[J]. Chinese Journal of Optics and Applied Optics, 2010, 3(6):679-683.(in Chinese) doi:10.3969/j.issn.2095-1531.2010.06.023
[22]	王斌.亚波长介质光栅设计简化模式法的修正及相关研究[D].北京: 中国科学院大学, 2014. http://ir.ciomp.ac.cn/handle/181722/41473 WANG B. Modification and research on simplified modal method for dielectric subwavelength gratings design[D]. Beijing: University of Chinese Academy of Sciences, 2014.(in Chinese) http://ir.ciomp.ac.cn/handle/181722/41473
