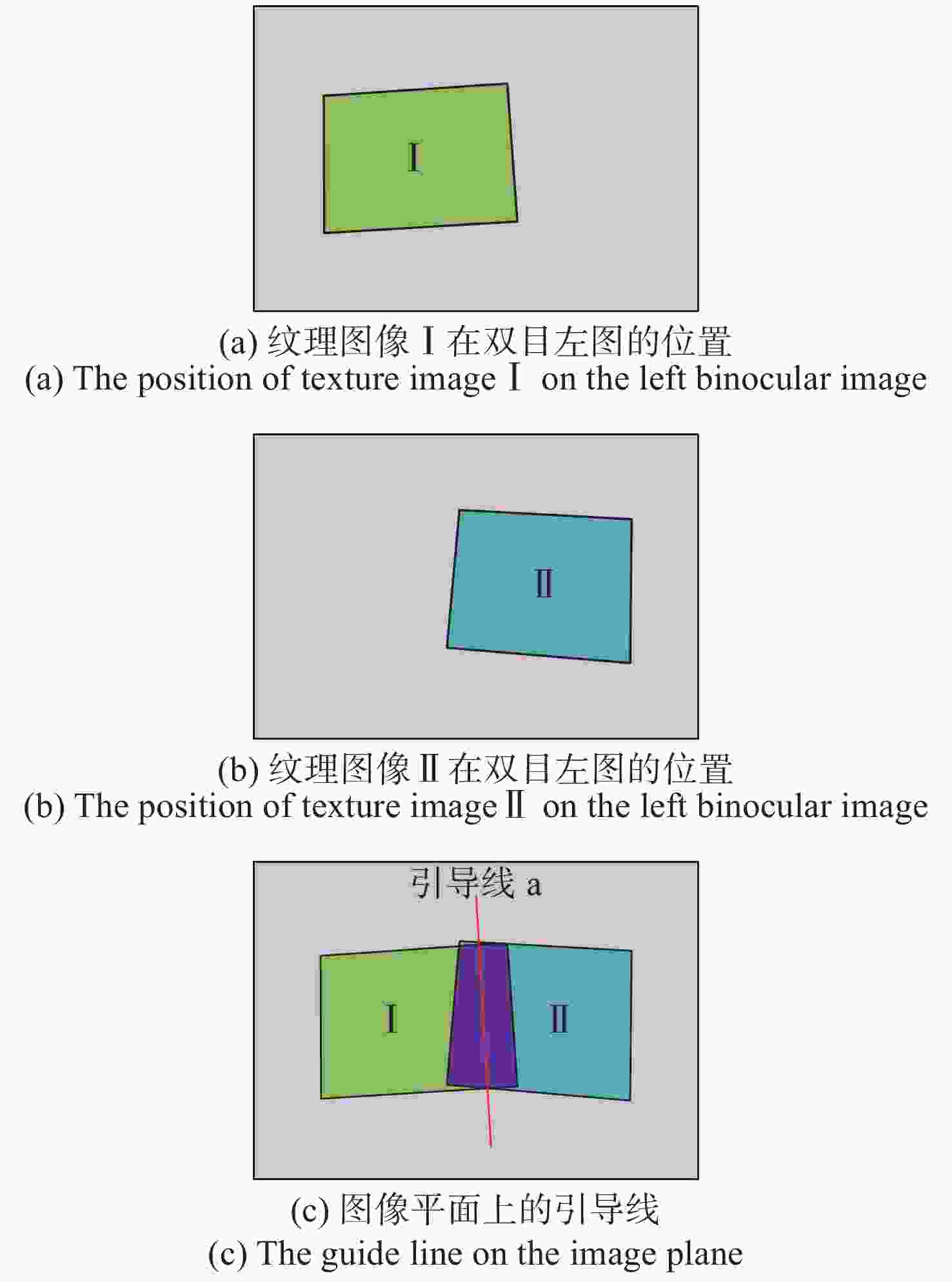

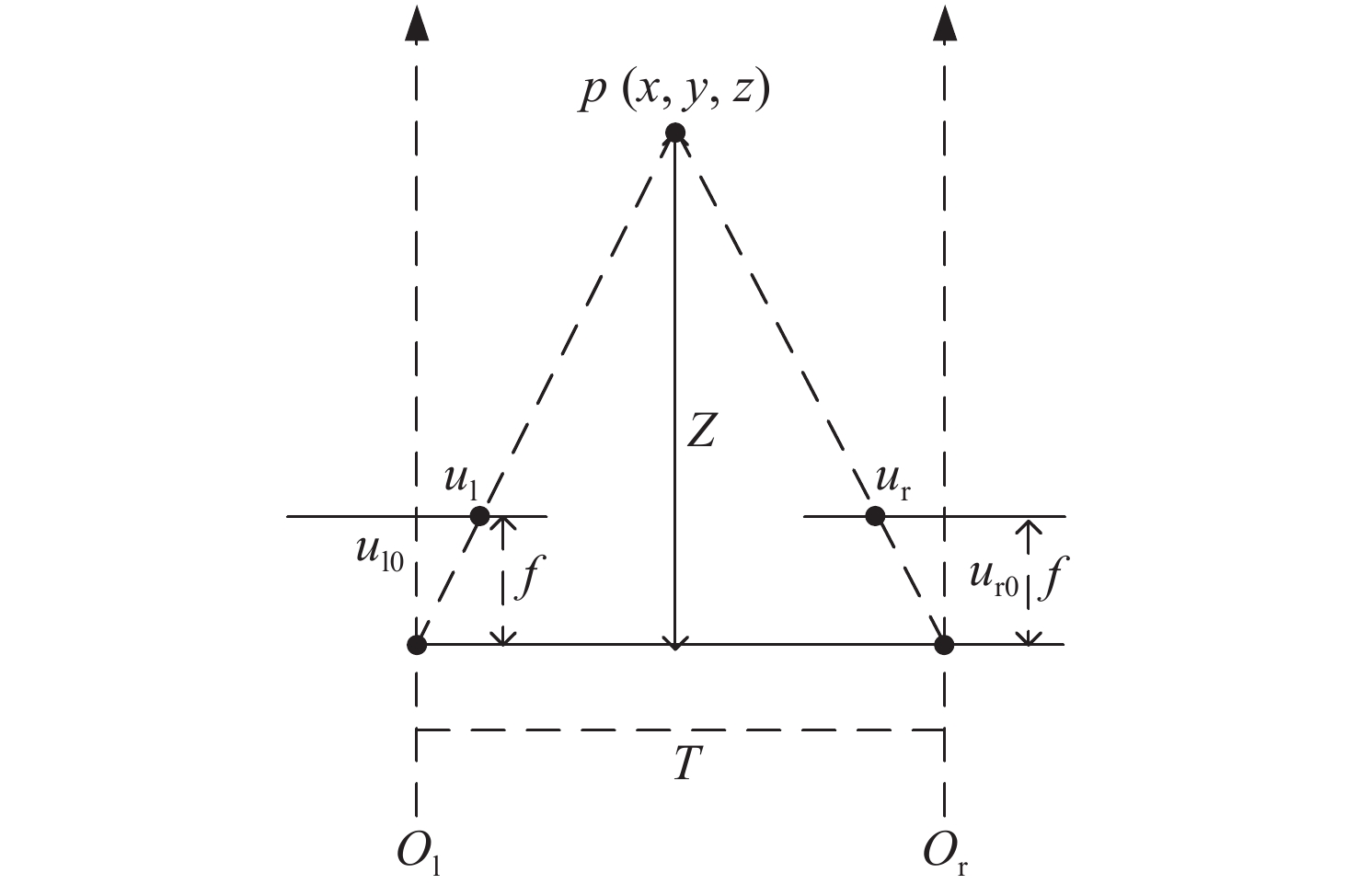

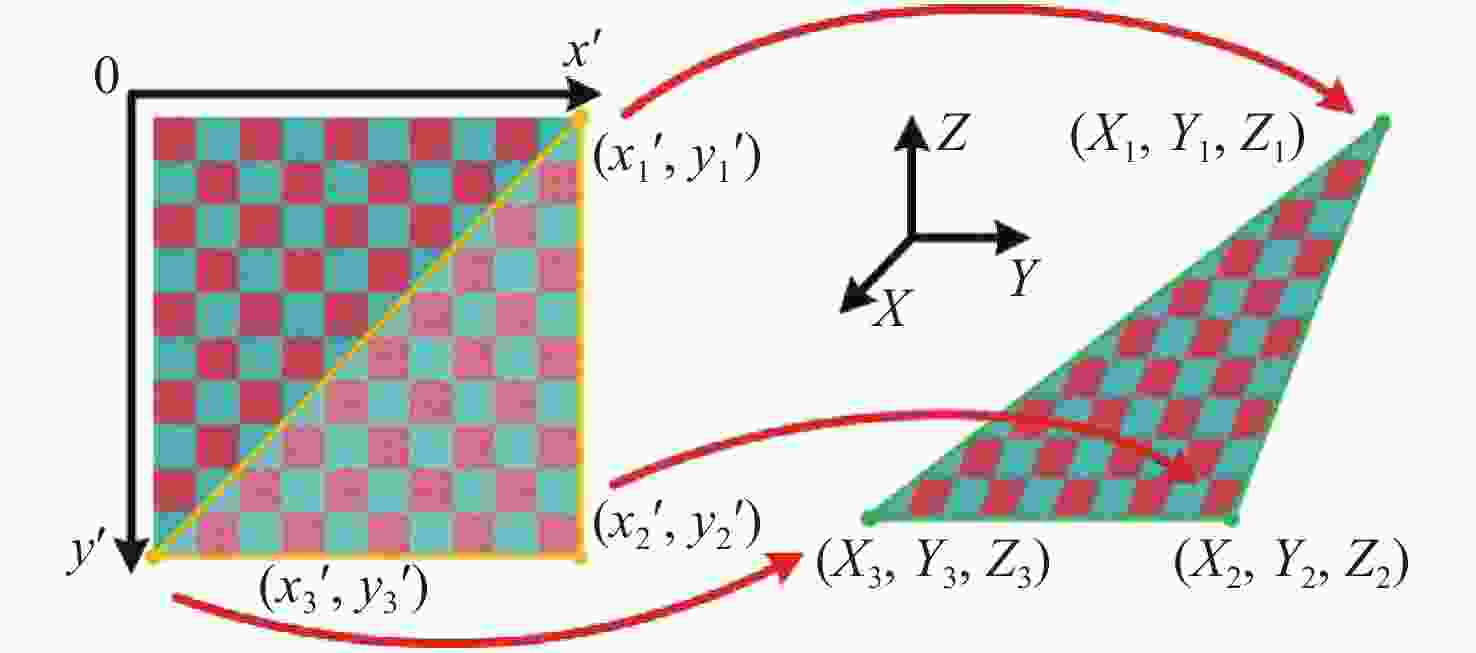

摘要:针对双目立体视觉重建点云模型与高分辨率纹理图像的融合问题，本文提出了一种新的纹理映射方法。在双目立体视觉系统上增设长焦纹理相机拍摄高分辨率纹理图像，利用高分辨率纹理图像与双目图像的二维特征匹配，以双目图像为桥梁，得到纹理图像与三维点云模型的匹配关系，进而实现高分辨率纹理图像到三维点云模型的映射。同时，针对映射过程中多视纹理图像重叠部分的数据冗余，提出一种引导线点云数据分区方法，有效解决了多视纹理图像重叠部分的映射问题。通过实验验证，所提方法能够方便准确地实现多视纹理图像与双目三维点云模型的纹理映射。在本文实验条件下，三维模型的纹理可分辨原始线宽为0.157 mm的线对，与双目系统直接产生的三维模型相比，其纹理分辨率提高了1倍，验证了所提出的多视高分辨率纹理映射方法的有效性。Abstract:Aiming at the fusion problem of binocular stereo vision reconstruction point cloud models and high-resolution texture images, a new texture mapping method is proposed. Adding a telephoto texture camera to the binocular stereo vision system to capture high-resolution texture images, the relationship between a texture image and a 3D point cloud model is obtained by matching the two-dimensional features of the high-resolution texture image and the binocular image. The binocular image is used as a bridge, thereby achieving the high-resolution mapping of high-rate texture images on 3D point cloud models. In view of the data redundancy of the overlapping parts of the multi-view texture images during mapping, a method of partitioning the guidance point cloud data is proposed, which effectively solves the problem. Through experimental verification, the proposed method can conveniently and accurately map multi-view texture images to binocular 3D point cloud models. Under experimental conditions, the texture of the 3D model can distinguish line pairs with an original line width of 0.157 mm, which is double the texture resolution of the 3D model directly generated by the binocular system, This verifies the effectiveness of the proposed multi-view high-resolution texture mapping method.
-

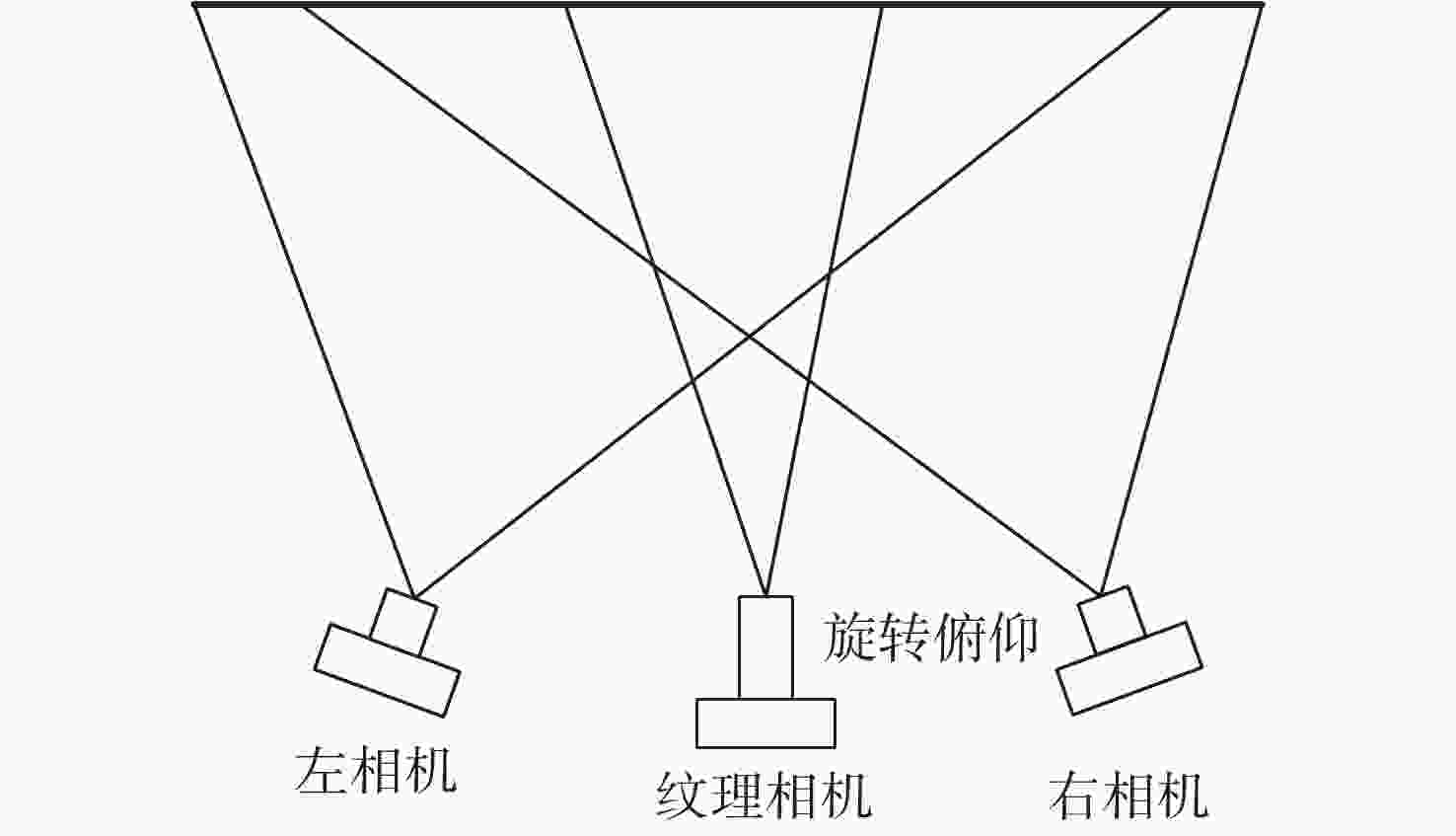

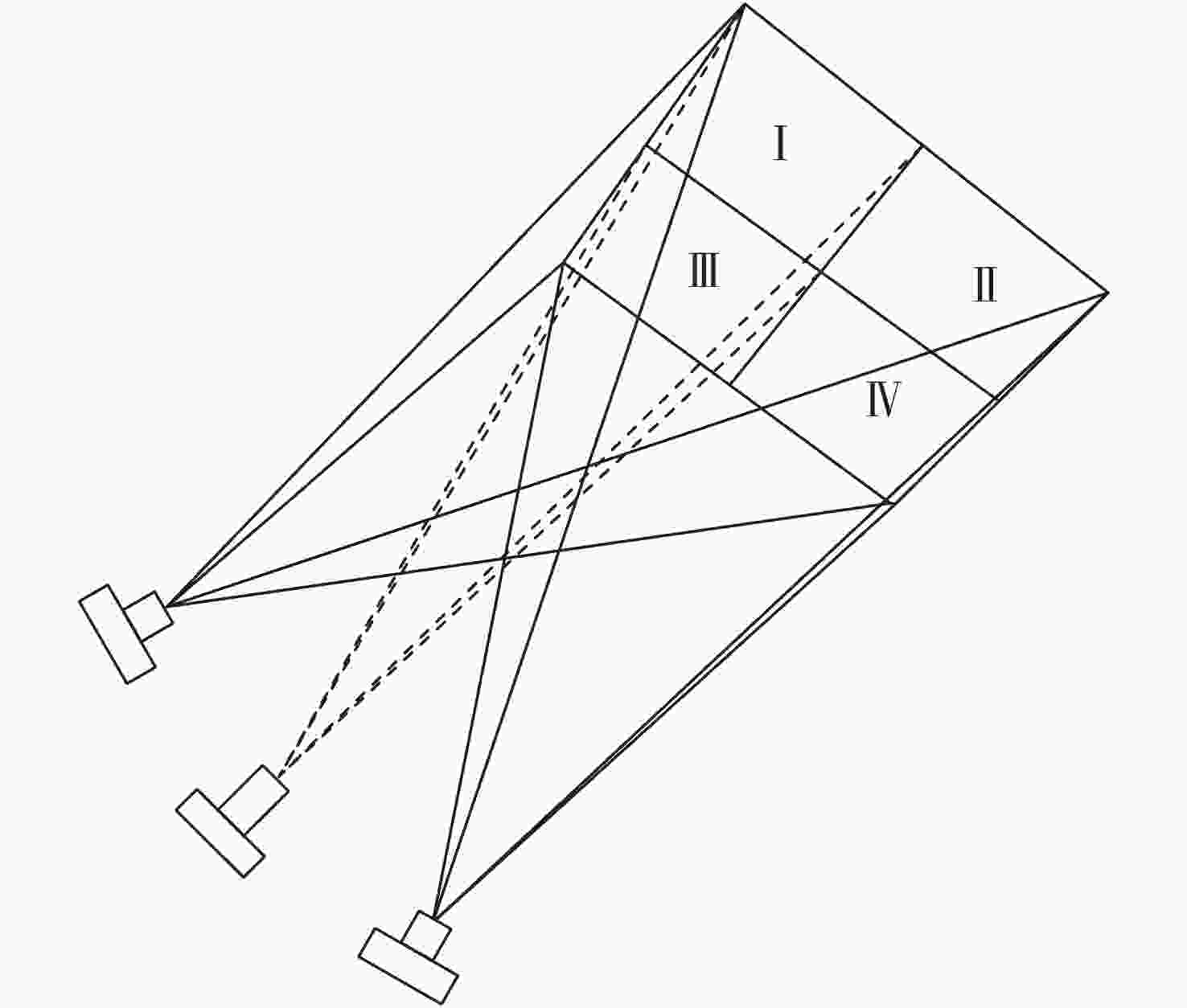

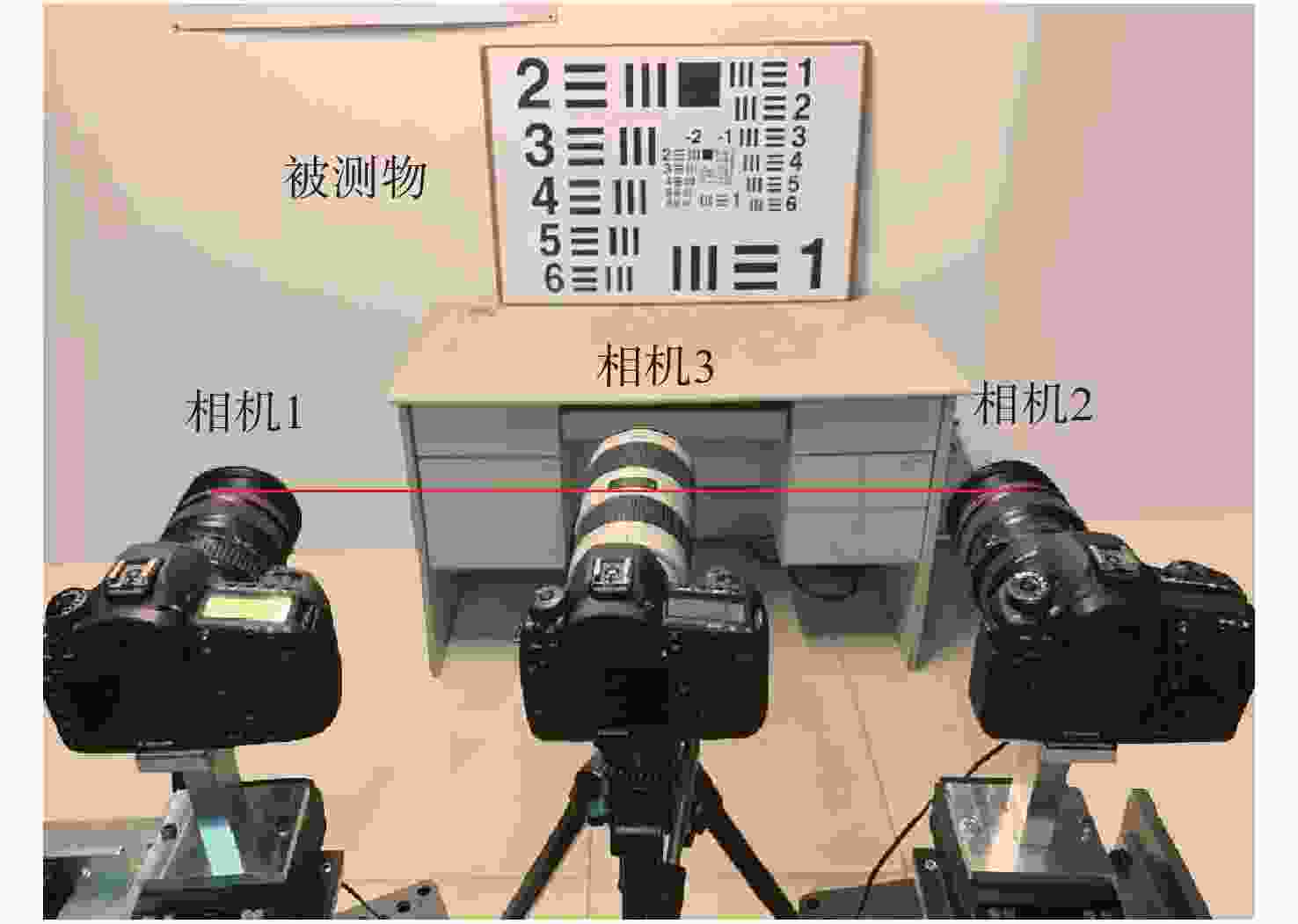

图 1高分辨率纹理三维成像系统结构示意图
Figure 1.Structure diagram of 3D imaging system with high-resolution texture
图 8重建点云及双目左图映射结果
Figure 8.Reconstructed point cloud and the mapping results of the binocular left image

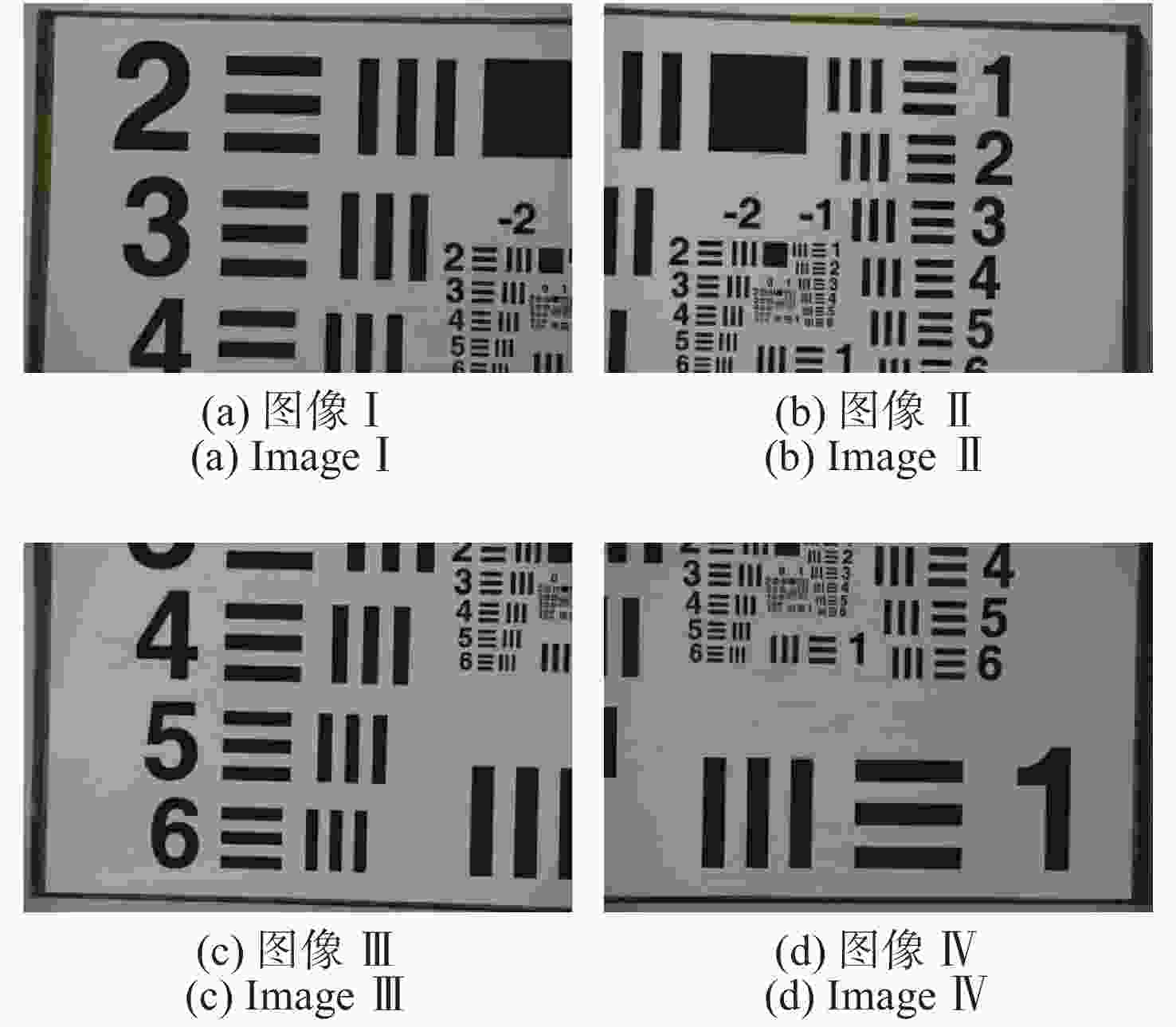

图 10纹理相机拍摄得到的高分辨率纹理图像
Figure 10.High-resolution texture images obtained by the texture camera

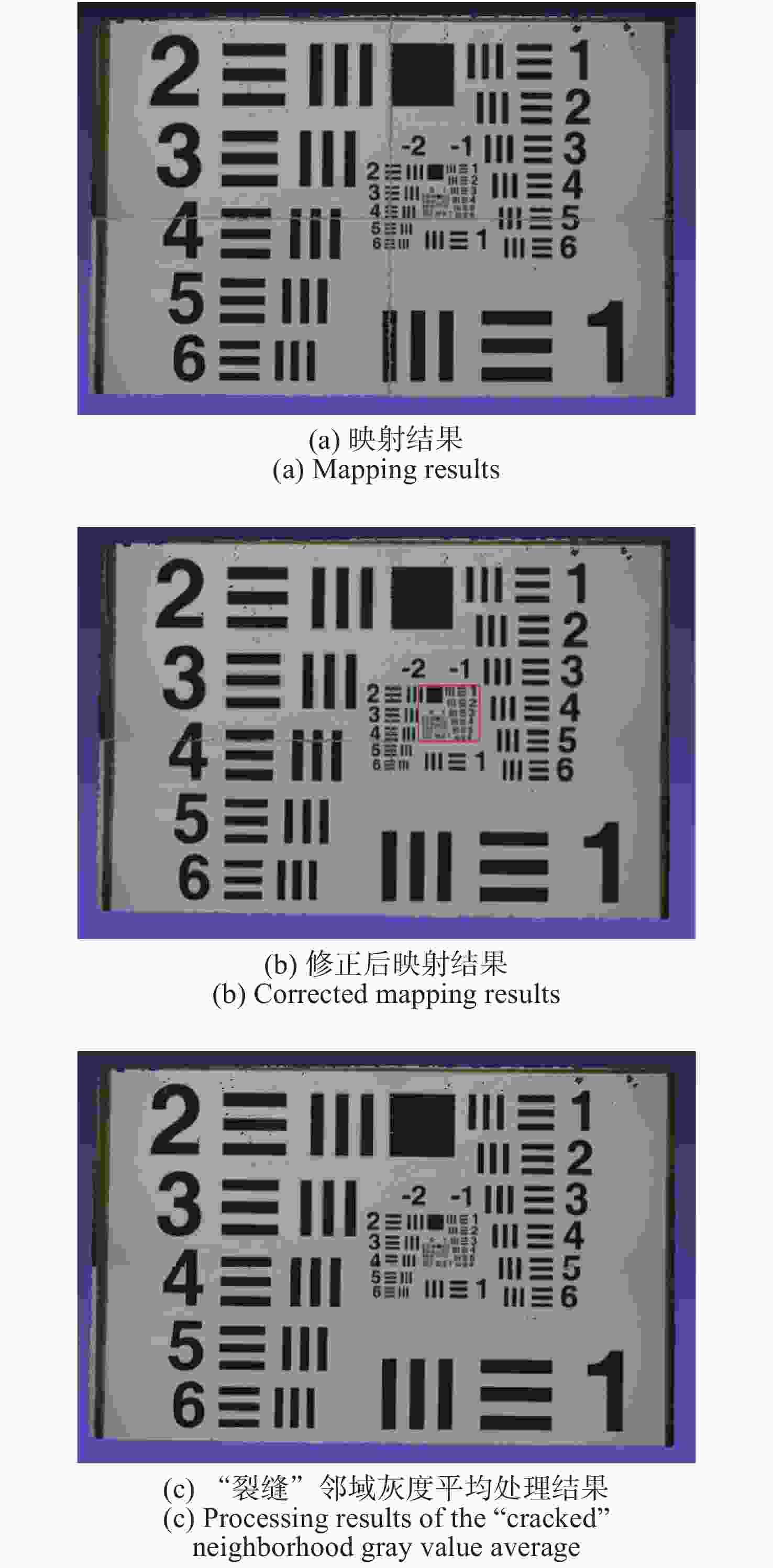

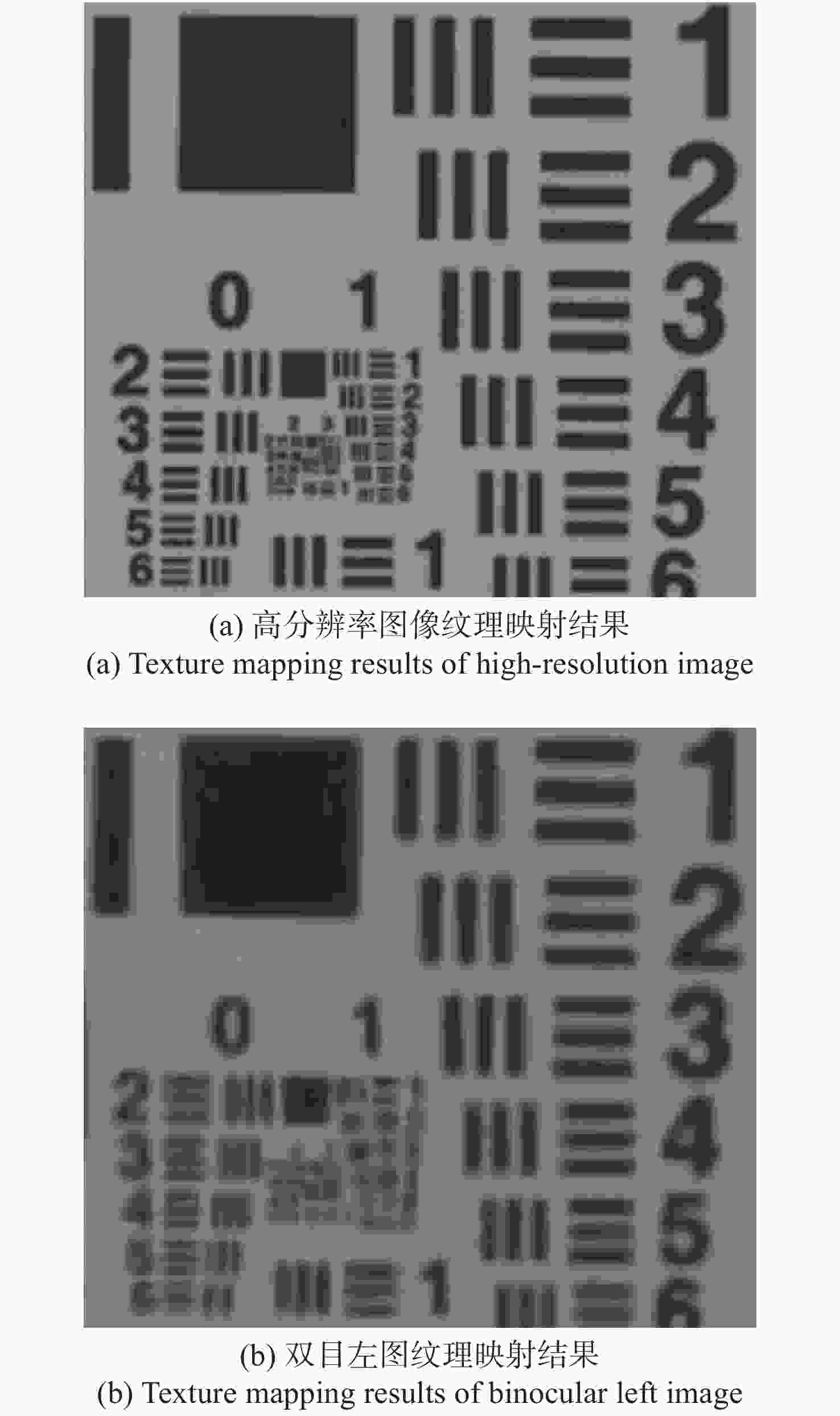

图 11多视高分辨率图像纹理映射结果
Figure 11.Texture mapping results of multi-view high-resolution images
-
