Absorption enhancement of silicon via localized surface plasmons resonance in blue band

WANG Hao-bing,TAO Jin,LV Jin-guang,MENG De-jia,LI Yang,ZHAO Yong-zhou,WANG Jia-xian,ZHANG Jun,QIN Yu-xin,WANG Wei-biao,LIANG Jing-qiu

downloadPDF
王浩冰, 陶金, 吕金光, 孟德佳, 李阳, 赵永周, 王家先, 张军, 秦余欣, 王惟彪, 梁静秋. 局域表面等离激元共振增强硅蓝光波段吸收特性研究[J]. , 2020, 13(6): 1362-1384. doi: 10.37188/CO.2020-0056
引用本文: 王浩冰, 陶金, 吕金光, 孟德佳, 李阳, 赵永周, 王家先, 张军, 秦余欣, 王惟彪, 梁静秋. 局域表面等离激元共振增强硅蓝光波段吸收特性研究[J]. , 2020, 13(6): 1362-1384.doi:10.37188/CO.2020-0056
WANG Hao-bing, TAO Jin, LV Jin-guang, MENG De-jia, LI Yang, ZHAO Yong-zhou, WANG Jia-xian, ZHANG Jun, QIN Yu-xin, WANG Wei-biao, LIANG Jing-qiu. Absorption enhancement of silicon via localized surface plasmons resonance in blue band[J]. Chinese Optics, 2020, 13(6): 1362-1384. doi: 10.37188/CO.2020-0056
Citation: WANG Hao-bing, TAO Jin, LV Jin-guang, MENG De-jia, LI Yang, ZHAO Yong-zhou, WANG Jia-xian, ZHANG Jun, QIN Yu-xin, WANG Wei-biao, LIANG Jing-qiu. Absorption enhancement of silicon via localized surface plasmons resonance in blue band[J].Chinese Optics, 2020, 13(6): 1362-1384.doi:10.37188/CO.2020-0056

局域表面等离激元共振增强硅蓝光波段吸收特性研究

详细信息
  • 中图分类号:O431.1; O436.2; O471.5

Absorption enhancement of silicon via localized surface plasmons resonance in blue band

doi:10.37188/CO.2020-0056
Funds:Supported by the National Key Research and Development Program of China (Grant No. 2018YFB1801900), Science and Technology Plan of Guangdong Province, China (Grant No. 2016B010111003) and Development of Science and Technology Plan of Jilin Province, China (Grant No. 20180801024GX and No. 20190302062GX), the Youth Innovation Promotion Association Foundation (NO. 2018254), the State Key Laboratory of Applied Optics 2019 Open Foundation (SKLAO: 201908)
More Information
    Author Bio:

    Wang Haobing (1994—), male, born in Songyuan City, Jilin province, Master Degree Candidate. In 2017, he graduated from Changchun University of Science and Technology with a Bachelor of Science degree. He is now a graduate student of Changchun Institute of Optics, Fine Mechanics and Physics, Chinese Academy of Sciences. He is mainly engaged in the research of nanophotonics and semiconductor photodetectors. E-mail:996490955@qq.com

    Wang Weibiao (1962—), male, born in Yangzhou City, Jiangsu province. He is a doctor, researcher and doctoral supervisor. He received his doctor’s degree from Changchun Institute of Optics, Fine Mechanics and Physics, Chinese Academy of Sciences in 1999. Now he is a researcher of this institute. He is mainly engaged in the research of photonic crystal and micro-nano photonics, LED array chip integration and application, field emission materials and electron emission characteristics. E-mail:wangwb@ciomp.ac.cn

    Liang Jingqiu (1962—), female, born in Changchun City, Jilin Province. She is a doctor, researcher and doctoral supervisor. In 2003, she received her doctor's degree from Changchun Institute of Optics, Fine Mechanics and Physics, Chinese Academy of Sciences. Now she is a researcher of this institute. She is mainly engaged in the research of micro/nano optical structures, devices and systems, infrared spectrum/imaging spectrum and infrared optical instruments, micro LED microdisplay chip and its application, and visible light communication devices and systems. E-mail:liangjq@ciomp.ac.cn

    Corresponding author:wangwb@ciomp.ac.cn;liangjq@ciomp.ac.cn
  • 摘要:为增强硅的蓝光吸收,在硅表面设计银纳米颗粒阵列,基于局域表面等离激元共振效应对增强的硅蓝光吸收特性进行了分析研究。采用有限时域差分法计算银纳米颗粒阵列/硅复合结构中硅的蓝光吸收特性。结果表明:金属颗粒的消光能力与其几何参数有关,改变银纳米颗粒阵列的半径 r、高度 H与周期 P可调控局域表面等离激元共振强度与共振频率,当银纳米颗粒阵列参数设定为: r= 18.5 nm、 H= 45 nm、 P= 49 nm时,在共振吸收波长为465 nm的情况下,硅的蓝光吸收率由59%增加至94%,光吸收增益为0.57,光生载流子数目增益为0.53,分析认为是局域表面等离激元共振增强硅在蓝光波段的光吸收导致上述增益现象。本文的研究结果对了解局域表面等离激元效应,改善硅的蓝光吸收特性,设计和制备高蓝光响应度硅基可见光光电探测器具有重要的参考价值。

  • 图 1金属球状结构的局域表面等离激元示意图

    Figure 1.Schematic diagram of localized surface plasmons with a metallic spherical structure

    图 2Ag-NPs/Si模型结构

    Figure 2.Model structure of Ag-NPs/Si

    图 3Ag-NPs几何参数对硅的光学行为的影响。(a)半径r对硅在蓝光波段的吸收影响;(b)光吸收率与共振波长随半径r的变化;(c)半径r对硅在蓝光波段的吸收增益影响

    Figure 3.Influence of geometric parameters of Ag-NPs on the optical properties of silicon. (a) Absorptance versus radiusrin blue band; (b) absorptance and resonant wavelength versus radiusr; (c) absorption gain versus radiusrin blue band

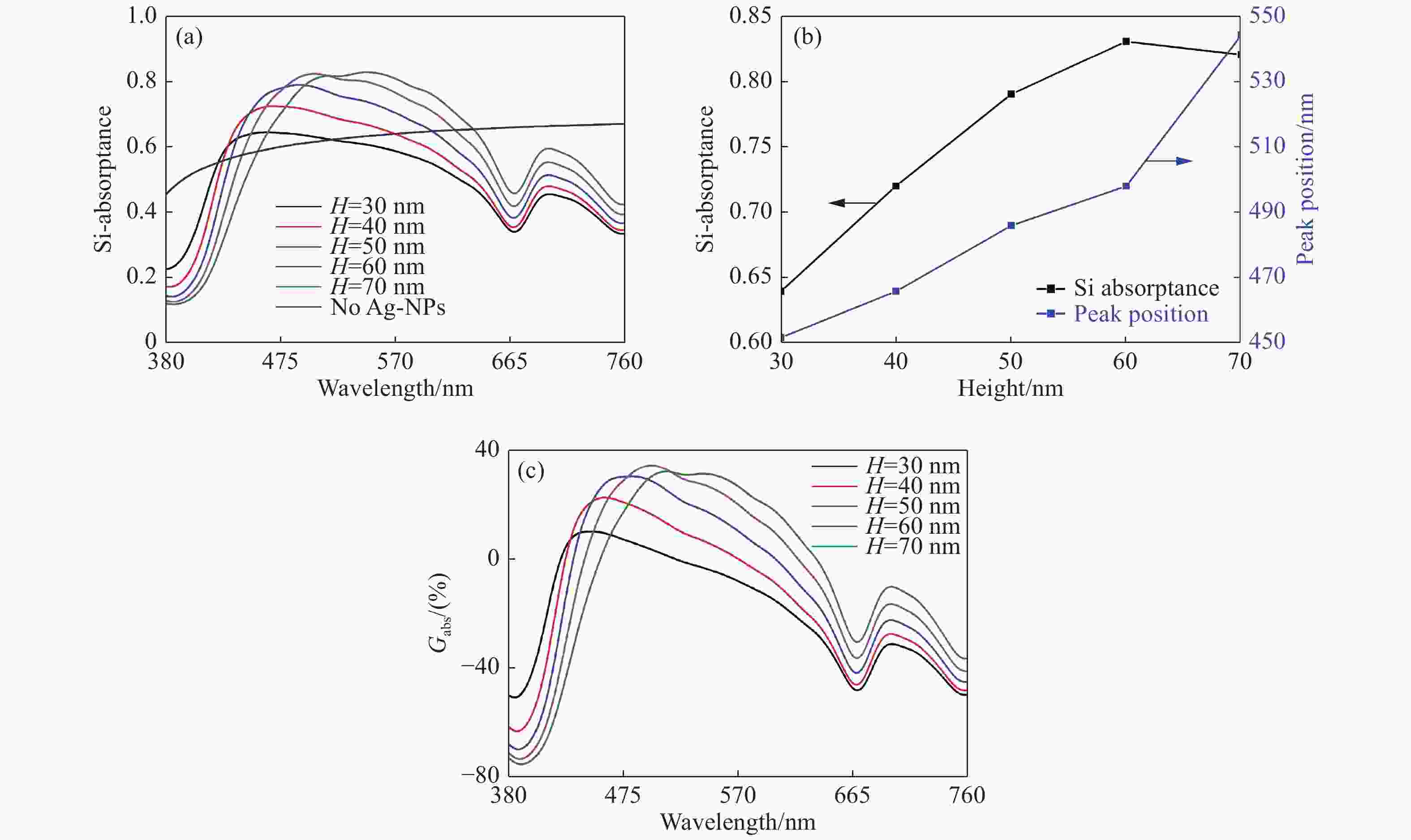

    图 4Ag-NPs几何参数对硅的光学性质的影响。(a)高度H对硅在蓝光波段的吸收影响;(b)光吸收率与共振波长随高度H的变化;(c)高度H对硅在蓝光波段的吸收增益影响

    Figure 4.Influence of geometric parameters of Ag-NPs on the optical properties of silicon. (a) Absorptance versus heightHin blue band; (b) absorptance and resonant wavelength versus heightH; (c) absorption gain versus heightHin blue band

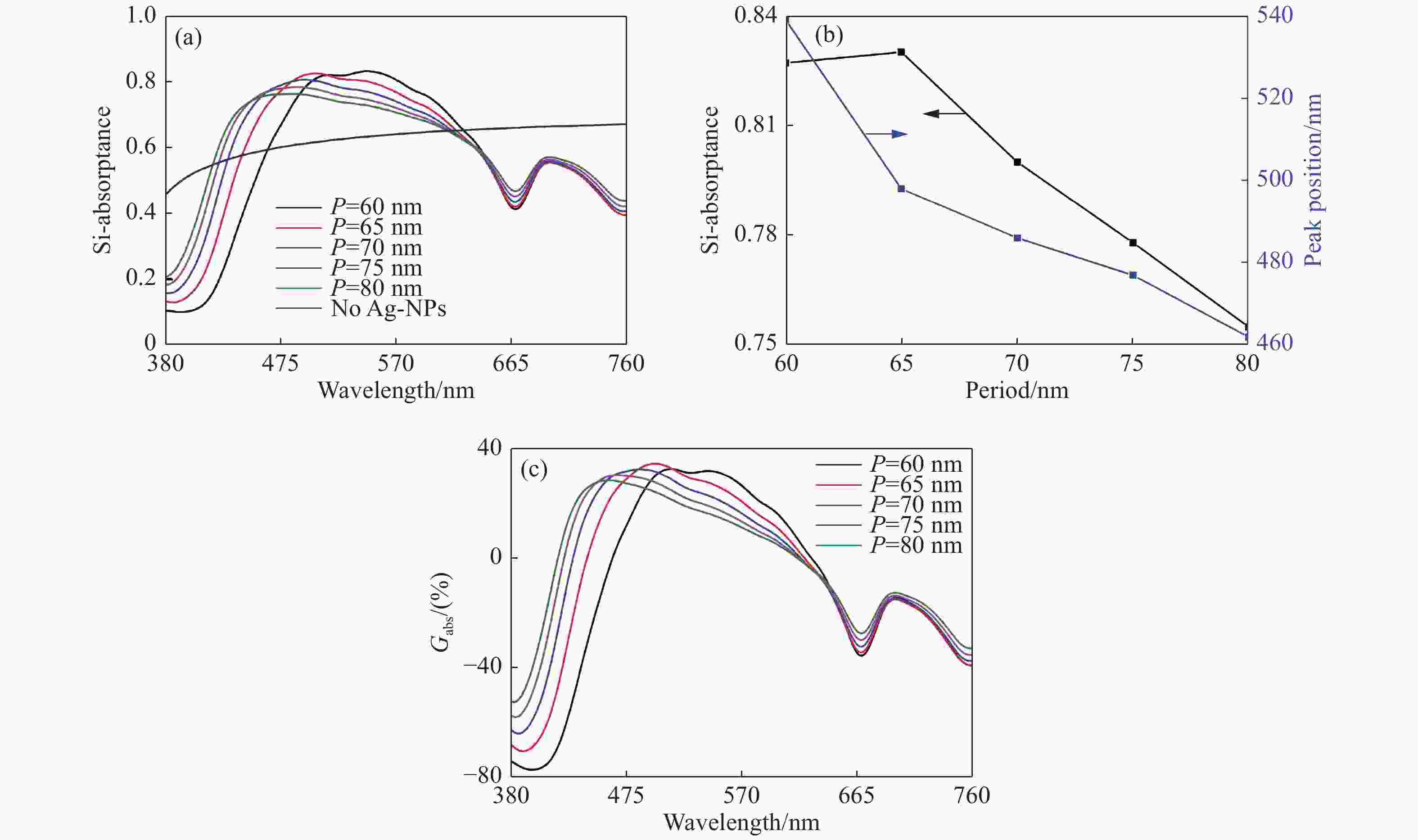

    图 5Ag-NPs几何参数对硅的光学性质影响。(a)周期P对硅在蓝光波段的吸收影响;(b)光吸收率与共振波长随周期P的变化;(c)周期P对硅在蓝光波段的吸收增益影响

    Figure 5.Influence of geometric parameters of Ag-NPs on the optical properties of silicon. (a) absorptance versus periodPin blue band; (b) absorptance and resonant wavelength versus periodP; (c) absorption gain versus periodPin blue band

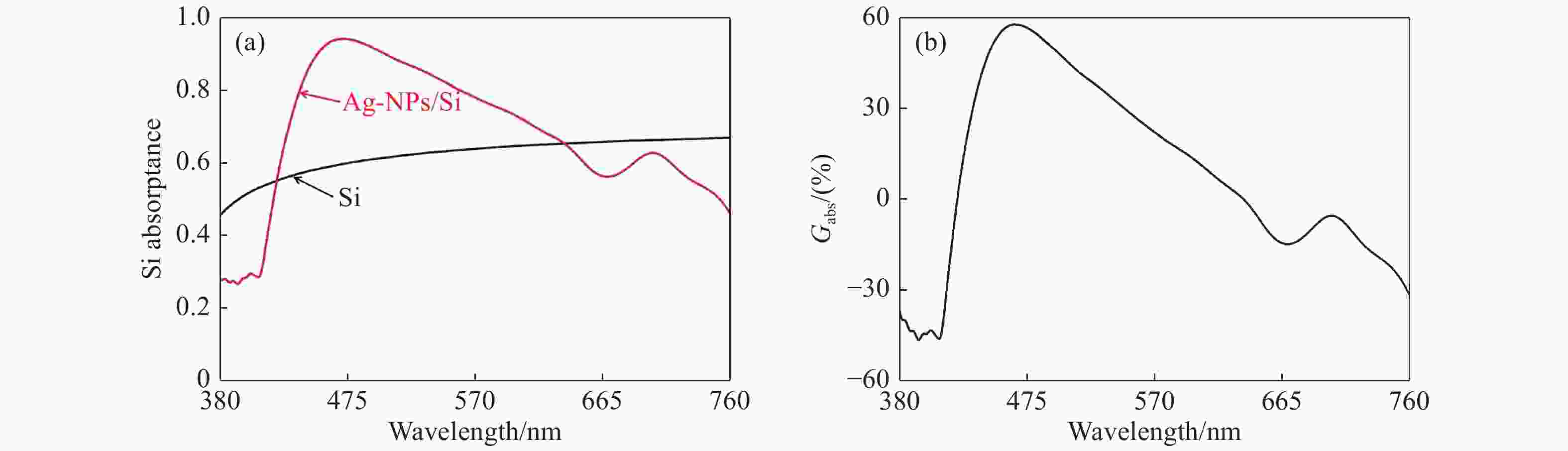

    图 6可见光波段硅的光吸收。(a)硅与基于Ag-NPs阵列硅的吸收率曲线;(b)硅的光吸收增益

    Figure 6.Si-absorptance in visible bands from 380 nm to 760 nm. (a) Absorptances of silicon without and with Ag-NPs on the surface; (b) absorption gain of silicon

    图 7蓝光波段结构表面反射率R与Ag-NPs光吸收损耗Ametal的关系曲线

    Figure 7.ReflectivityRof structure surface in blue band versus absorption lossAmetalof Ag-NPs

    图 8蓝光波段Ag-NPs光吸收损耗Ametal曲线

    Figure 8.Absorption lossAmetalof Ag-NPs in blue band

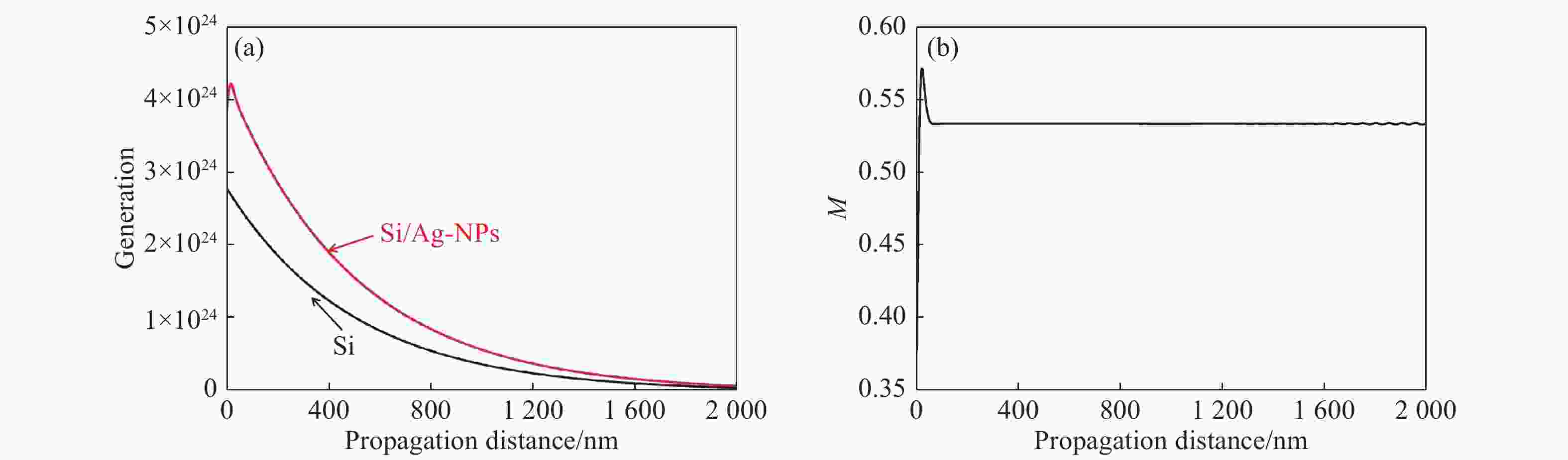

    图 9入射波长465 nm载流子数量曲线:(a)载流子数量曲线;(b)载流子增益比

    Figure 9.Generation rate of carriers atλin= 465 nm: (a) carrier generation rates of Si/Ag-NPs and Si; (b) gain ratio
