图像辅助汽车制动主缸补偿孔法线测量

doi:10.37188/CO.2020-0219

赵长福^1,,
丁红昌^{1, 2,,},
曹国华^{1, 2,,},
侯翰^1,

1.
长春理工大学机电工程学院，吉林长春 130022
2.
长春理工大学重庆研究院，重庆 401135

基金项目:国家重大科学仪器设备开发项目（No. 2017YFF0105304）；吉林省科技发展计划重点研发项目（No. 20200401117GX）；吉林省省级产业创新专项资金项目（No. 2018C038-4）

详细信息

作者简介:
赵长福（1991—），男，吉林松原人，博士研究生，2015年于长春理工大学获得学士学位，主要从事在线检查，机器视觉和自动控制的研究。E-mail:a15714401502@163.com
丁红昌（1980—），男，辽宁抚顺人，博士，副教授，博士生导师，分别于2006年、2009年和2016年在长春理工大学获得学士、硕士和博士学位。主要从事在线检测，机器视觉及自动控制方面的研究。E-mail：dinghc@cust.edu.cn
曹国华（1965—），男，黑龙江桦南人，博士，教授，博士生导师，1988年于东北重型机械学院获得学士学位，1991年于长春光学精密机械学院获得硕士学位，2009年于长春理工大学获得博士学位，现为长春理工大学机电工程学院教授，主要从事在线检测，机电系统控制，机器视觉及自动控制方面的研究。E-mail：caogh@cust.edu.cn
侯　翰（1994—），男，吉林长春人，博士研究生，在2016年获得长春理工大学的学士学位，同年考取长春理工大学机电工程学院研究生，成为2016级机械工程专业研究生，在2017年申请长春理工大学硕博连读，成为长春理工大学机电工程学院2018级博士研究生。主要从事编码器检测，机电系统控制，自动控制方面的研究。E-mail：345094896@qq.com

中图分类号:TP23
计量
- 文章访问数:746
- HTML全文浏览量:316
- PDF下载量:48
- 被引次数:0
出版历程
- 收稿日期:2020-12-28
- 修回日期:2021-01-07
- 网络出版日期:2021-07-13
- 刊出日期:2021-09-18

Image aided measurement of the automotive brake master cylinder compensation hole normal line

ZHAO Chang-fu^1,,
DING Hong-chang^{1, 2,,},
CAO Guo-hua^{1, 2,,},
HOU Han^1,

1.
Mechanical Engineering, Changchun University of Science and Technology, Changchun 130022, China
2.
Chongqing Research Institute, Changchun University of Science and Technology, Chongqing 401135, China

Funds:Supported by the National Major Scientific Instruments and Equipment Development Project (No. 2017YFF0105304); Key Research and Development Project of Jilin Province Science and Technology Development Plan (No. 20200401117GX); Jilin Province Provincial Industrial Innovation Special Fund Project (No. 2018C038-4)

More Information

Corresponding author:dinghc@cust.edu.cn;caogh@cust.edu.cn

摘要

摘要:随着道路上汽车的增多，汽车制动系统的可靠性受到越来越多的关注，基于机器视觉的汽车制动主缸补偿孔参数检测精度，是决定汽车安全性和停车可靠性的关键技术，补偿孔作为汽车制动主缸的重要组成部分，可以起到调节汽车制动主缸储液罐与压力室中制动液的重要作用，其尺寸精度和加工质量受到严格的控制，因此如何准确的获取补偿孔的图像是补偿孔参数检测的首要问题。通过将飞机钻铆孔法线找正的方法引入到图像获取中，将四点微平面法线检测方法与图像处理相结合，实现高效高精度的法线找正。实验表明，本文算法法线找正精度高于0.05°，优于传统检测精度的0.5°，检测时间小于1 s。本文提出的算法在满足精度要求的情况下，算法简单，实时性高，同时具有较好的鲁棒性，满足制动主缸生产工业现场对于检测速度和精度的要求。
- 测距/
- 法线检测/
- 梯度霍夫变换/
- 椭圆拟合
Abstract:With the increase in cars on the road, the reliability of automobile braking systems has received increasing attention. The detection accuracy of the compensation hole’s parameters of an automobile’s brake master cylinder based on machine vision is key to determining automobile safety and the reliability of parking technology. As an important part of automobile brake master cylinders, the compensation hole can play an important role in regulating the brake fluid in its reservoir and pressure chamber. Its dimensional accuracy and processing quality are strictly controlled, so accurately obtaining an image of the compensation hole is a priority in compensation hole parameter detection. By introducing the correction method of plane drilling rivet hole normal line into the image acquisition process, the four-point micro-plane normal line detection method is combined with image processing to realize high-efficiency and high-precision normal line correction. Experiments show that the algorithm's normal alignment accuracy is higher than 0.05°, which is better than the traditional detection accuracy of 0.5°, and the detection time is less than 1 s. The algorithm proposed in this paper is simple and has good real-time performance while meeting accuracy requirements. It also has good robustness and meets the requirements of the brake master cylinder production industry for detection speed and accuracy.
- laser ranging/
- normal detection/
- gradient hough transform/
- ellipse fitting

HTML全文

图 1制动主缸剖面图

Figure 1.Sectional view of a brake master cylinder

下载: 全尺寸图片幻灯片

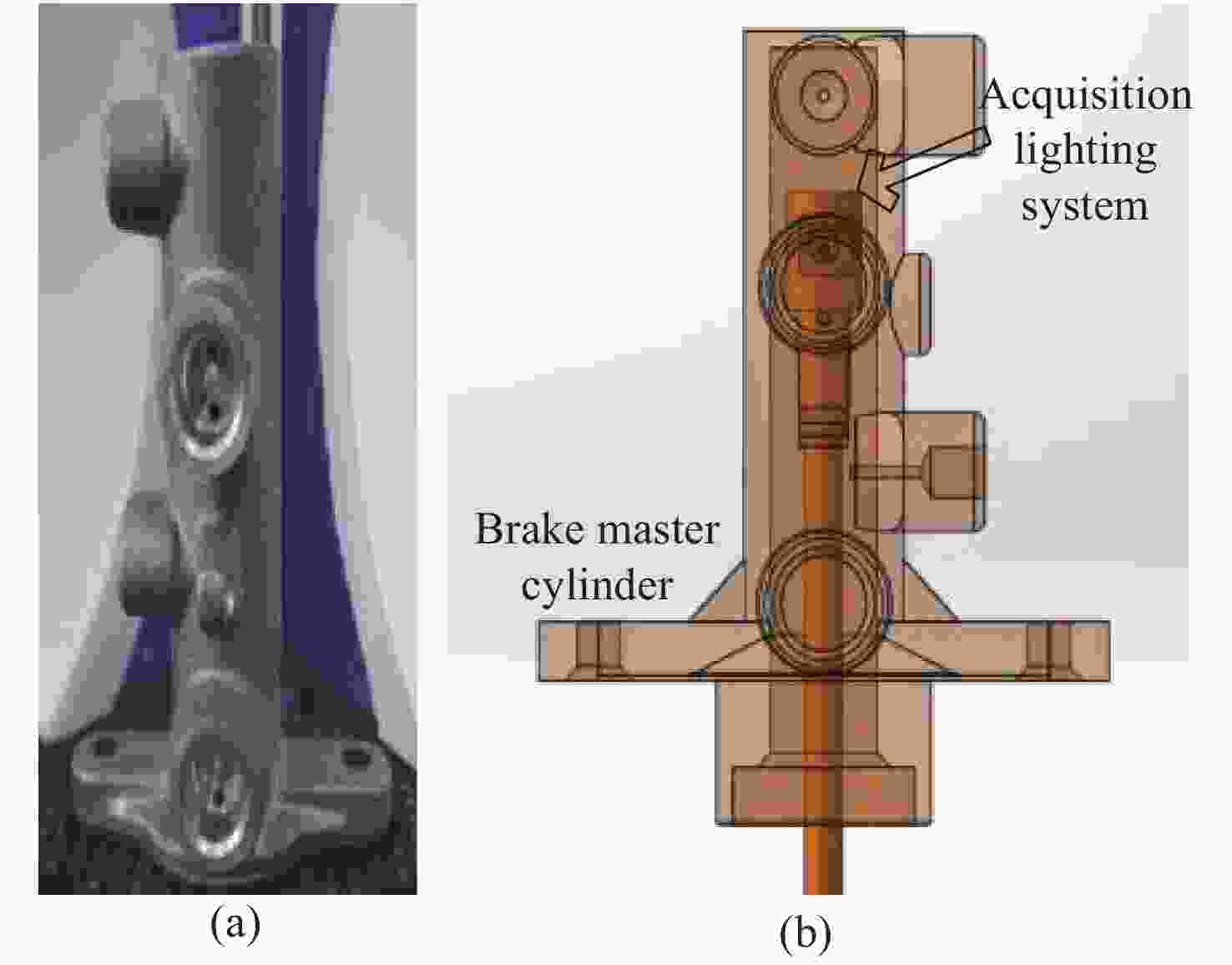

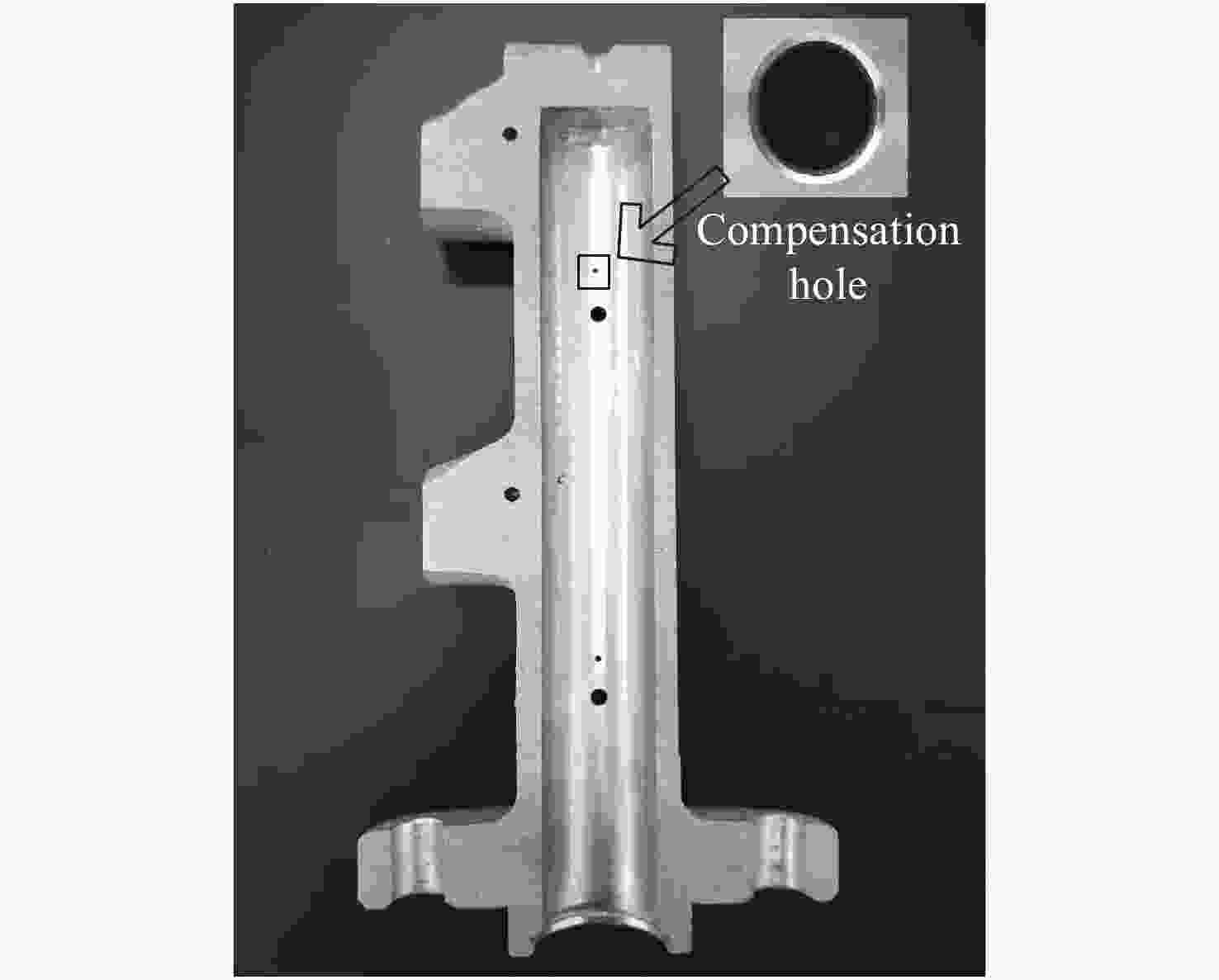

图 2(a)制动主缸实物图和(b)制动主缸检测系统示意图

Figure 2.(a) Real picture of brake master cylinder and (b) schematic diagram of brake master cylinder detection system

下载: 全尺寸图片幻灯片

图 3图像采集和测距系统

Figure 3.Image acquisition and ranging system

下载: 全尺寸图片幻灯片

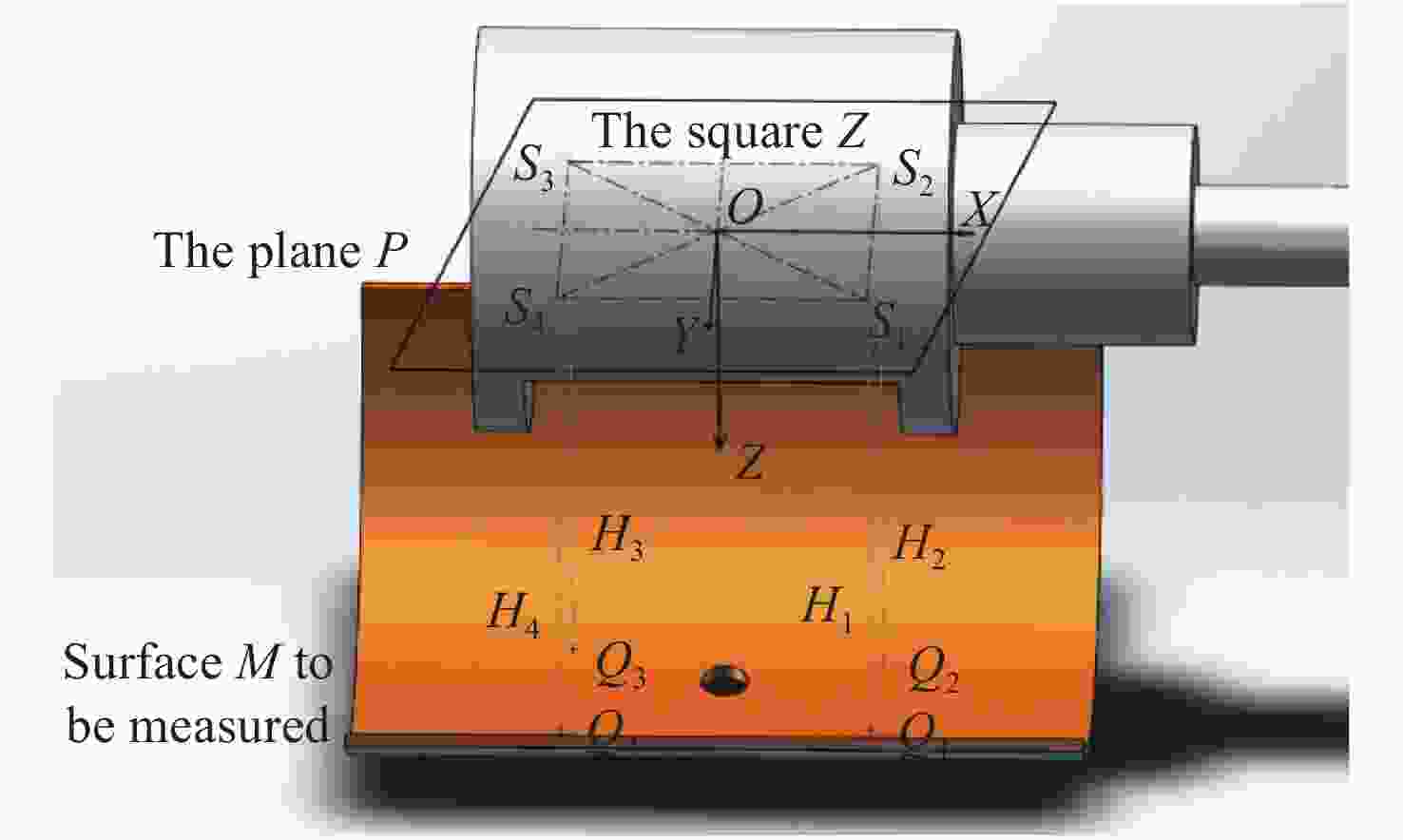

图 4曲面法相测量示意图

Figure 4.Schematic diagram of surface normal phase measurement

下载: 全尺寸图片幻灯片

图 5主缸补偿孔处四点微平面。（a）无误差；（ b）有误差；（ c）图（b）的侧视图

Figure 5.Four-point micro-plane at the compensation hole of the main cylinder. (a) Error free; (b) with error; (c) side view of (b)

下载: 全尺寸图片幻灯片

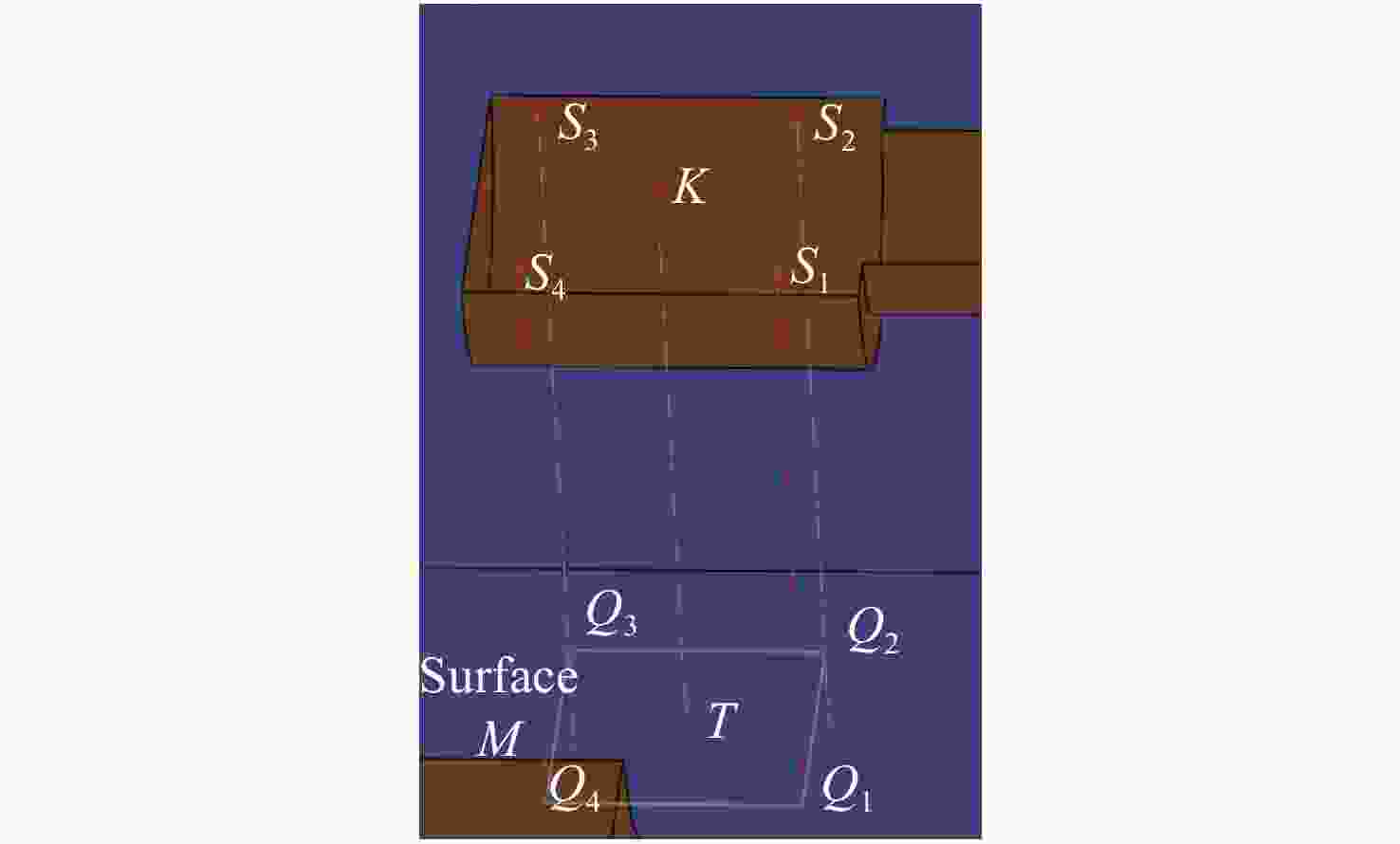

图 6补偿孔法线检测剖面图

Figure 6.Normal detection profile of compensation hole

下载: 全尺寸图片幻灯片

图 7补偿孔中心和四边形中心检测图

Figure 7.Compensation hole center and quadrilateral center inspection diagram

下载: 全尺寸图片幻灯片

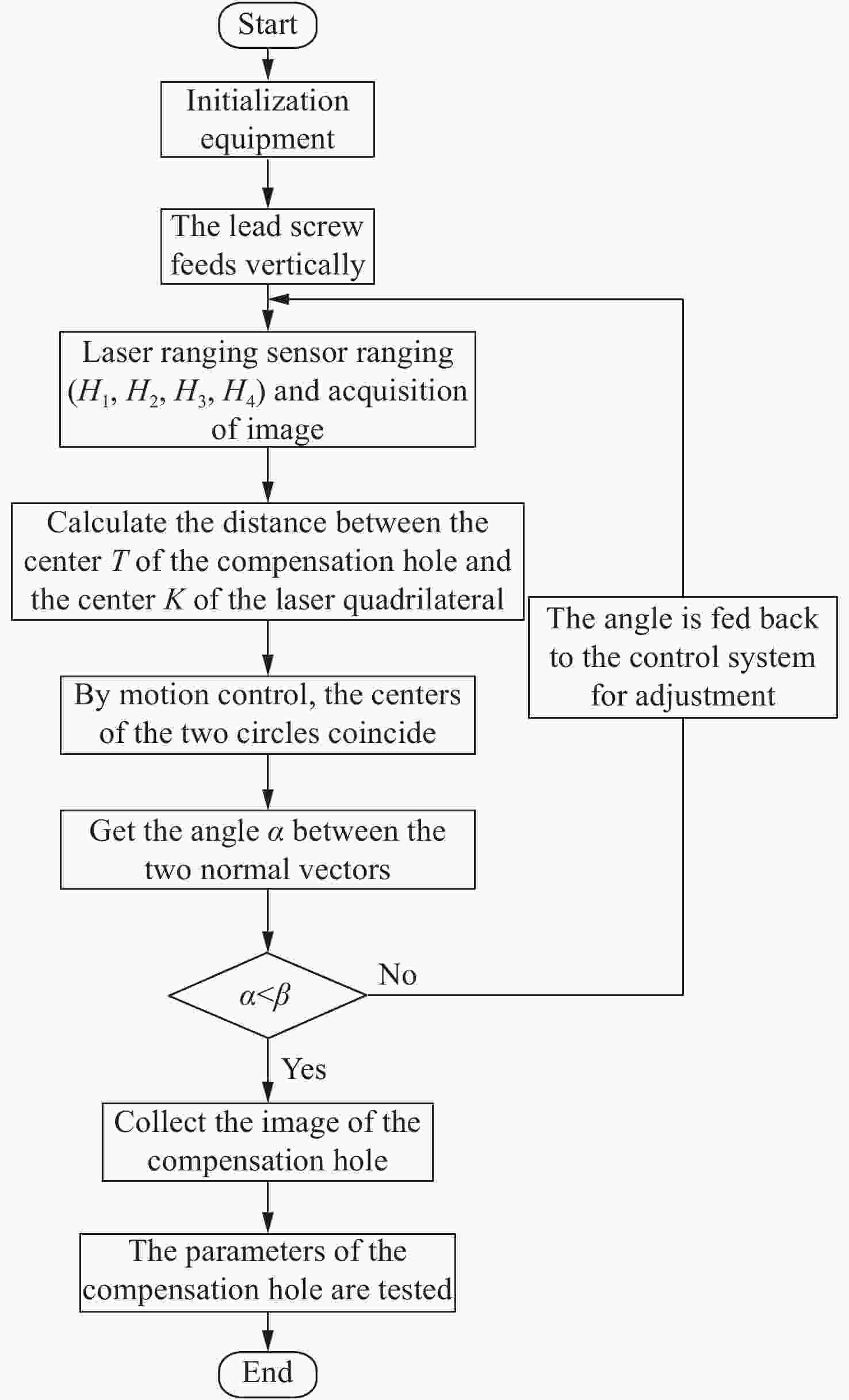

图 8汽车制动主缸补偿孔法线找正流程图

Figure 8.Flow chart of normal alignment correction for the compensation hole of an automobile’s brake master cylinder

下载: 全尺寸图片幻灯片

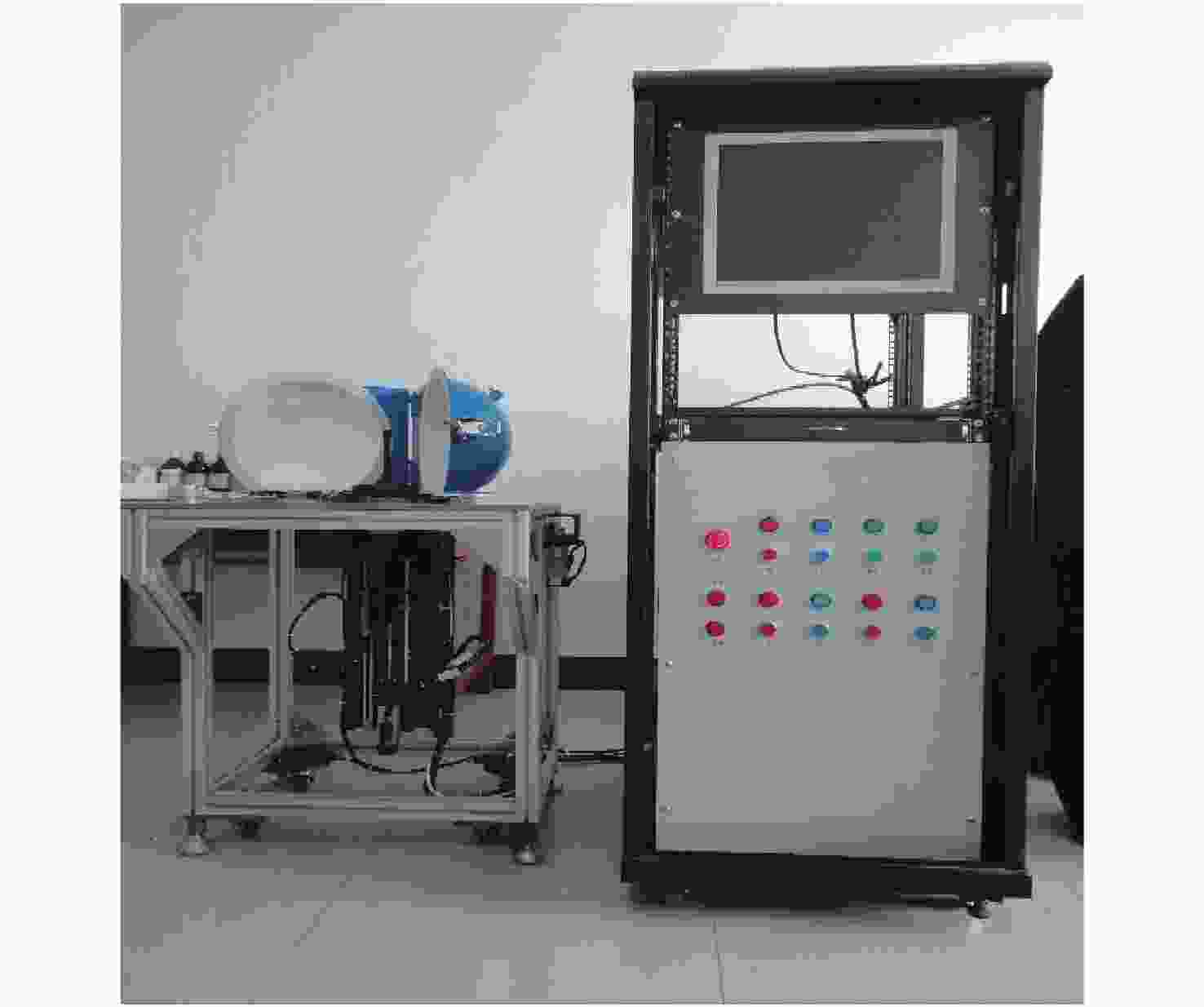

图 9汽车制动主缸补偿孔光电检测系统实物图

Figure 9.Prototype of photoelectric detection system for compensation hole in an automobile’s brake master cylinder

下载: 全尺寸图片幻灯片

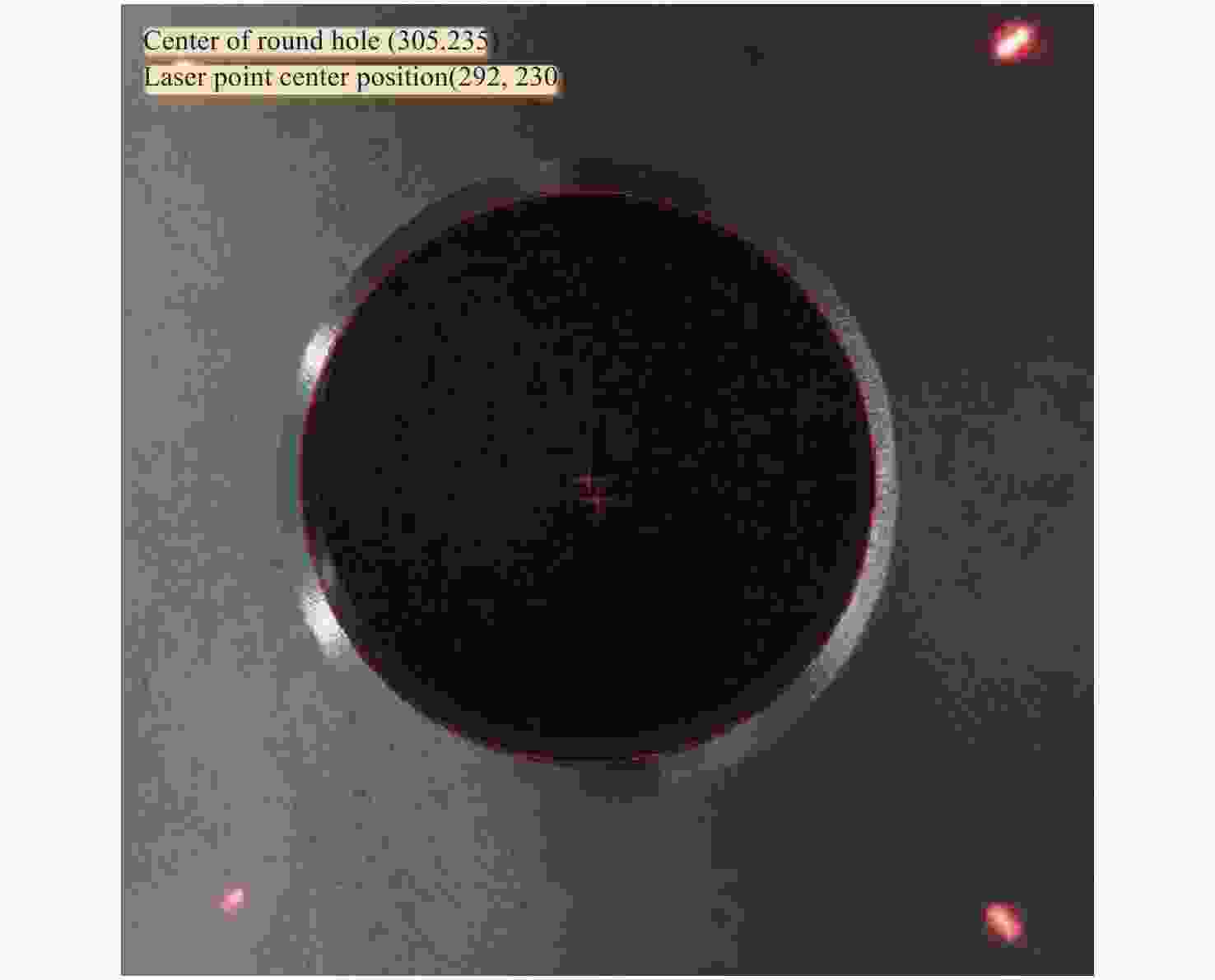

图 10补偿孔中心位置与四边形中心位置偏差

Figure 10.Deviation between the center of the compensation hole and the center of the quadrilateral

下载: 全尺寸图片幻灯片

图 11实验现场图片

Figure 11.Experimental site

下载: 全尺寸图片幻灯片

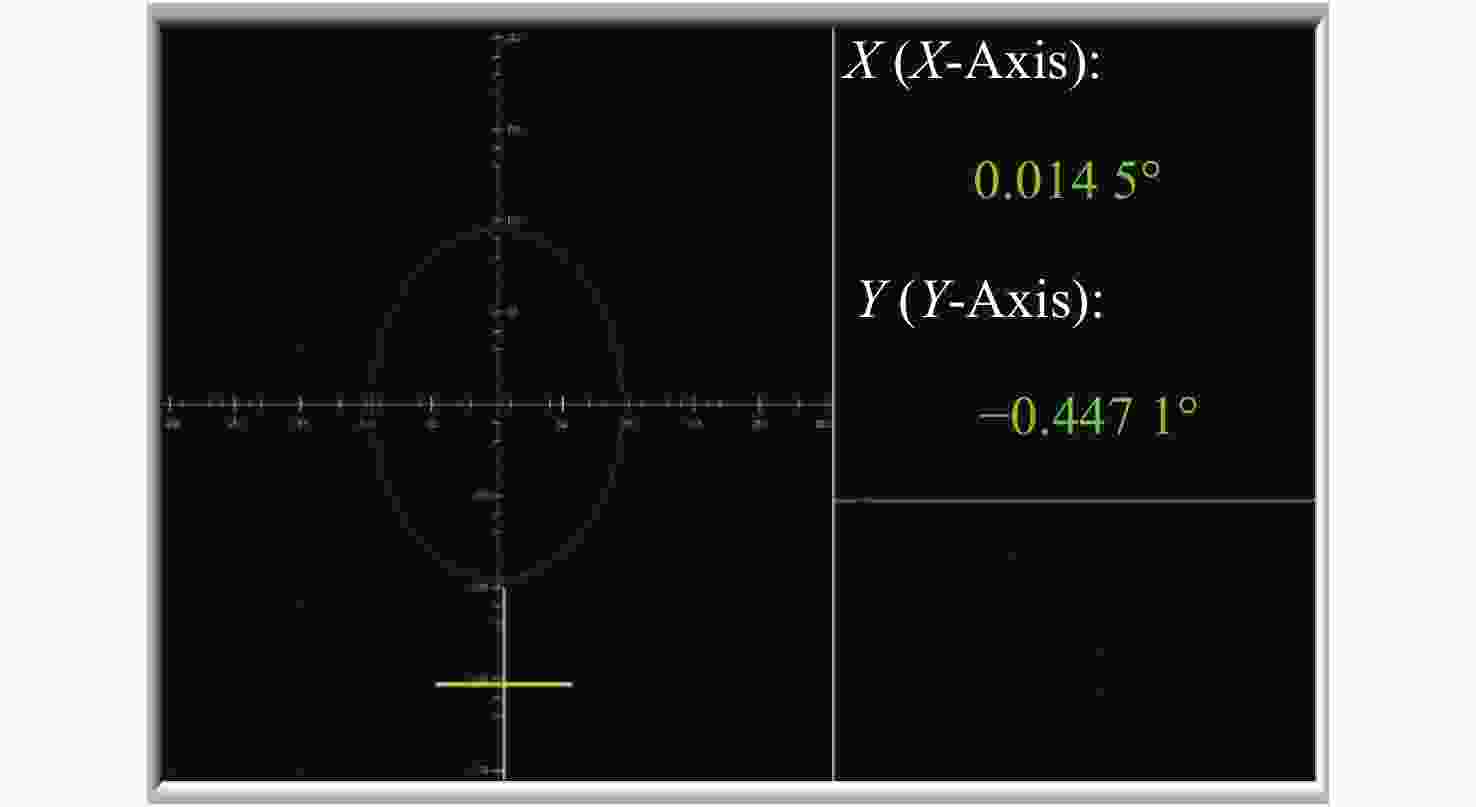

图 12软件界面显示测量结果

Figure 12.Measurement results displayed in software interface

下载: 全尺寸图片幻灯片

图 13多次测量汽车制动主缸补偿孔法线找正精度

Figure 13.Multiple measurements of the normal alignment accuracy of the compensation hole of the automobile’s brake master cylinder

下载: 全尺寸图片幻灯片

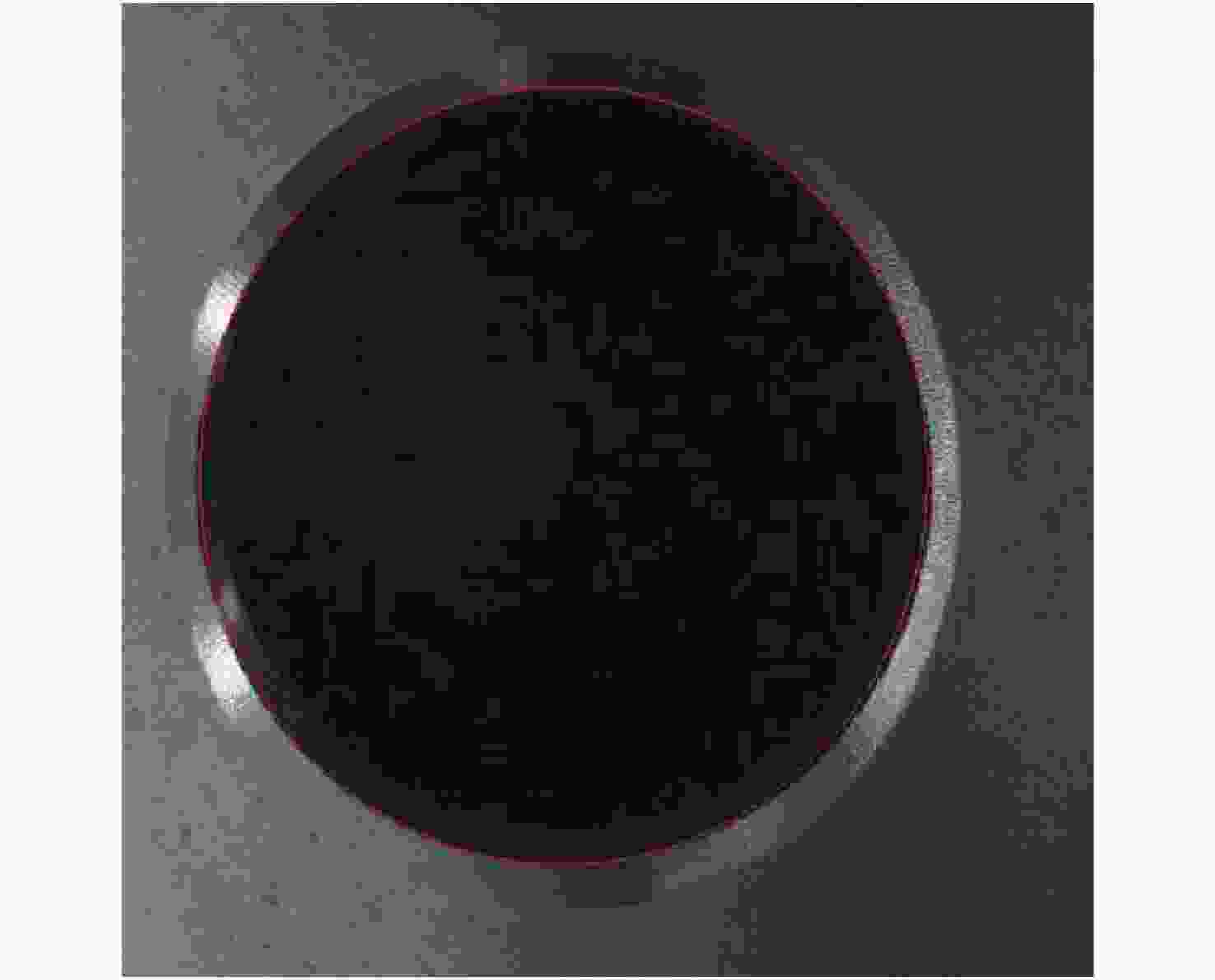

图 14未经过法线找正图像

Figure 14.Uncorrected image

下载: 全尺寸图片幻灯片

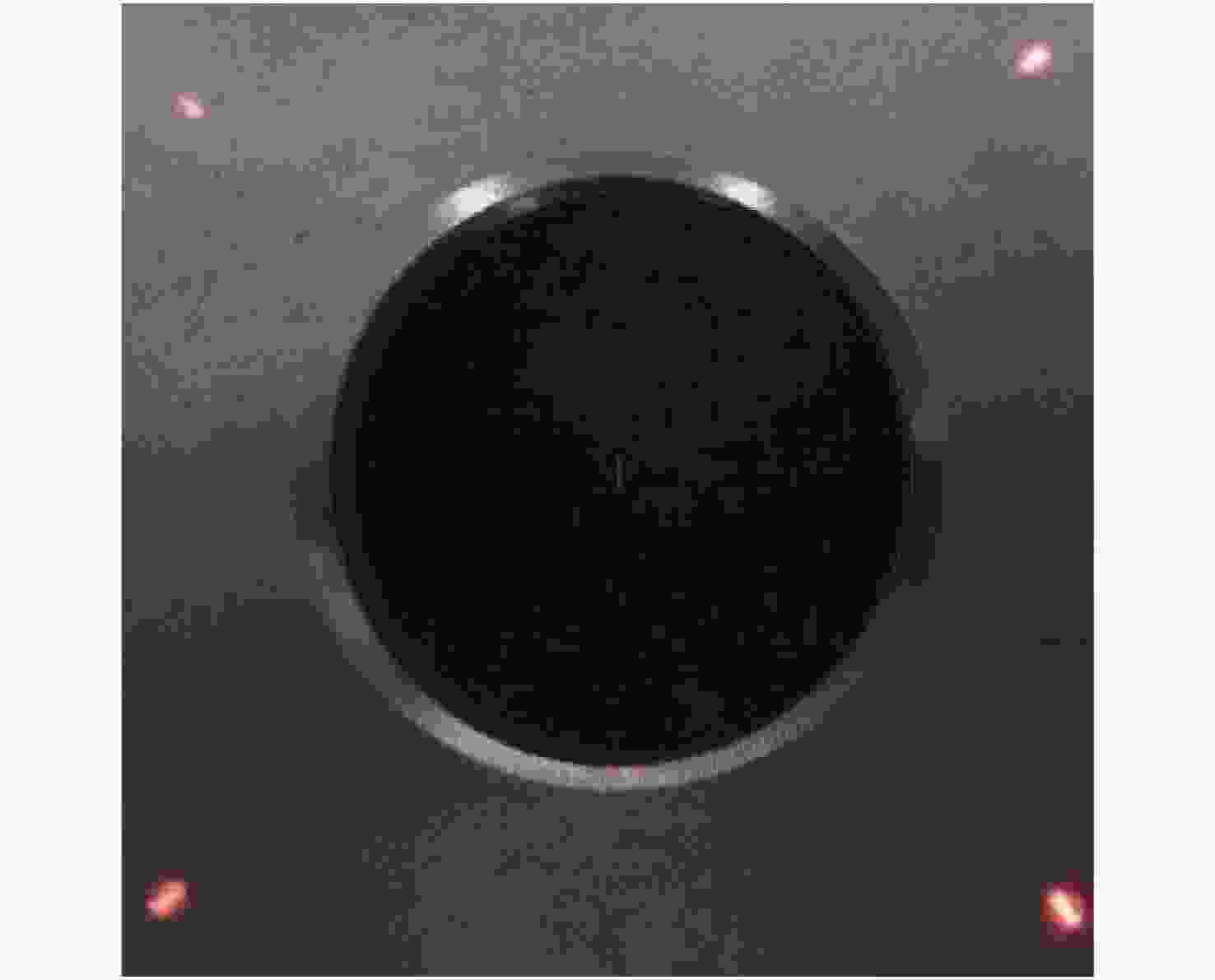

图 15四点微平面法线找正图像

Figure 15.Normal alignment image by four-point microplane method

下载: 全尺寸图片幻灯片

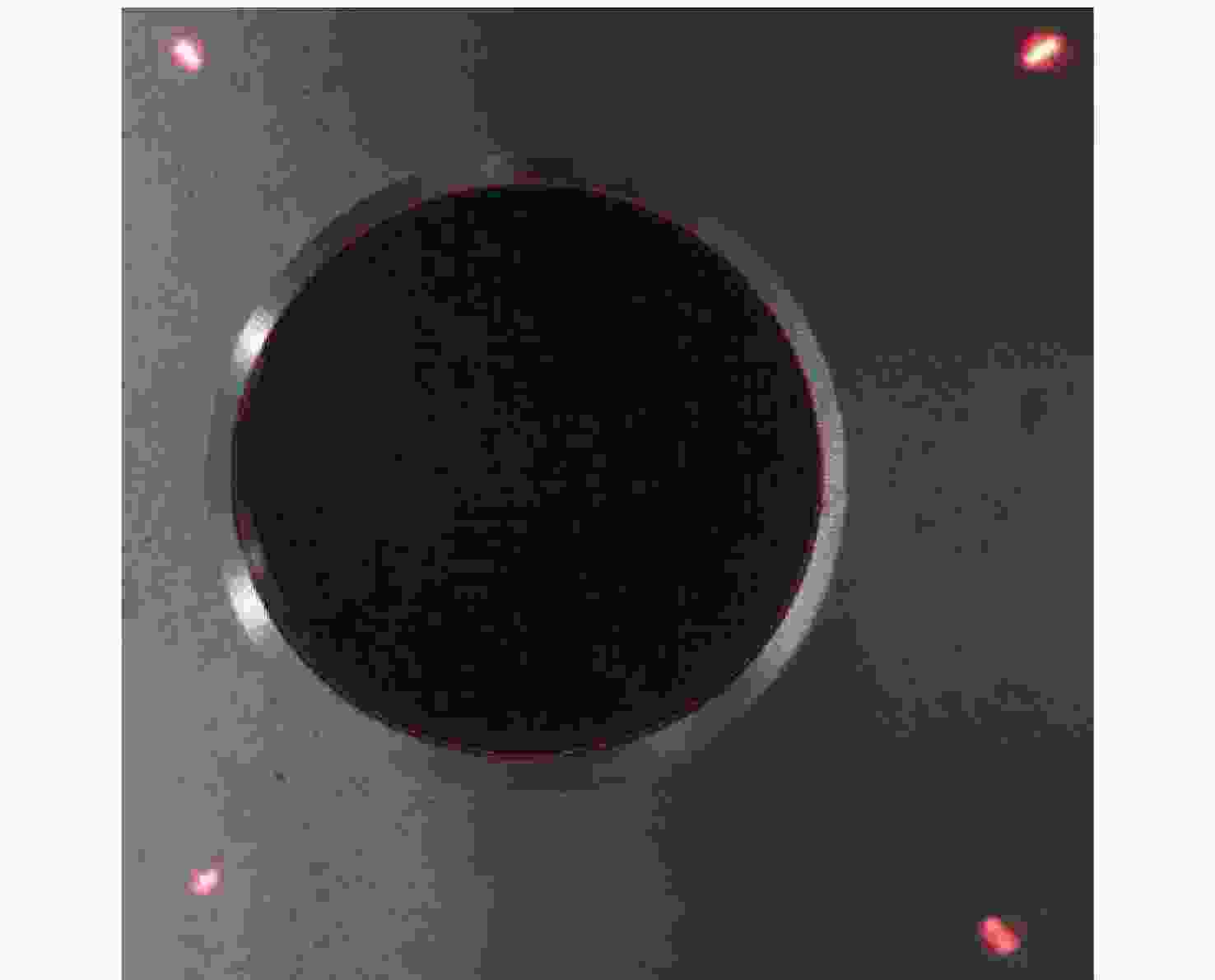

图 16曲面拟合法线找正算法

Figure 16.Normal alignment image by curved surface fitting algorithm

下载: 全尺寸图片幻灯片

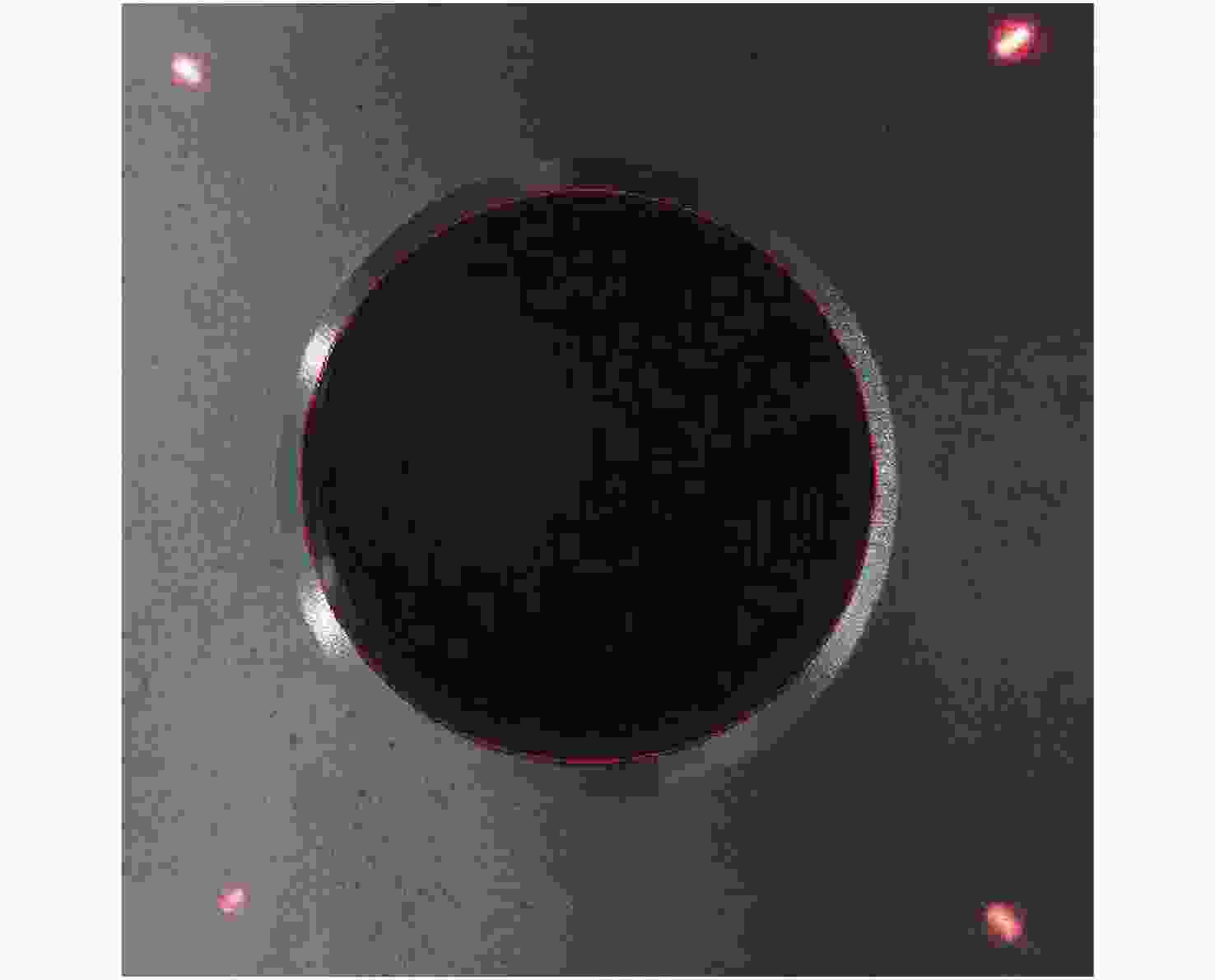

图 17本文算法图像

Figure 17.Normal alignment image by proposed method

下载: 全尺寸图片幻灯片

表 14种汽车制动主缸补偿方法的孔不圆度、误差大小和时间

Table 1.Out-of-roundness, error and time of compensating hole of automobile brake master cylinder by four methods

Detection parameter	The elliptical coefficient （A,B,C,D,E,F）	Maximum radius ${R_{\max } }/{\rm{pixel}}$	Minimum radius ${R_{\min } }/{\rm{pixel}}$	Out of roundness $\delta {\rm{/}}$%	The normal error /(°)	Time $t/{\rm{ms} }$
Taken directly	(0.5,0,0.9,−269.8,−437.4,64727)	220.284	175.147	0.2276	0.4572	120
Micro plane	(0.6,0,0.8,−320.1,−401.2,68722)	195.672	174.687	0.1133	0.1871	680
Surface fitting	(0.7,0,0.7,−372.6,−345.2,70916)	180.547	176.398	0.0232	0.0857	1276
Proposed algorithm	(0.7,0,0.7,−366.6,−359.8,71460)	176.536	175.248	0.0073	0.0124	710

下载: 导出CSV

参考文献 (30)

[1]	YU ZH L, TAN W. Measuring instrument for compensated hole of hydraulic brake master cylinder based on machine vision[C].Proceedingsof2010InternationalConferenceonMechanicAutomationandControlEngineering,IEEE, 2010.
[2]	IOVENITTI P G, MUTAPCIC E, NAGARAJAH C R. Positioning and orienting a drill axis on a curved surface[J].The International Journal of Advanced Manufacturing Technology, 2001, 17(7): 484-488.doi:10.1007/s001700170148
[3]	SHAN Y C, HE N, LI L,etal..Realization of spindle prompt normal posture alignment for assembly holemaking on large suspended panel[C].ProceedingsoftheThirdInternationalConferenceonMeasuringTechnologyandMechatronicsAutomation,IEEE, 2011: 956-960.
[4]	薛汉杰, 张敬佩. 蒙皮类部件钻孔法向的测量和调整[J]. 航空制造技术,2010(23):60-62, 66.doi:10.3969/j.issn.1671-833X.2010.23.010 XUE H J, ZHANG J P. Normal measurement and adjustment for skin drilling[J].Aeronautical Manufacturing Technology, 2010(23): 60-62, 66. (in Chinese)doi:10.3969/j.issn.1671-833X.2010.23.010
[5]	DU ZH C, YAO Y B. Measurement method for evaluating normal direction of surface for digital drilling and riveting[C].SAE2012AerospaceManufacturingandAutomatedFasteningConference&Exhibition,SAE, 2012.
[6]	杨滨赫, 蔡引娣, 文志祥, 等. 长距离测量中光束漂移的自动补偿[J]. 光学精密工程,2020,28(11):2393-2402.doi:10.37188/OPE.20202811.2393 YANG B H, CAI Y D, WEN ZH X,et al. Automatic compensation method for beam drift in long-distance laser measurement[J].Optics and Precision Engineering, 2020, 28(11): 2393-2402. (in Chinese)doi:10.37188/OPE.20202811.2393
[7]	PHAN N D M P, QUINSAT Y, LARTIGUE C. Optimal scanning strategy for on-machine inspection with laser-plane sensor[J].The International Journal of Advanced Manufacturing Technology, 2019, 103(9-12): 4563-4576.doi:10.1007/s00170-019-03877-x
[8]	NORGIA M, CAVEDO F, PESATORI A,etal..Short-range contactless laser sensor[C].Proceedingsof2017IEEEInternationalInstrumentationandMeasurementTechnologyConference,IEEE, 2017.
[9]	秦现生, 汪文旦, 楼阿莉, 等. 大型壁板数控钻铆的三点快速调平算法[J]. 航空学报,2007,28(6):1455-1460.doi:10.3321/j.issn:1000-6893.2007.06.031 QIN X SH, WANG W D, LOU A L,et al. Three-point bracket regulation algorithm for drilling and riveting of aerofoil[J].Acta Aeronautica et Astronautica Sinica, 2007, 28(6): 1455-1460. (in Chinese)doi:10.3321/j.issn:1000-6893.2007.06.031
[10]	西安交通大学, 西安瑞特快速制造工程研究有限公司. 基于三点微平面式法向检测方法: 中国, CN101957175A[P]. 2011-01-26. Xi′an Jiaotong University, Xi'an Ruite Rapid Manufacturing Engineering Research Co., Ltd. Three-point micro-plane-based normal detection method: CN, CN101957175A[P]. 2011-01-26. (in Chinese)
[11]	公茂震, 袁培江, 王田苗, 等. 航空制孔机器人末端垂直度智能调节方法[J]. 北京航空航天大学学报,2012,38(10):1400-1404. GONG M ZH, YUAN P J, WANG T M,et al. Intelligent verticality-adjustment method of end-effector in aeronautical drilling robot[J].Journal of Beijing University of Aeronautics and Astronautics, 2012, 38(10): 1400-1404. (in Chinese)
[12]	应高明, 王仲奇, 康永刚, 等. 飞机壁板自动钻铆法向量测量方法研究[J]. 机床与液压,2010,38(23):1-4, 8.doi:10.3969/j.issn.1001-3881.2010.23.001 YING G M, WANG ZH Q, KANG Y G,et al. Study on normal vector measurement method in auto-drilling & riveting of aircraft panel[J].Machine Tool&Hydraulics, 2010, 38(23): 1-4, 8. (in Chinese)doi:10.3969/j.issn.1001-3881.2010.23.001
[13]	TIAN W, ZHOU W X, ZHOU W,et al. Auto-normalization algorithm for robotic precision drilling system in aircraft component assembly[J].Chinese Journal of Aeronautics, 2013, 26(2): 495-500.doi:10.1016/j.cja.2013.02.029
[14]	MITRA N J, NGUYEN A, GUIBAS L. Estimating surface normals in noisy point cloud data[J].International Journal of Computational Geometry&Applications, 2004, 14(4-5): 261-276.
[15]	ROWELL E, LOUDERMILK E L, SEIELSTAD C,et al. Using simulated 3D surface fuelbeds and terrestrial laser scan data to develop inputs to fire behavior models[J].Canadian Journal of Remote Sensing, 2016, 42(5): 443-459.doi:10.1080/07038992.2016.1220827
[16]	EDGEWORTH R M. Applications of surface normal measurements to coordinate metrology[D]. Charlotte: The University of North Carolina at Charlotte, 2000.
[17]	CALDERON F, RUIZ U, RIVERA M. Surface-normal estimation with neighborhood reorganization for 3D reconstruction[C].Proceedingsofthe12thIberoamericanCongressonPatternRecognition,Springer, 2007: 321-330.
[18]	姜春英, 牛祥鑫, 张诚然, 等. 机器人航空铆接的视觉定位方法研究[J]. 航空制造技术,2018,61(4):55-59. JIANG CH Y, NIU X X, ZHANG CH R,et al. Research on visual positioning method for robot aeronautical riveting[J].Aeronautical Manufacturing Technology, 2018, 61(4): 55-59. (in Chinese)
[19]	毕超, 郝雪, 李迪. 飞机蒙皮法线方向的视觉检测技术研究[J]. 传感技术学报,2020,33(9):1259-1265.doi:10.3969/j.issn.1004-1699.2020.09.006 BI CH, HAO X, LI D. Study on vision inspection technology for normal direction of aircraft surfaces[J].Chinese Journal of Sensors and Actuators, 2020, 33(9): 1259-1265. (in Chinese)doi:10.3969/j.issn.1004-1699.2020.09.006
[20]	陈允全, 李泷杲, 黄翔, 等. 基于机器人的飞机大型结构三维自动化检测方法[J]. 航空制造技术,2019,62(10):51-57. CHEN Y Q, LI SH G, HUANG X,et al. Three-dimensional automatic detection method for large-scale structure of aircraft based on robot[J].Aeronautical Manufacturing Technology, 2019, 62(10): 51-57. (in Chinese)
[21]	梁杰, 毕树生. 制孔执行器的安装方式对机器人性能的影响[J]. 机械工程学报,2010,46(21):13-18.doi:10.3901/JME.2010.21.013 LIANG J, BI SH SH. Effects of drill end effector’s mounted method on the robot performance[J].Journal of Mechanical Engineering, 2010, 46(21): 13-18. (in Chinese)doi:10.3901/JME.2010.21.013
[22]	曲巍崴, 董辉跃, 柯映林. 机器人辅助飞机装配制孔中位姿精度补偿技术[J]. 航空学报,2011,32(10):1951-1960. QU W W, DONG H Y, KE Y L. Pose accuracy compensation technology in robot-aided aircraft assembly drilling process[J].Acta Aeronautica et Astronautica Sinica, 2011, 32(10): 1951-1960. (in Chinese)
[23]	杜兆才. 数字化钻铆的曲面法向测量方法[J]. 航空制造技术,2011(22):108-111.doi:10.3969/j.issn.1671-833X.2011.22.023 DU ZH C. Measurement method for evaluating normal direction of surface for digital drilling and riveting[J].Aeronautical Manufacturing Technology, 2011(22): 108-111. (in Chinese)doi:10.3969/j.issn.1671-833X.2011.22.023
[24]	王红平, 曹国华, 姜涛, 等. 一种汽车制动缸补偿孔形位尺寸检测方法的研究[J]. 机械设计与制造,2009(9):120-122.doi:10.3969/j.issn.1001-3997.2009.09.049 WANG H P, CAO G H, JIANG T,et al. A form and position measurement on brake cylinder offset hole of automobile[J].Machinery Design&Manufacture, 2009(9): 120-122. (in Chinese)doi:10.3969/j.issn.1001-3997.2009.09.049
[25]	SELS S, RIBBENS B, VANLANDUIT S,et al. Camera calibration using gray code[J].Sensors, 2019, 19(2): 246.doi:10.3390/s19020246
[26]	LÓPEZ M, MARÍ R, GARGALLO P,etal..Deep single image camera calibration with radial distortion[C].Proceedingsof2019IEEE/CVFConferenceonComputerVisionandPatternRecognition,IEEE, 2019.
[27]	庞云龙, 刘佳, 王林. BCF-92 POF端面不圆度测量及引用[J]. 光通信技术,2020,44(7):59-62. PANG Y L, LIU J, WANG L. BCF-92 POF end face out-of-roundness measurement and application[J].Optical Communication Technology, 2020, 44(7): 59-62. (in Chinese)
[28]	陈若珠, 孙岳. 基于最小二乘法的椭圆拟合改进算法研究[J]. 工业仪表与自动化装置,2017(2):35-38, 46.doi:10.3969/j.issn.1000-0682.2017.02.008 CHEN R ZH, SUN Y. The study of an improved randomized algorithm for detecting ellipses based on least square approach[J].Industrial Instrumentation&Automation, 2017(2): 35-38, 46. (in Chinese)doi:10.3969/j.issn.1000-0682.2017.02.008
[29]	闫蓓, 王斌, 李媛. 基于最小二乘法的椭圆拟合改进算法[J]. 北京航空航天大学学报,2008,34(3):295-298. YAN B, WANG B, LI Y. Optimal ellipse fitting method based on least-square principle[J].Journal of Beijing University of Aeronautics and Astronautics, 2008, 34(3): 295-298. (in Chinese)
[30]	姜涛, 张桂林, 高俊鹏. 制动主缸补偿孔位置检测误差分析与补偿[J]. 光学精密工程,2020,28(5):1094-1100. JIANG T, ZHANG G L, GAO J P. Error analysis and compensation in position measurement of brake master cylinder compensation hole[J].Optics and Precision Engineering, 2020, 28(5): 1094-1100. (in Chinese)
