摘要:在“太极计划”中，由卫星抖动引起的 抖动噪声是影响 干涉测量精度的主要噪声源之一，为保证测量精度，需抑制该噪声至10 nrad/
${\sqrt{{\rm{Hz}}}}$ @10 mHz。首先，采用由四象限光电探测器和相位计组成的角度敏感器进行角度信号测量，并利用马赫-曾德干涉仪结合比例-积分-微分控制技术，搭建了地基 抖动噪声抑制系统。其次，分析了系统反馈控制能力以及系统对于抑制 抖动噪声的有效性。实验结果表明：该系统可有效抑制 抖动噪声，使得 抖动噪声小于4 nrad/${\sqrt{{\rm{Hz}}}}$ @10 mHz。实验推进了“太极计划”对 抖动噪声抑制水平的研究，为 干涉测量奠定了物理实验基础。Abstract:In the “Taiji mission”, the laser jitter noise caused by satellite jitter is one of the main noise sources that affect the accuracy of laser interferometer. In order to ensure the measurement accuracy, the noise must be suppressed to 10 nrad/$\sqrt{{\rm{Hz}}} $ @10 mHz. Firstly, an angle sensor composed of a four-quadrant photodetector and a phase meter was used to measure the angle signal, and a Mach-Zehnder interferometer combined with proportional-integral-derivative control technology was used to build a ground-based laser jitter noise suppression system. Secondly, the feedback control capability of the system and the effectiveness of the system to suppress laser jitter noise were analyzed. The experimental results showed that the system could effectively suppress the laser jitter noise, and the laser jitter noise was <4 nrad/$\sqrt{{\rm{Hz}}} $ @10 mHz. The experiment advanced the study of the “Taiji mission” on the level of laser jitter noise suppression, which laid a physical experimental foundation for laser interferometry.-
Key words:
- Taiji mission/
- laser interferometer in space/
- laser jitter noise
-

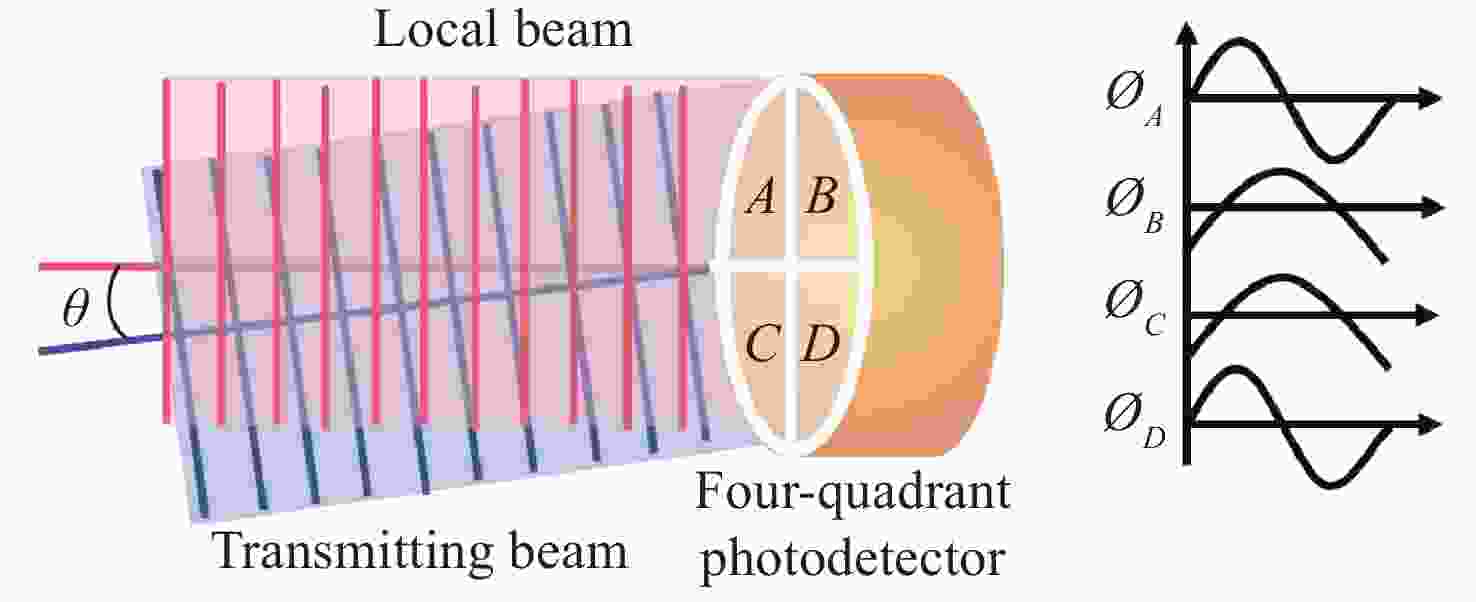

图 1差分波前敏感测角技术原理图
Figure 1.Schematic diagram of differential wavefront sensitive angle measurement technology

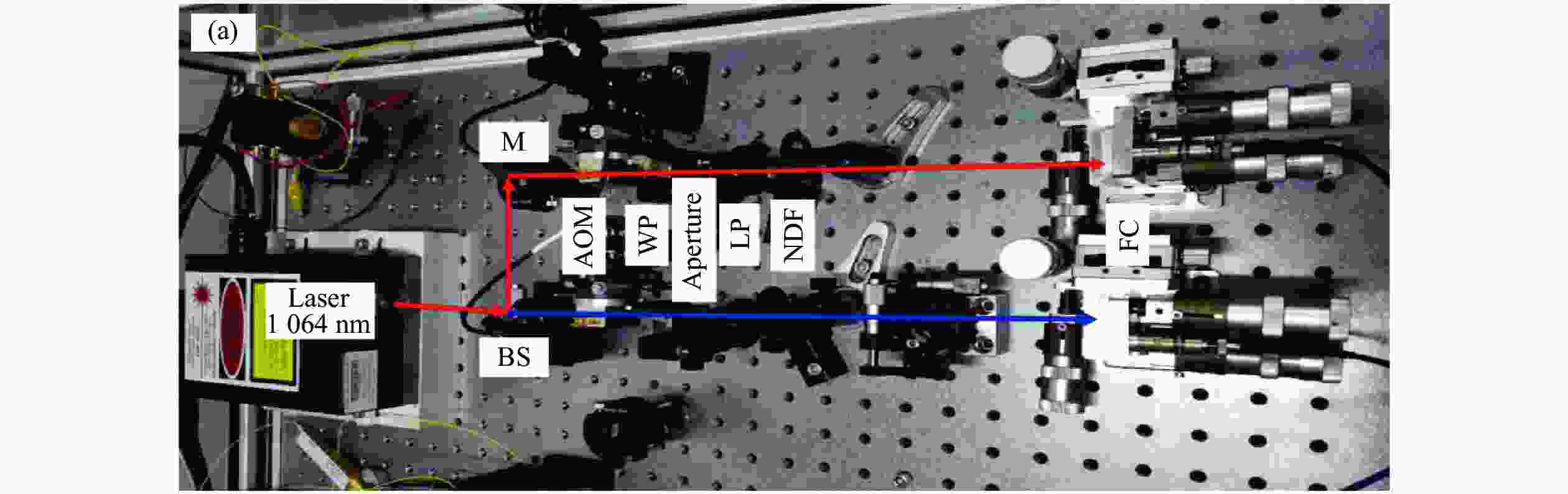

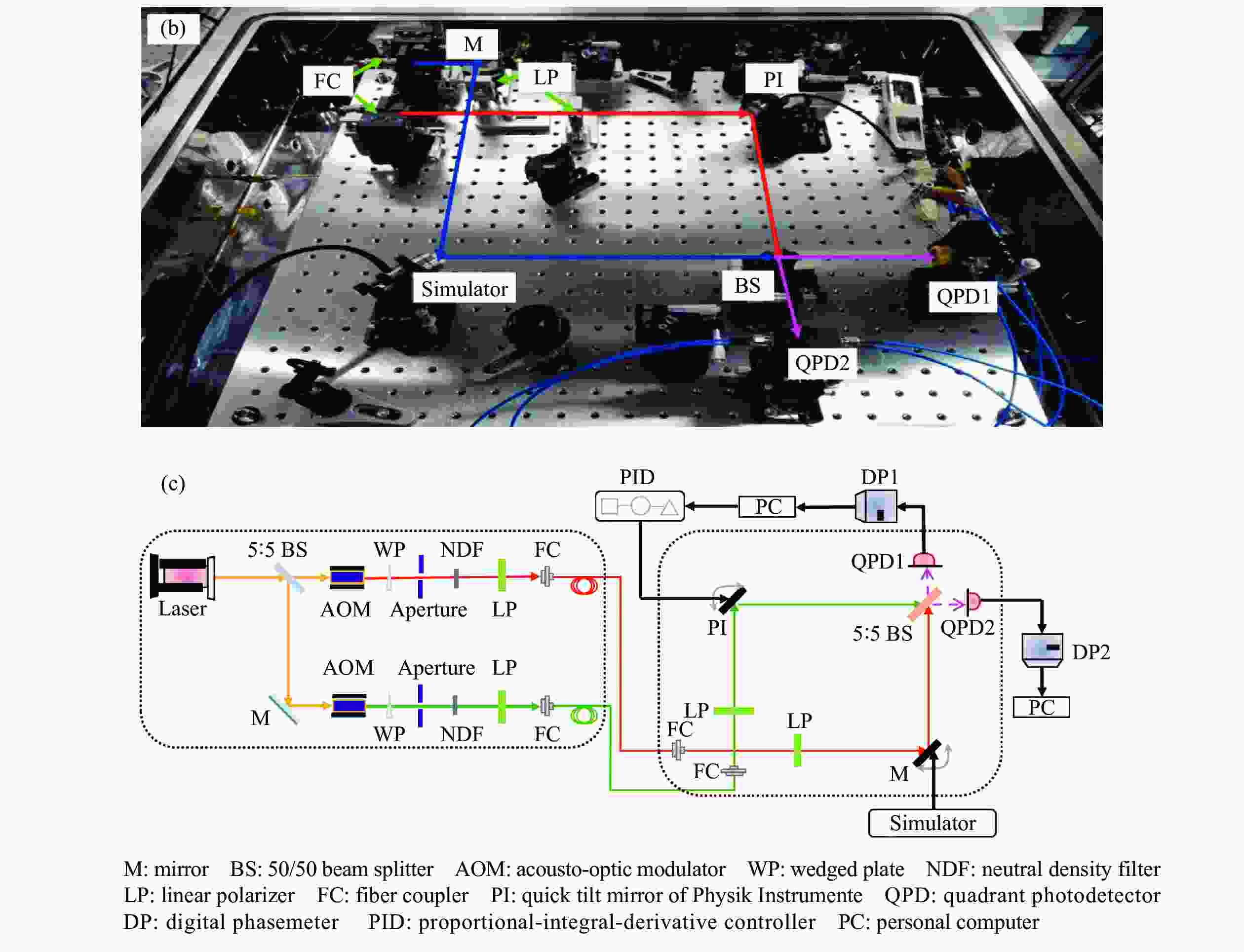

图 2 抖动噪声抑制系统。（a） 调制光路；（b）干涉光路；（c）总体光路
Figure 2.Laser jitter noise suppression system. (a) Laser modulation optical path; (b) interference optical path; (c) overall optical path
图 3串扰测试结果。（a）水平方向运动对垂直方向的串扰；（b）垂直方向运动对水平方向的串扰
Figure 3.Crosstalk test results. (a) Crosstalk of horizontal movement to vertical direction; (b) crosstalk of vertical movement to horizontal direction

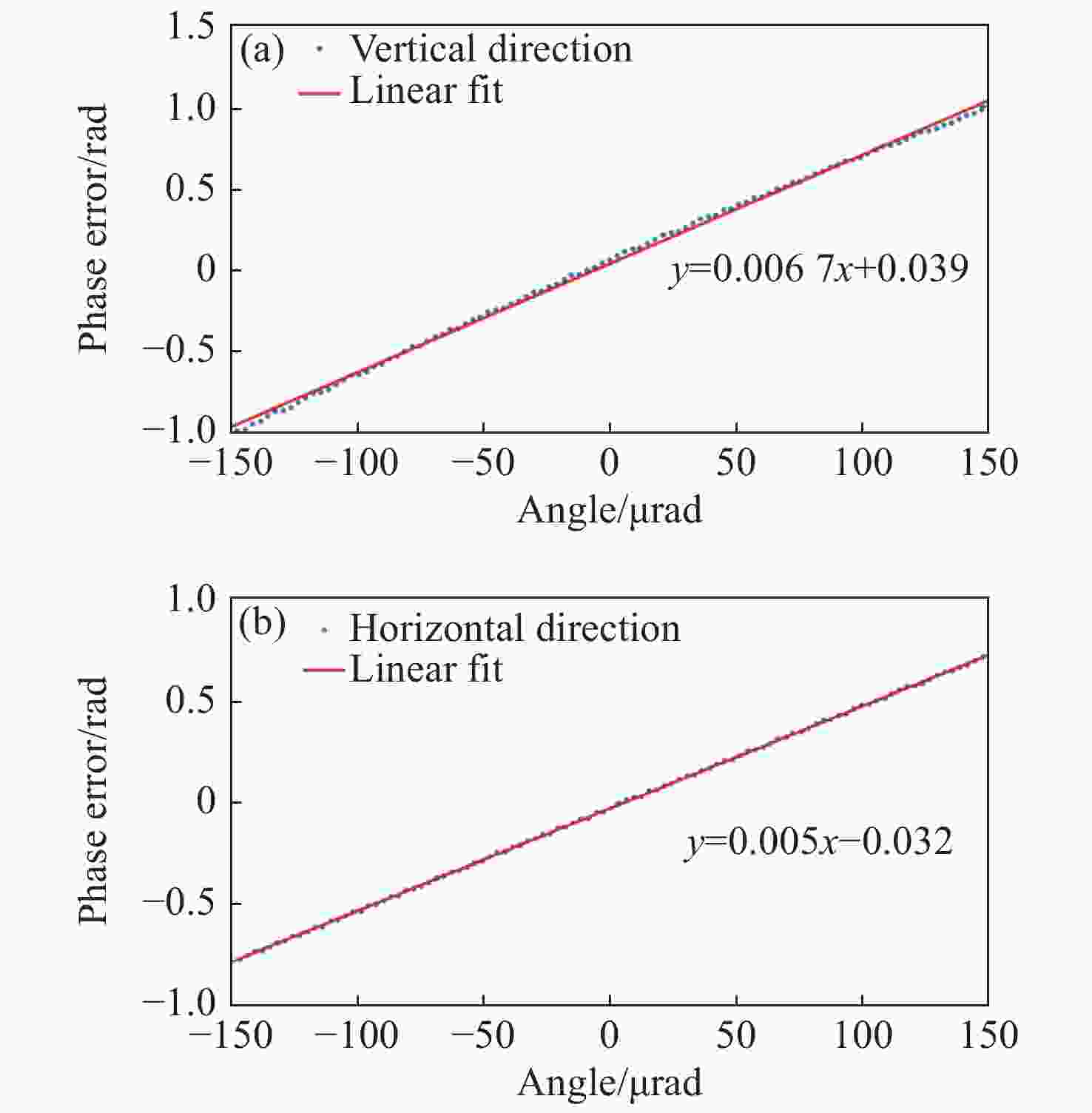

图 4相角转化因子实验结果。(a)垂直方向；(b)水平方向
Figure 4.Experimental results of phase-angle conversion factor. (a) Vertical direction; (b) Horizontal direction

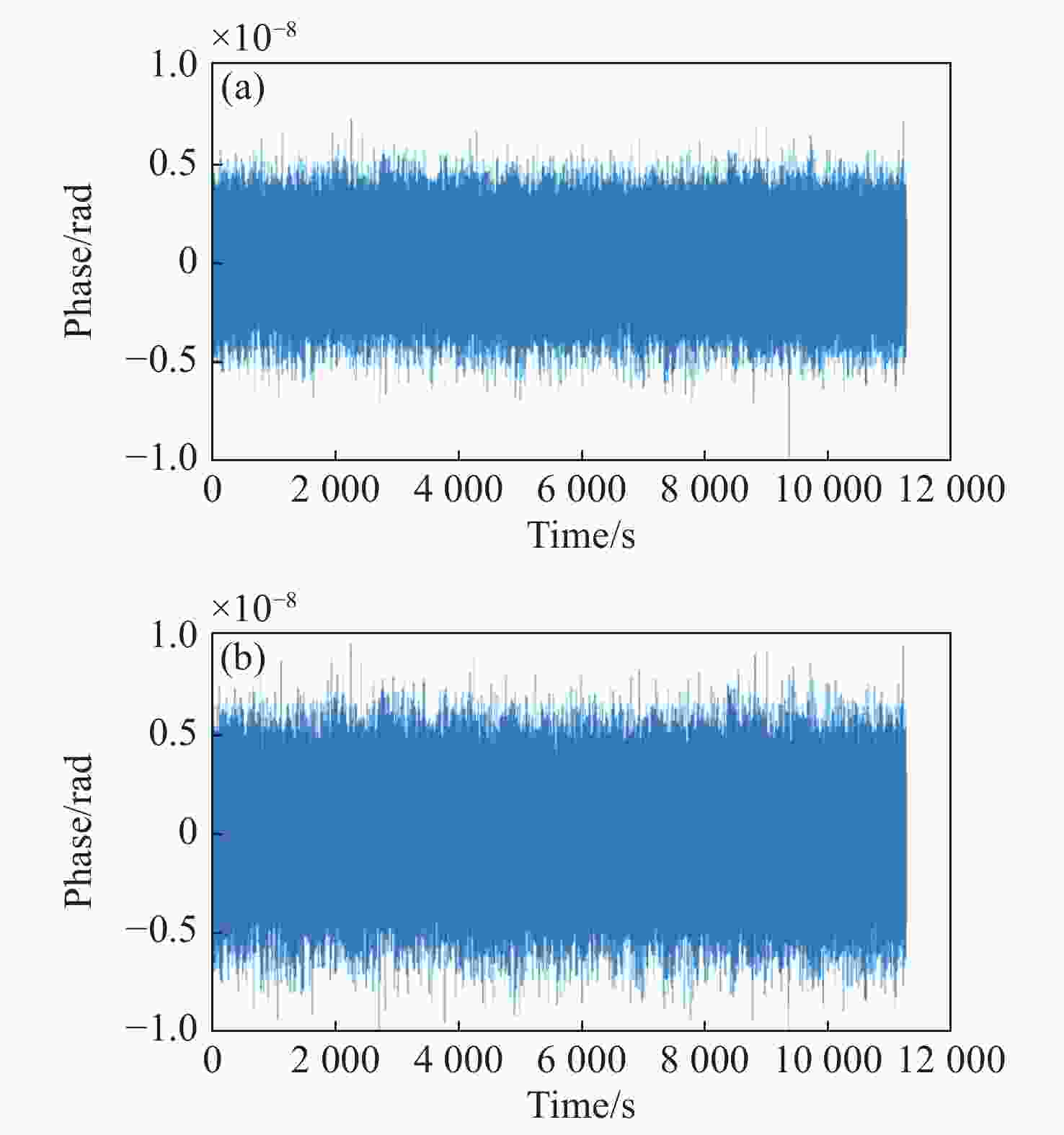

图 5系统读出噪声时域图。（a）垂直方向；（b）水平方向
Figure 5.Time domain diagram of system readout noise. (a) Vertical direction; (b) horizontal direction
图 6系统读出噪声频域图。（a）垂直方向；（b）水平方向
Figure 6.Frequency domain diagram of system readout noise. (a) Vertical direction; (b) horizontal direction

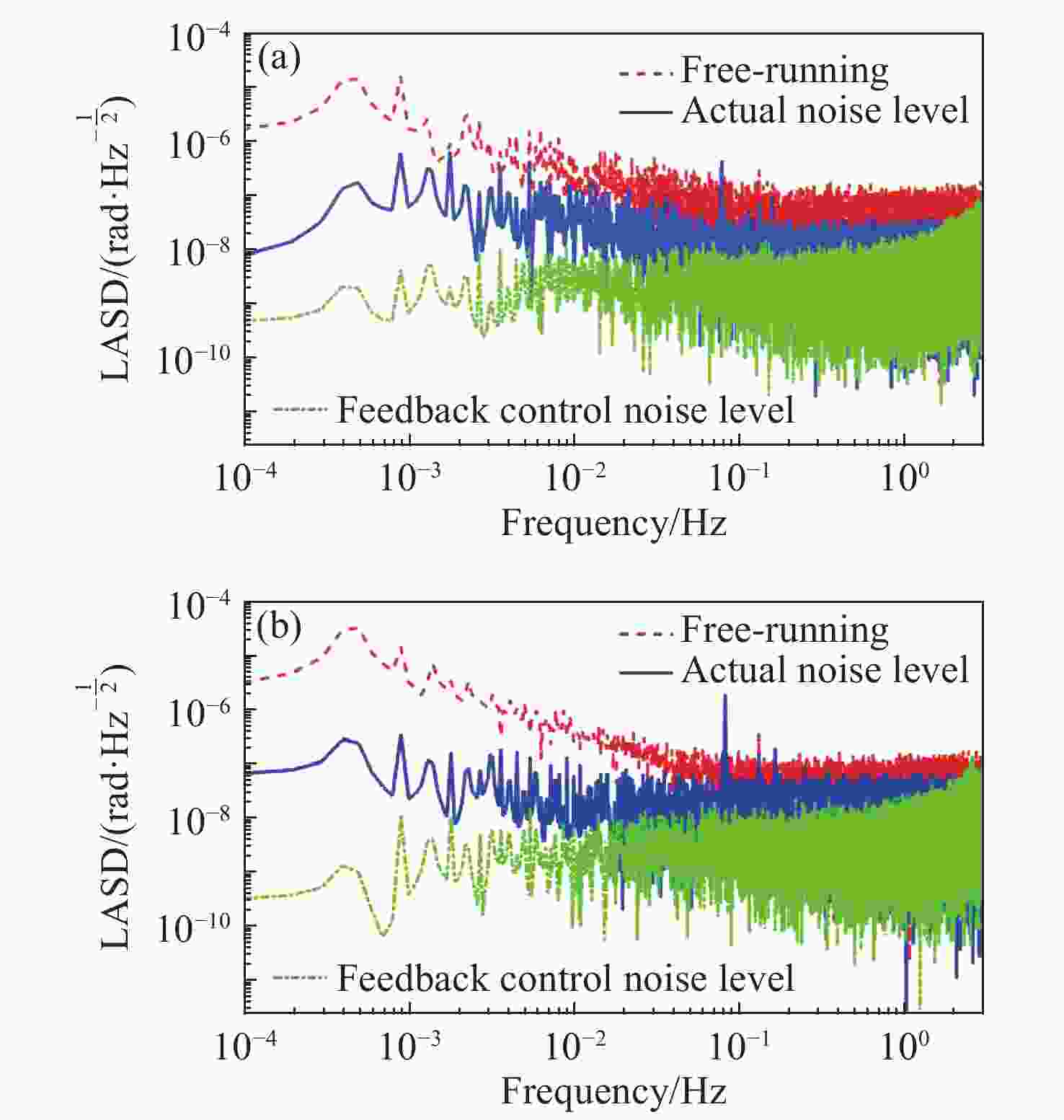

图 7 抖动噪声抑制结果（分别加抖动）。（a）垂直方向；（b）水平方向
Figure 7.Laser jitter noise suppression results (with separate jitter). (a) Vertical direction; (b) horizontal direction
-
[1] PITKIN M, REID S, ROWAN S,et al. Gravitational wave detection by interferometry (ground and space)[J].Living Reviews in Relativity, 2011, 14: 5.doi:10.12942/lrr-2011-5 [2] HU W R, WU Y L. The Taiji program in space for gravitational wave physics and the nature of gravity[J].National Science Review, 2017, 4(5): 685-686.doi:10.1093/nsr/nwx116 [3] 罗子人, 张敏, 靳刚. 干涉引力波空间阵列核心问题的综合讨论[J]. 科学通报,2019,64(24):2468-2474.doi:10.1360/TB-2019-0055LUO Z R, ZHANG M, JIN G. Overall discussion on the key problems of a space-borne laser interferometer gravitational wave antenna[J].Chinese Science Bulletin, 2019, 64(24): 2468-2474. (in Chinese)doi:10.1360/TB-2019-0055 [4] LI Y Q, LUO Z R, LIU H SH,et al. Laser interferometer for space gravitational waves detection and earth gravity mapping[J].Microgravity Science and Technology, 2018, 30(6): 817-829.doi:10.1007/s12217-018-9624-7 [5] 刘河山, 高瑞弘, 罗子人, 等. 空间引力波探测中的绝对距离测量及通信技术[J]. 中国光学,2019,12(3):486-492.doi:10.3788/co.20191203.0486LIU H SH, GAO R H, LUO Z R,et al. Laser ranging and data communication for space gravitational wave detection[J].Chinese Optics, 2019, 12(3): 486-492. (in Chinese)doi:10.3788/co.20191203.0486 [6] 董玉辉. 面向空间 干涉引力波探测的精密指向和弱光锁相控制技术的研究[D]. 北京: 中国科学院大学, 2015.DONG Y H. Inter-satellite interferometry: fine pointing and weak-light phase-locking techniques for space gravitational wave observatory[D]. Beijing: University of Chinese Academy of Sciences, 2015. (in Chinese) [7] 高瑞弘, 刘河山, 罗子人, 等. 太极计划 指向调控方案介绍[J]. 中国光学,2019,12(3):425-431.doi:10.3788/co.20191203.0425GAO R H, LIU H SH, LOU Z R,et al. Introduction of laser pointing scheme in the Taiji program[J].Chinese Optics, 2019, 12(3): 425-431. (in Chinese)doi:10.3788/co.20191203.0425 [8] 梁斌, 朱海龙, 张涛, 等. 星敏感器技术研究现状及发展趋势[J]. 中国光学,2016,9(1):16-29.doi:10.3788/co.20160901.0016LIANG B, ZHU H L, ZHANG T,et al. Research status and development tendency of star tracker technique[J].Chinese Optics, 2016, 9(1): 16-29. (in Chinese)doi:10.3788/co.20160901.0016 [9] LUO Z R, WANG Q L, MAHRDT C,et al. Possible alternative acquisition scheme for the gravity recovery and climate experiment follow-on-type mission[J].Applied Optics, 2017, 56(5): 1495-1500.doi:10.1364/AO.56.001495 [10] WUCHENICH D M R, MAHRDT C, SHEARD B S,et al. Laser link acquisition demonstration for the GRACE Follow-on mission[J].Optics Express, 2014, 22(9): 11351-11366.doi:10.1364/OE.22.011351 [11] 罗子人, 张敏, 靳刚, 等. 中国空间引力波探测"太极计划"及"太极1号"在轨测试[J]. 深空探测学报,2020,7(1):3-10.LUO Z R, ZHANG M, JIN G,et al. Introduction of Chinese space-borne gravitational wave detection program “Taiji” and “Taiji-1” satellite mission[J].Journal of Deep Space Exploration, 2020, 7(1): 3-10. (in Chinese) [12] JIN G. Program in space detection of gravitational wave in Chinese Academy of Sciences[J].Journal of Physics:Conference Series, 2017, 840: 012009.doi:10.1088/1742-6596/840/1/012009 [13] 黄双林, 龚雪飞, 徐鹏, 等. 空间引力波探测——天文学的一个新窗口[J]. 中国科学: 物理学 力学 天文学,2017,47(1):010404.HUANG SH L, GONG X F, XU P,et al. Gravitational wave detection in space——a new window in astronomy[J].SCIENTIA SINICA Physica,Mechanica&Astronomica, 2017, 47(1): 010404. (in Chinese) [14] 胡文瑞. 空间引力波探测方案的探讨[J]. 科技导报,2018,36(12):1.HU W R. An investigation on the mission design of the space-borne gravitational wave detection[J].Science&Technology Review, 2018, 36(12): 1. (in Chinese) [15] 刘志国, 朴云松, 乔从丰. 多波段引力波宇宙研究和空间太极计划[J]. 现代物理知识,2016,28(5):28-33.LIU ZH G, PU Y S, QIAO C F. Multi-band gravitational wave cosmic research and the Taiji program of space[J].Modern Physics Knowledge, 2016, 28(5): 28-33. (in Chinese) [16] 邓剑峰, 蔡志鸣, 陈琨, 等. 无拖曳控制技术研究及在我国空间引力波探测中的应用[J]. 中国光学,2019,12(3):503-514.doi:10.3788/co.20191203.0503DENG J F, CAI ZH M, CHEN K,et al. Drag-free control and its application in China’s space gravitational wave detection[J].Chinese Optics, 2019, 12(3): 503-514. (in Chinese)doi:10.3788/co.20191203.0503 [17] HYDE T T, MAGHAMI P. Precision pointing for the laser interferometry space antenna mission[J].Advances in the Astronautical Sciences, 2003, 113: 497-508. [18] HECHENBLAIKNER G. Measurement of the absolute wavefront curvature radius in a heterodyne interferometer[J].Journal of the Optical Society of America A, 2010, 27(9): 2078-2083.doi:10.1364/JOSAA.27.002078 [19] SHEARD B S, HEINZEL G, DANZMANN K,et al. Intersatellite laser ranging instrument for the GRACE Follow-on mission[J].Journal of Geodesy, 2012, 86(12): 1083-1095.doi:10.1007/s00190-012-0566-3 [20] WANNER G, HEINZEL G, KOCHKINA E,et al. Methods for simulating the readout of lengths and angles in laser interferometers with Gaussian beams[J].Optics Communications, 2012, 285(24): 4831-4839.doi:10.1016/j.optcom.2012.07.123 [21] HEINZEL G, RÜDIGER A, SCHILLING R,et al. Automatic beam alignment in the Garching 30 m prototype of a laser-interferometric gravitational wave detector[J].Optics Communications, 1999, 160(4-6): 321-334.doi:10.1016/S0030-4018(98)00654-3 [22] 刘河山. 面向空间引力波探测的 差分干涉相位计研究[D]. 北京: 中国科学院大学, 2015.LIU H SH. The research on phasemeter of heterodyne laser interferometry for the space gravitational wave detection[D]. Beijing: University of Chinese Academy of Sciences, 2015. (in Chinese) [23] LI Y Q, WANG CH Y, WANG L Y,et al. A laser interferometer prototype with pico-meter measurement precision for Taiji space gravitational wave detection missionin China[J].Microgravity Science and Technology, 2020, 32(3): 331-338.doi:10.1007/s12217-019-09769-9 [24] 李日忠, 黄俊斌, 秦石乔. 四象限光电探测器象限间一致性测量方法[J]. 传感技术学报,2006,19(6):2610-2612.LI R ZH, HUANG J B, QIN SH Q. Measuring the response coherence between the four quadrants of quadrant photo detector[J].Chinese Journal of Sensors and Actuators, 2006, 19(6): 2610-2612. (in Chinese) -
