摘要:氮化硅材料提供了一种与CMOS兼容的集成光子平台，具有丰富的光学特性。通过调节相关制备参数，可以获得特定折射率的薄膜材料，且消光系数和非线性系数具有较大可调控范围。因此，氮化硅材料在薄膜光学、微纳平面光学、非线性集成光学等诸多领域具有广泛的应用前景。本文主要介绍氮化硅材料的光学特性及其在光学薄膜、微纳超构材料和硅光集成器件方面的研究现状，综述氮化硅材料在太阳能薄膜、可见光超构表面、光栅耦合器和非线性光波导等应用领域的研究概况。Abstract:Silicon nitride provides a CMOS-compatible integrated photonic platform with rich optical properties. By adjusting the relevant fabrication parameters, silicon nitride with specific refractive index between 1.9~3.2 can be achieved, and its extinction and nonlinear coefficient can have a large adjustable range. Silicon nitride has wide potential applications in many fields such as thin film optics, micro-nano planar optics and nonlinear integrated photonics. In this paper, we review the optical properties of silicon nitride and its recent advances in optical film, micro-nano metamaterial and silicon photonics, and also review the research progresses on the applications of solar thin films, visible metasurfaces, grating couplers and nonlinear optical waveguides.
-

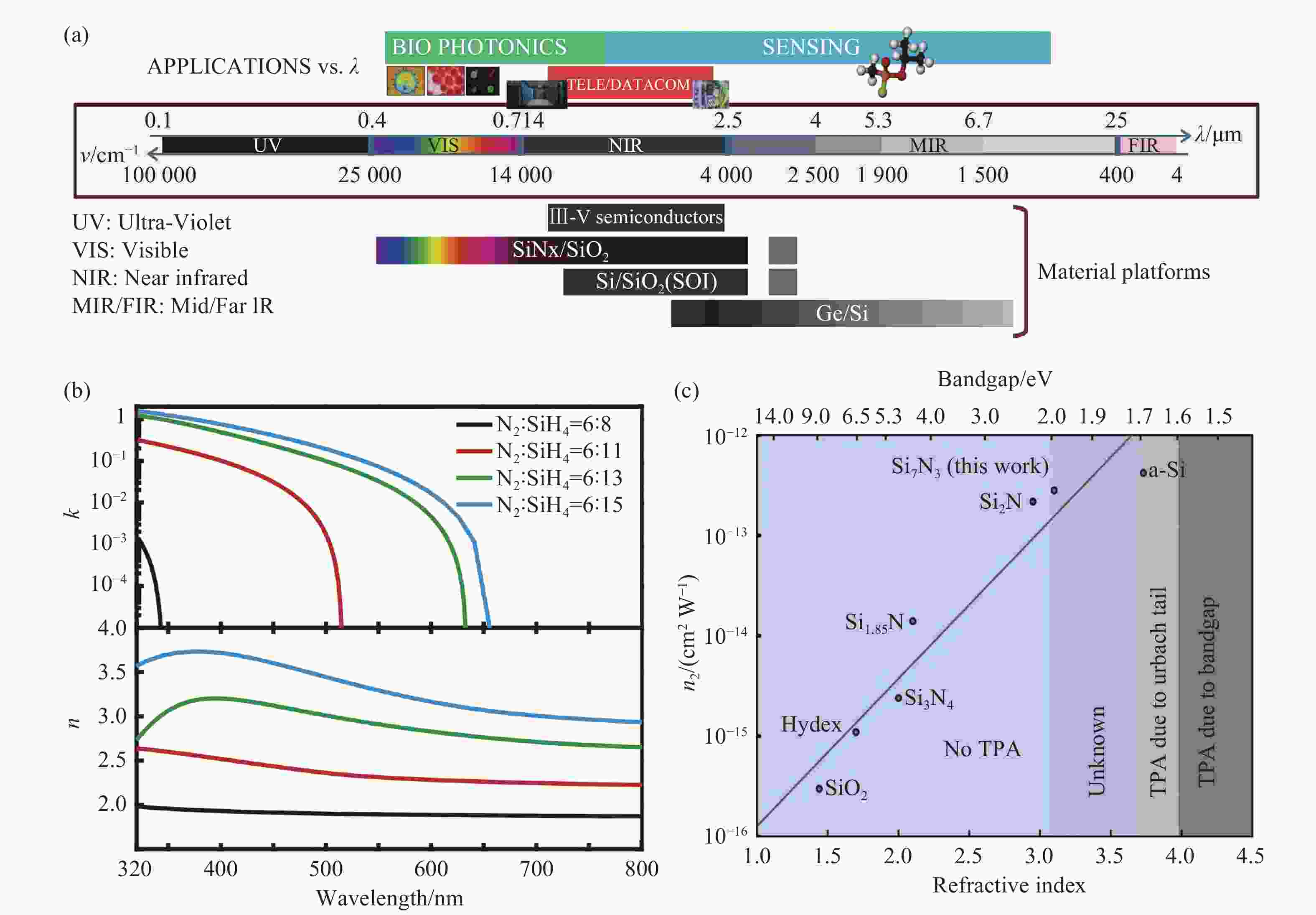

图 1（a）不同材料体系在紫外到远红外的光谱工作波长范围以及对应波段的相关应用[11]；（b）我们实验室中CVD沉积过程中通入不同N2/SiH4的气体浓度比例获得的氮化硅薄膜的光学参数（n，k）值；（c）二氧化硅、氮化硅以及硅材料的带隙与其（线性及非线性）折射率关系图[14]
Figure 1.(a) Working wavelengths of different material from UV to far-infrared and their related applications in corresponding wavebands[11]; (b) optical parameters (n,k) of silicon nitride films obtained by different N2/SiH4gas concentration ratios during CVD by our lab; (c) diagram of the relationship between band gaps and (linear and nonlinear) refractive index of silicon dioxide, silicon nitride and silicon materials[14]

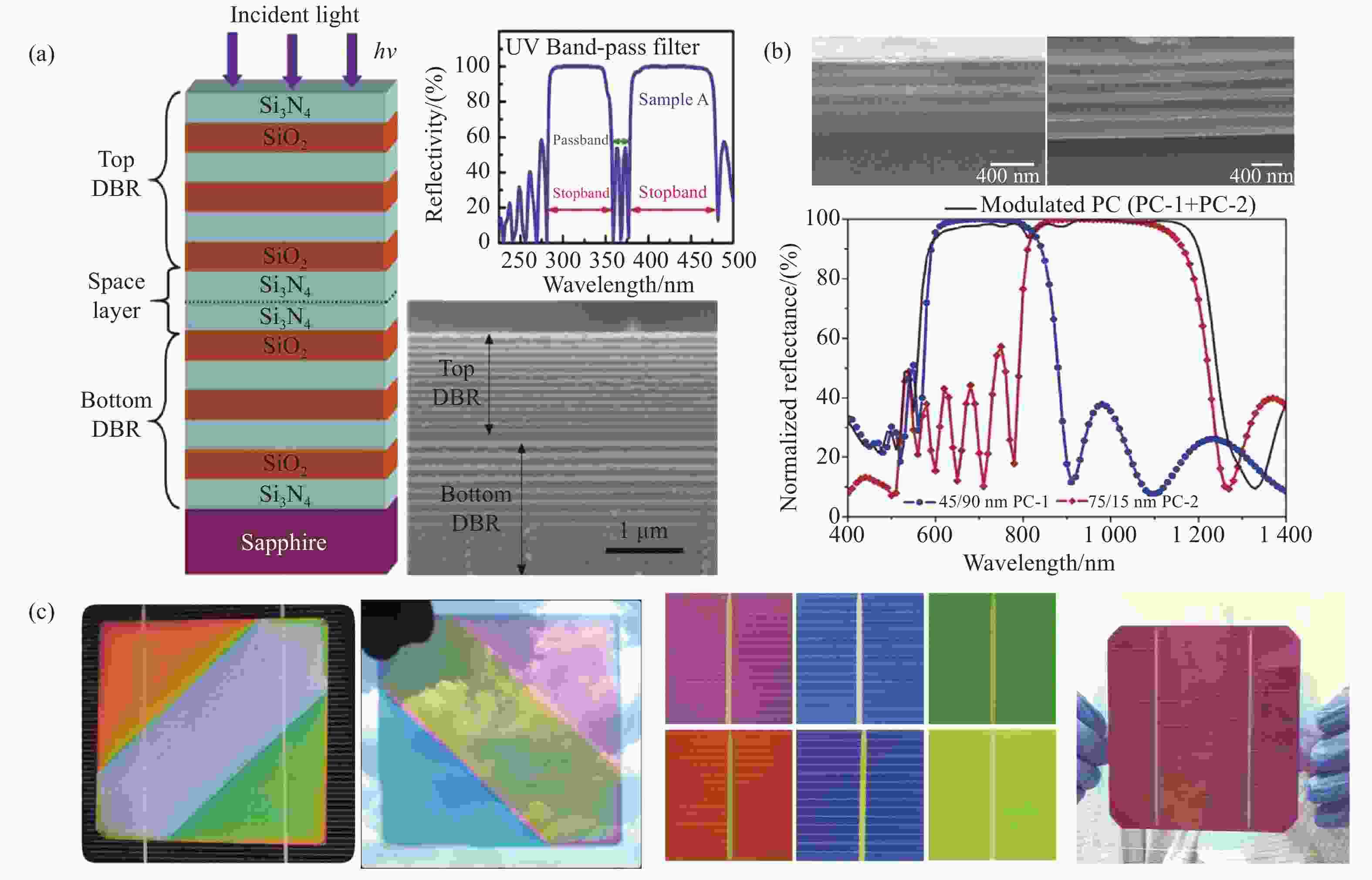

图 2氮化硅均匀薄膜的光学应用。（a）带通滤波器结构图[15]；（b）氮化硅/氮化硅/氮氧化硅多层减反射膜反射光谱及结构示意图[18]；（c）氮化硅/氮氧化硅基彩色太阳能电池薄膜[19]
Figure 2.The optical application of silicon nitride homogeneous films. (a) Diagram of band-pass filter structure[15]; (b) reflection spectrum and structure diagram of silicon nitride / silicon nitride / silicon oxynitride multilayer antireflection film[18]; (c) silicon nitride / silicon oxynitride films in the application of colored solar cell[19]
图 3氮化硅超构透镜。（a）消球差氮化硅超构透镜实现接近衍射极限的聚焦性能[20]；（b）高数值孔径厘米口径氮化硅超构透镜及其成像效果[12]；（c）氮化硅超构透镜实现计算消色差成像[24]；（d）氮化硅超构透镜阵列及其宽带消色差集成成像应用[26]；（e）基于级联超构透镜的微型氮化硅超构物镜[28]；（f）超构透镜相位测量[29]
Figure 3.Silicon nitride metalenses. (a) Spherical aberration free silicon nitride metalens achieves the nearly diffraction-limited focusing[20]; (b) high-NA centimeter-aperture silicon nitride metalens and its imaging performance[12]; (c) silicon nitride metalens for computational achromatic imaging[24]; (d) array of silicon nitride metalens for broadband achromatic integral imaging[26]; (e) microscope silicon nitride meta-objective based on cascaded metalenses[28]; (f) phase characterization of metalens[29]

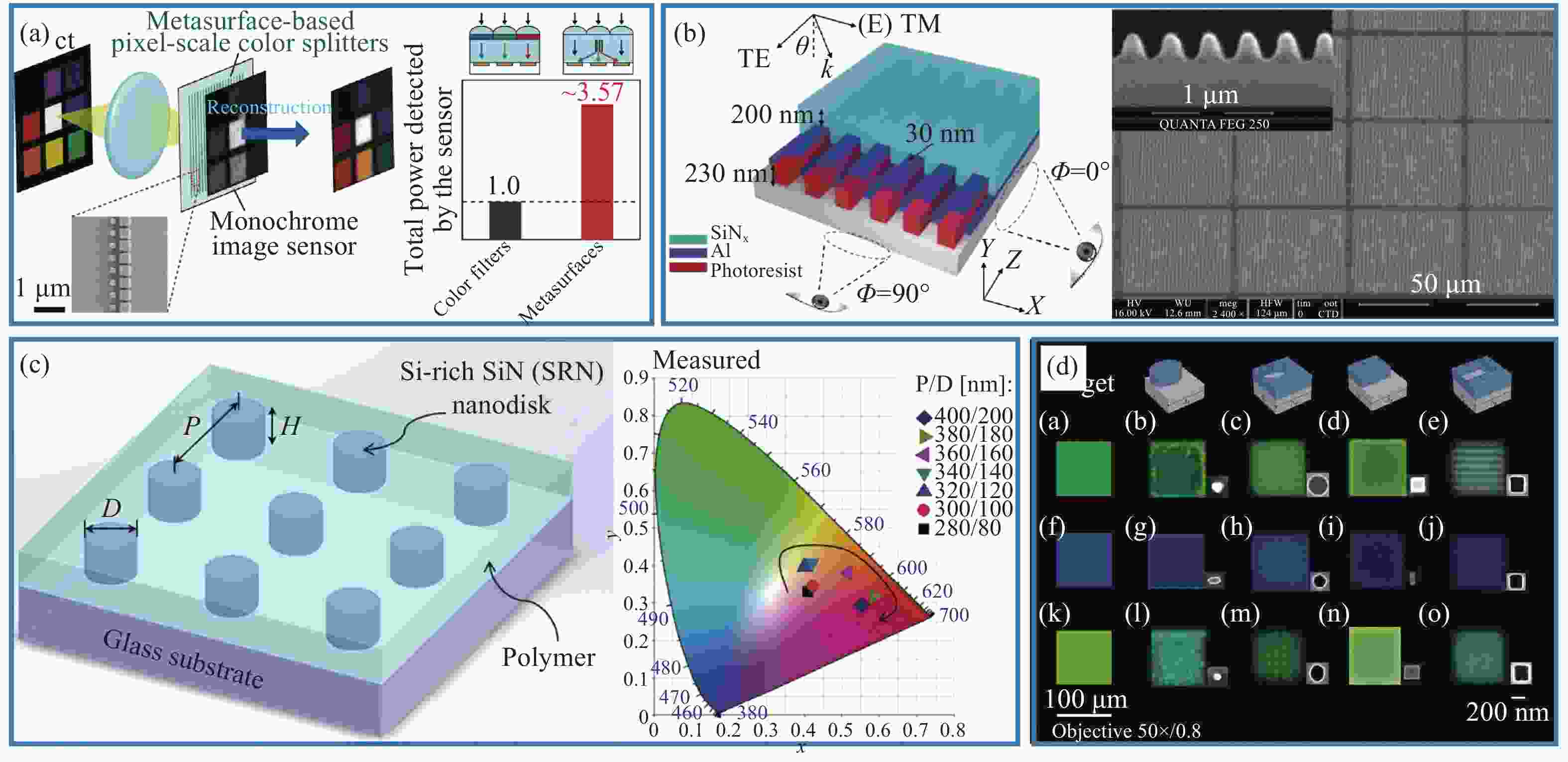

图 4氮化硅颜色调控超构表面。（a）像素级RGB分色氮化硅超构表面[37]；（b）氮化硅覆盖层的超构表面滤色片[38]；（c）富硅氮化硅超构表面结构色测量光谱在CIE 1931色度图上的对应[39]；（d）暗场下富硅氮化硅超构表面的反射颜色图[40]；（e）像素级氮化硅超构表面实现结构色调控[41]；（f）偏振敏感的一维氮化硅超构表面实现结构色调控[42]
Figure 4.Silicon nitride metasurfaces for color control. (a) Pixel-level RGB color separation silicon nitride metsurface[37]; (b) silicon nitride coating metasurface for color filter[38]; (c) the corresponding measurement spectrum of silicon-rich nitride metasurface on CIE 1931 chromaticity diagram[39]; (d) reflection colors of silicon-rich nitride metasurfaces in dark field[40]; (e) pixel-level silicon nitride metasurface for structural color controlling[41]; (f) one-dimensional polarization-sensitive silicon nitride metasurface for structural color controlling[42]

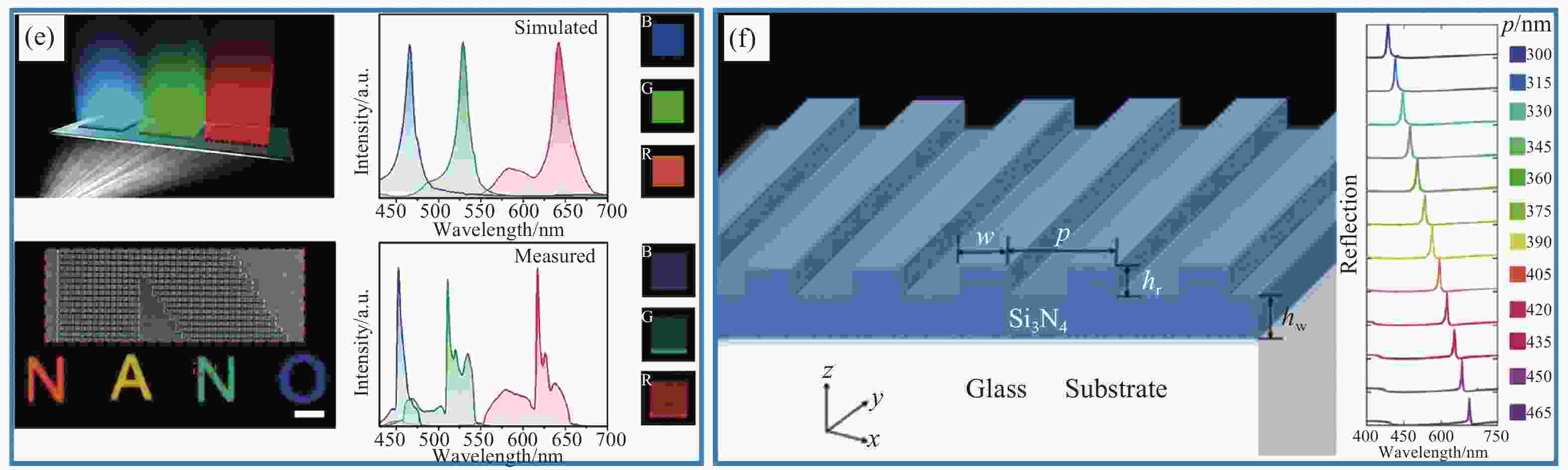

图 5其它氮化硅超构表面。（a）长波红外氮化硅超构表面吸收器[43]；（b）基于无序设计的氮化硅超构表面实现波前整形[44]；（c）光纤端面氮化硅超构表面[45]；（d）氮化硅超构表面实现机械变色[46]；（e）多通道OAM氮化硅超构表面[47]；（f）单层二硒化钨集成的氮化硅超构表面[50]
Figure 5.Other silicon nitride metasurfaces. (a) Silicon nitride metasurface absorber working on long-wave infrared[43]; (b) silicon nitride metasurface based on disordered design for wavefront shaping[44]; (c) silicon nitride metasurface at fiber end-face[45]; (d) mechanochromic reconfigurable silicon nitride metasurface[46]; (e) multi-channel OAM silicon nitride metasurface[47]; (f) silicon nitride metasurface integrated with single-layer WSe2[50]
图 6氮化硅单层光栅耦合器结构。（a）基于深紫外光刻制造的光栅耦合器示意图[60]；（b）光栅耦合器部分区域放大的SEM图[60]；（c）聚焦光栅耦合器结构的SEM图[61]；（d）在不考虑拉锥波导损耗的情况下测得的氮化硅光栅耦合器的耦合效率（实线）和模拟的耦合效率（虚线）[61]
Figure 6.Silicon nitride single-layer grating couplers. (a) Schematic diagram of grating coupler manufactured based on deep ultraviolet lithography[60]; (b) enlarged SEM image of part of grating coupler[60]; (c) SEM image of focusing grating coupler structure[61]; (d) coupling efficiency (solid line) and simulated coupling efficiency (dashed line) of a silicon nitride grating coupler measured without considering the loss of the tapered waveguide[61]
图 7与底部反射镜相结合的氮化硅光栅耦合器。（a）以硅反射光栅作为底部反射镜的氮化硅光栅耦合器示意图[71]；（b）具有不同掩埋氧化层厚度的变迹氮化硅光栅耦合器的耦合效率[71]；（c）基于PECVD平台制造的DBR反射镜式部分刻蚀光栅耦合器SEM图[74]；（d）光纤倾斜角为8.5°时不同光栅周期对耦合效率的影响[74]
Figure 7.Silicon nitride grating couplers combined with bottom mirror. (a) Schematic diagram of a silicon nitride grating coupler with a silicon reflection grating as the bottom mirror[71]; (b) coupling efficiency of apodized silicon nitride grating couplers with different buried oxide thicknesses[71]; (c) SEM image of DBR mirror type partially etched grating coupler manufactured on PECVD platform[74]; (d) the influence of different grating periods on the coupling efficiency when the fiber tilt angle is 8.5°[74]

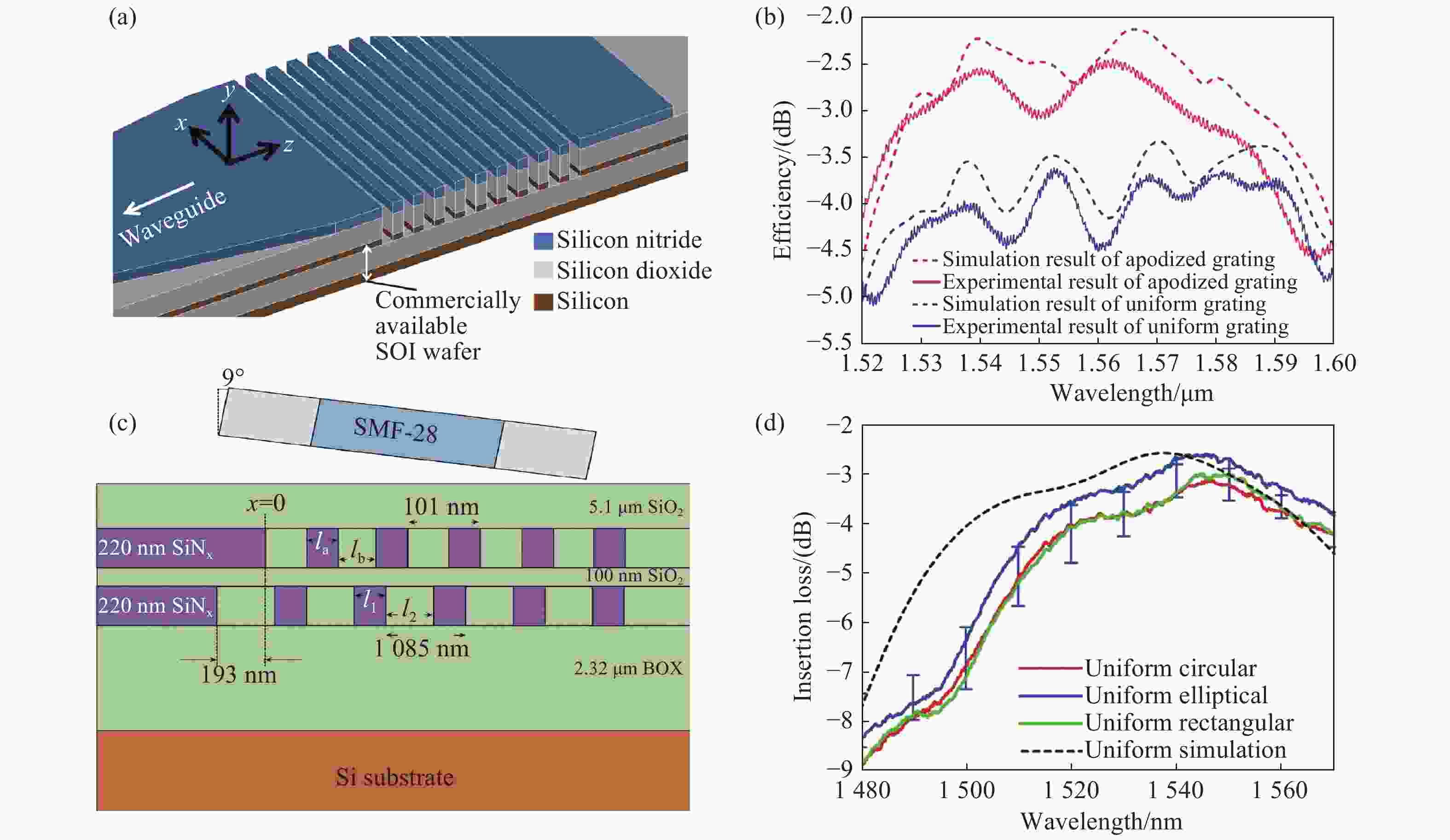

图 8双层光栅耦合器。（a）由氮化硅光栅和硅光栅组成的双层光栅耦合器示意图[77]；（b）均匀和变迹光栅耦合器模拟与实验测得的耦合效率曲线[77]；（c）双层氮化硅光栅耦合器结构示意图[78]；（d）对于具有不同横向布局（圆形，椭圆形和矩形）的光栅耦合器模拟和测量的耦合效率曲线。蓝色误差线表示椭圆布局的平均插入损耗的1个标准偏差[78]
Figure 8.Double-layer grating couplers. (a) Schematic diagram of double-layer grating coupler composed of silicon nitride grating and silicon grating[77]; (b) coupling efficiency curves of uniform and apodized grating couplers measured by simulation and experiment[77]; (c) schematic diagram of the double-layer silicon nitride grating coupler structure[78]; (d) simulated and measured coupling efficiency curves for grating couplers with different lateral layouts (circular, elliptical and rectangular). The blue error bar represents 1 standard deviation of the average insertion loss of the elliptical layout[78]

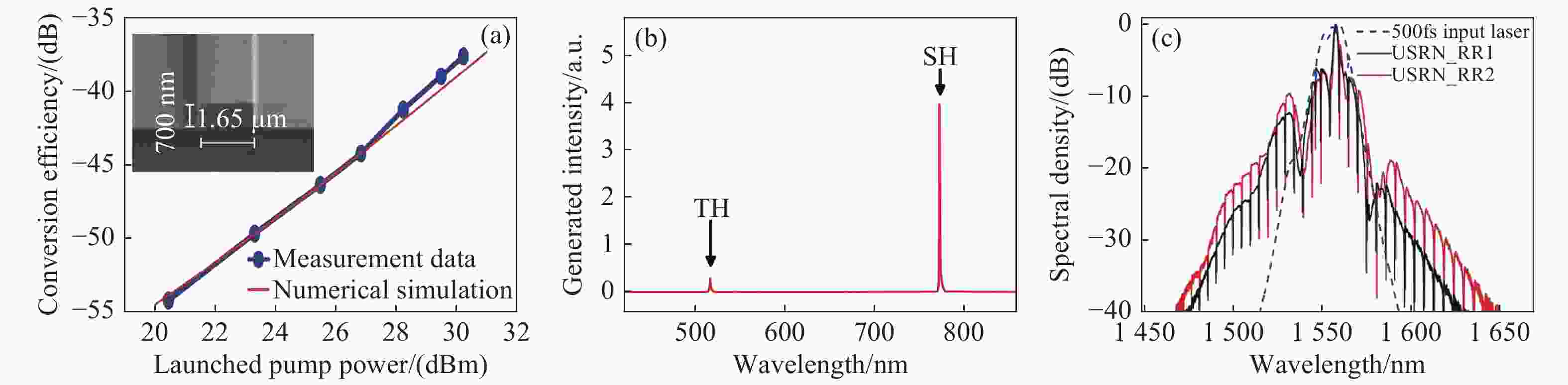

图 9富硅氮化硅材料的非线性应用。（a）高垂直度低损耗富硅氮化硅波导实现波长转换[96]；（b）富硅氮化硅光子晶体微腔获得二次与三次谐波[103]；（c）富硅氮化硅谐振环结构观察到自相位调制获得光谱展宽[105]
Figure 9.Silicon-rich nitride materials for nonlinear applications. (a) High-perpendicularity and low-loss silicon-rich nitride waveguide for wavelength conversion[96]; (b) second and third harmonics generated by silicon-rich nitride photonic crystal cavity[103]; (c) spectral broadening obtained by self phase modulation in silicon-rich nitride micro ring resonator[105]
-
