重投影优化的自由双目相机位姿估计方法

doi:10.37188/CO.2021-0105

陈天择^{1, 2,},
葛宝臻^{1, 2,,},
罗其俊^{1, 2, 3,}

1.
天津大学精密仪器与光电子工程学院，天津 300072
2.
光电信息技术教育部重点实验室，天津 300072
3.
中国民航大学电子信息与自动化学院，天津 300300

基金项目:国家自然科学基金项目（No. 61535008）

详细信息

作者简介:
陈天择（1995—），男，黑龙江哈尔滨人，硕士研究生，2018年于天津大学获得学士学位，现就读于天津大学精密仪器与光电子工程学院，攻读光学工程专业硕士学位，主要研究方向为计算机视觉。E-mail：chentianze@tju.edu.cn
葛宝臻（1964—），男，内蒙古卓资人，博士，教授，博士生导师，主要从事三维彩色数字成像技术、光电检测技术、粒子测量方面的研究。E-mail：gebz@tju.edu.cn
罗其俊（1982—），男，湖北孝感人，博士，2008年于中国民航大学获得硕士学位，现为中国民航大学电子信息与自动化学院讲师，主要从事机器视觉和只能控制系统方面的研究。E-mail：qjluo@cauc.edu.cn

中图分类号:TP391.4
计量
- 文章访问数:1069
- HTML全文浏览量:457
- PDF下载量:148
- 被引次数:0
出版历程
- 收稿日期:2021-05-14
- 修回日期:2021-06-02
- 网络出版日期:2021-08-11
- 刊出日期:2021-11-19

Pose estimation for free binocular cameras based on reprojection error optimization

CHEN Tian-ze^{1, 2,},
GE Bao-zhen^{1, 2,,},
LUO Qi-jun^{1, 2, 3,}

1.
School of Precision Instruments and Opto-Electronics Engineering, Tianjin University, Tianjin 300072, China
2.
Key Laboratory of Opto-Electronics Information and Technical Science for Ministry of Education, Tianjin 300072, China
3.
College of Electronic Information and Automation, Civil Aviation University of China, Tianjin 300300, China

Funds:Supported by National Natural Science Foundation of China (No. 61535008)

More Information

Corresponding author:gebz@tju.edu.cn

摘要

摘要:在自由双目立体视觉系统中，左右相机自由旋转，导致相机位姿发生实时变化。针对这一问题，提出一种重投影优化的自由双目相机位姿估计方法。通过分解相邻两幅图像间的单应矩阵估计相机的运动参数；将其作为初值计算重叠拍摄区域内特征点云的重投影误差，构建目标函数；利用非线性优化算法优化目标函数，得到最优的相机运动参数，结合相机旋转前的位姿参数，计算当前位置的相机位姿。仿真实验表明，位姿估计误差随重投影误差的减小而减小，所提算法能快速稳定收敛至全局最优值；水泥模型的三维重建实验表明，利用所提的相机位姿估计算法能够有效生成模型的三维点云，并可实现相邻点云的高精度拼接，拼接点云模型上两点距离的平均误差为1.68%。
- 位姿估计/
- 立体视觉/
- 重投影误差/
- 非线性优化/
- 三维重建
Abstract:To solve the real-time change of the camera poses caused by the rotation of cameras in free binocular stereo vision, a method for estimating the poses of free binocular cameras based on reprojection error optimization is proposed. The movement paraments of cameras are estimated by decomposing the homography matrix between two adjacent images. Then, the reprojection error of feature points in the overlapping area is calculated, and the objective function is constructed by using the movement parameters as initial values. Finally, the objective function is optimized by the nonlinear optimization algorithm, and the current camera poses are calculated by combining with the optimal movement parameters and the camera poses before rotation. Simulations indicate that the pose estimation error declines with a decrease in reprojection error and the proposed method can converge to a globally optimal solution both rapidly and stably. An experiment of 3D reconstruction of cement models indicates that 3D point clouds of models are generated effectively with the proposed method, the adjacent point clouds are stitched accurately, and the average error of distance between any two points on the stitched point clouds is 1.68%.
- pose estimation/
- stereo vision/
- reprojection error/
- nonlinear optimization/
- 3D reconstruction

HTML全文

图 1自由双目立体视觉系统中相邻两次测量

Figure 1.Two adjacent measurements of the free binocular vision system

下载: 全尺寸图片幻灯片

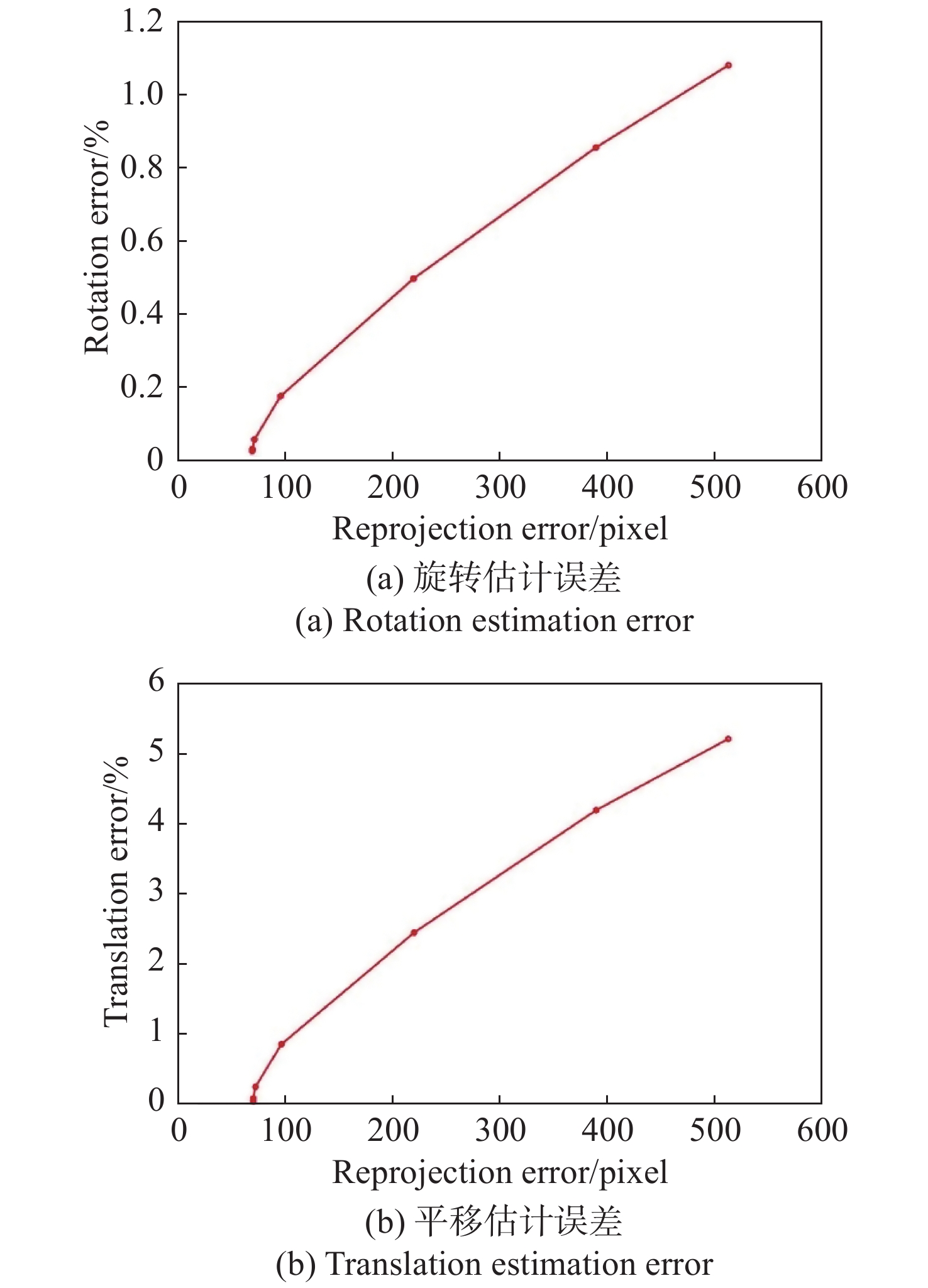

图 2位姿估计误差随重投影误差的变化

Figure 2.Changes in pose estimation error with reprojection error

下载: 全尺寸图片幻灯片

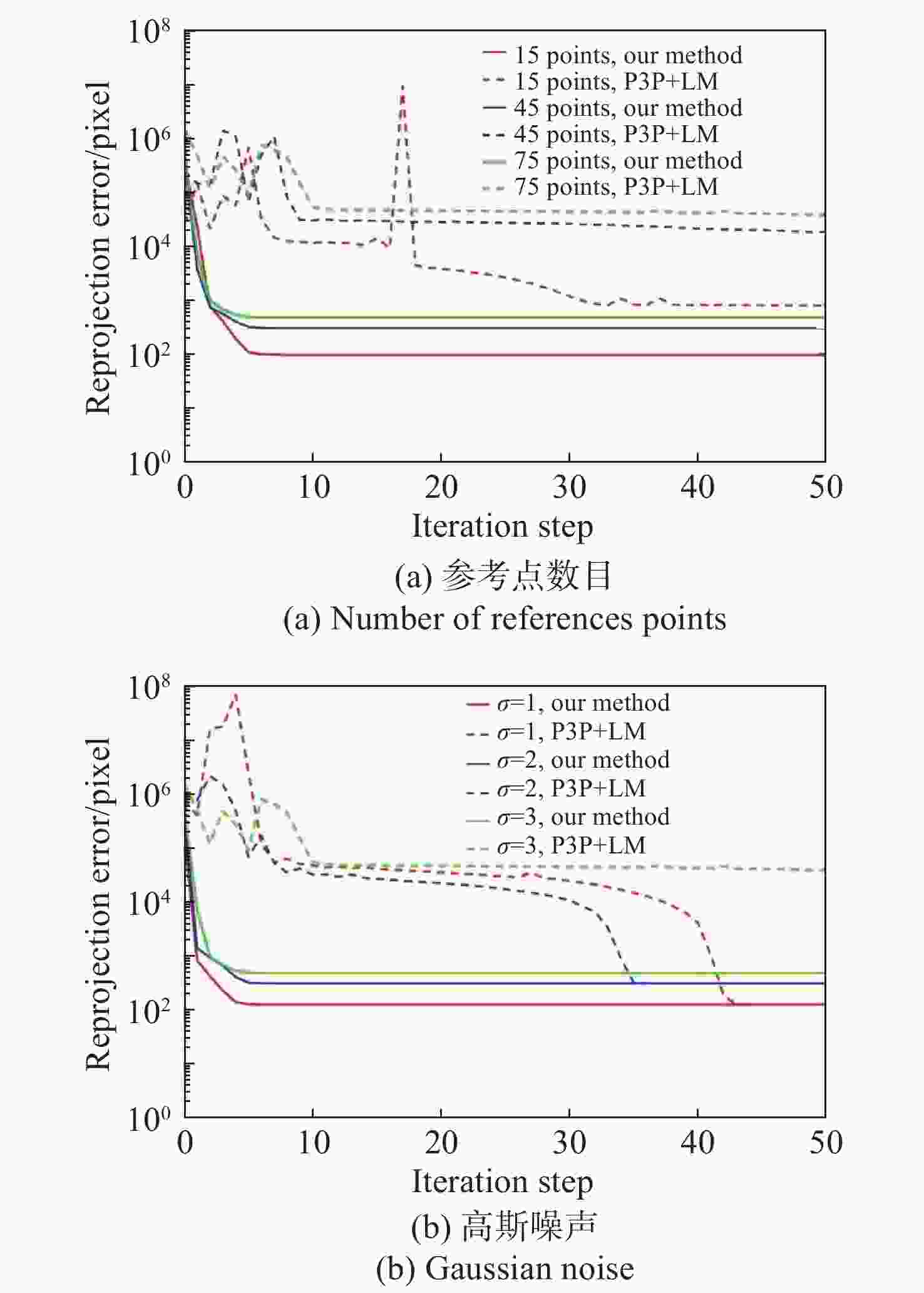

图 3不同条件下算法的收敛情况

Figure 3.Convergence of the algorithm under various conditions

下载: 全尺寸图片幻灯片

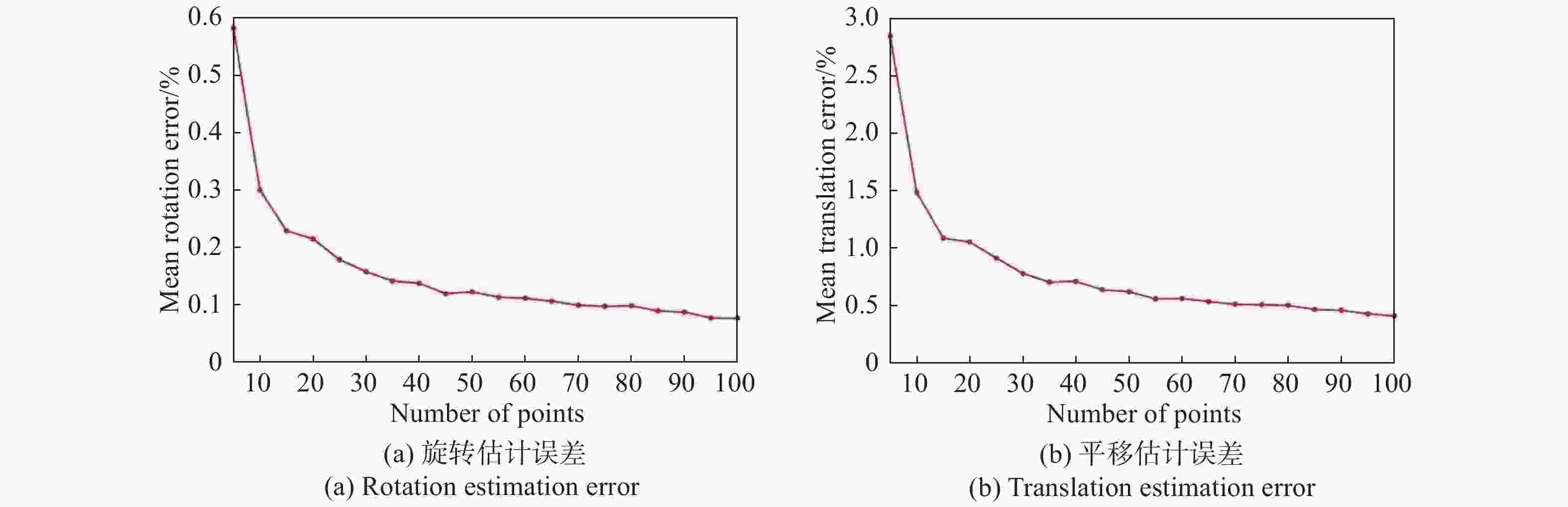

图 4不同参考点数目对算法的影响

Figure 4.Changes in post estimation error to the algorithm with different numbers of reference points

下载: 全尺寸图片幻灯片

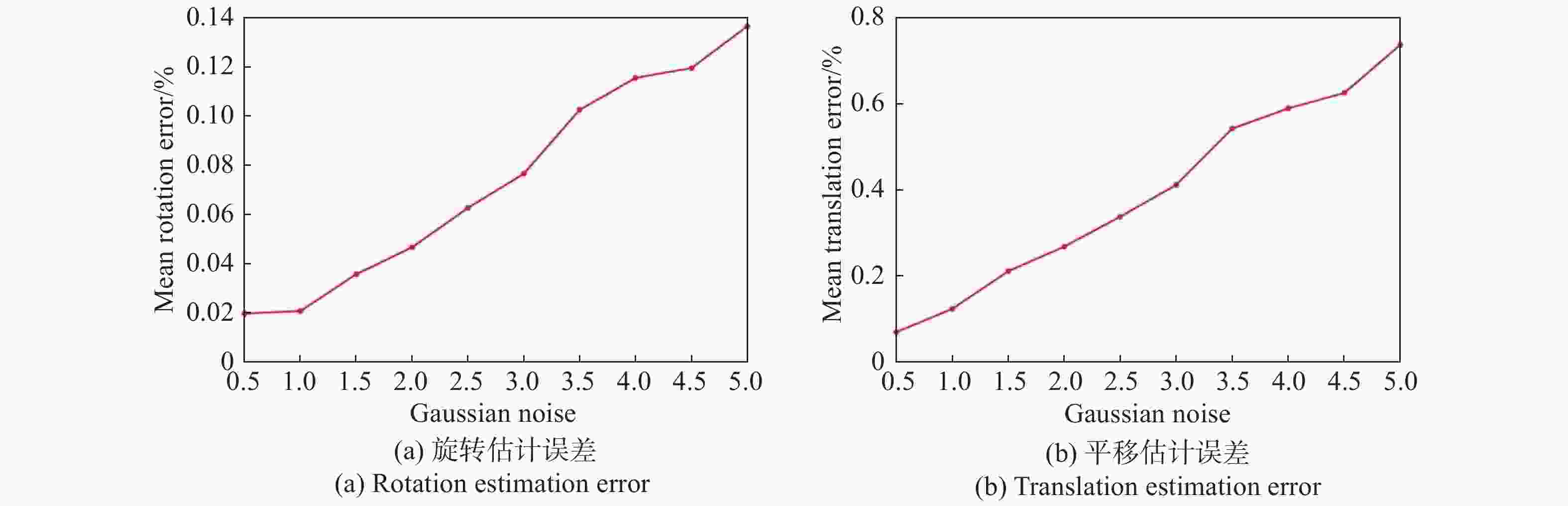

图 5不同噪声对算法的影响

Figure 5.Changes in post estimation error to the algorithm under different noise

下载: 全尺寸图片幻灯片

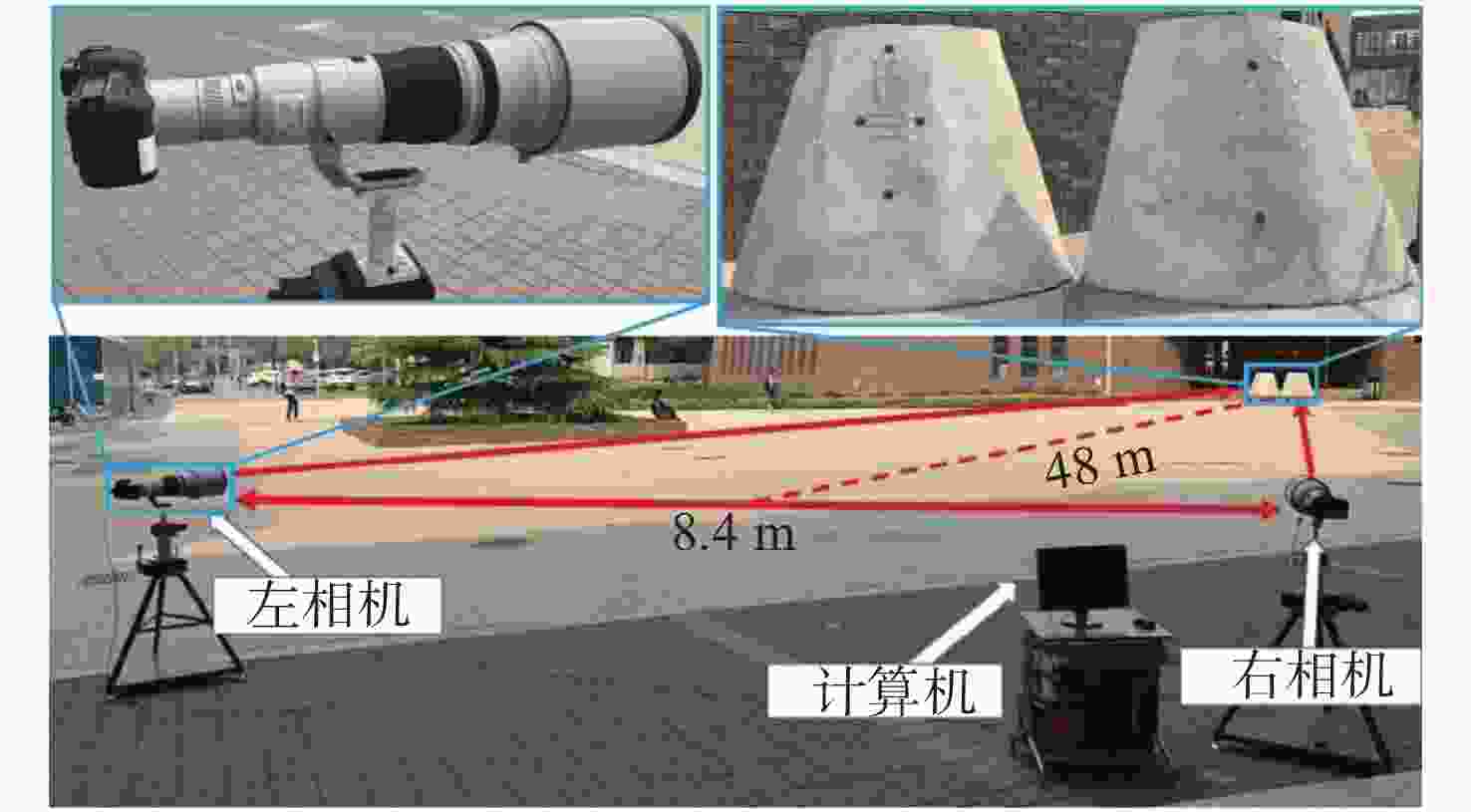

图 6自由双目立体视觉装置图

Figure 6.Diagram of free binocular stereo vision device

下载: 全尺寸图片幻灯片

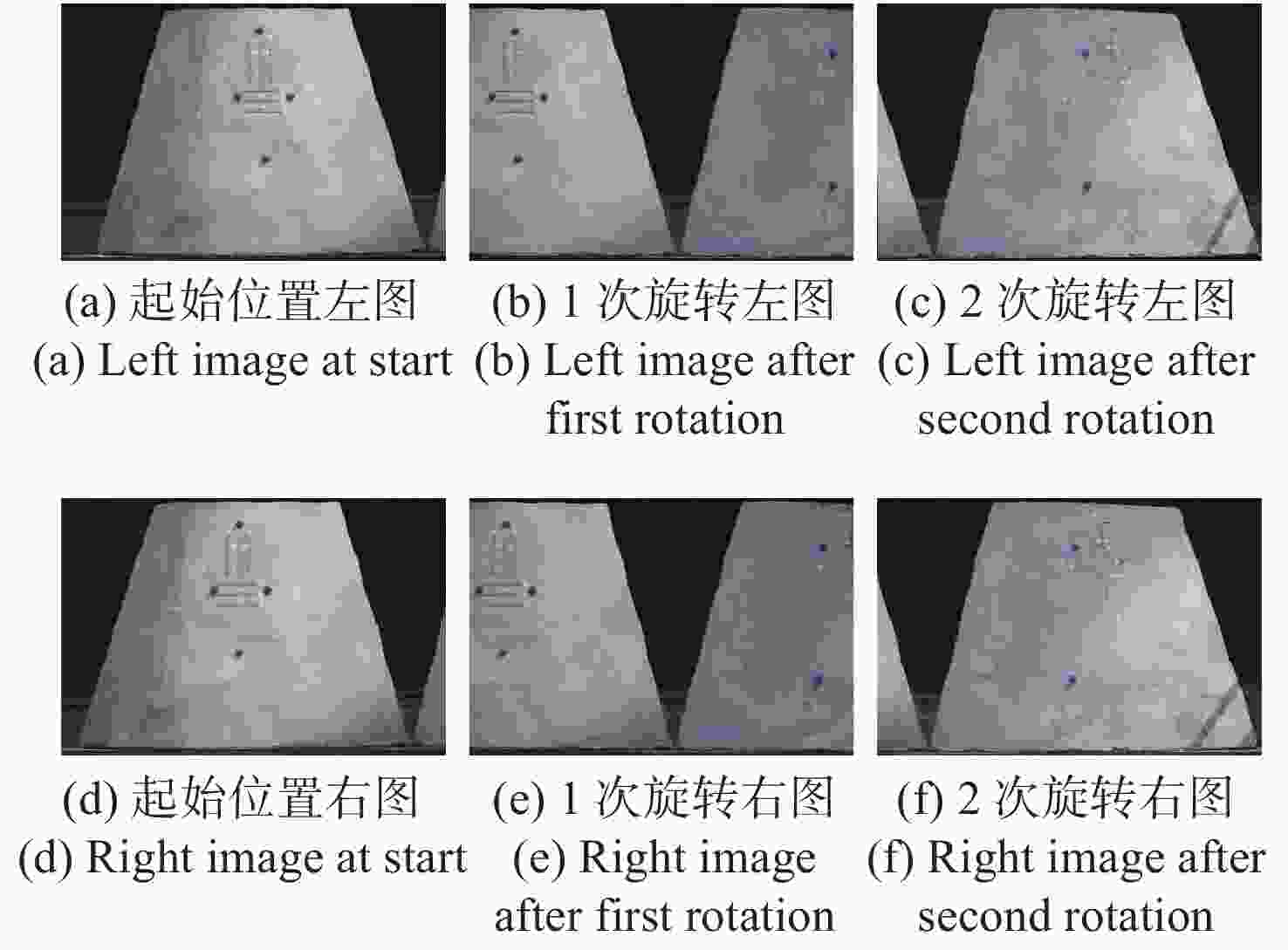

图 7双目相机采集图像

Figure 7.Images obtained by binocular cameras

下载: 全尺寸图片幻灯片

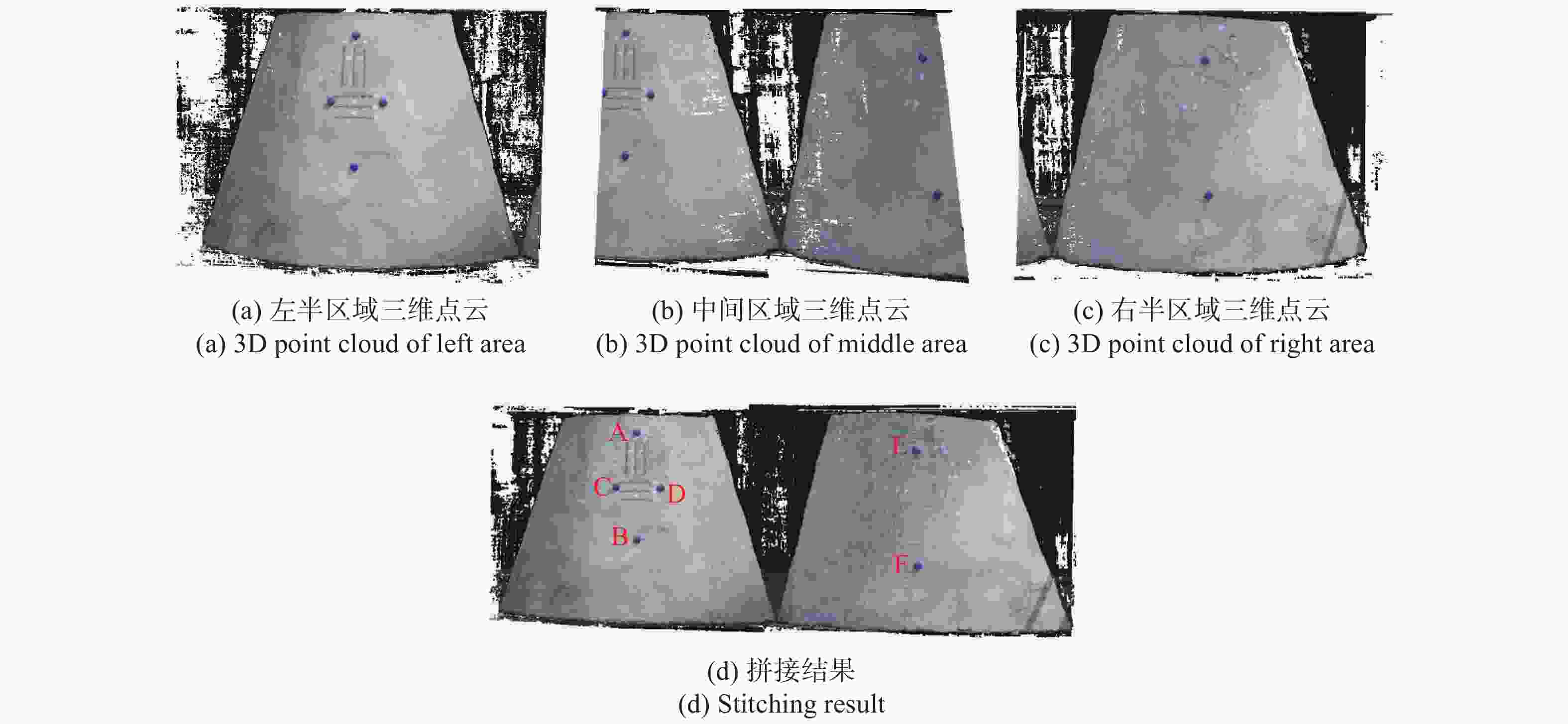

图 8三维重建结果
