空间目标自适应光学图像椭圆部件检测

寇鹏,智帅峰,程耘,刘永祥

downloadPDF
寇鹏, 智帅峰, 程耘, 刘永祥. 空间目标自适应光学图像椭圆部件检测[J]. , 2022, 15(3): 454-463. doi: 10.37188/CO.2021-0208
引用本文: 寇鹏, 智帅峰, 程耘, 刘永祥. 空间目标自适应光学图像椭圆部件检测[J]. , 2022, 15(3): 454-463.doi:10.37188/CO.2021-0208
KOU Peng, ZHI Shuai-feng, CHENG Yun, LIU Yong-xiang. Detection of elliptical components in adaptive optical image of space target[J]. Chinese Optics, 2022, 15(3): 454-463. doi: 10.37188/CO.2021-0208
Citation: KOU Peng, ZHI Shuai-feng, CHENG Yun, LIU Yong-xiang. Detection of elliptical components in adaptive optical image of space target[J].Chinese Optics, 2022, 15(3): 454-463.doi:10.37188/CO.2021-0208

空间目标自适应光学图像椭圆部件检测

doi:10.37188/CO.2021-0208
基金项目:国家自然科学基金(No. 61921001,No. 61801484)
详细信息
    作者简介:

    寇 鹏(1981—),男,河南洛阳人,博士研究生,西安卫星测控中心高级工程师,2003年于航天工程大学获得学士学位,2010年于国防科技大学获得硕士学位,主要从事空间目标探测与识别研究。E-mail:kou_810518@163.com

    智帅峰(1992—),男,河南偃师人,博士,讲师,2011年于国防科技大学获得学士学位,2017年于国防科技大学获得硕士学位,2021年于英国帝国理工大学获得博士学位,主要从事三维机器人视觉,智能信号处理等方面的研究。E-mail:zhishuaifeng11@nudt.edu.cn

    程 耘(1995—),男,重庆人,博士研究生,2018年于国防科技大学获得学士学位,主要从事阵列信号处理、电子对抗等方面的研究。E-mail:moraincy@126.com

    刘永祥(1976—),男,河北唐山人,博士,教授,1999年于国防科技大学获得学士学位,2004年于国防科技大学获得博士学位,主要研究方向为雷达信号处理与目标识别。E-mail:lyx_bible@sina.com

  • 中图分类号:TP391.4

Detection of elliptical components in adaptive optical image of space target

Funds:Supported by National Natural Science Foundation of China (No. 61921001, No. 61801484)
More Information
  • 摘要:为了识别空间目标的椭圆部件,提出了一种基于自适应光学图像的椭圆检测方法。首先,利用RL(Richardson-Lucy)方法对自适应光学图像进行复原,在此基础上,采用弧支撑线段(Arc-Support Line Segments, ASLS)方法对复原图像进行椭圆检测。针对ASLS算法使用的Canny边缘提取算法带来的“弧段过分割”和“语义信息差”等问题,提出了基于多尺度组合分组(Multiscale Combinatorial Grouping, MCG)边缘提取的解决方法。最后,针对ASLS算法使用优度指标等验证方法存在部分虚假椭圆的情况,综合利用多种几何指标进行约束,有效地消除了虚假椭圆。实验结果表明:椭圆中心点检测误差优于3 pixels,半长轴误差优于4 pixels,方向角误差优于3°。在重叠面积门限为0.65时,本文算法的准确率为85.7%、召回率为93.3%,F值指标为0.893,优于传统椭圆检测算法。

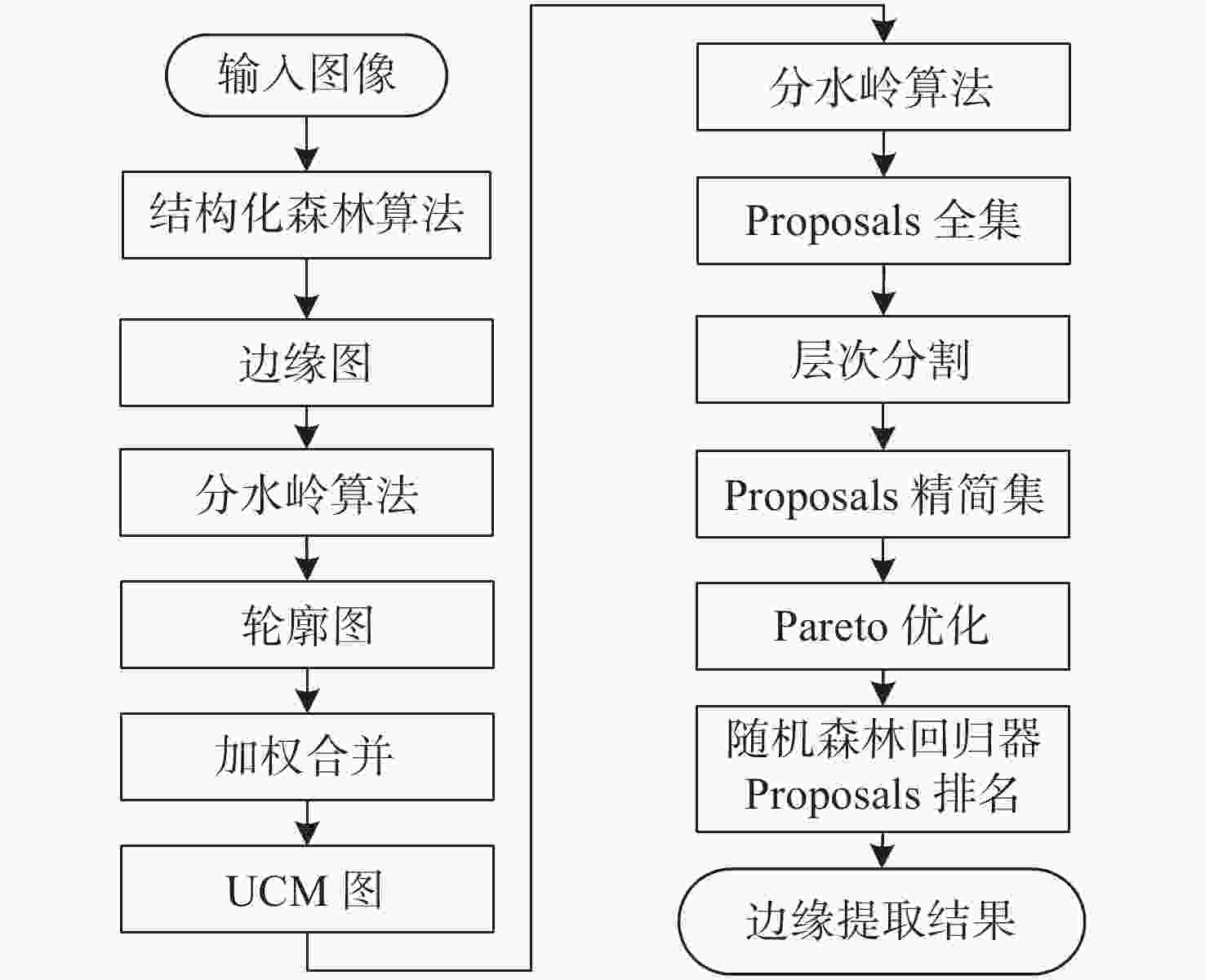

  • 图 1MCG算法流程图

    Figure 1.Flow chart of the MCG algorithm

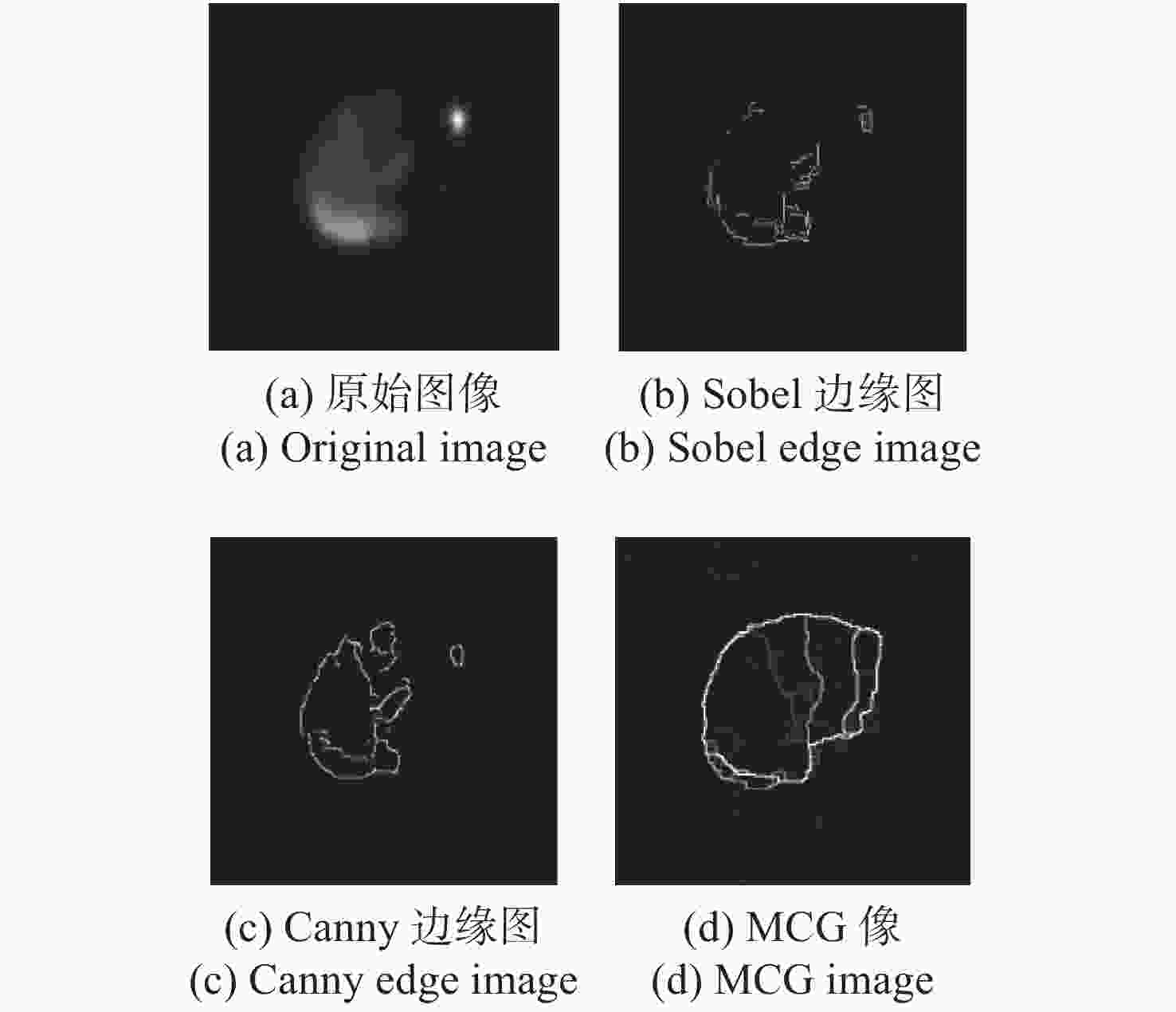

    图 2空间目标自适应光学原始和边缘图像

    Figure 2.Adaptive optics original and edge images of space target

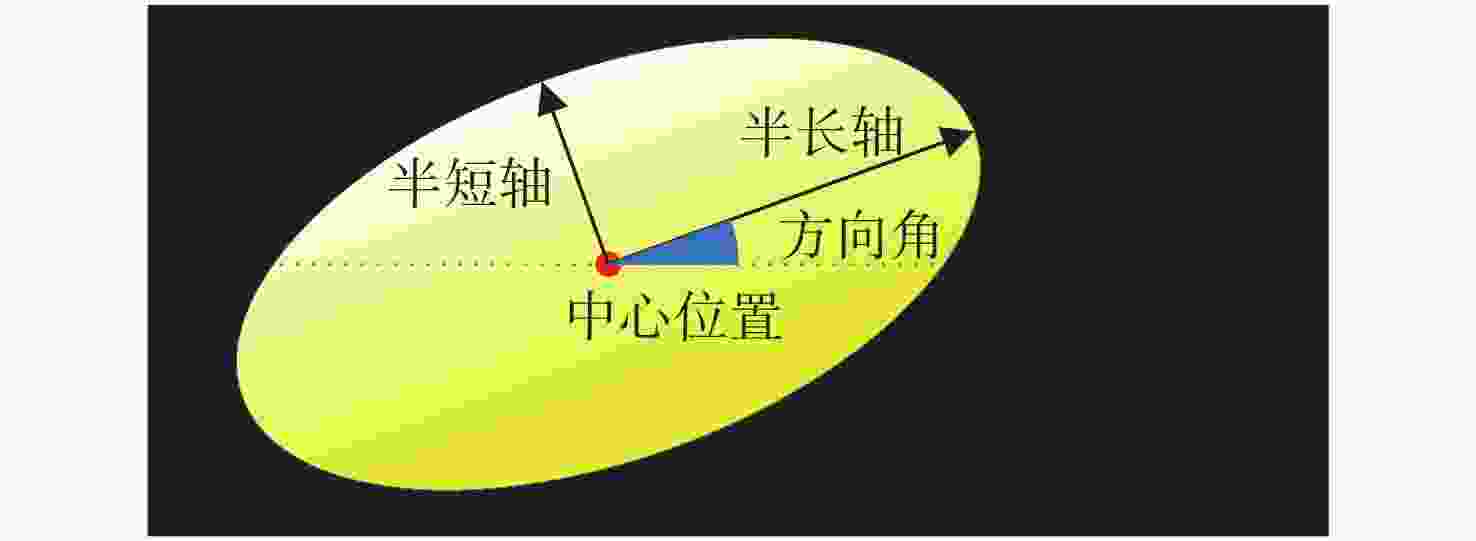

    图 3椭圆参数定义

    Figure 3.Definition of ellipse parameters

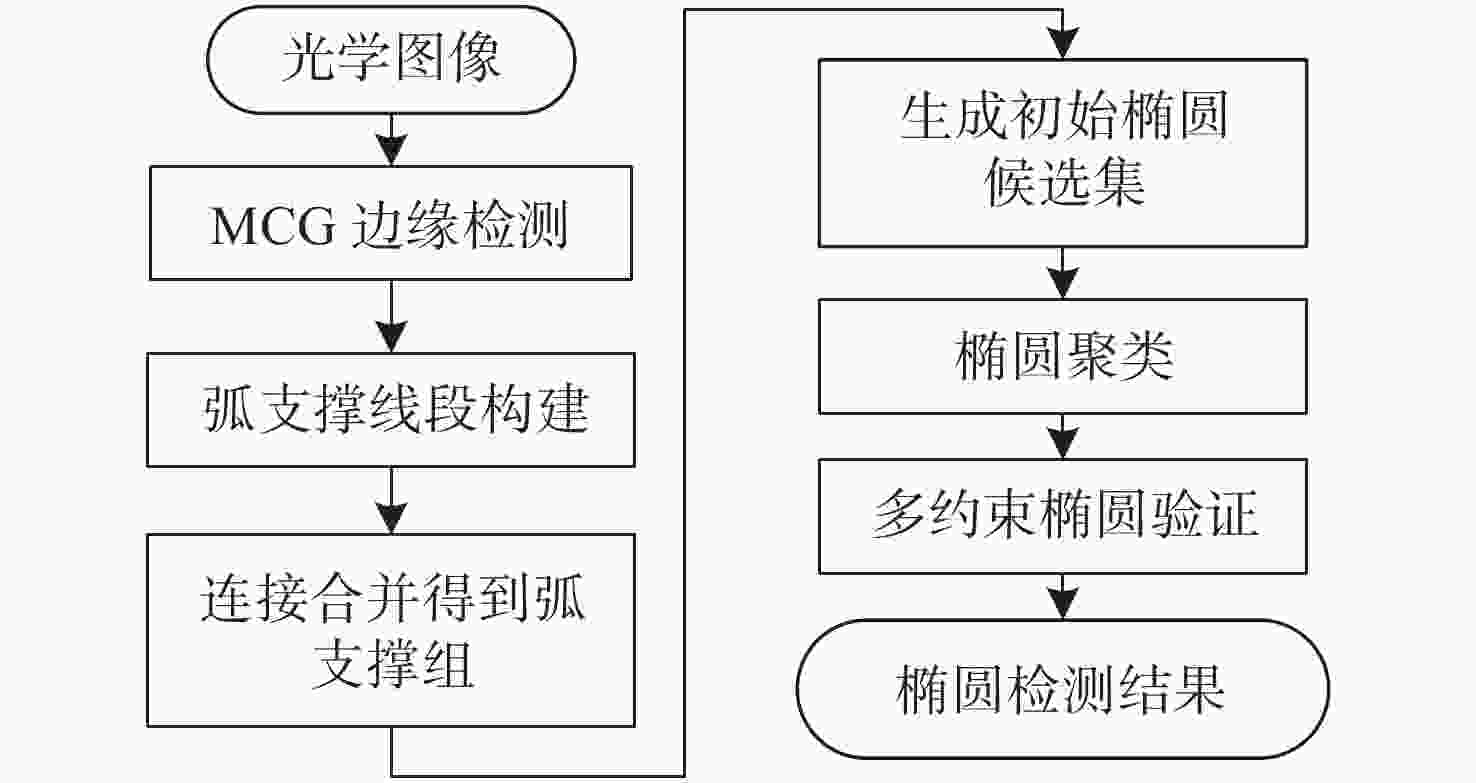

    图 4改进ASLS算法流程

    Figure 4.Flow chart of the improved ASLS algorithm

    图 5两个弧支撑组生成候选椭圆

    Figure 5.Candidate ellipse generated by two arc-support groups

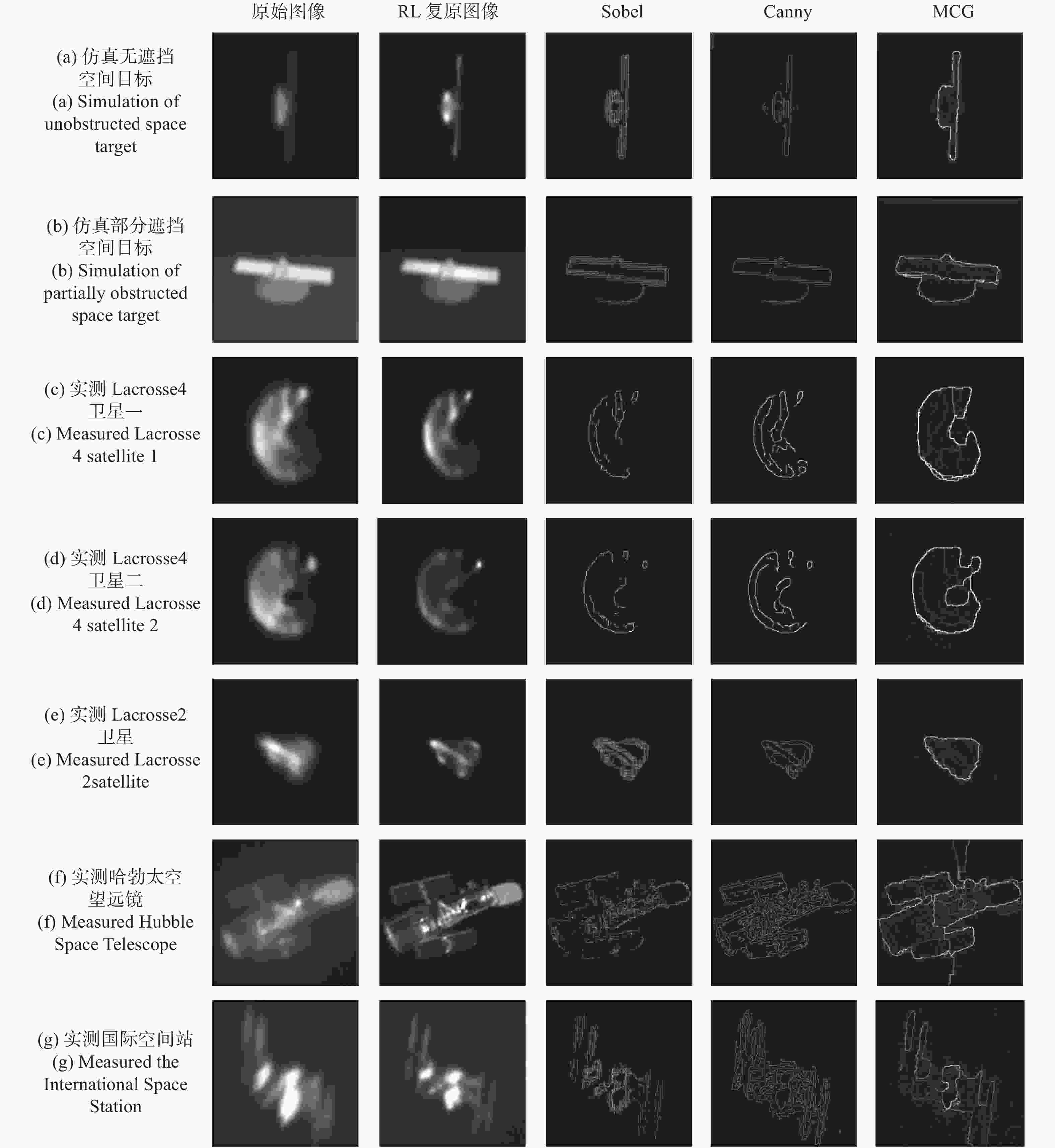

    图 6空间目标自适应光学复原图像边缘提取结果

    Figure 6.Edge extraction results of adaptive optics restoration image of space targets

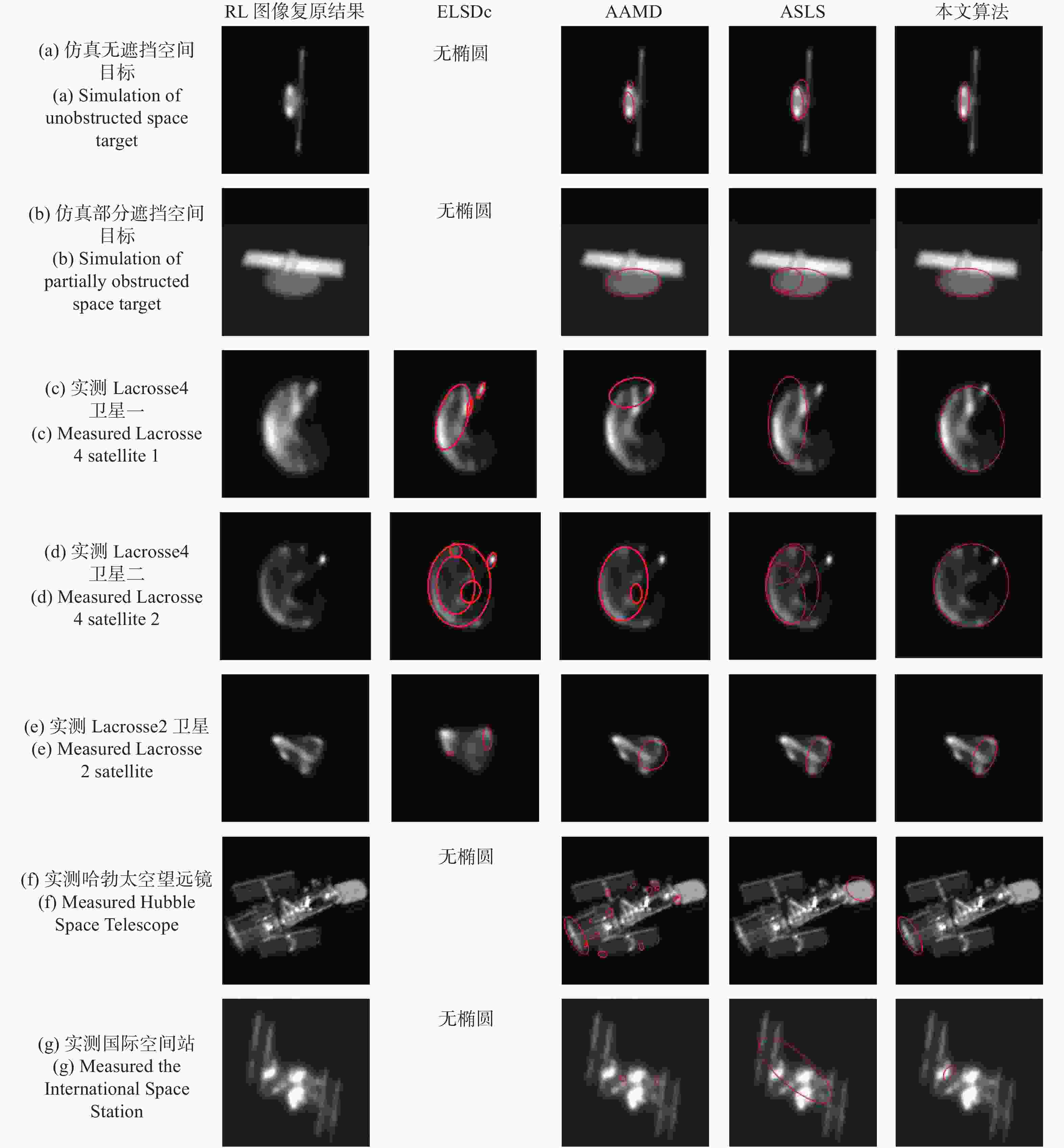

    图 7空间目标自适应光学复原图像椭圆检测结果

    Figure 7.Ellipse detection results of adaptive optics restored images of partial space targets

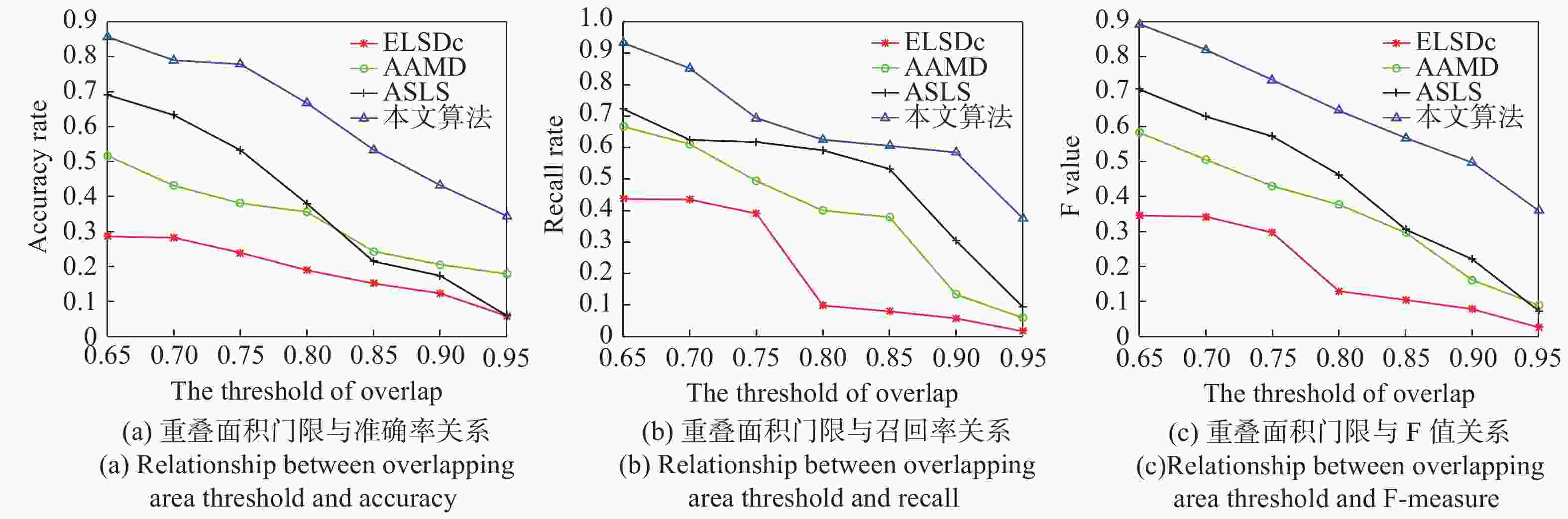

    图 8重叠面积门限与检测指标关系

    Figure 8.Relationship between overlapping area threshold and detection index

    表 1仿真图像椭圆参数平均误差

    Table 1.Average error of linear structure components for test

    平均误差(像素) 中心
    $ x $
    中心
    $ y $
    方向角
    $ \varphi $
    半长轴
    $ a $
    半短轴
    $ b $
    ELSDc 40.10 37.81 47.26° 44.69 51.35
    AAMD 2.84 10.13 10.33° 13.43 17.28
    ASLS 2.57 5.08 2.11° 6.68 4.32
    本文算法 1.73 2.14 2.27° 3.82 2.17
    下载: 导出CSV

    表 2算法检测指标及平均耗时

    Table 2.Average consumed times of those algorithms and the error detection rates

    ELSDc AAMD ASLS 本文算法
    准确率(%) 28.6 51.7 69.1 85.7
    召回率(%) 43.7 66.7 72.3 93.3
    F值 0.466 0.641 0.707 0.893
    平均耗时(s) 10.058 0.525 0.659 12.874
    下载: 导出CSV
