飞秒
诱导击穿光谱技术对石墨中钍的定量分析

刘小亮; 王澜; 彭玲玲; 李小燕; 刘云海; 邹春燕

doi:10.37188/CO.2022-0082

飞秒诱导击穿光谱技术对石墨中钍的定量分析

doi: 10.37188/CO.2022-0082

刘小亮^{1, 2,},
王澜^1,,
彭玲玲^1,,
李小燕^1,,
刘云海^1, ,,
邹春燕^3,

1.
东华理工大学江西省质谱科学与仪器重点实验室, 江西南昌 330013
2.
兰州大学核科学与技术学院, 甘肃兰州 730000
3.
中国科学院上海应用物理研究所, 上海 201800

基金项目: 国家自然科学基金青年基金项目（No. 12005037）；江西省质谱科学与仪器重点实验室开放基金项目（No. JXMS202110）资助

详细信息

作者简介:
刘小亮（1985—），男，安徽潜山人，博士，讲师，2007年于南华大学核工程与核技术专业获得学士学位，2014年于兰州大学理学系获得博士学位，主要从事等离子体光谱、与物质相互作用、气体高次谐波及放射性核素分析等方面的研究。E-mail：201960177@ecut.edu.cn

刘云海（1976—），男，广东揭西人，博士，教授，博士生导师，1997年于华东地质学院获得学士学位，2003年于中山大学获得硕士学位，2008年于武汉大学获得博士学位，主要从事放射性核素吸附分离新材料、放射性核素污染治理、光谱学等方面的研究。E-mail：yhliu@ecut.edu.cn

中图分类号: TG146.4+53;O657.38
计量
- 文章访问数: 358
- HTML全文浏览量: 400
- PDF下载量: 275
- 被引次数: 0
出版历程
- 收稿日期: 2022-04-25
- 修回日期: 2022-05-31
- 网络出版日期: 2022-08-24

Quantitative analysis of thorium in graphite using femtosecond laser-induced breakdown spectroscopy

LIU Xiao-liang^{1, 2
,},
WANG Lan^1
,,
PENG Ling-ling^1
,,
LI Xiao-yan^1
,,
LIU Yun-hai^{1
, ,},
ZOU Chun-yan^3
,

1.
Jiangxi Key Laboratory for Mass Spectrometry and Instrumentation, East China University of Technology, Nanchang 330013, China
2.
School of Nuclear Science and Technology, Lanzhou University, Lanzhou 730000, China
3.
Shanghai Institute of Applied Physics, Chinese Academy of Sciences, Shanghai 201800, China

Funds: Supported by National Natural Science Foundation of China (No. 12005037); Open Fund of Jiangxi Key Laboratory for Mass Spectrometry and Instrumentation (No. JXMS202110)

More Information

Corresponding author: yhliu@ecut.edu.cn

摘要

摘要:
为了促进诱导击穿光谱技术在核工业领域中的应用与发展，利用飞秒对高纯石墨中的钍(Th)元素开展了定量分析研究。采用标准加样法制备了钍含量在0.35%~35.15%范围内的9个分析样品，以类比钍基核燃料中的钍含量。通过改变光谱采集方式、延时条件及调节飞秒脉冲能量对实验条件进行优化。在优化的实验条件下，对所有样品进行激发以采集等离子体光谱信息用于定量分析研究。得出以下结果：对比定点激发采集光谱结果，采用靶面连续移动式的光谱重复性好，钍原子(Th I 396.21 nm)谱线强度获得大约2倍的增强，重复测量的相对标准偏差由20.4%降至5.7%；高含量区间内钍元素谱线存在明显的自吸收效应，采用指数函数对整个含量区间与分析线(Th I 394.42 nm、396.21 nm和766.53 nm)强度进行非线性拟合，可以有效获取分析线的饱和阈值；基本定标法适用于饱和阈值以下的含量区间，分析线对较低含量的未知样品的预测分析具有较高的精确度；采用内标法(以C I 247.85 nm线为内标线)，可以实现积分强度和峰值强度与整个区间含量的线性拟合，其中，基于高饱和阈值分析线(766.53 nm)的积分强度能够较好地实现高含量未知样品的含量预测。实验结果说明：飞秒诱导击穿光谱技术具有钍基核燃料循环过程中钍含量监测分析的潜力。
- 飞秒诱导击穿光谱 /
- 钍 /
- 核燃料 /
- 定量分析
Abstract:
In order to promote the application of Laser-Induced Breakdown Spectroscopy (LIBS) in the nuclear industry, in this paper, a femtosecond LIBS(fs-LIBS) system was used to quantitatively analyze Thorium (Th) in a highly pure graphite matrix. According to the Th concentrations in the Thorium-based fuel, a total of 9 homemade Th₂O₃-graphite mixture samples with Th concentrations that varied from 0.35% to 35.15% were prepared by the standard addition method. The favorable experimental parameters such as the treatment methods for LIBS detection, laser pulse energy and delay times were studied before the quantitative analysis. The results show that the signal intensity of the fs-LIBS spectrum acquired by the scanning with moving method is significantly higher than that without the moving method. For the Th I 396.21 nm line, the Relative Standard Deviation (RSD) value of multiple measurements for the scanning method was just 5.7%, which was much lower than that of without the moving method (20.4%). The Th spectral lines show obvious saturation due to the self-absorption effect in the higher concentration region, and thus the basic calibration method was no longer applicable. Therefore, an exponential function was used to fit the spectral line intensity and concentration in the whole concentration region, and the concentration saturation threshold values corresponding to the analytical lines Th I 394.42, 396.21, and 766.53 nm were obtained. The basic calibration method has good detection performance when the calibration curves were constructed by using a lower concentration below the saturation threshold. For the peak area and peak intensity of each analytical line, using the internal standard method with the internal standard line (C I 247.85 nm), a good linear relationship can be found between them and the Th concentrations in the whole concentration region, especially for analytical line Th I 766.53 nm with a higher saturation threshold. The internal standard method had good prediction performance for unknown samples with higher concentrations. The above results show that fs-LIBS has the potential to monitor and analyze the thorium concentration in the thorium-based fuel cycle.
- femtosecond laser-induced breakdown spectroscopy /
- Thorium /
- nuclear fuel /
- quantitative analysis

HTML全文

图 1 本文飞秒LIBS实验装置示意图

Figure 1. Schematic diagram of the experimental setup for proposed femtosecond LIBS

下载: 全尺寸图片幻灯片

图 2 (a)扫描式和定点式采集的光谱图; (b) Th I 396.21 nm线重复性测量结果图

Figure 2. (a) LIBS spectra obtained by the with moving method and without moving method; (b) reproducibility of the Th I 396.21 nm line from five measurements

下载: 全尺寸图片幻灯片

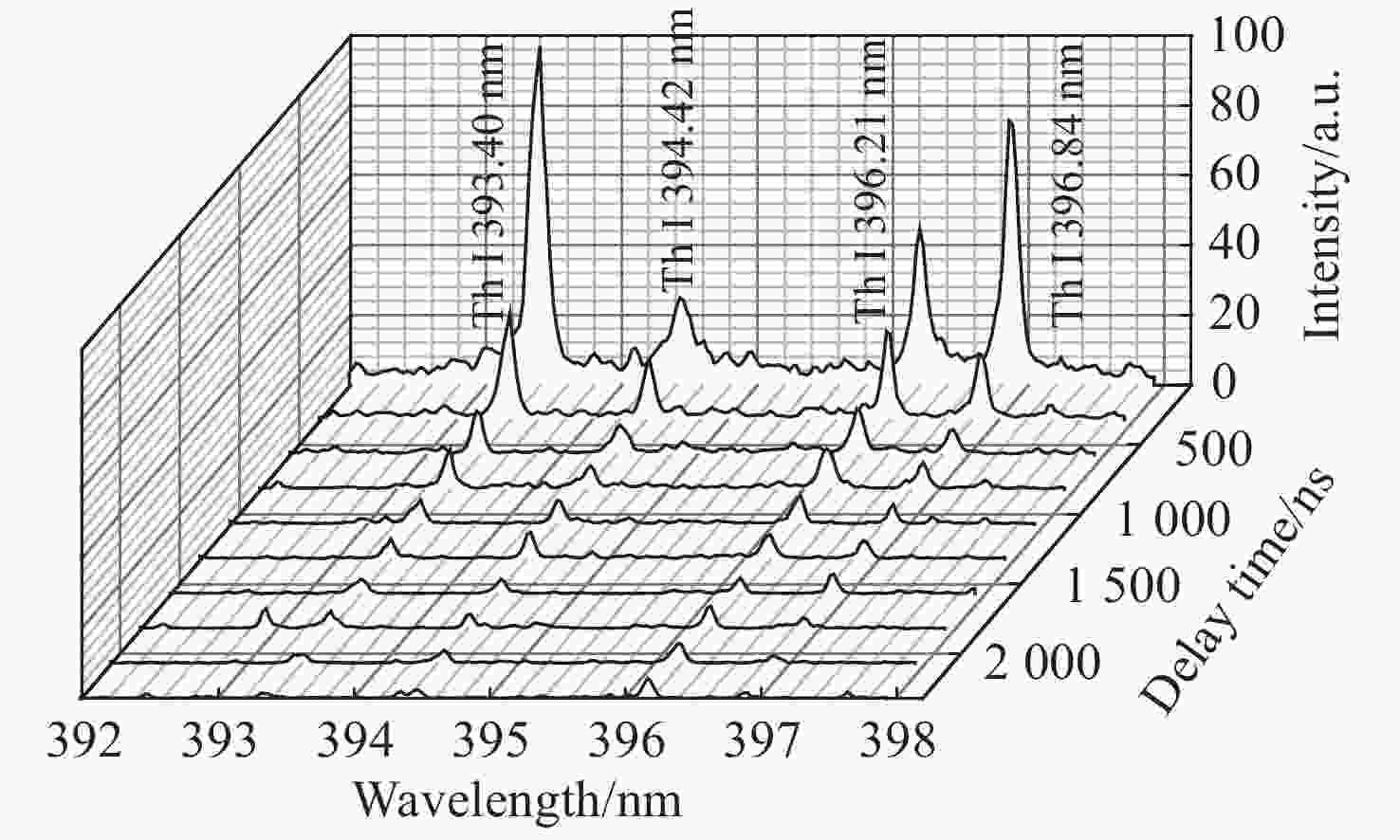

图 3 5#样品在0.5 mJ 脉冲能量下的时间分辨光谱图

Figure 3. The time-resolved spectra for the sample 5# at laser energy of 0.5 mJ

下载: 全尺寸图片幻灯片

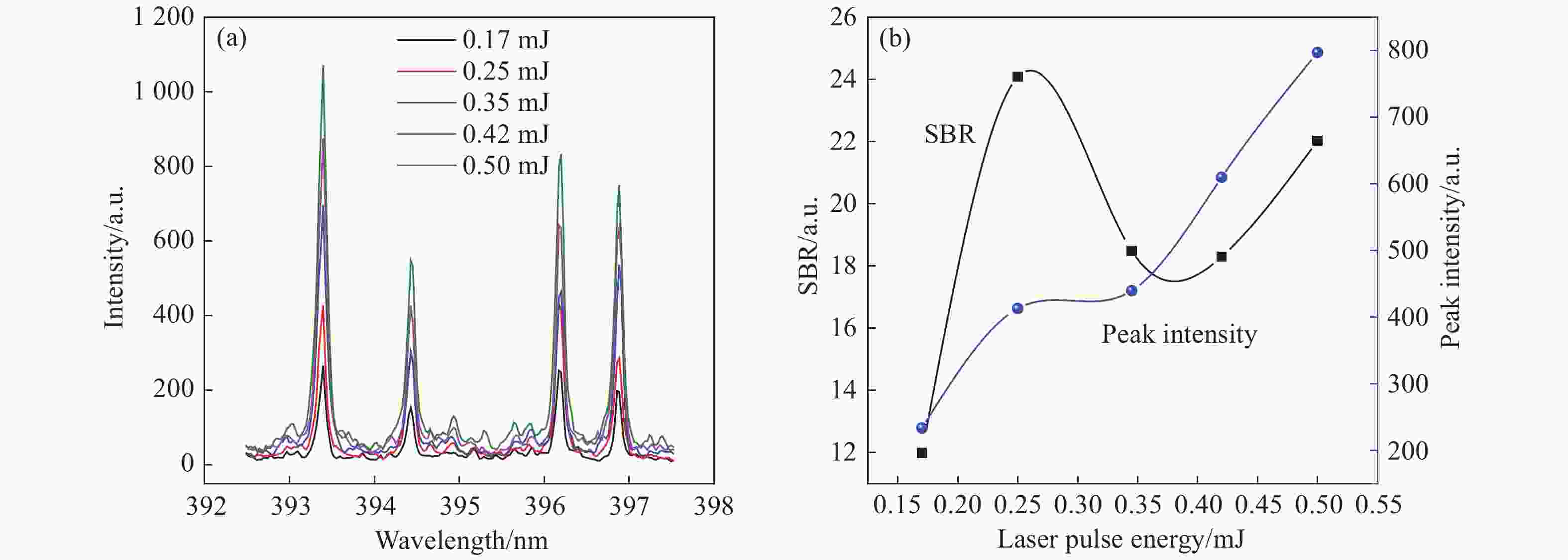

图 4 (a)不同脉冲能量下光谱图; (b)Th I 396.21 nm线的SBR和峰值强度随能量的演化

Figure 4. (a)Effect of laser pulse energy on the LIBS spectra; (b) SBR and Peak intensity of the Th I 396.21 nm line as a function of laser pulse energy

下载: 全尺寸图片幻灯片

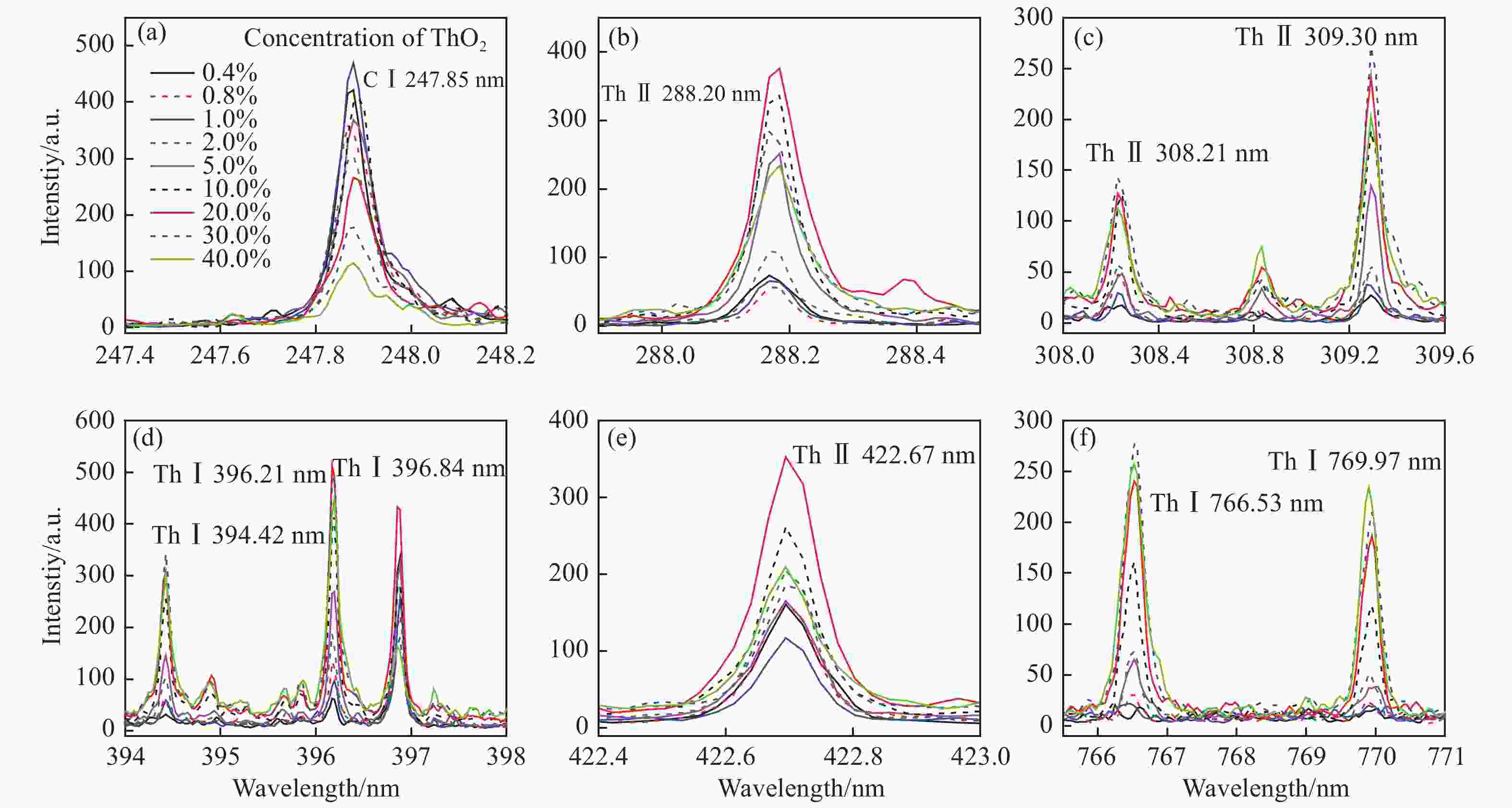

图 5 不同Th含量梯度下光谱图。(a)为C I 247.85 nm, (b)~(f)为Th元素的谱线

Figure 5. LIBS spectra as a function of Th concentration: (a) C I 247.85 nm; (b)~(f) emission lines of Th

下载: 全尺寸图片幻灯片

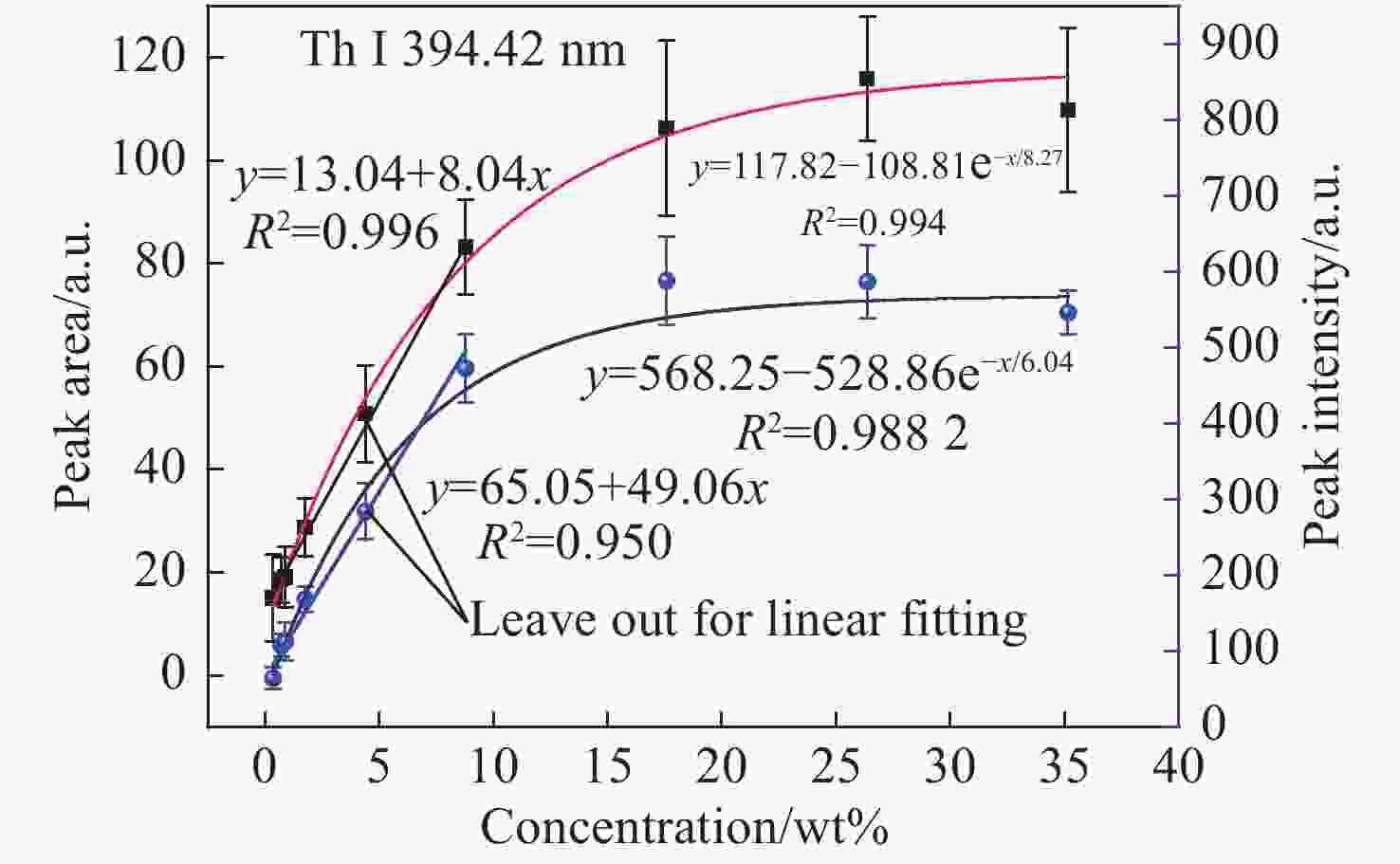

图 6 Th I 394.42 nm线积分强度和峰值强度随Th含量的变化

Figure 6. The peak area and peak intensity for Th I 394.42 nm line as a function of pulse energy

下载: 全尺寸图片幻灯片

图 7 基本定标法对5#样品的预测性能：(a)预测含量值;(b)其相对误差

Figure 7. The performance of basic calibration method for sample 5#: (a)prediction concentrations; (b)relative errors

下载: 全尺寸图片幻灯片

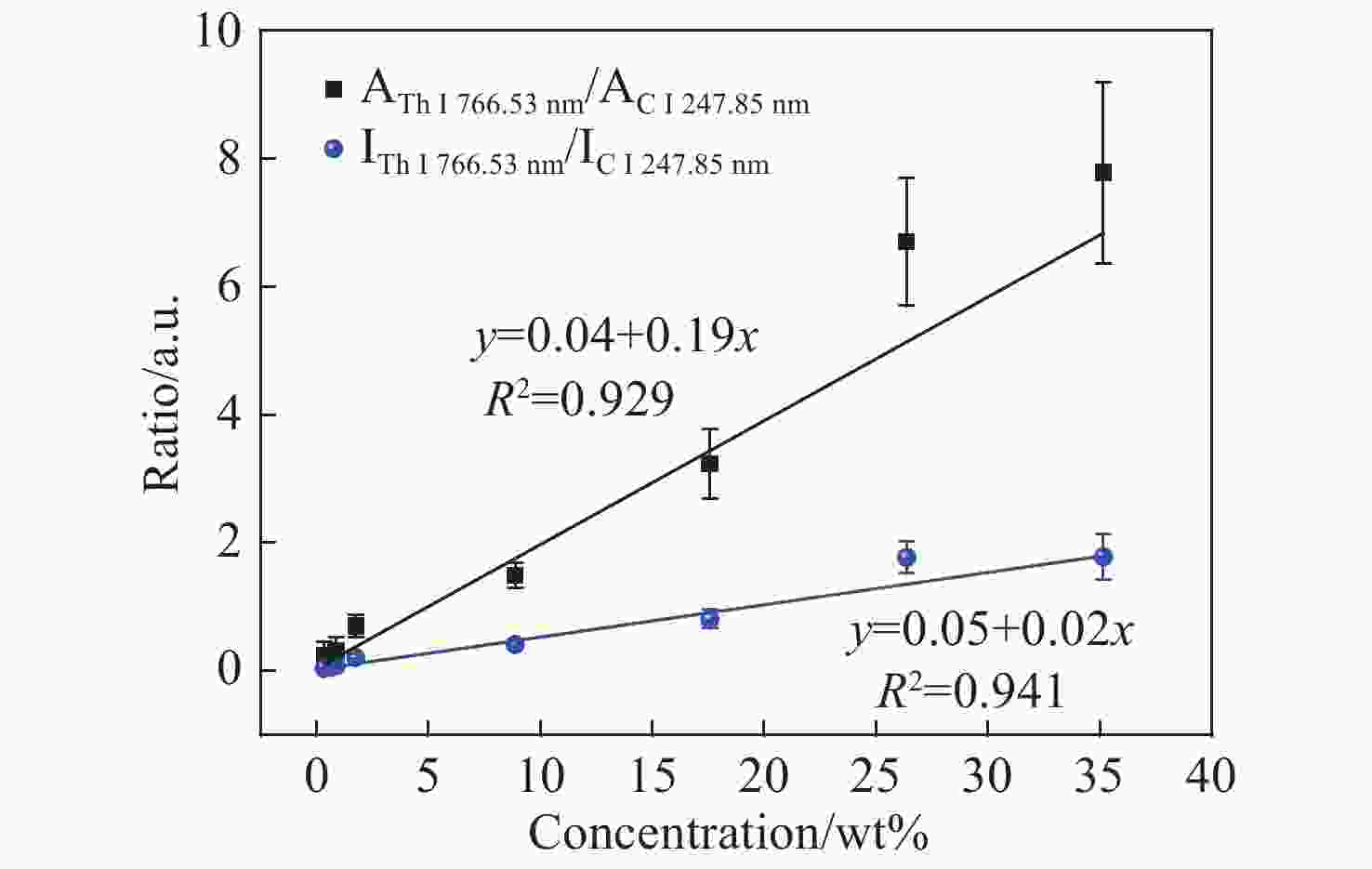

图 8 以C I 247.85 nm线为内标的定标曲线

Figure 8. Calibration curves with C I 247.85 nm line as the internal standard line

下载: 全尺寸图片幻灯片

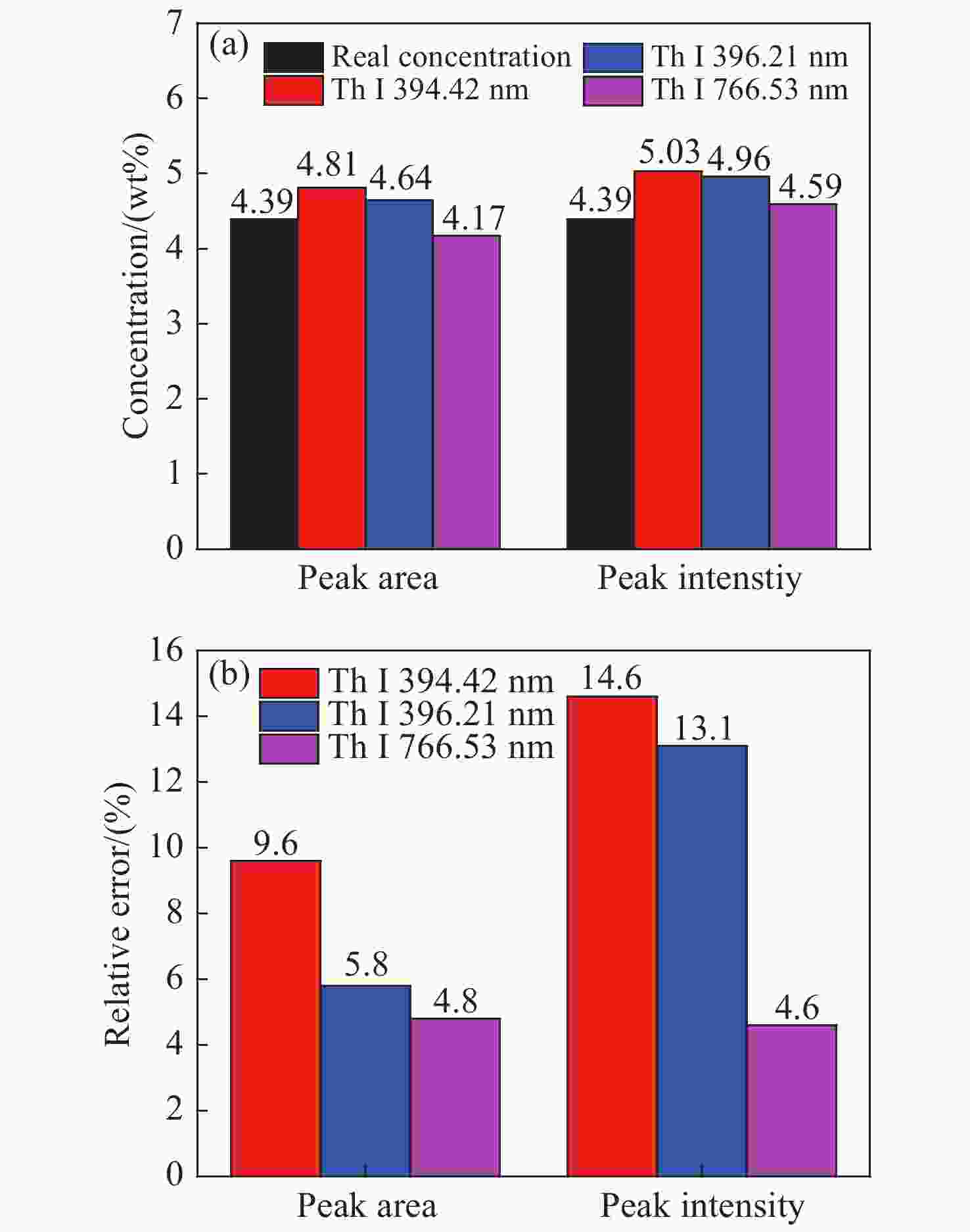

图 9 内标法对5#样品的预测性能：(a)预测含量值；(b)其相对误差

Figure 9. The performance of internal standard for sample 5#: (a)prediction concentrations; (b)relative errors

下载: 全尺寸图片幻灯片

表 1 各条分析谱线的指数函数拟合参数

Table 1. Fitted parameters from the curves for analytical lines using exponential equation

	Area			Intensity
	394.42 nm	396.21 nm	766.53 nm	394.42 nm	396.21 nm	766.53 nm
Y₀	117.82	182.75	330.22	568.25	960.34	551.86
A	−108.81	−162.09	−326.49	−528.86	−826.96	−534.61
t	8.27	7.78	14.62	6.04	6.07	10.25
R²	0.994	0.996	0.989	0.990	0.981	0.993

下载: 导出CSV

表 2 各条谱线在低含量区间的定标曲线参数

Table 2. Fitted parameters from the calibration curves for analytical lines in the lower concentration region

	Area			Intensity
	394.42 nm	396.21 nm	766.53 nm	394.42 nm	396.21 nm	766.53 nm
a	13.04	26.99	8.62	65.05	0.218	26.08
b	8.04	0.135	16.31	49.06	13.24	32.31
R²	0.996	0.959	0.897	0.950	0.931	0.978

下载: 导出CSV

表 3 各条谱线内标法拟合曲线参数

Table 3. Fitted parameters from the calibration curves for analytical lines using internal standard

	R_area			R_intensity
	394.42 nm	396.21 nm	766.53 nm	394.42 nm	396.21 nm	766.53 nm
a	0.12	0.24	0.04	0.08	0.22	0.02
b	0.08	0.13	0.19	0.06	0.10	0.05
R²	0.972	0.959	0.929	0.928	0.921	0.941

下载: 导出CSV

表 4 内标法定标曲线参数及其对9#样品的含量预测结果

Table 4. Fitted parameters of the calibration curves using internal standard and the results of the prediction for 9# sample

C_real / wt%	Wavelength/nm 766.53	a	b	$ {R}^{2} $	C_prediction / wt%	E_R/%
35.12	Peak area	−0.04	0.23	0.951	33.99	3.2
35.12	Peak intensity	0.0005	0.06	0.941	29.75	15.3

下载: 导出CSV

map
