复合椭球腔太阳能聚光均匀线光源设计

芦宇,杨逸,张祥祥,孔维敬

downloadPDF
芦宇, 杨逸, 张祥祥, 孔维敬. 复合椭球腔太阳能聚光均匀线光源设计[J]. , 2023, 16(1): 144-150. doi: 10.37188/CO.2022-0138
引用本文: 芦宇, 杨逸, 张祥祥, 孔维敬. 复合椭球腔太阳能聚光均匀线光源设计[J]. , 2023, 16(1): 144-150.doi:10.37188/CO.2022-0138
LU Yu, YANG Yi, ZHANG Xiang-xiang, KONG Wei-jing. Design of solar concentrated uniform linear light source of composite ellipsoid cavity[J]. Chinese Optics, 2023, 16(1): 144-150. doi: 10.37188/CO.2022-0138
Citation: LU Yu, YANG Yi, ZHANG Xiang-xiang, KONG Wei-jing. Design of solar concentrated uniform linear light source of composite ellipsoid cavity[J].Chinese Optics, 2023, 16(1): 144-150.doi:10.37188/CO.2022-0138

复合椭球腔太阳能聚光均匀线光源设计

doi:10.37188/CO.2022-0138
基金项目:装备预研重点实验室基金(No. 2021JCJQLB055005),天津市科技计划项目(No. 20YDTPJC02010),国家级大学生创新创业训练项目(No. 202110066018)
详细信息
    作者简介:

    芦 宇(1982—),男,博士,讲师,主要从事机非成像光学系统设计、 器设计、 加工技术。E-mail:2013040009@tute.edu.cn

    杨 逸(2000—),男,主要研究方向为光学系统设计。E-mail:1529689031@qq.com

  • 中图分类号:TN242;TN245

Design of solar concentrated uniform linear light source of composite ellipsoid cavity

Funds:Pre-Research Key Laboratory Foundation of the General Armament Department (No. 2021JCJQLB055005), Natural Science Foundation of Tianjin City (No. 20YDTPJC02010), National College Students' Innovation and Entrepreneurship Training Program (No. 202110066018)
More Information
  • 摘要:

    为了实现太阳光直接泵浦板条高功率 器,对均匀线形高功率密度泵浦源进行研究。本文提出由一级聚光系统与7个共焦点椭球叠加形成二级聚光系统(复合椭球腔),组合实现高功率密度均匀线光源的设计方法。每个椭球可对圆形第一焦斑进行等辐射通量分割,镜像成像特点使得峰值功率密度未明显下降,分解后镜像光斑在第二焦点处形成均匀线光源。通过坐标变化给出等辐射通量数学模型,利用退火算法求解出每个椭球旋转平移参量。由半径为30 mm,焦距为70 mm菲涅尔透镜和 a =3.4 mm, c =3.15 mm单椭球腔组成一级系统,附带二级复合椭球腔聚光系统,可实现有效长度为12 mm,峰值功率密度为1.09×106W/m2,均匀度为95.46%线光源。对比每个椭球参量对均匀度贡献,中间椭球旋转参量 θ 为1.4°,均匀度改善明显,边缘椭球参量 Δ 改变对线光源有效长度影响显著,其最佳值为0.53 mm。

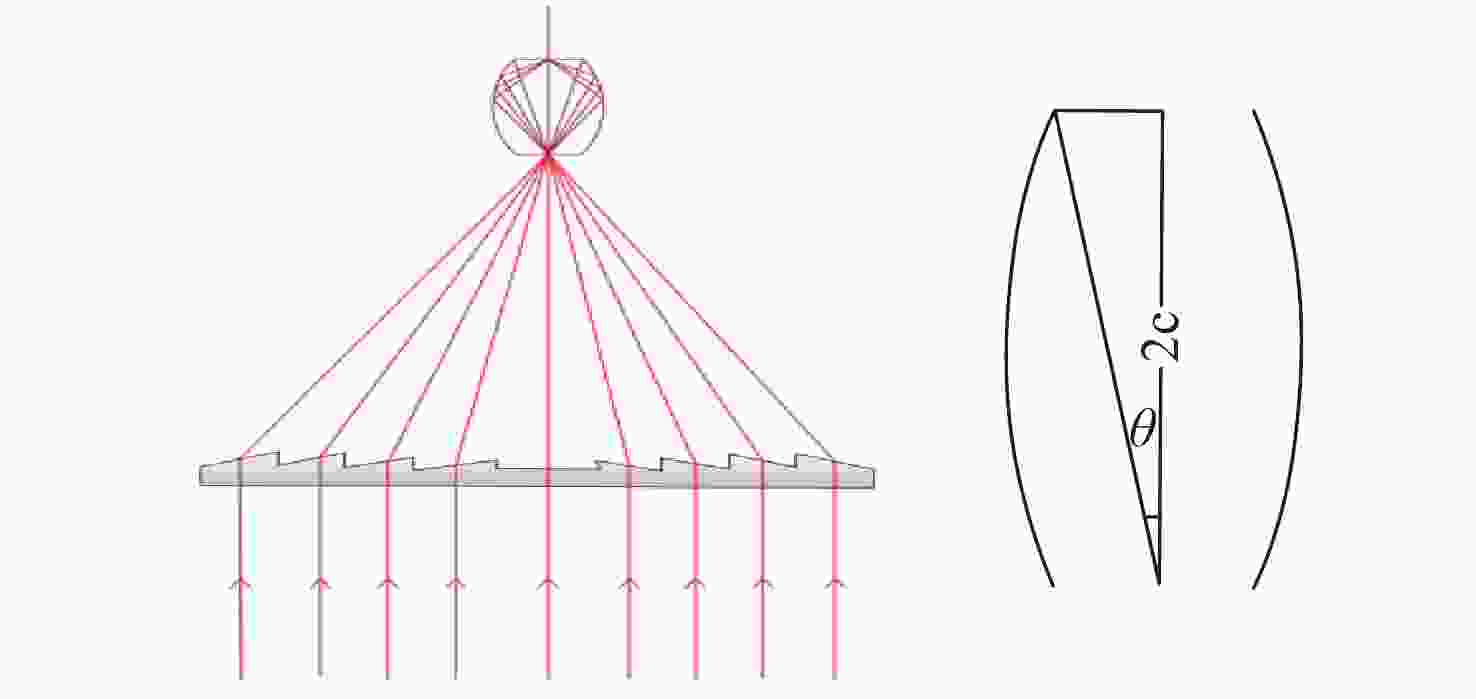

  • 图 1一级聚光系统示意图

    Figure 1.Schematic diagram of the primary concentrator system

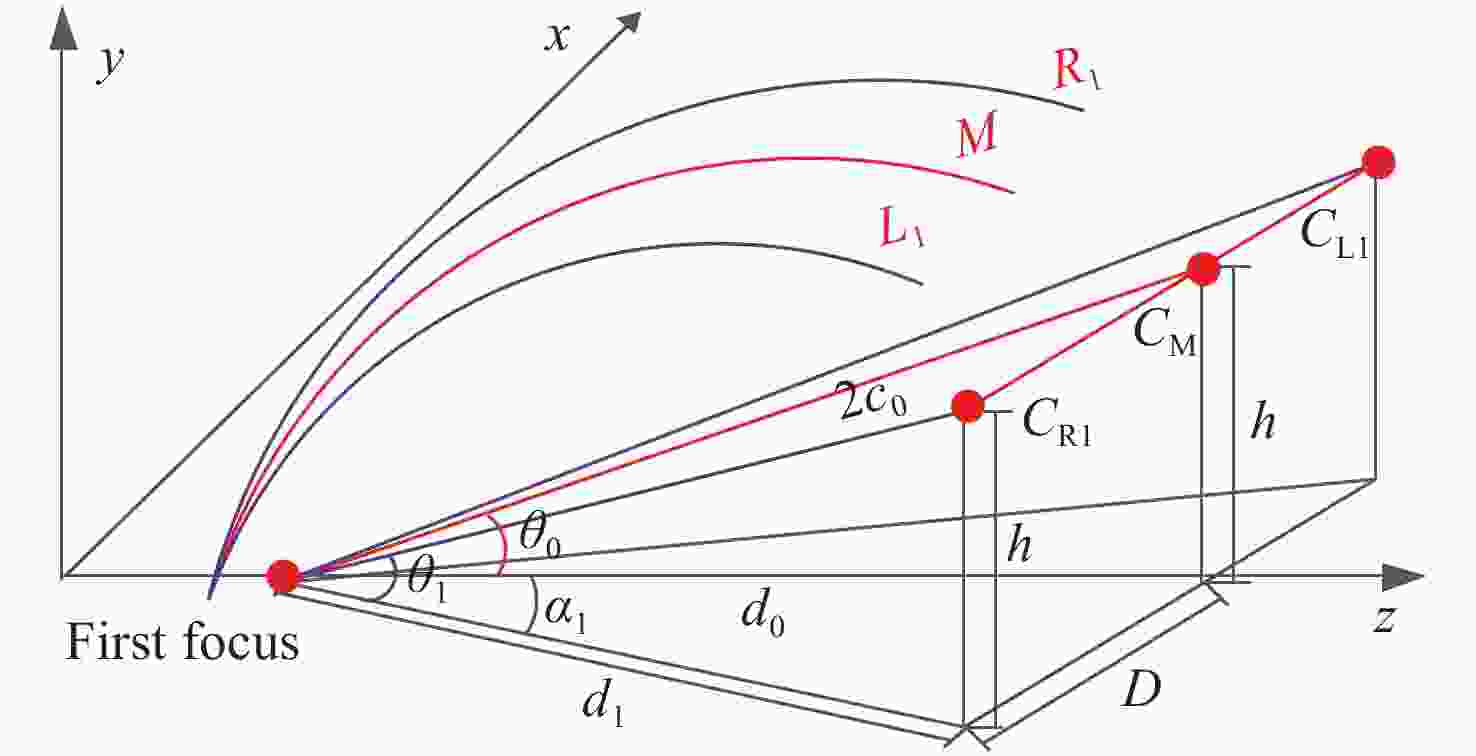

    图 2三复合椭球形成的线光源示意图

    Figure 2.Schematic diagram of linear light source through three composite ellipsoids

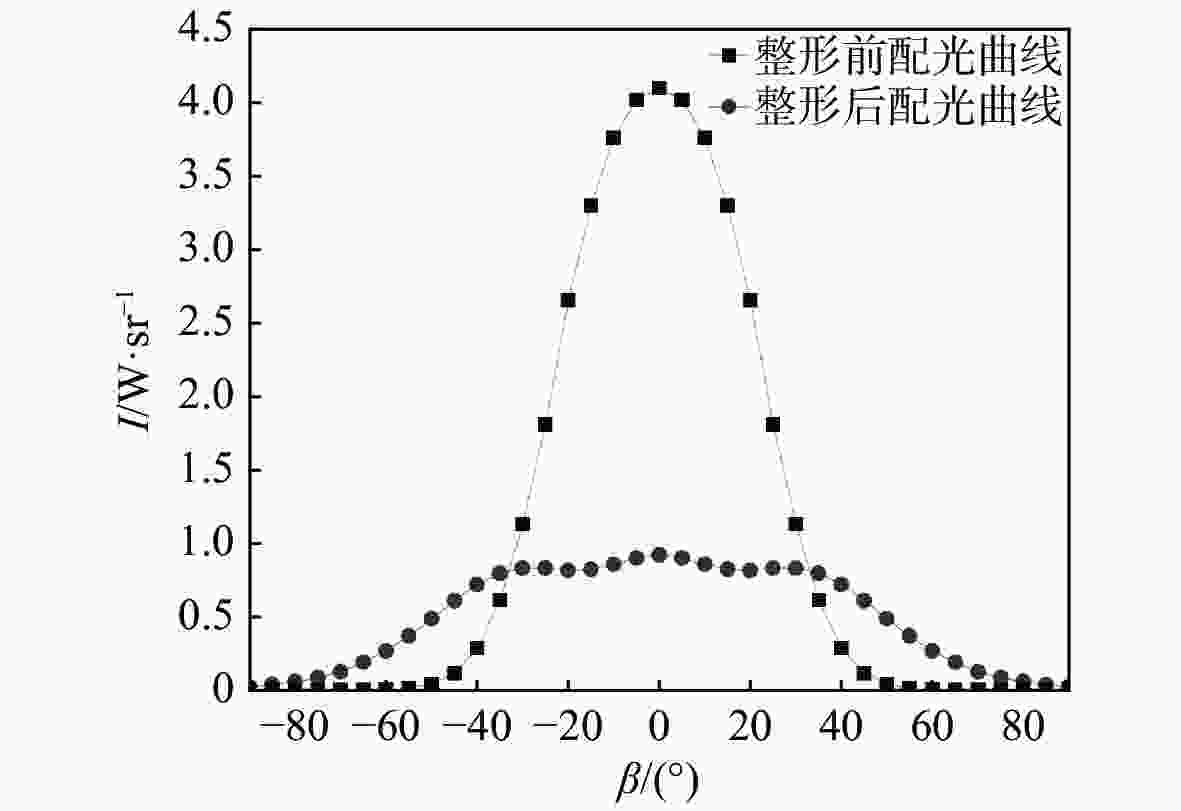

    图 3整形前后配光曲线图

    Figure 3.Light distribution before and after focusing and shaping

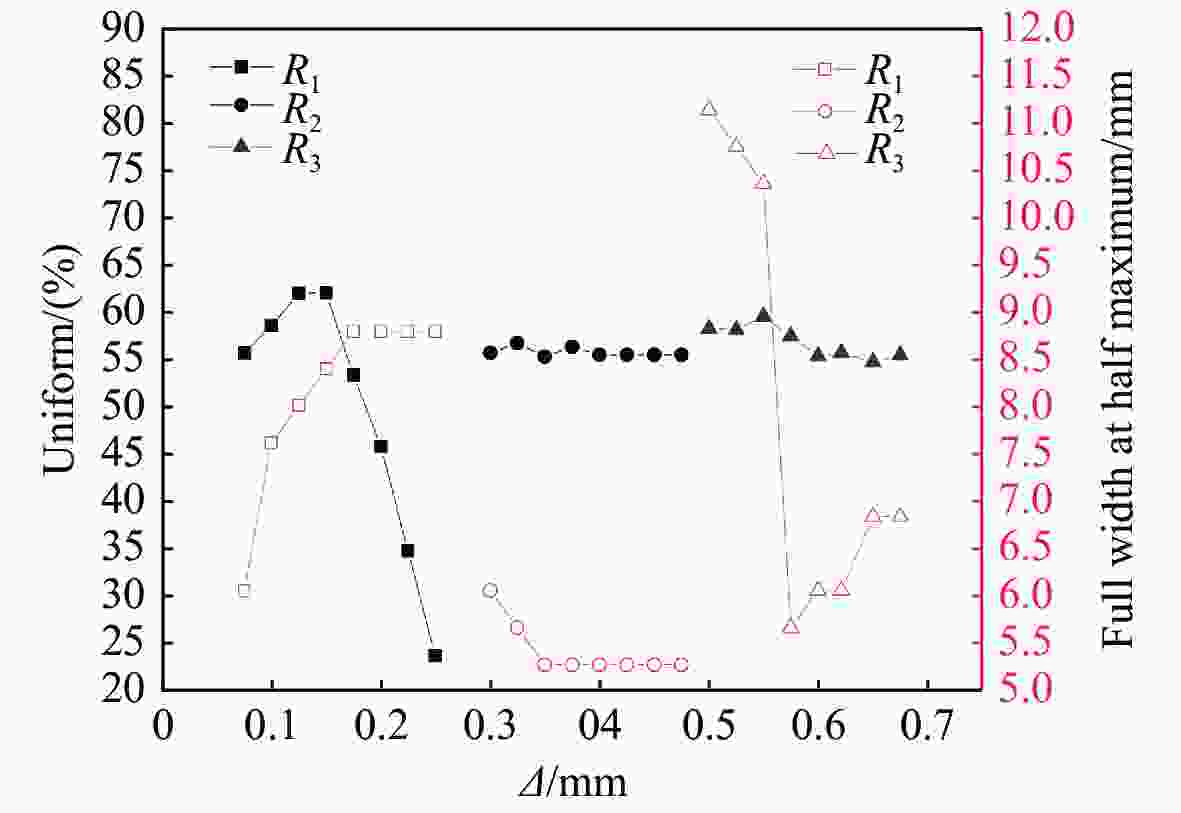

    图 4均匀度及有效半高宽随Δ改变情况

    Figure 4.Uniform and effective FWHM length as function ofΔ

    图 5均匀度及有效半高宽随θ变化关系

    Figure 5.Uniform and effective FWHM length as function ofθ

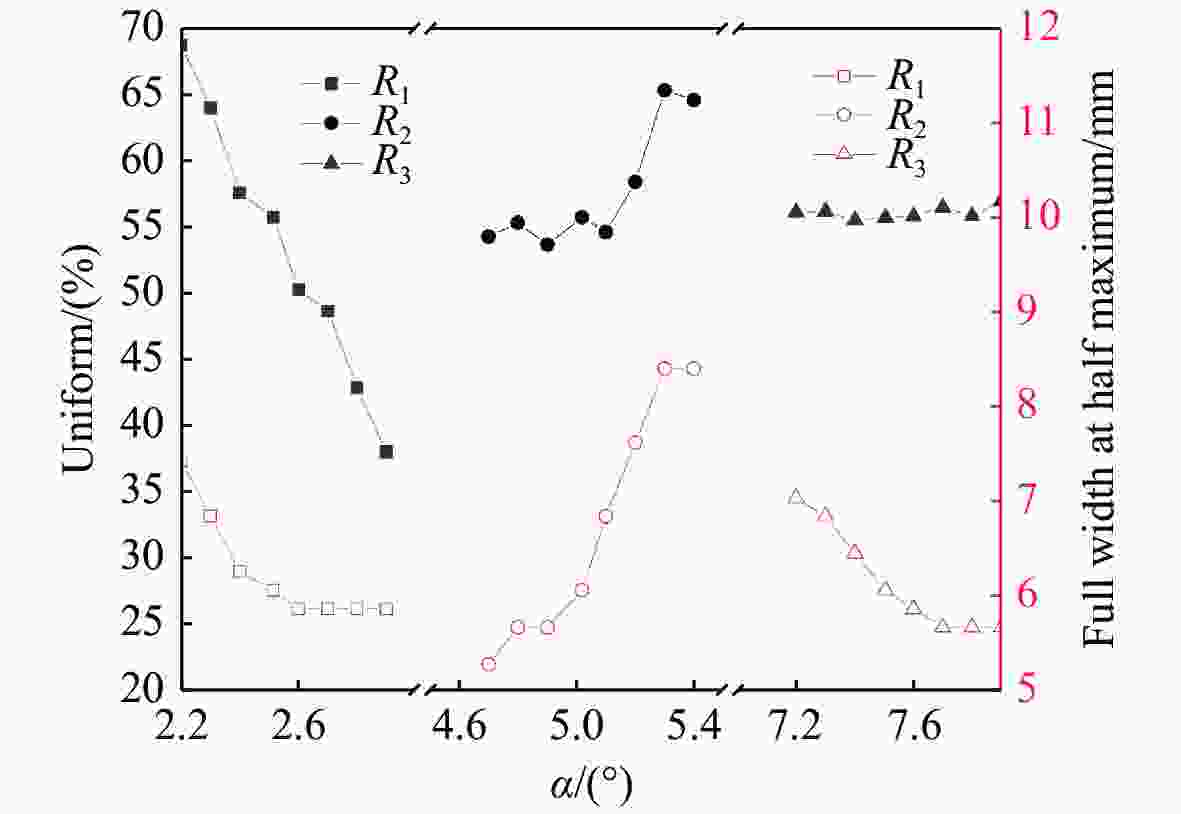

    图 6均匀度及有效半高宽随α变化关系

    Figure 6.Uniform and effective FWHM length as function ofα

    图 7太阳光聚光系统光迹追踪模型

    Figure 7.Ray tracing model of solar concentrator

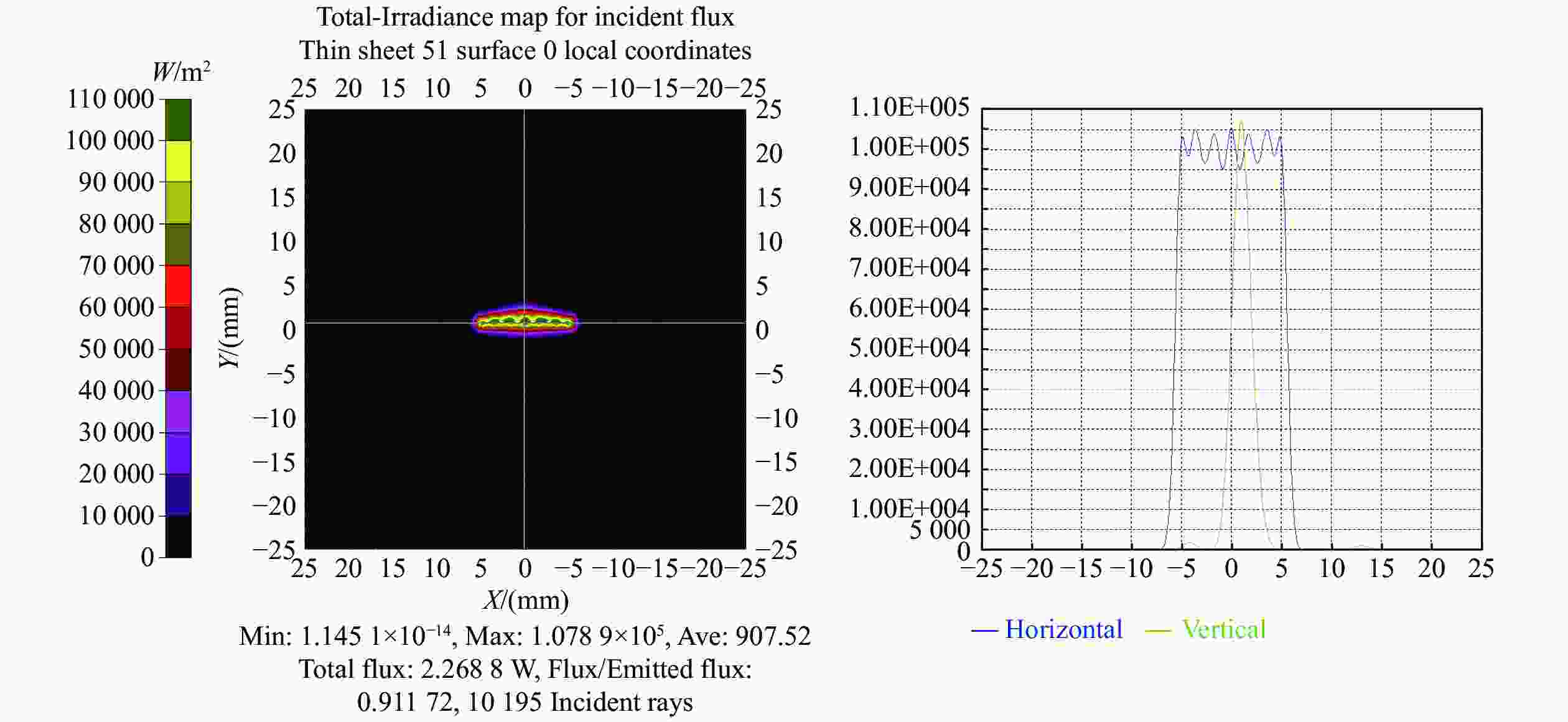

    图 8优化后均匀线光源辐射照度图

    Figure 8.Illumination distribution of uniform line light after optimization

    表 1复合椭球腔αθΔ计算结果

    Table 1.Results ofα,θ,Δof composite ellipsoid cavities

    L3 L2 L1 M R1 R2 R3
    θ 1.24 1.27 1.25 1.20 1.25 1.27 1.24
    α −7.50 −5.42 −2.51 0 2.51 5.42 7.50
    Δ/mm 0.621 0.300 0.075 0 0.075 0.300 0.621
    下载: 导出CSV

    表 2优化后复合椭球腔αθΔ

    Table 2.Optimizedα,θ,Δof composite ellipsoid cavities

    L3 L2 L1 M R1 R2 R3
    θ 1.45 1.40 1.28 1.45 1.28 1.40 1.45
    α −7.50 −5.40 −2.30 0 2.30 5.40 7.50
    Δ/mm 0.53 0.30 0.08 0 0.08 0.30 0.53
    下载: 导出CSV
  • [1] HAN X Y, SUN Y, HUANG J,et al. Design and analysis of a CPV/T solar receiver with volumetric absorption combined spectral splitter[J].International Journal of Energy Research, 2020, 44(6): 4837-4850.doi:10.1002/er.5277
    [2] ZHOU ZH G, WANG Z, BERMEL P. Radiative cooling for low-band gap photovoltaics under concentrated sunlight[J].Optics Express, 2019, 27(8): A404-A418.doi:10.1364/OE.27.00A404
    [3] KOST C, MAYER J N, THOMSON J,et al. .Levelized cost of electricity: PV and CPV in comparison to other technologies[C].Proceedings of the 29th European Photovoltaic Solar Energy Conference and Exhibition, European Commission, 2014: 4086.
    [4] NOZIK A J, CONIBEER G, BEARD M C. Advanced Concepts in Photovoltaics[M]. Cambridge: Royal Society of Chemistry Press, 2014.
    [5] LI M, XU C M, JI X,et al.. A new study on the end loss effect for parabolic trough solar collectors[J].Energy, 2015; 82: 382.
    [6] 孟宪龙, 刘备, 段辰星, 等. 一种新型槽式太阳能CPV/T聚光器的光学传输特性[J]. 光学学报,2021,41(15):1522002.doi:10.3788/AOS202141.1522002

    MENG X L, LIU B, DUAN CH X,et al. Optical transmission characteristic of novel trough type CPV/T concentrator[J].Acta Optica Sinica, 2021, 41(15): 1522002. (in Chinese)doi:10.3788/AOS202141.1522002
    [7] 尹勇, 杨洪海, 苏亚欣, 等. 聚光型太阳能光伏光热系统研究进展[J]. 热能动力工程,2022,37(1):1-13.

    YIN Y, YANG H H, SU Y X,et al. Research progress of solar concentrating photovoltaic-thermal system[J].Journal of Engineering for Thermal Energy and Power, 2022, 37(1): 1-13. (in Chinese)
    [8] TIBÚRCIO B D, LIANG D W, ALMEIDA J,et al. Improving solar-pumped laser efficiency by a ring-array concentrator[J].Journal of Photonics for Energy, 2018, 8(1): 018002.
    [9] LIANG D W, VISTAS C R, TIBÚRCIO B D,et al. Solar-pumped Cr: Nd: YAG ceramic laser with 6.7% slope efficiency[J].Solar Energy Materials and Solar Cells, 2018, 185: 75-79.doi:10.1016/j.solmat.2018.05.020
    [10] LIANG D W, VISTAS C R, ALMEIDA J,et al. Side-pumped continuous-wave Nd: YAG solar laser with 5.4% slope efficiency[J].Solar Energy Materials and Solar Cells, 2019, 192: 147-153.doi:10.1016/j.solmat.2018.12.029
    [11] YABE T, MOHAMED M S, UCHIDA S,et al. Noncatalytic dissociation of MgO by laser pulses towards sustainable energy cycle[J].Journal of Applied Physics, 2007, 101(12): 123106.doi:10.1063/1.2743730
    [12] SAIKI T, UCHIDA S, MOTOKOSHI S,et al. .Development of solar-pumped lasers for space solar power station[C].Proceedings of the 56th International Astronautical Congress, International Astronautical Federation, 2005: 4250.
    [13] YABE T, OHKUBO T, UCHIDA T,et al. Experimental study of solar pumped laser for magnesium-hydrogen energy cycle[J].Journal of Physics:Conference Series, 2008, 112: 042072.doi:10.1088/1742-6596/112/4/042072
    [14] 胡金萍. 聚光光斑的均匀性对聚光光伏系统性能影响的理论研究[D]. 南京: 南京理工大学, 2018.

    HU J P.Theoretical study on how the non-uniformity of the sunlight spot influences the performance of the concentrating photovoltaic system[D]. Nanjing: Nanjing University of Science and Technology, 2018. (in Chinese)
    [15] 马军, 王成龙, 夏养君. 线性菲涅尔式太阳能聚光系统二次聚光器研究进展[J]. 中国科学:技术科学,2020,50(8):997-1008.doi:10.1360/SST-2020-0190

    MA J, WANG CH L, XIA Y J. Research progress on secondary concentrator for linear Fresnel reflector[J].Cientia Sinica Technologica, 2020, 50(8): 997-1008. (in Chinese)doi:10.1360/SST-2020-0190
    [16] 黄媛. 复合抛物面聚光器的性能分析和应用研究[D]. 成都: 中国科学院大学(中国科学院光电技术研究所), 2019.

    HUANG Y.Performance analysis on compound parabolic concentrator and its applications[D]. Chengdu: University of Chinese Academy of Sciences (Institute of Optics and Electronics, Chinese Academy of Sciences), 2019. (in Chinese)
    [17] 吕家祺, 张宁, 尹鹏, 等. 太阳能光伏聚光器光学设计类型研究进展[J]. 与光电子学进展,2019,56(23):230002.

    LV J Q, ZHANG N, YIN P,et al. Research progress on optically designed solar photovoltaic concentrators[J].Laser&Optoelectronics Progress, 2019, 56(23): 230002. (in Chinese)
    [18] 赵会富, 朱浩宇, 童宏伟, 等. 能量均匀分布的菲涅耳聚光系统的设计[J]. 杂志,2018,39(12):10-14.doi:10.14016/j.cnki.jgzz.2018.12.010

    ZHAO H F, ZHU H Y, TONG H W,et al. Design of energy uniform distribution Fresnel concentration system[J].Laser Journal, 2018, 39(12): 10-14. (in Chinese)doi:10.14016/j.cnki.jgzz.2018.12.010
    [19] 杨淑利, 刘志全, 濮海玲. 空间聚光电池阵用拱形菲涅耳透镜的设计与分析[J]. 宇航学报,2014,35(1):106-114.

    YANG SH L, LIU ZH Q, PU H L. Design and analysis of arched Fresnel-lens for spacial concentrating solar array[J].Journal of Astronautics, 2014, 35(1): 106-114. (in Chinese)
    [20] CHEN ZH ZH, XU Y T, GUO Y D,et al. 8.2 kW high beam quality quasi-continuous-wave face-pumped Nd: YAG slab amplifier[J].Applied Optics, 2015, 54(16): 5011-5015.doi:10.1364/AO.54.005011
    [21] 闫钰锋, 于洋, 白素平, 等. 板条 器光束质量控制技术研究进展[J]. 中国光学,2019,12(4):767-782.doi:10.3788/co.20191204.0767

    YAN Y F, YU Y, BAI S P,et al. Progress on beam quality control technology of slab lasers[J].Chinese Optics, 2019, 12(4): 767-782. (in Chinese)doi:10.3788/co.20191204.0767
    [22] 燕宇翔, 芦宇, 张祥祥. 大功率LED均匀线光源光学系统设计[J]. 照明工程学报,2020,31(1):77-82.doi:10.3969/j.issn.1004-440X.2020.01.014

    YAN Y X, LU Y, ZHANG X X. Design of optical system for high power LED uniform line light source[J].China Illuminating Engineering Journal, 2020, 31(1): 77-82. (in Chinese)doi:10.3969/j.issn.1004-440X.2020.01.014
