Phase-extracting method of optical frequency scanning interference signals based on the CEEMD-HT algorithm

YANG Ke-yuan,DENG Zhong-wen,CHEN Wen-jun,YAO Xin,SUN Hai-feng,SHEN Li-rong

downloadPDF
杨克元, 邓忠文, 陈文军, 姚鑫, 孙海峰, 沈利荣. 基于互补集合经验模态分解结合希尔伯特变换的光频扫描干涉信号相位提取方法[J]. , 2023, 16(3): 682-700. doi: 10.37188/CO.2022-0173
引用本文: 杨克元, 邓忠文, 陈文军, 姚鑫, 孙海峰, 沈利荣. 基于互补集合经验模态分解结合希尔伯特变换的光频扫描干涉信号相位提取方法[J]. , 2023, 16(3): 682-700.doi:10.37188/CO.2022-0173
YANG Ke-yuan, DENG Zhong-wen, CHEN Wen-jun, YAO Xin, SUN Hai-feng, SHEN Li-rong. Phase-extracting method of optical frequency scanning interference signals based on the CEEMD-HT algorithm[J]. Chinese Optics, 2023, 16(3): 682-700. doi: 10.37188/CO.2022-0173
Citation: YANG Ke-yuan, DENG Zhong-wen, CHEN Wen-jun, YAO Xin, SUN Hai-feng, SHEN Li-rong. Phase-extracting method of optical frequency scanning interference signals based on the CEEMD-HT algorithm[J].Chinese Optics, 2023, 16(3): 682-700.doi:10.37188/CO.2022-0173

基于互补集合经验模态分解结合希尔伯特变换的光频扫描干涉信号相位提取方法

详细信息
  • 中图分类号:TH741.1

Phase-extracting method of optical frequency scanning interference signals based on the CEEMD-HT algorithm

doi:10.37188/CO.2022-0173
Funds:Supported by National Natural Science Foundation of China (No. 52205576); Natural Science Basic Research Program of Shaanxi Province (No. 2021JQ-187); Foundamental Research Funds for the Central Universities (No. XJS212203)
More Information
    Author Bio:

    Yang Ke-yuan (1983—), male, born in Jining, Shandong Province, postdoctoral researcher, graduated from University of Electronic Science and Technology in June 2010, mainly engaged in the research on aircraft measurement and control technology, inter-satellite measurement technology. E-mail:ykymail@126.com

    Deng Zhong-wen (1987—), male, from Karamay, Xinjiang, lecturer, Ph.D., received his Ph.D. degree from the School of Mechanical Engineering, Xi'an Jiaotong University in 2020, mainly engaged in the research of high-precision large-scale measurement and optical frequency scanning interferometry. E-mail:zwdeng@xidian.edu.cn

    Corresponding author:zwdeng@xidian.edu.cn
  • 摘要:

    光频扫描非线性会影响光频扫描干涉(FSI)信号的相位提取精度,进而降低扫频干涉测距精度。针对这一问题,本文提出了一种基于互补集合经验模态分解结合希尔伯特变换(CEEMD-HT)算法的干涉信号相位提取方法。在CEEMD-HT算法进行理论推导和仿真分析的基础上,通过仿真验证了该算法对非平稳扫频干涉信号相位求解的有效性。进一步采用FSI实验系统中的真实输出光频率作为仿真条件进行了仿真实验,仿真结果表明CEEMD-HT算法对干涉信号相位的求解精度以及FSI测距精度都有显著的改善。最后,通过FSI测距系统的测距实验对所提出的干涉信号相位提取方法进行验证。结果表明:在2 m自由空间测量范围内,基于CEEMD-HT算法的重复测距精度为2.79 μm,相较于EMD-HT和直接测量法分别提高了5.19倍和8.28倍。

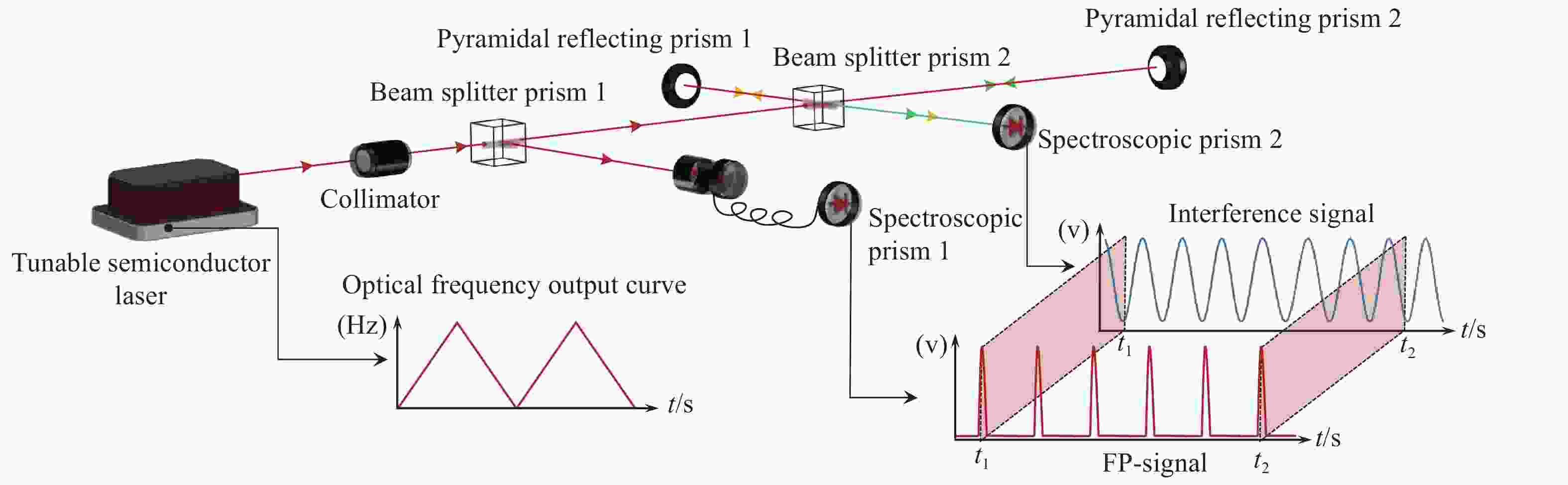

  • 图 1FSI测距系统原理示意图

    Figure 1.Schematic of the FSI ranging system

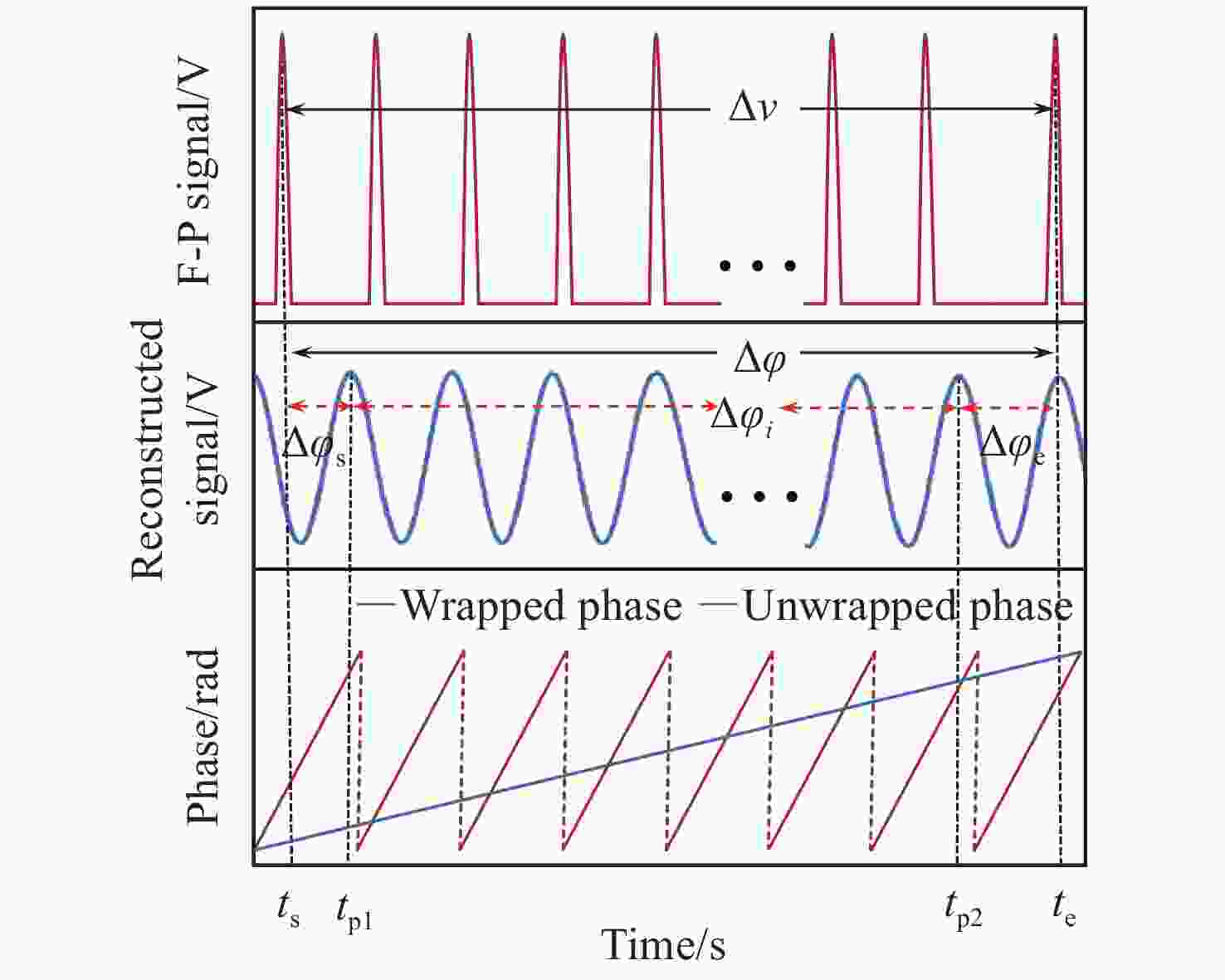

    图 2干涉信号的相位分解示意图

    Figure 2.Schematic diagram of the interferometric phase decomposition

    图 3EMD对非稳干涉信号的分解重构示意图

    Figure 3.Schematic diagram of the EMD decomposition and reconstruction of the non-stationary interference signal

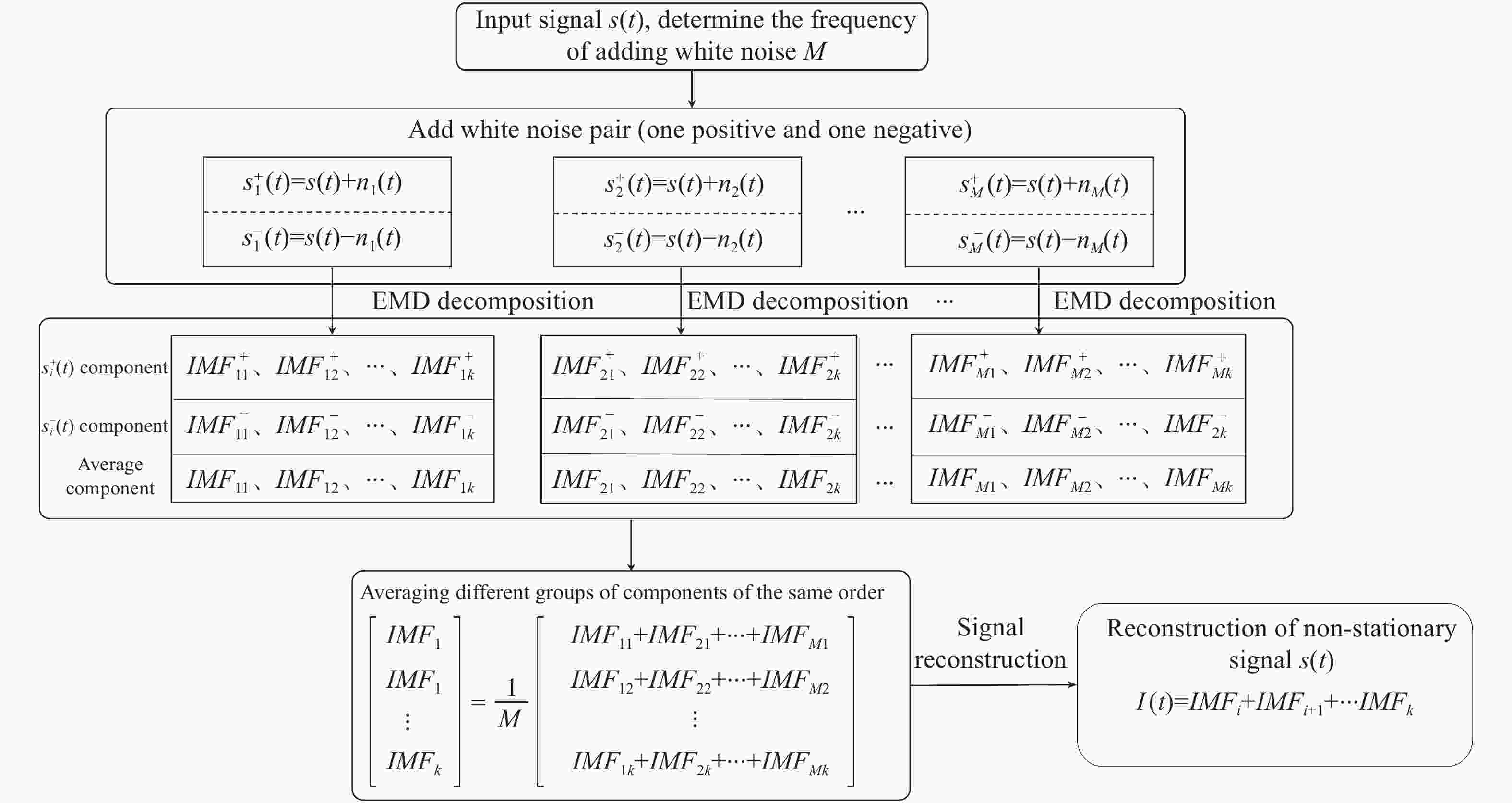

    图 4CEEMD算法流程示意图

    Figure 4.Schematic diagram of CEEMD algorithm flow

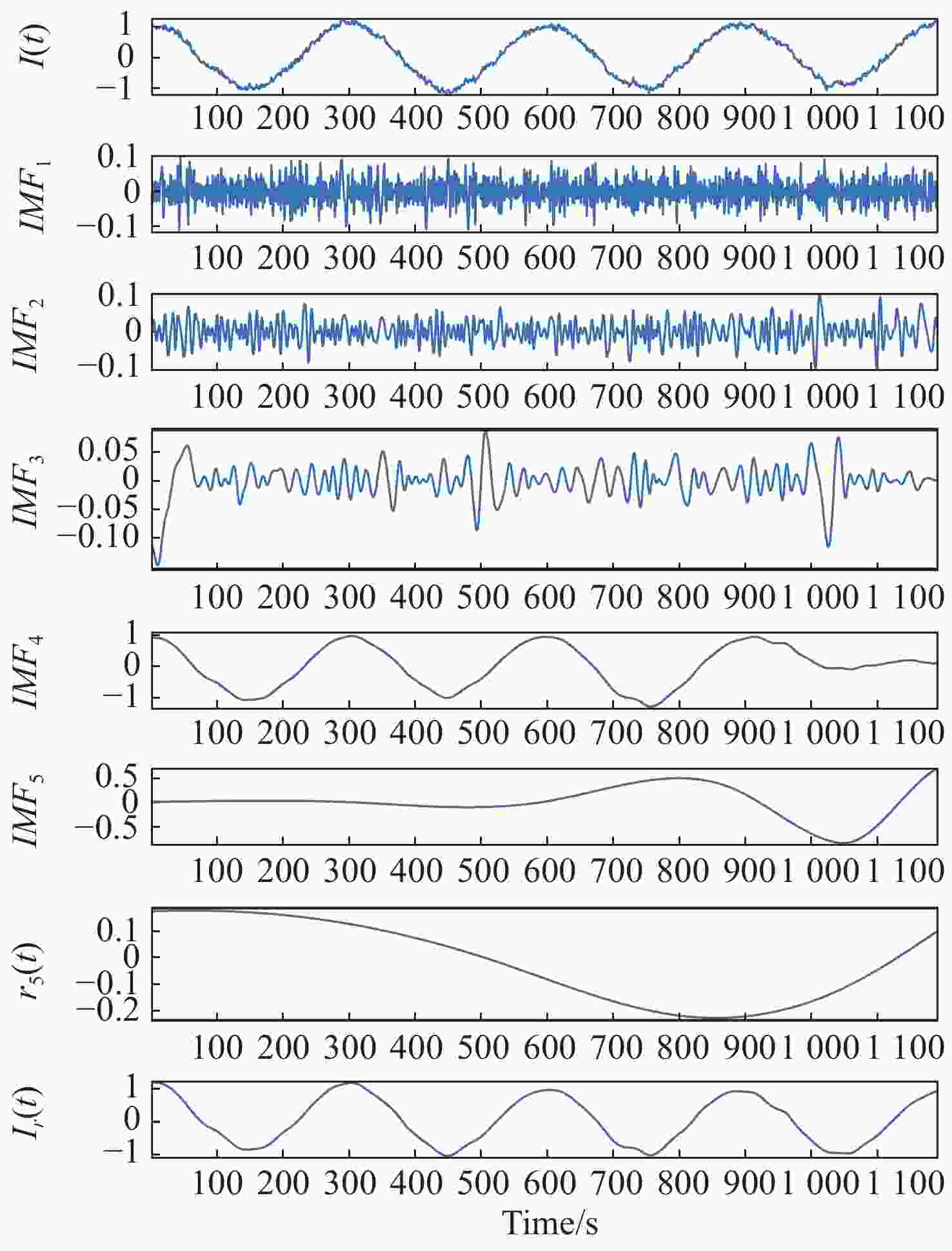

    图 5CEEMD对干涉信号的分解重构示意图

    Figure 5.Schematic diagram of the decomposition and reconstruction of the interference signal via CEEMD

    图 6FSI实验系统示意图

    Figure 6.Schematic diagram of the FSI experimental system

    图 7单周期相位差提取仿真结果对比图

    Figure 7.Comparison of simulation results of single cycle phase difference extraction

    图 8测距仿真结果对比图

    Figure 8.Comparison of the ranging simulation results of different phase extracting methods

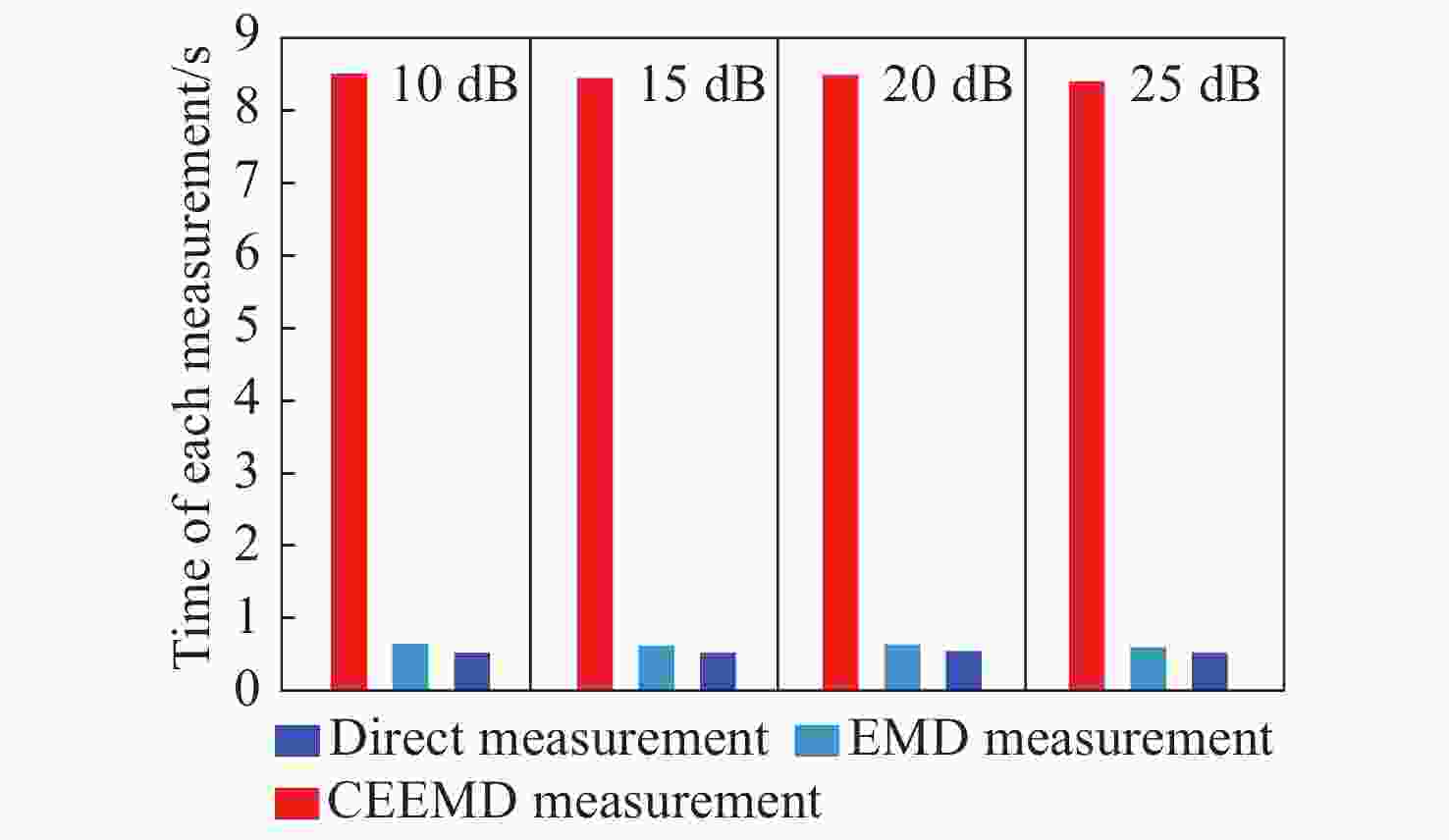

    图 9单次测量用时对比图
