摘要:
为了实现非接触式的日常精神压力检测，本文提出了一种基于成像式光体积描记术的精神压力检测方法。首先，通过手机摄像头记录受试者面部视频，再采用本文所提出的基于Face Mesh的动态感兴趣区域（Region of Interest，ROI）提取方法获得心率波动引起的皮肤微弱颜色变化。接下来，将快速独立成分分析（FastICA）算法、小波变换和窄带带通滤波相结合，提取基于图像的光体积描记术信号和心率变异性信息。然后，对30名受试者进行了压力诱导实验，通过比较受试者正常和应激状态下心率变异性参数的差异，筛选了用于精神压力检测的14个特征，并探讨了压力诱导的短期精神压力和日常精神压力之间的关系。最后，另外选取67名受试者进行日常精神压力检测，使用机器学习算法建立了精神压力检测的三分类器。实验结果表明：精神压力三分类准确率达到95.2%。鉴于这种方法不需要长期测量，仅使用智能手机就可以准确检测人类精神压力水平，而且测量方法简单，测量时间短，易操作，不会影响受试者的正常心理和精神状态，因此可以作为一种有效的心理学研究工具。
Abstract:To achieve non-contact daily mental stress detection, this paper proposes a image photoplethysmography to detect mental stress. First, a video of the subject's face is recorded by the cell phone camera. Then, the proposed Dynamic Region of Interest (ROI) extraction method based on Face Mesh is used to obtain the weak skin color changes caused by heart rate fluctuations. Next, the Fast Independent Component Analysis (FastICA) algorithm, wavelet transform and narrowband bandpass filtering are combined to extract the signal and heart rate variability information based on image photoplethysmography. Then, stress-induced experiments are conducted on 30 subjects to screen 14 features for mental stress detection by comparing the differences in heart rate variability parameters between normal and stressful states, and to explore the relationship between short-term mental stress and daily mental stress due to stress induction. Finally, an additional 67 subjects are tested for daily mental stress, and a triple classifier for mental stress detection is built using the machine learning algorithm. The experimental results show that the accuracy of the three classifications of mental stress can reach 95.2%. Given that this method does not require long-term measurements and can accurately detect human mental stress levels using only a smartphone, and that the measurement method is simple, and easy to administer, and does not affect the normal psychological and mental state of the subject, it can be used as a valid tool in psychological research.
-

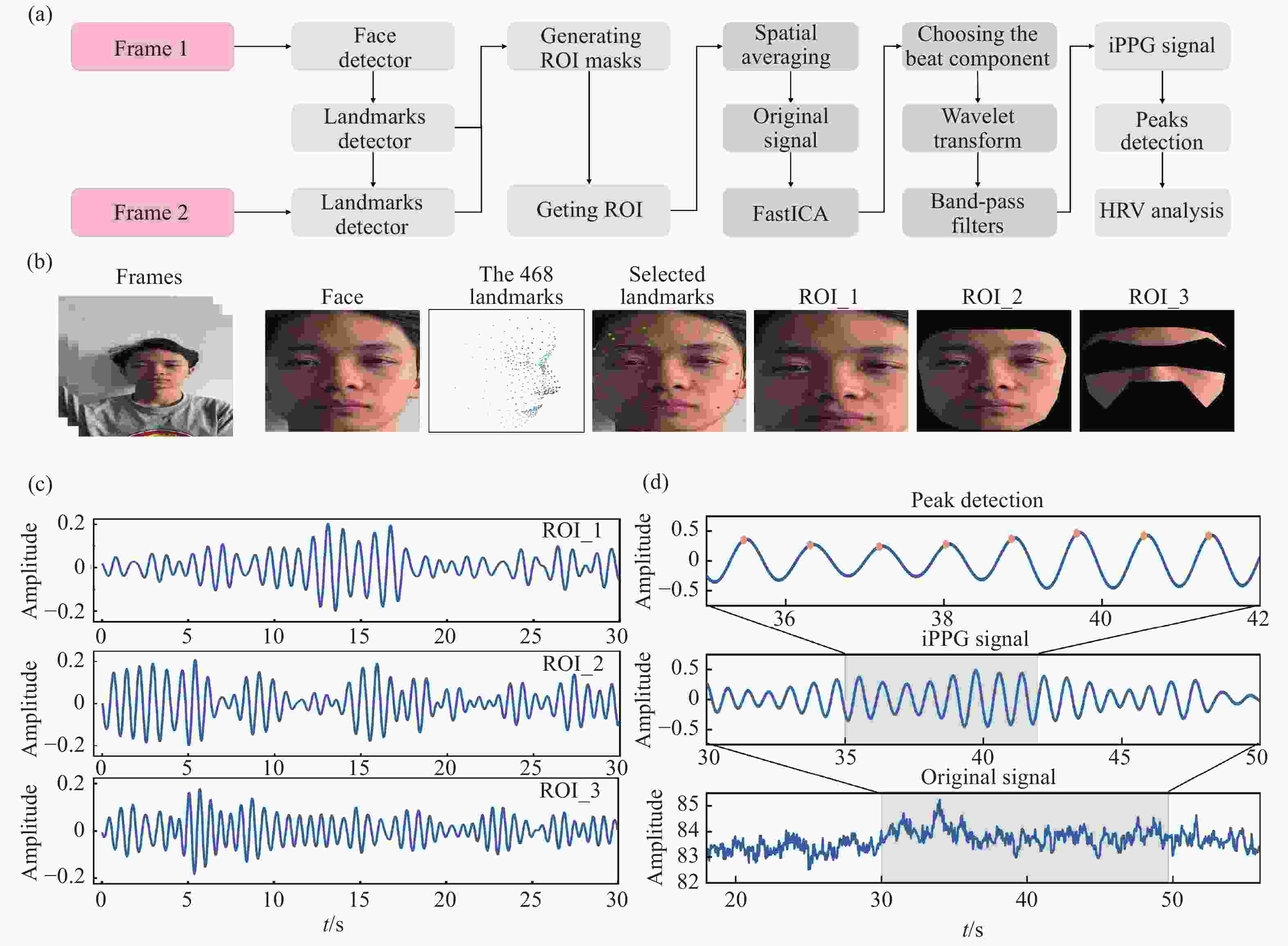

图 2iPPG信号处理结果。（a）iPPG信号提取流程；（b）动态ROI提取过程；（c）不同ROI提取的iPPG信号；（d）R-R间期提取
Figure 2.Result of iPPG signal processing. (a) iPPG signal extraction process; (b) dynamic ROI extraction process; (c) iPPG signal extracted by different ROI; (d) extraction process in R-R interval

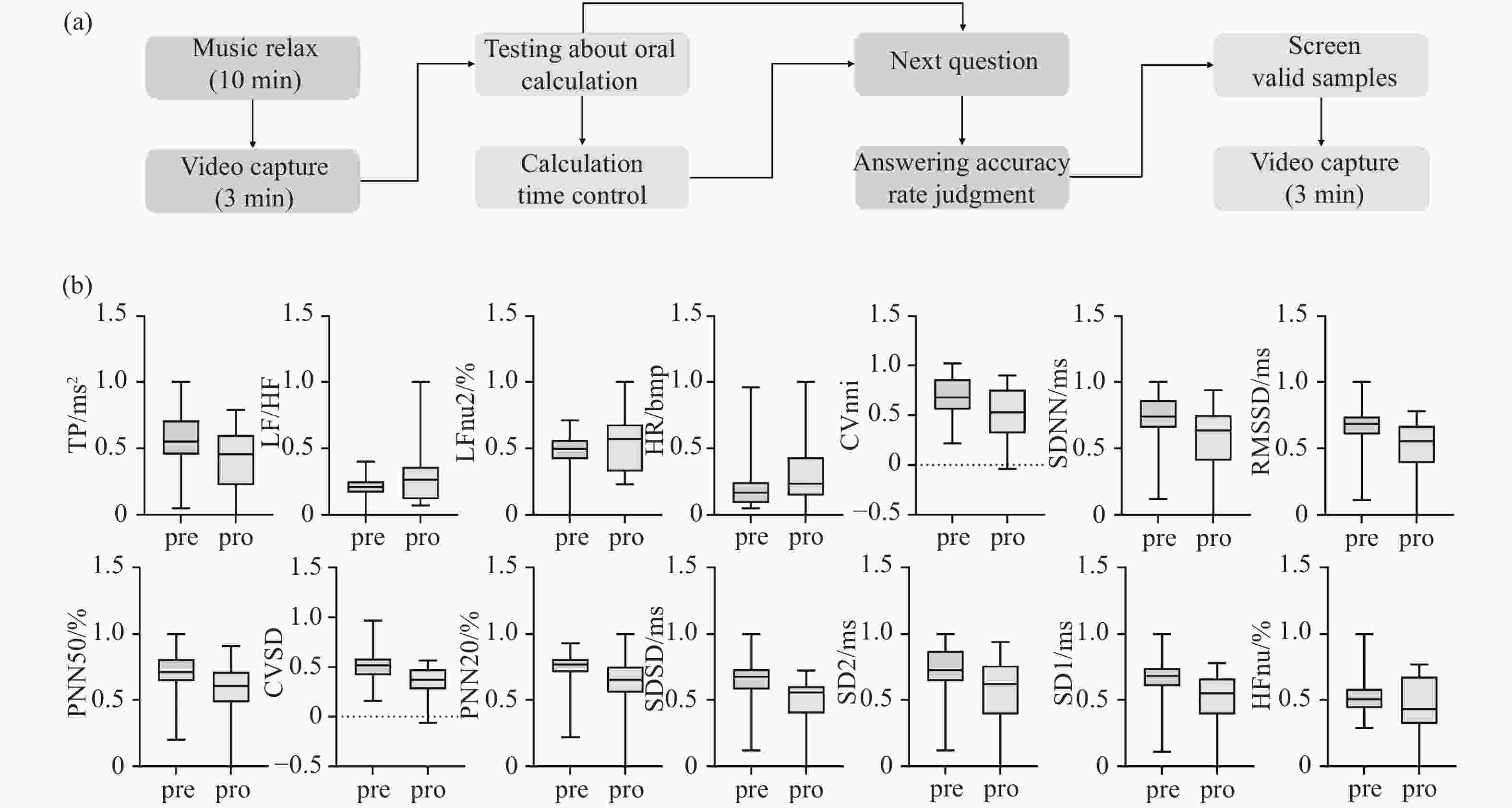

图 3压力诱导实验及结果。（a） 压力诱导实验过程；（b） HRV特征参数变化箱形图
Figure 3.Stress-induced test and result. (a) Stress induction test process; (b) box diagram of HRV characteristic parameter change

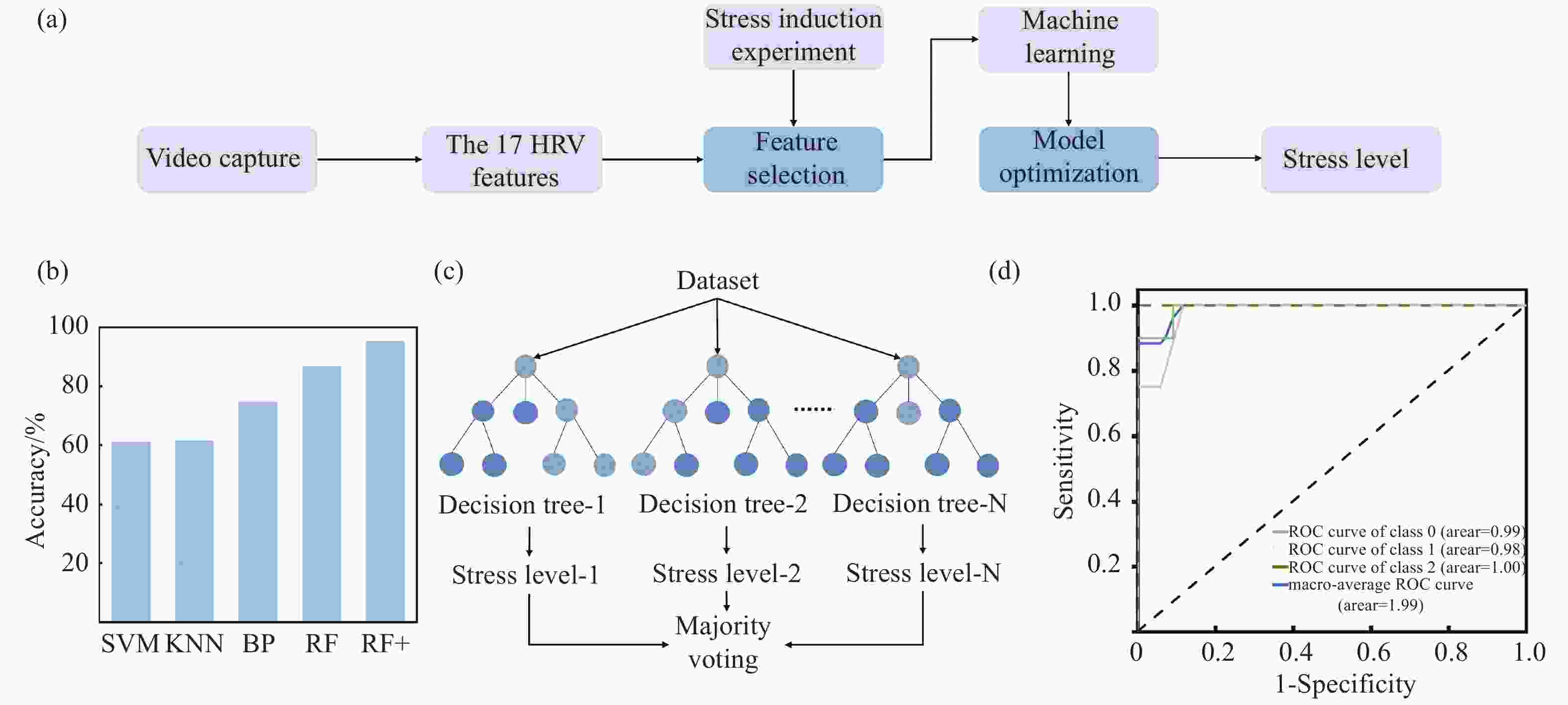

图 4日常精神压力检测系统。（a）日常精神压力检测系统的流程；（b）不同机器学习分类器在日常精神压力检测的准确率对比；（c）基于随机森林的日常精神压力检测模型图；（d）基于随机森林的日常精神压力检测的ROC曲线
Figure 4.Daily mental stress detection system. (a) Process of daily mental stress detection system; (b) accuracy comparison of daily mental stress detection by different machine learning classifiers; (c) a random forest-based model for detecting daily mental stress; (d) ROC curves for daily mental stress detection based on random forest
表 1HRV特征
Table 1.HRV characteristics
HRV特征 单位 定义 HR bmp 心率 SDNN ms R-R间期的标准偏差 PNN50 % 平均R-R间期大于50 ms占总数的百分比 PNN20 % 平均R-R间期大于20 ms占总数的百分比 RMSSD ms 相邻R-R间期的不同平方的平均和的平方根 SDSD ms 相邻R-R间期之差的标准偏差 CVSD − 连续差异的变化系数 CVnni − 变异系数 std_hr bmp 心率标准差 TP ms2 0~0.4 Hz，总光谱能量 LFnu % 0.04~0.15 Hz，标准化的低频功率 HFnu % 0.15~0.4 Hz，标准化的高频功率 LF/HF − 低频与高频的比例 SD1 ms 垂直于方程线的直线上的Poincaré图的标准偏差 SD2 ms 沿着Poincaré图表中标记线的标准偏差 SD2/SD1 − SD2与SD1之比 Sampen − 数据的样本熵
下载:
导出CSV
表 2实验描述
Table 2.Description of the test
精神
压力诱导实验日常
精神压力实验实验对象 学生 老师和学生 数量 30 67 年龄(min/max) 17/26 19/49 身体状况 健康 健康 下载:
导出CSV
-
[1] MAERCKER A, BREWIN C R, BRYANT R A,et al. Proposals for mental disorders specifically associated with stress in the international classification of diseases-11[J].The Lancet, 2013, 381(9878): 1683-1685.doi:10.1016/S0140-6736(12)62191-6 [2] SHAH S M A, MOHAMMAD D, QURESHI M F H,et al. Prevalence, psychological responses and associated correlates of depression, anxiety and stress in a global population, during the coronavirus disease (COVID-19) pandemic[J].Community Mental Health Journal, 2021, 57(1): 101-110.doi:10.1007/s10597-020-00728-y [3] ESLER M. Mental stress and human cardiovascular disease[J].Neuroscience&Biobehavioral Reviews, 2017, 74: 269-276. [4] TOMIYAMA A J. Stress and obesity[J].Annual Review of Psychology, 2019, 70: 703-718.doi:10.1146/annurev-psych-010418-102936 [5] MIRANDA A R, SCOTTA A V, MÉNDEZ A L,et al. Public sector workers’ mental health in Argentina: Comparative psychometrics of the perceived stress scale[J].Journal of Preventive Medicine&Public Health, 2020, 53(6): 429-438. [6] LIMA B B, HAMMADAH M, PEARCE B D,et al. Association of posttraumatic stress disorder with mental stress–induced myocardial ischemia in adults after myocardial infarction[J].JAMA Network Open, 2020, 3(4): e202734.doi:10.1001/jamanetworkopen.2020.2734 [7] CAMM A J, MALIK M, BIGGER J T,et al. Heart rate variability: standards of measurement, physiological interpretation, and clinical use. Task force of the European society of cardiology and the North American society of pacing and electrophysiology[J].Circulation, 1996, 93(5): 1043-1065.doi:10.1161/01.CIR.93.5.1043 [8] PHAM T, LAU Z J, CHEN S H A,et al. Heart rate variability in psychology: a review of HRV indices and an analysis tutorial[J].Sensors, 2021, 21(12): 3998.doi:10.3390/s21123998 [9] GEDAM S, PAUL S. A review on mental stress detection using wearable sensors and machine learning techniques[J].IEEE Access, 2021, 9: 84045-84066.doi:10.1109/ACCESS.2021.3085502 [10] ZENG ZH K, HUANG ZH, LENG K M,et al. Nonintrusive monitoring of mental fatigue status using epidermal electronic systems and machine-learning algorithms[J].ACS Sensors, 2020, 5(5): 1305-1313.doi:10.1021/acssensors.9b02451 [11] CHARLTON P H, CELKA P, FARUKH B,et al. Assessing mental stress from the photoplethysmogram: a numerical study[J].Physiological Measurement, 2018, 39(5): 054001.doi:10.1088/1361-6579/aabe6a [12] CASTALDO R, MELILLO P, BRACALE U,et al. Acute mental stress assessment via short term HRV analysis in healthy adults: a systematic review with meta-analysis[J].Biomedical Signal Processing and Control, 2015, 18: 370-377.doi:10.1016/j.bspc.2015.02.012 [13] HEALEY J A, PICARD R W. Detecting stress during real-world driving tasks using physiological sensors[J].IEEE Transactions on Intelligent Transportation Systems, 2005, 6(2): 156-166.doi:10.1109/TITS.2005.848368 [14] CAI H SH, CHEN Y F, HAN J SH,et al. Study on feature selection methods for depression detection using three-electrode EEG data[J].Interdisciplinary Sciences:Computational Life Sciences, 2018, 10(3): 558-565.doi:10.1007/s12539-018-0292-5 [15] POURMOHAMMADI S, MALEKI A. Stress detection using ECG and EMG signals: a comprehensive study[J].Computer Methods and Programs in Biomedicine, 2020, 193: 105482.doi:10.1016/j.cmpb.2020.105482 [16] VERKRUYSSE W, SVAASAND L O, NELSON J S. Remote plethysmographic imaging using ambient light[J].Optics Express, 2008, 16(26): 21434-21445.doi:10.1364/OE.16.021434 [17] KAUR B, MOSES S, LUTHRA M,et al. Remote stress detection using a visible spectrum camera[J].Proceedings of SPIE, 2015, 9496: 949602. [18] ALGHOUL K, ALHARTHI S, AL OSMAN H,et al. Heart rate variability extraction from videos signals: ICA vs. EVM comparison[J].IEEE Access, 2017, 5: 4711-4719.doi:10.1109/ACCESS.2017.2678521 [19] WEI J, LUO H, WU S J,et al. Transdermal optical imaging reveal basal stress via heart rate variability analysis: a novel methodology comparable to electrocardiography[J].Frontiers in Psychology, 2018, 9: 98.doi:10.3389/fpsyg.2018.00098 [20] 孔令琴, 陈飞, 赵跃进, 等. 融合心率变异性与表情的非接触心理压力检测[J]. 光学学报,2021,41(3):0310003.doi:10.3788/AOS202141.0310003KONG L Q, CHEN F, ZHAO Y J,et al. Non-contact psychological stress detection combining heart rate variability and facial expressions[J].Acta Optica Sinica, 2021, 41(3): 0310003. (in Chinese)doi:10.3788/AOS202141.0310003 [21] LISTER T, WRIGHT P A, CHAPPELL P H. Optical properties of human skin[J].Journal of Biomedical Optics, 2012, 17(9): 090901. [22] 孔令琴. 非接触式生理信号检测关键技术研究[D]. 北京: 北京理工大学, 2014.KONG L Q. Research on key techniques of the noncontact detection of physiological signals[D]. Beijing: Beijing Institute of Technology, 2014. (in Chinese) [23] LI X B, CHEN J, ZHAO G Y,et al. . Remote heart rate measurement from face videos under realistic situations[C].Proceedings of the 2014 IEEE Conference on Computer Vision and Pattern Recognition, IEEE, 2014: 4264-4271. [24] ZHAO CH CH, CAO P CH, XU SH SH,et al. .Pruning rPPG networks: toward small dense network with limited number of training samples[C].Proceedings of the 2022 IEEE/CVF Conference on Computer Vision and Pattern Recognition Workshops, IEEE, 2022: 2054-2063. [25] HONG J, KWON J. Optimal visual tracking using Wasserstein transport proposals[J].Expert Systems with Applications, 2022, 209: 118251.doi:10.1016/j.eswa.2022.118251 [26] GRISHCHENKO I, ABLAVATSKI A, KARTYNNIK Y,et al. Attention mesh: High-fidelity face mesh prediction in real-time[J].arXiv preprint arXiv: , 2006, 10962: 2020. [27] BAZAREVSKY V, KARTYNNIK Y, VAKUNOV A,et al. BlazeFace: sub-millisecond neural face detection on mobile GPus[J].arXiv preprint arXiv: , 1907, 05047: 2019. [28] 嵇晓强, 刘振瑶, 李炳霖, 等. 面部视频非接触式生理参数感知[J]. 中国光学,2022,15(2):276-285.doi:10.37188/CO.2021-0157JI X Q, LIU ZH Y, LI B L,et al. Non-contact perception of physiological parameters from videos of faces[J].Chinese Optics, 2022, 15(2): 276-285. (in Chinese)doi:10.37188/CO.2021-0157 [29] FRACHI Y, TAKAHASHI T, WANG F Q,et al. .Design of emotion-driven game interaction using biosignals[C].Proceedings of the 4th International Conference on Human-Computer Interaction, Springer, 2022: 160-179. [30] ARSALAN A, ANWAR S M, MAJID M. Mental stress detection using data from wearable and non-wearable sensors: a review[J].arXiv preprint arXiv: , 2202, 03033: 2022. [31] 李昂, 王永刚, 邬志强, 等. 光学加工过程中高次非球面的三坐标测量数据处理[J]. 中国光学,2020,13(2):302-312.doi:10.3788/co.20201302.0302LI A, WANG Y G, WU ZH Q,et al. Data processing of high-order aspheric surface measurements using CMM in optical fabrication[J].Chinese Optics, 2020, 13(2): 302-312. (in Chinese)doi:10.3788/co.20201302.0302 [32] TOÇOĞLU M A, ONAN A. Sentiment analysis on students’ evaluation of higher educational institutions[C].Proceedings of the International Conference on Intelligent and Fuzzy Systems, Springer, 2020: 1693-1700. [33] ONAN A, KORUKOĞLU S, BULUT H. Ensemble of keyword extraction methods and classifiers in text classification[J].Expert Systems with Applications, 2016, 57: 232-247.doi:10.1016/j.eswa.2016.03.045 -
