机载宽温条件下反射镜组件与粘接层设计

张家齐,郭艺博,张友建,张志华

downloadPDF
张家齐, 郭艺博, 张友建, 张志华. 机载宽温条件下反射镜组件与粘接层设计[J]. , 2023, 16(3): 578-586. doi: 10.37188/CO.2022-0194
引用本文: 张家齐, 郭艺博, 张友建, 张志华. 机载宽温条件下反射镜组件与粘接层设计[J]. , 2023, 16(3): 578-586.doi:10.37188/CO.2022-0194
ZHANG Jia-qi, GUO Yi-bo, ZHANG You-jian, ZHANG Zhi-hua. Design of reflector assembly and adhesive layer under airborne wide temperature conditions[J]. Chinese Optics, 2023, 16(3): 578-586. doi: 10.37188/CO.2022-0194
Citation: ZHANG Jia-qi, GUO Yi-bo, ZHANG You-jian, ZHANG Zhi-hua. Design of reflector assembly and adhesive layer under airborne wide temperature conditions[J].Chinese Optics, 2023, 16(3): 578-586.doi:10.37188/CO.2022-0194

机载宽温条件下反射镜组件与粘接层设计

doi:10.37188/CO.2022-0194
基金项目:国家自然科学基金重大研究计划(No. 91338116)
详细信息
    作者简介:

    张家齐(1985—),男,吉林白山人,博士,助理研究员,硕士生导师,2019年于长春理工大学获得博士学位,主要从事伺服跟踪结构、光机系统集成方面的研究。E-mail:zjq_cust@foxmail.com

    郭艺博(1998—),男,河南周口人,硕士研究生,2020年于长春理工大学获得学士学位,主要从事 通信终端、伺服转台结构方面的研究。E-mail:17843081568@163.com

    张友建(1992—),男,吉林敦化人,硕士,2020年于长春理工大学获得硕士学位,主要从事光机结构设计、伺服转台结构方面的研究。E–mail:756919950@qq.com

    张志华(1998—),男,山东青岛人,硕士研究生,2021年于青岛农业大学获得学士学位,主要从事光电跟瞄装置、伺服转台结构方面的研究。E-mail:zhangzhihua257@163.com

  • 中图分类号:V248.1

Design of reflector assembly and adhesive layer under airborne wide temperature conditions

Funds:Supported by the Major Research plan of the National Natural Science Foundation of China (No. 91338116)
More Information
  • 摘要:

    在机载宽温且反射镜镀膜温度较高的条件下,针对传统反射镜镶嵌件粘接工艺导致反射镜粘接失效、铟钢镶嵌件和反射镜线胀系数差异导致宽温下反射镜面型急剧下降的问题,提出了一种反射镜加工镀膜后再粘接镶嵌件的方法,并对其胶层参数进行研究。采用硅橡胶作为主粘接剂粘接反射镜与镶嵌件,利用硅橡胶固化后良好的弹性缓解支撑件热变形对反射镜面型的影响。通过多目标优化选取合适的硅橡胶粘接厚度1.1 mm,硅橡胶宽度7.2 mm,环氧胶厚度0.022 mm。仿真结果显示在重力及温度变化为−40 °C时(初始温度为20 °C),反射镜面型精度RMS值为25.91 nm,镜组模态一阶频率为242 Hz。最终面型检测RMS值为15.8 nm,结构谐振频率为213 Hz。试验结果显示,此方案使反射镜组件适用于大温差条件下工作,其结构和粘接层设计能够满足机载宽温和振动条件下的使用要求。

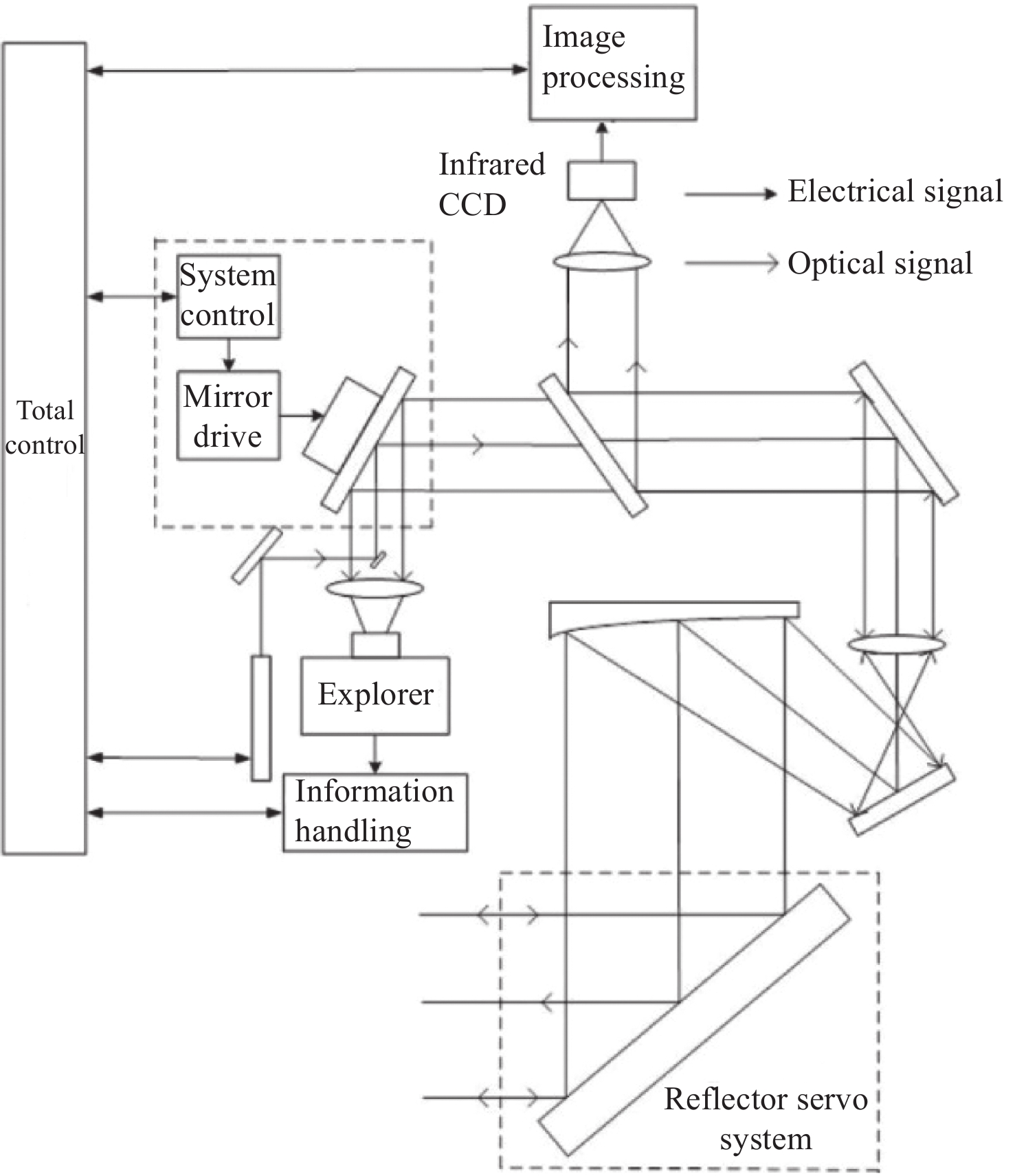

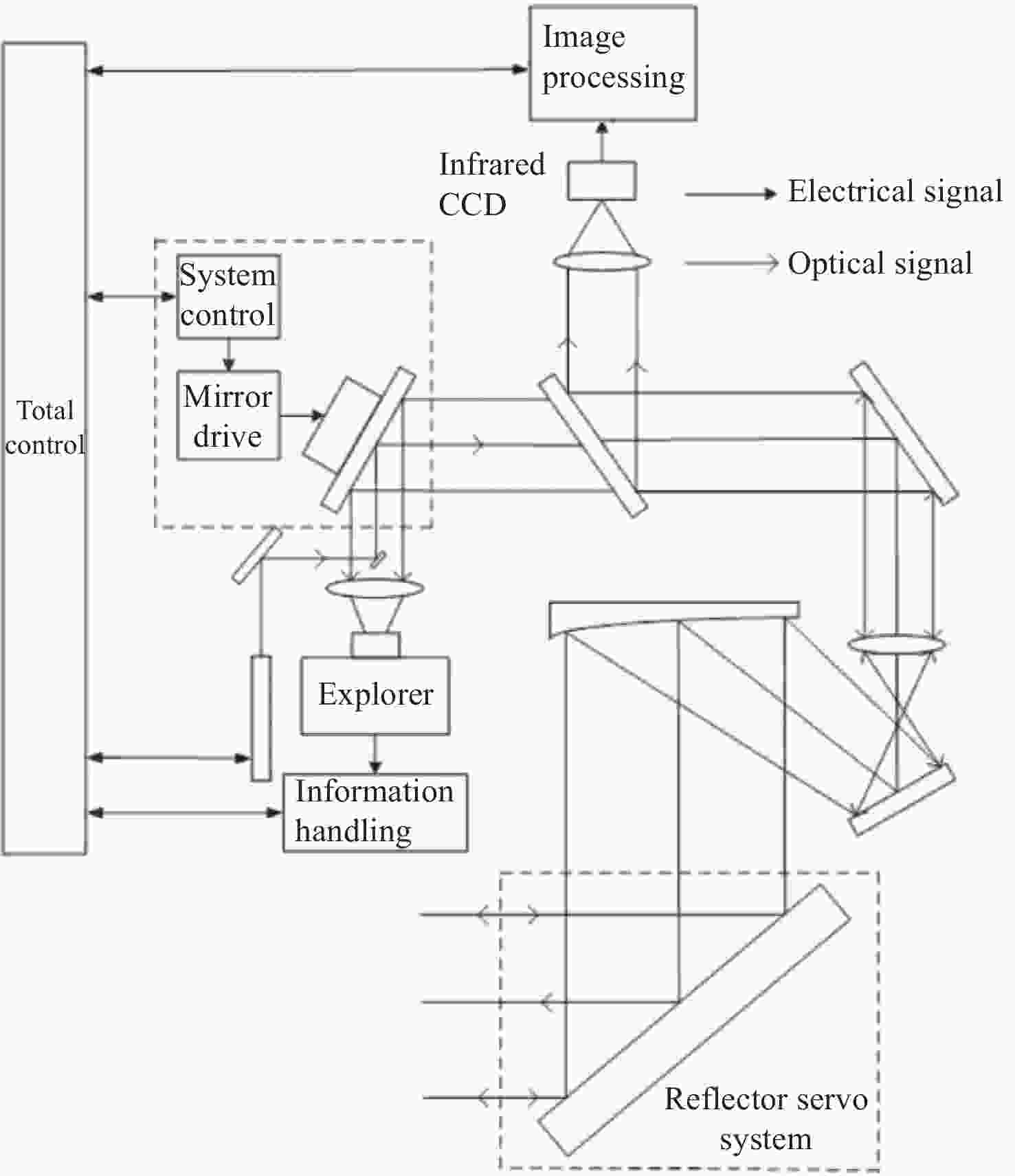

  • 图 1机载红外搜跟系统原理

    Figure 1.Principle of the airborne infrared searching and tracking system

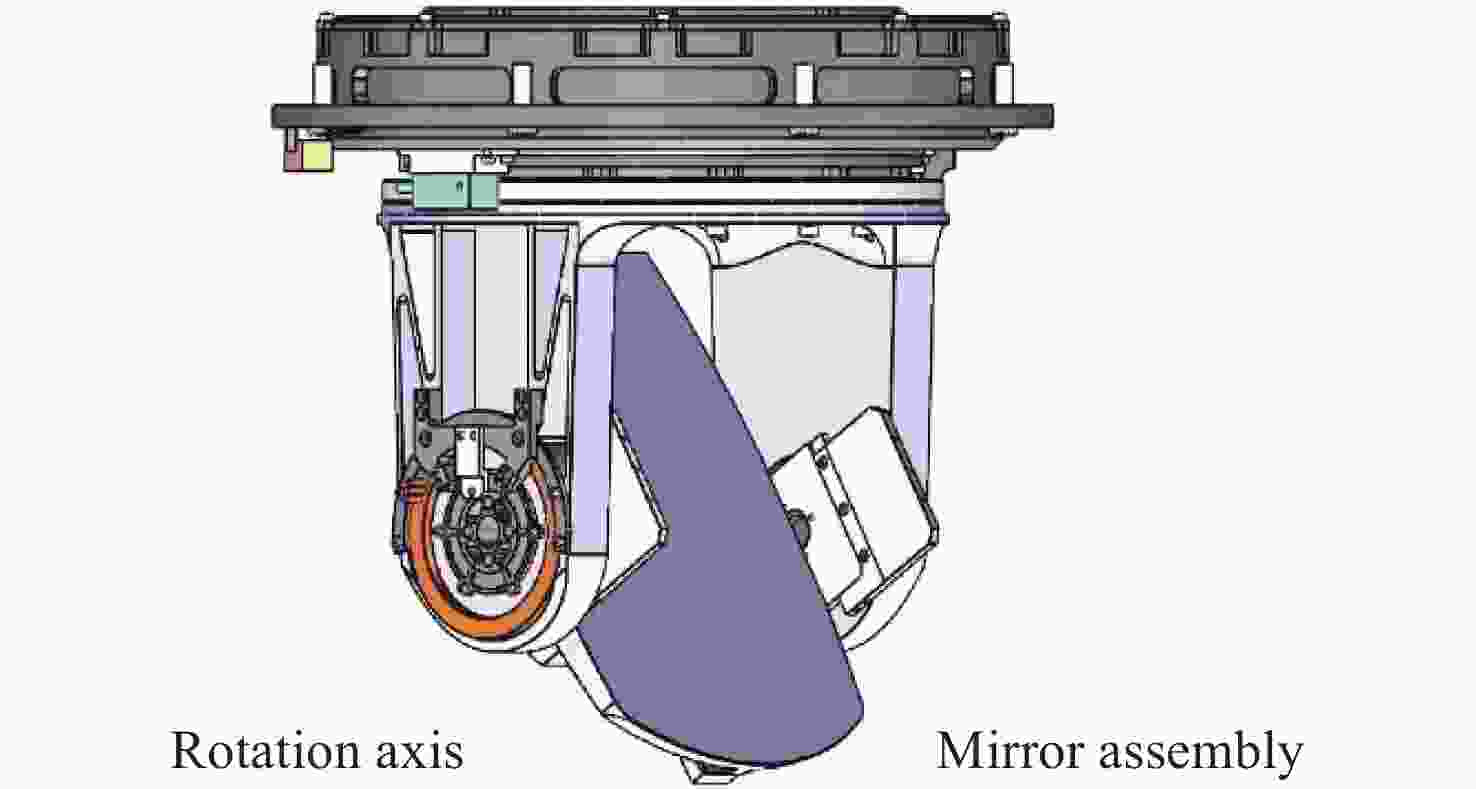

    图 2单反镜伺服系统三维模型

    Figure 2.Three-dimensional model of the mirror servo system

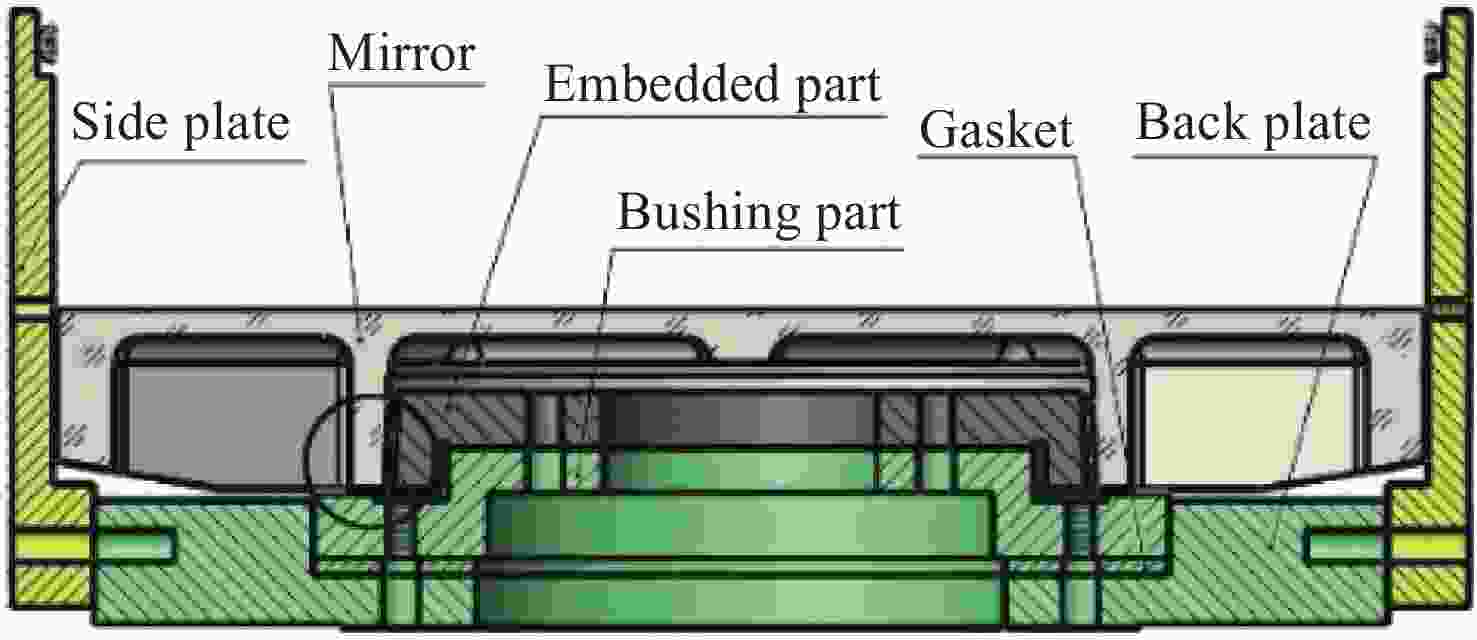

    图 3反射镜组件沿回转轴剖视结构

    Figure 3.Profile view of mirror assembly along the axis of rotation

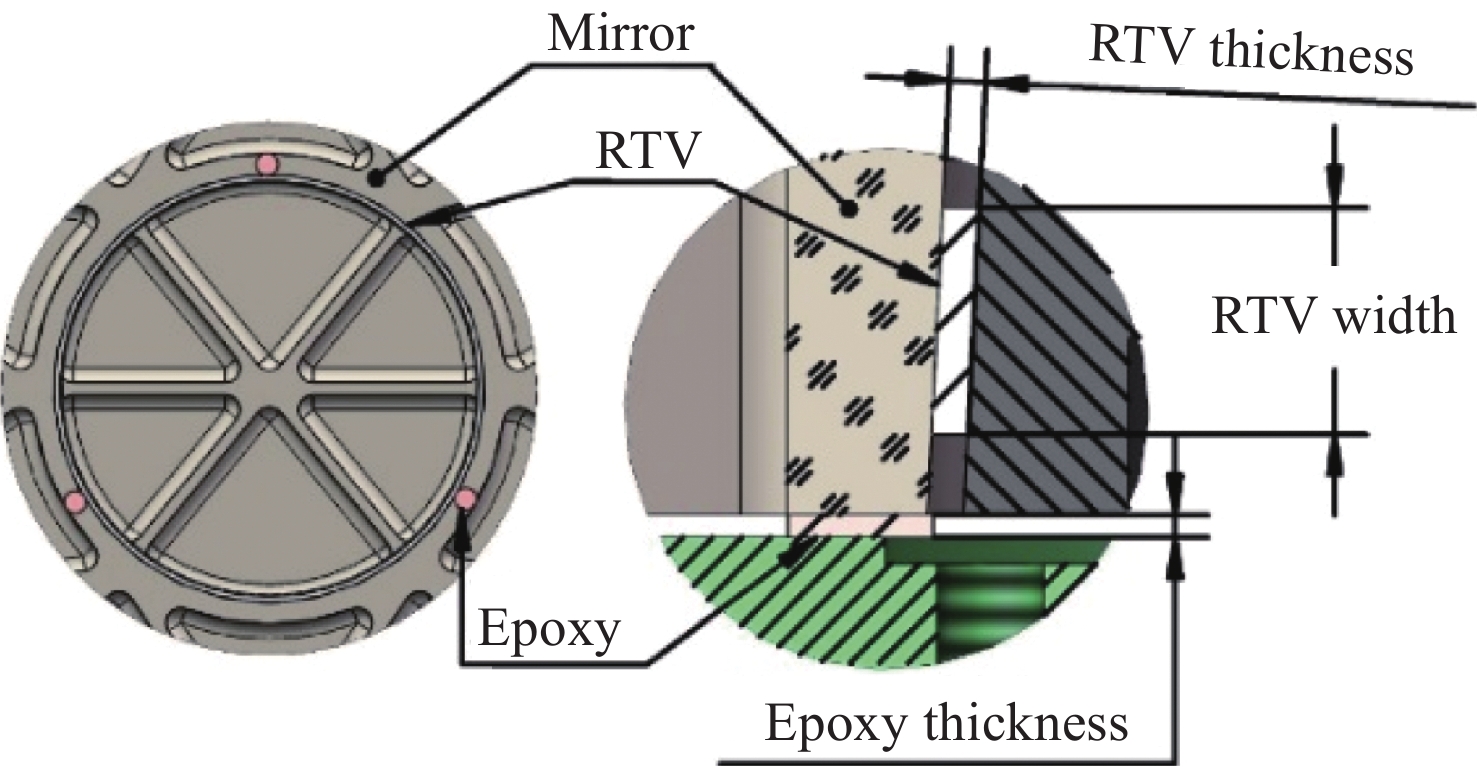

    图 4胶层布置方案

    Figure 4.Adhesive layer arrangement scheme

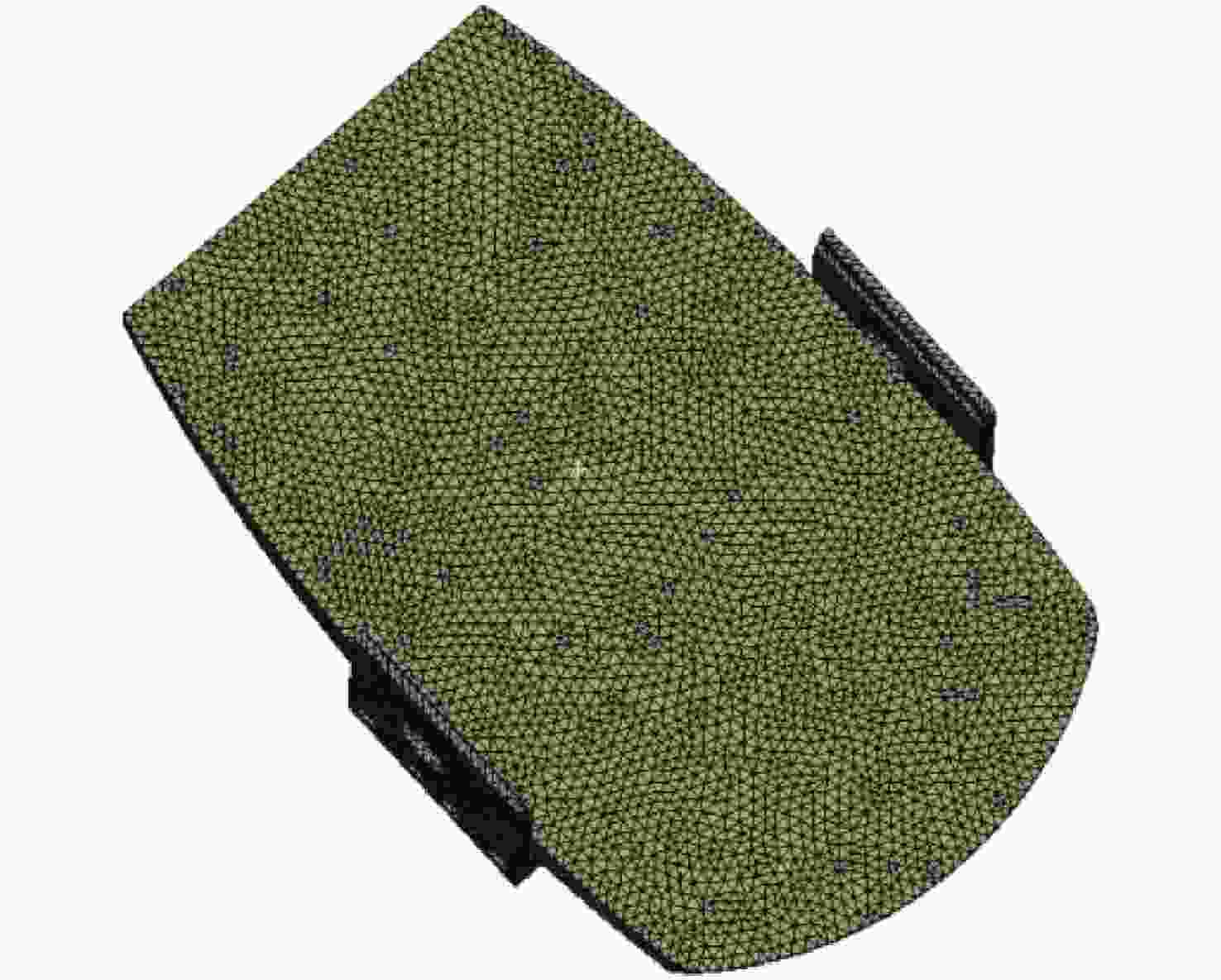

    图 5反射镜组件有限元结构模型

    Figure 5.Finite element structural model of the mirror assembly

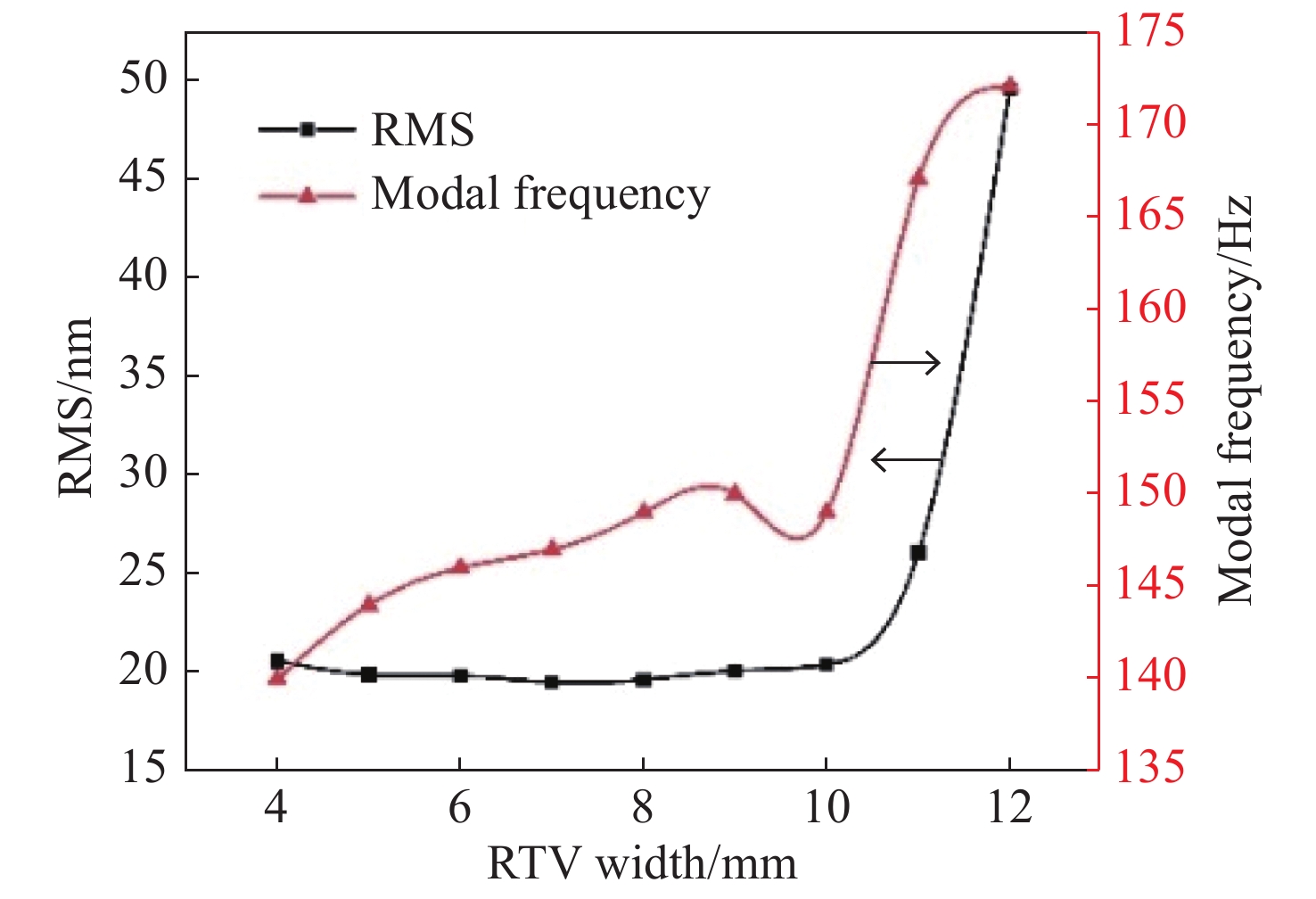

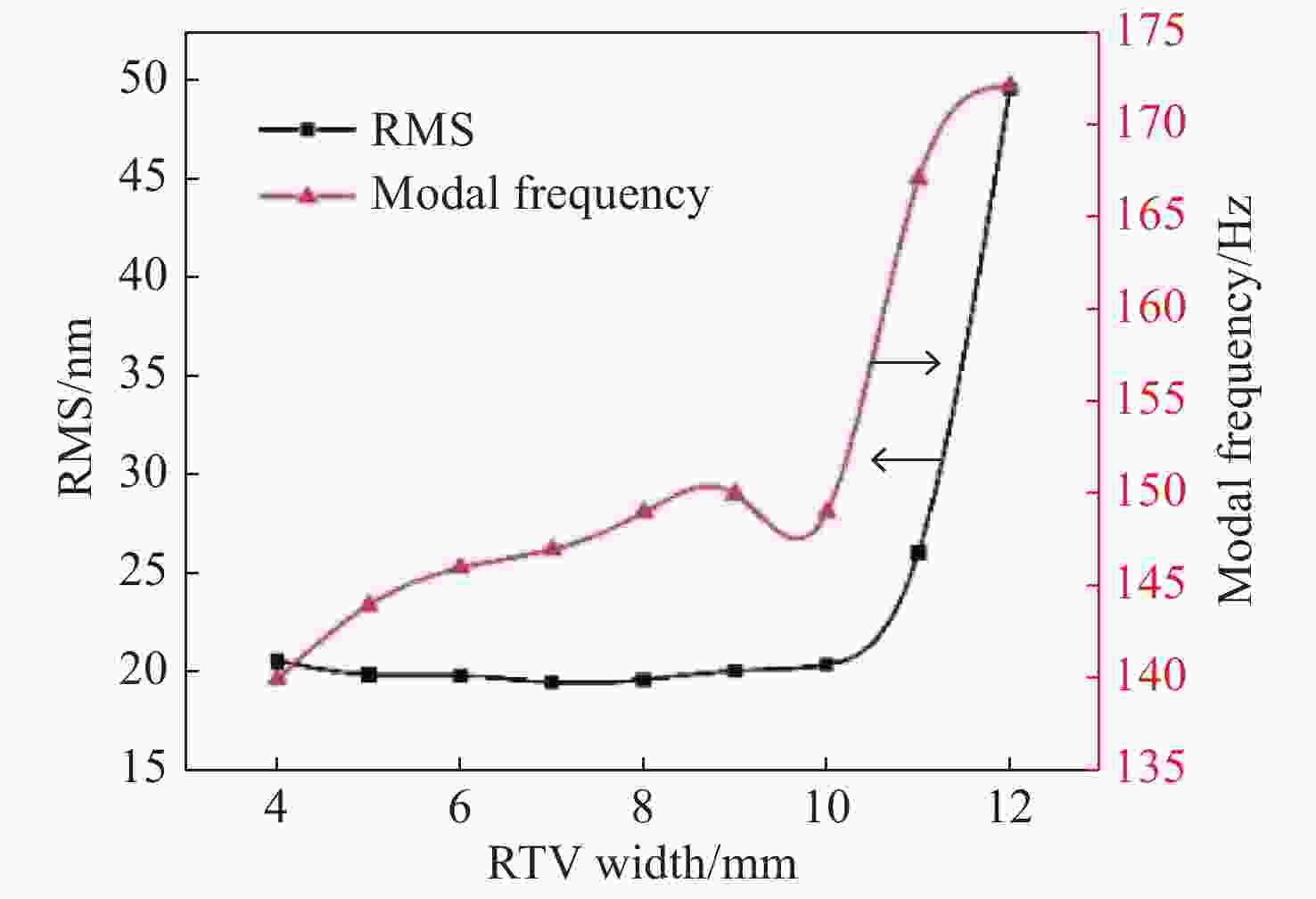

    图 6RTV宽度对反射镜面型及镜组模态频率的影响

    Figure 6.Influence of RTV width on mirror shape and mirror group modal frequency

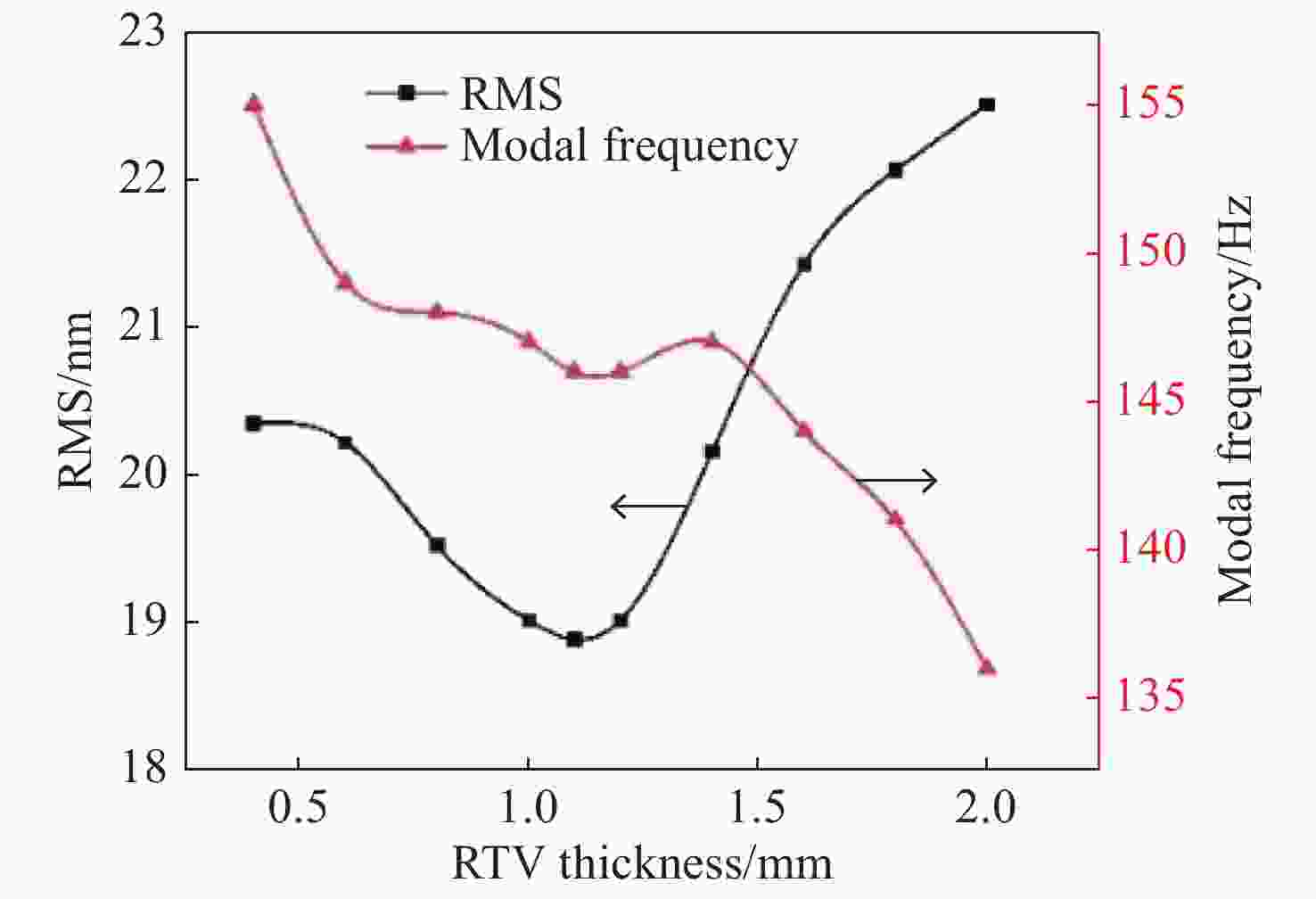

    图 7RTV厚度对反射镜面型及镜组模态频率的影响

    Figure 7.Influence of RTV thickness on mirror shape and mirror group modal frequency

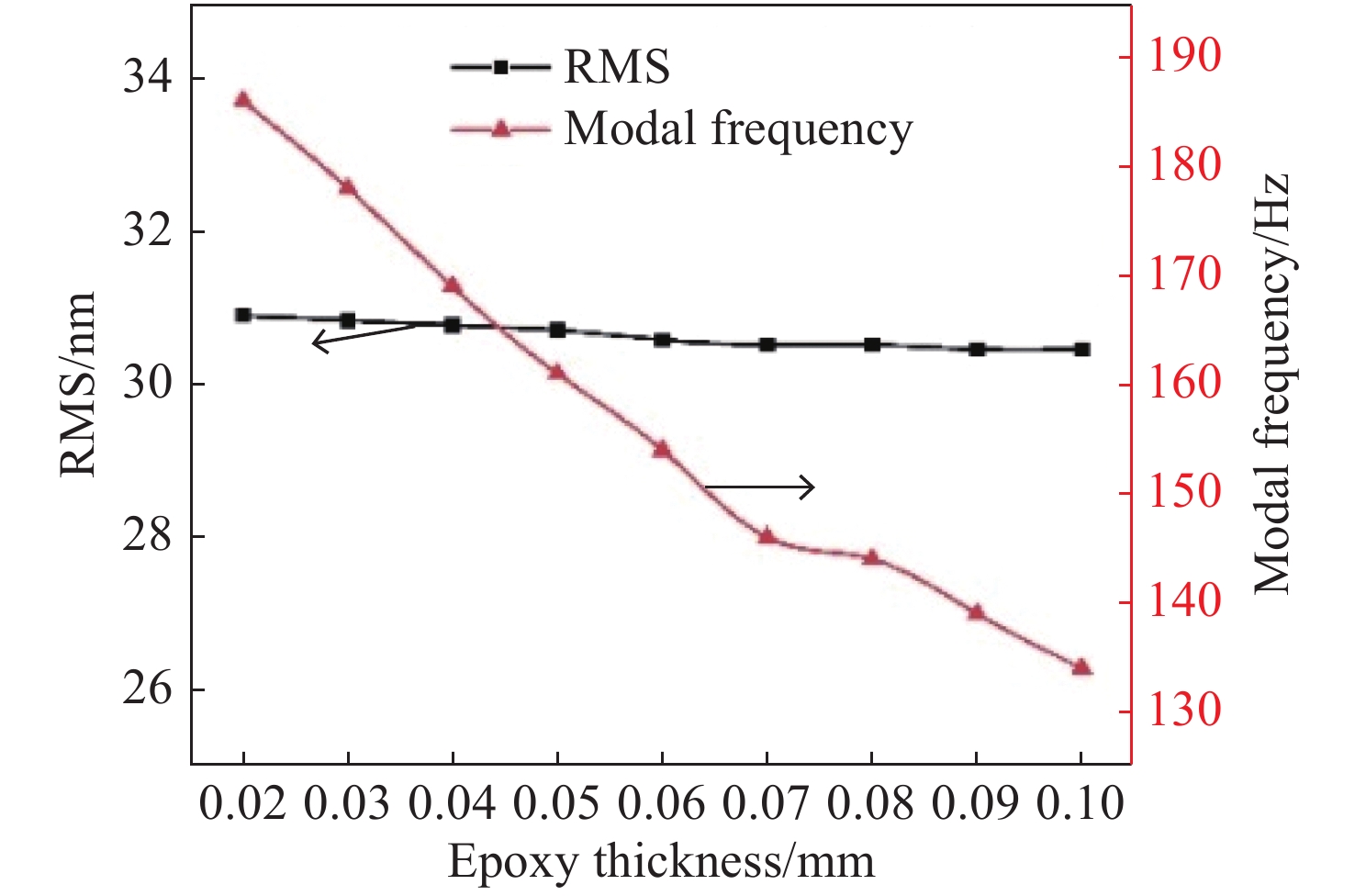

    图 8环氧胶厚度对反射镜面型及镜组模态频率的影响

    Figure 8.Effect of epoxy adhesive thickness on mirror shape and mirror group modal frequency

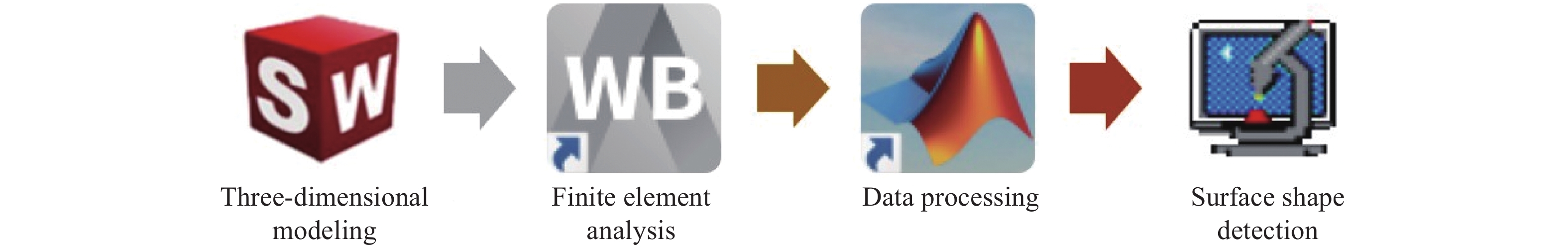

    图 9反射镜面型仿真拟合流程图

    Figure 9.Flow chart of mirror shape simulation

    图 10ZYGO干涉仪面型拟合结果

    Figure 10.ZYGO interferometer fitting results

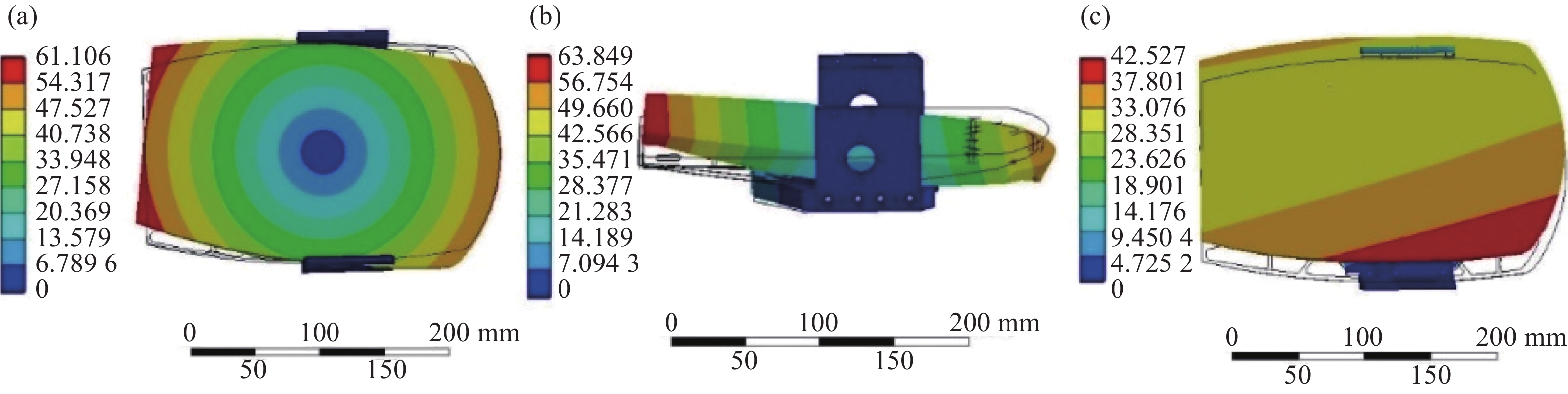

    图 11组件模态分析位移云图。(a)一阶模态;(b)二阶模态;(c)三阶模态

    Figure 11.Displacement cloud diagram of the structural modal analysis. (a) First-order mode; (b) second-order mode; (c) third-order mode

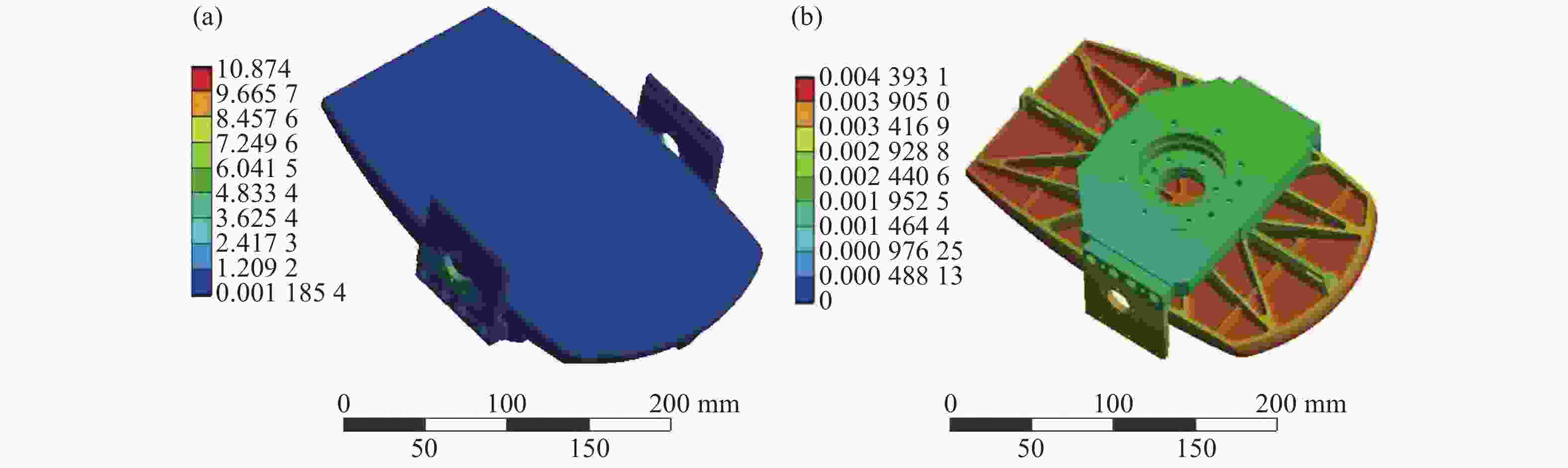

    图 12(a)随机振动结构应力云图;(b)冲击试验应力云图

    Figure 12.(a) Stress nephogram of a random vibration structure; (b) impact test stress nephogram

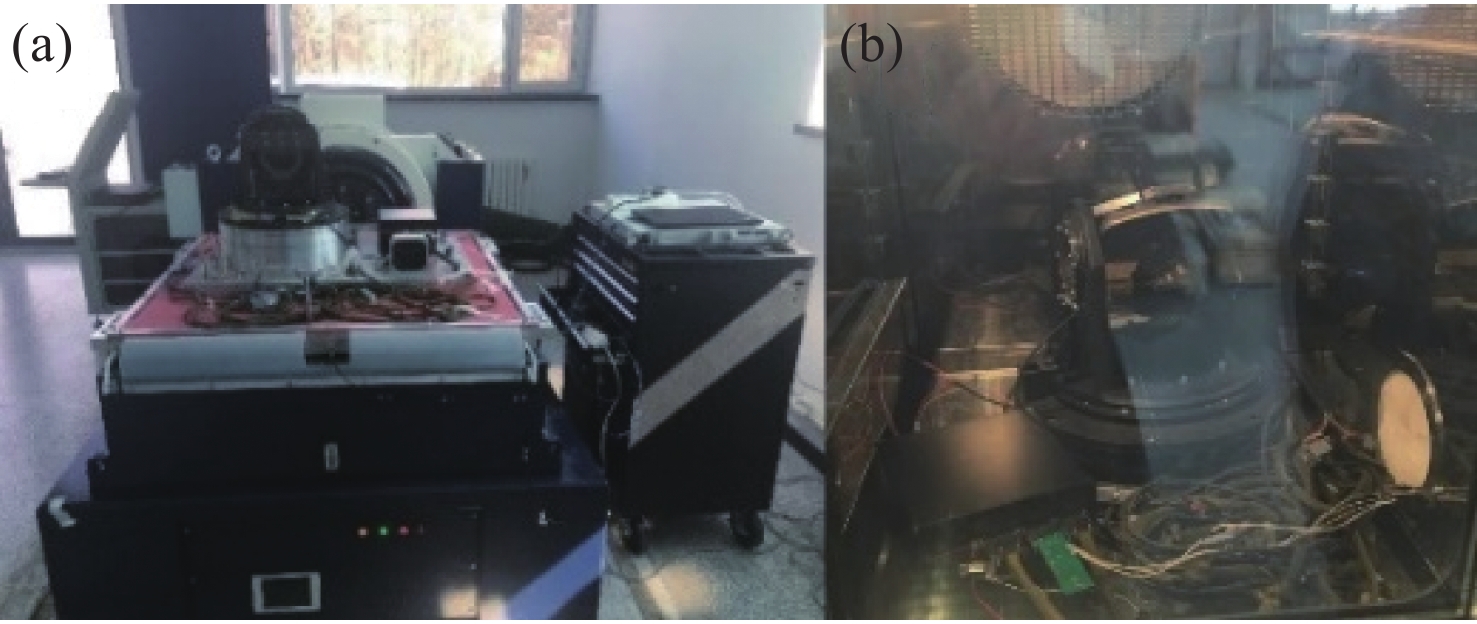

    图 13反射镜组件试验现场。(a)随机振动;(b)温度冲击试验

    Figure 13.Test site of mirror assembly. (a) Random vibration; (b) temperature impact test

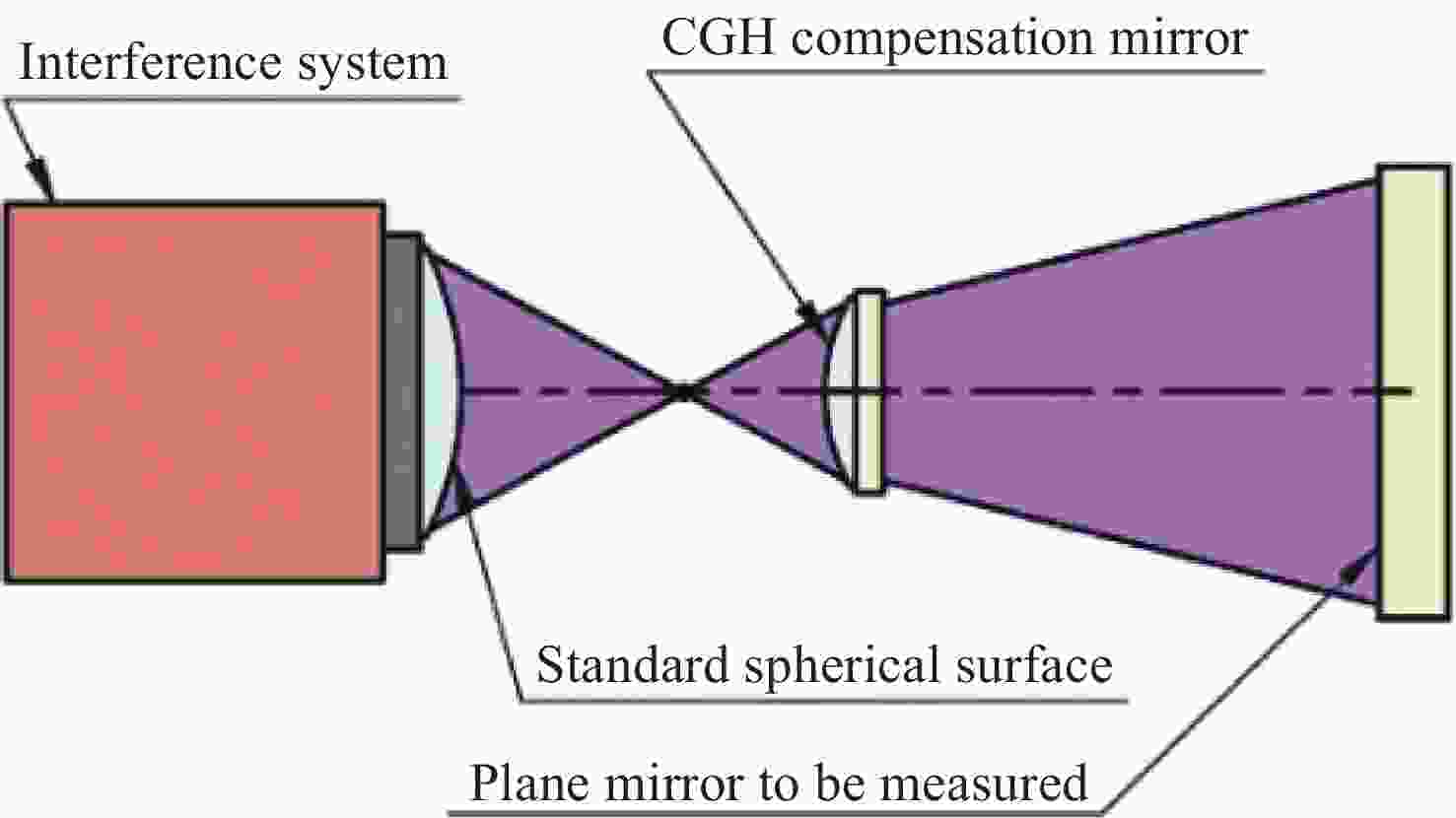

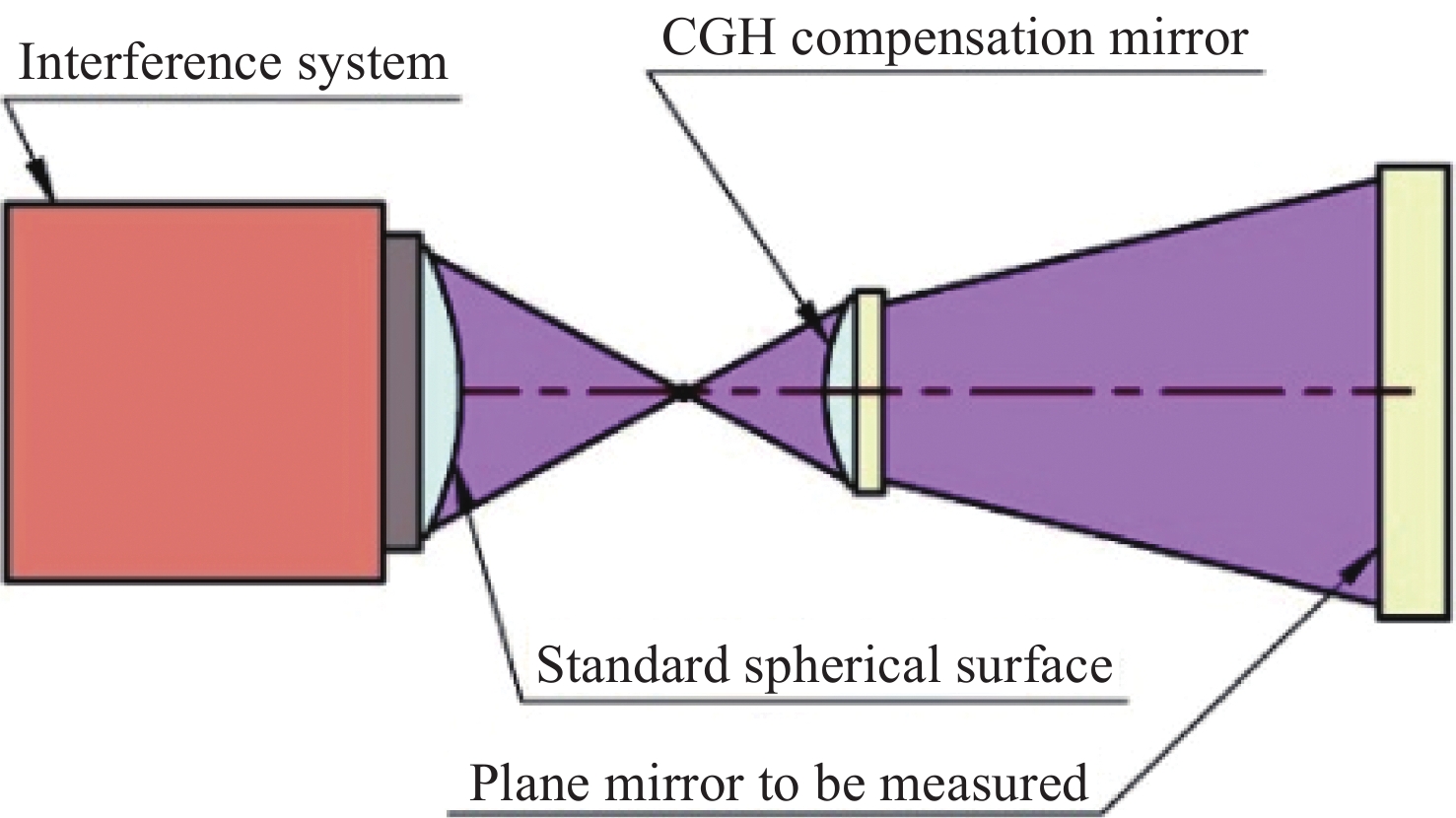

    图 14反射镜面型检测光路图

    Figure 14.Optical path diagram for shape accuracy measurement of the mirror

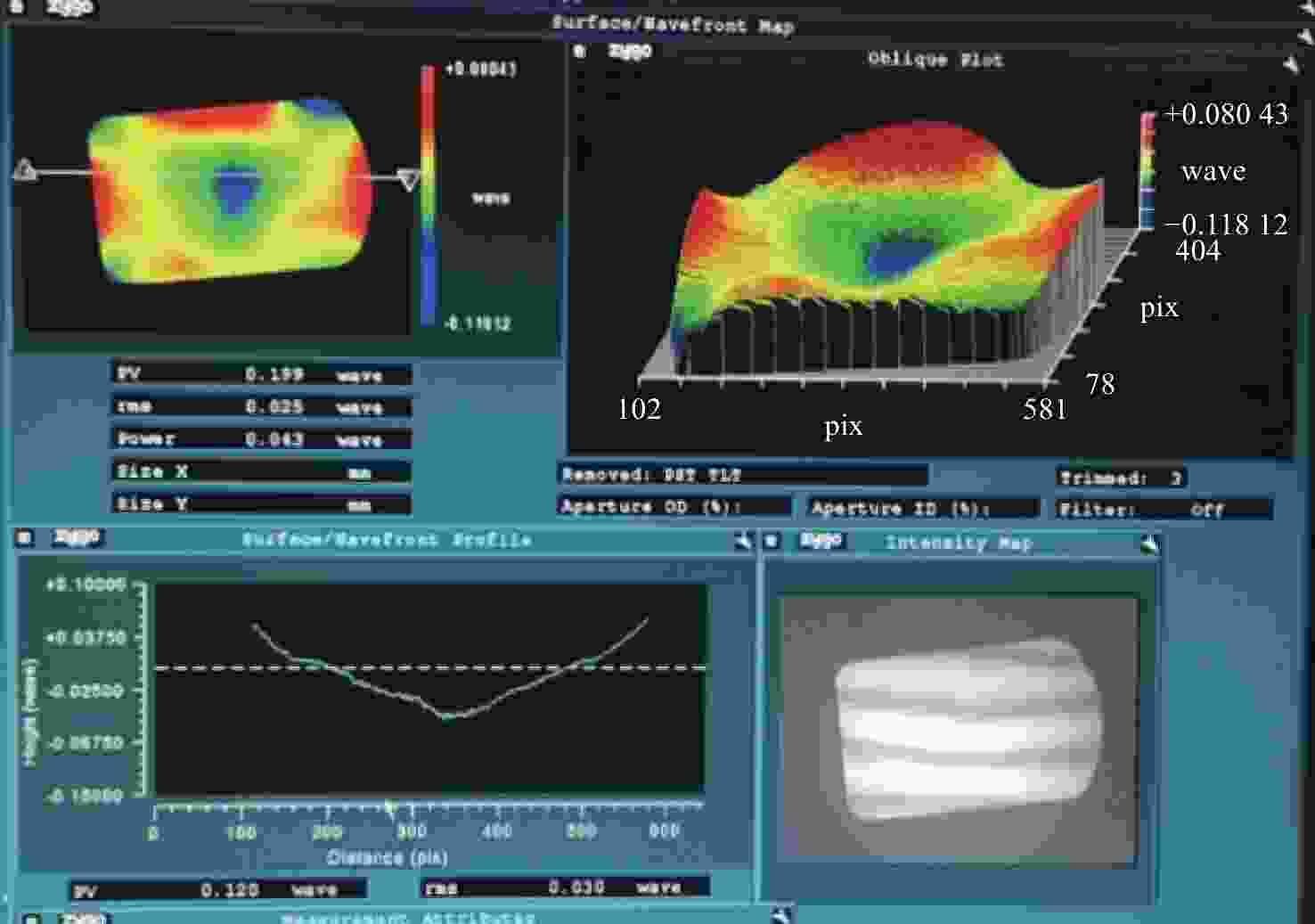

    图 15整体结构实际检测面型

    Figure 15.Measuring the surface shape accuracy of the integral structure

    表 1反射镜组件材料表

    Table 1.List of materials for mirror assemblies

    Structure Material Density
    ρ/(g·cm−3)
    Young's modulus
    E/GPa
    CTE
    α(10−6/K)
    Thermal conductivity
    λ/[W/(m·k)]
    Specific stiffness
    E/ρ(10−6·GNm/g)
    Thermal distortion ratio
    λ/α(106W/m)
    mirror SiC 3.2 450 2.3 155.00 140 64.58
    back plate, side plate,
    bushing part, embedded
    part, gasket
    4J32 8.1 150 2.5 145.00 18.5 11
    下载: 导出CSV

    表 25种工况下反射镜面型拟合结果

    Table 2.Shape fitting results of the mirror under five working conditions

    环境温度 20 °C 20 °C 20 °C -40 °C 60 °C
    重力方向 X Y Z Z Z
    PV值/nm 25.91 22.12 55.45 123.87 96.78
    RMS值/nm 3.73 3.63 10.25 25.91 17.55
    下载: 导出CSV
