基于双自由度转台的全向空间单目视觉室内定位测量方法

吴军,王豪爽,单腾飞,郭润夏,张晓瑜,陈玖圣

downloadPDF
吴军, 王豪爽, 单腾飞, 郭润夏, 张晓瑜, 陈玖圣. 基于双自由度转台的全向空间单目视觉室内定位测量方法[J]. . doi: 10.37188/CO.2023-0106
引用本文: 吴军, 王豪爽, 单腾飞, 郭润夏, 张晓瑜, 陈玖圣. 基于双自由度转台的全向空间单目视觉室内定位测量方法[J]. .doi:10.37188/CO.2023-0106
WU Jun, WANG Hao-shuang, SHAN Teng-fei, GUO Run-xia, ZHANG Xiao-yu, CHEN Jiu-sheng. Omnidirectional spatial monocular vision indoor localization measurement based on a two-degree-of-freedom rotary table[J]. Chinese Optics. doi: 10.37188/CO.2023-0106
Citation: WU Jun, WANG Hao-shuang, SHAN Teng-fei, GUO Run-xia, ZHANG Xiao-yu, CHEN Jiu-sheng. Omnidirectional spatial monocular vision indoor localization measurement based on a two-degree-of-freedom rotary table[J].Chinese Optics.doi:10.37188/CO.2023-0106

基于双自由度转台的全向空间单目视觉室内定位测量方法

doi:10.37188/CO.2023-0106
基金项目:国家自然科学基金(No. 52375557,No. 52005500,No. 62173331);中央高校基本科研业务费高水平成果培育专项;中央高校科研基本业务费(No. 3122023PY06),中央高校基本科研业务费高水平成果培育专项,中央高校科研基本业务费(No. 3122023044)
详细信息
    作者简介:

    吴 军(通信作者)男,2009年于天津大学获得学士学位,2014年于天津大学获得博士学位,现为中国民航大学副教授,主要研究方向为 与视觉检测技术。E-mail:wujuncauc@163.com

  • 中图分类号:TB96

Omnidirectional spatial monocular vision indoor localization measurement based on a two-degree-of-freedom rotary table

Funds:Supported by National Natural Science Foundation of China (No. 52375557,No. 52005500,No. 62173331); Special project for the cultivation of high-level achievements in the basic scientific research business funds of central universities (No. 3122023PY06); Basic business expenses for scientific research in central universities (No. 3122023044)
More Information
  • 摘要:

    针对传统单目视觉测量系统测量视场有限的问题,本文提出一种基于双自由度旋转平台的全向空间单目视觉测量方法。首先,对双自由度旋转平台的转轴参数进行标定,用副相机拍摄与双自由度转台固定的棋盘格标定板,对棋盘格角点的位置坐标进行提取并转化到同一相机坐标系下;利用PCA(主成分分析)平面拟合得到初始位置转轴参数中的方向向量,通过使用空间最小二乘圆拟合的方法,得到初始位置时转轴参数中的位置参数;然后,通过转台转动的角度以及罗德里格斯公式将不同位置下相机获取的数据进行坐标系统一,实现水平和竖直方向全向空间下的目标测量;最后,通过高精度 测距仪验证了本方法的测量精度,并通过与双目视觉测量系统、wMPS测量系统进行比对实验,验证了本方法的全向空间测量能力。实验结果表明,本方法测量精度基本达到双目视觉测量系统水平,但测量范围远大于双目视觉测量,可以满足全向空间测量要求。

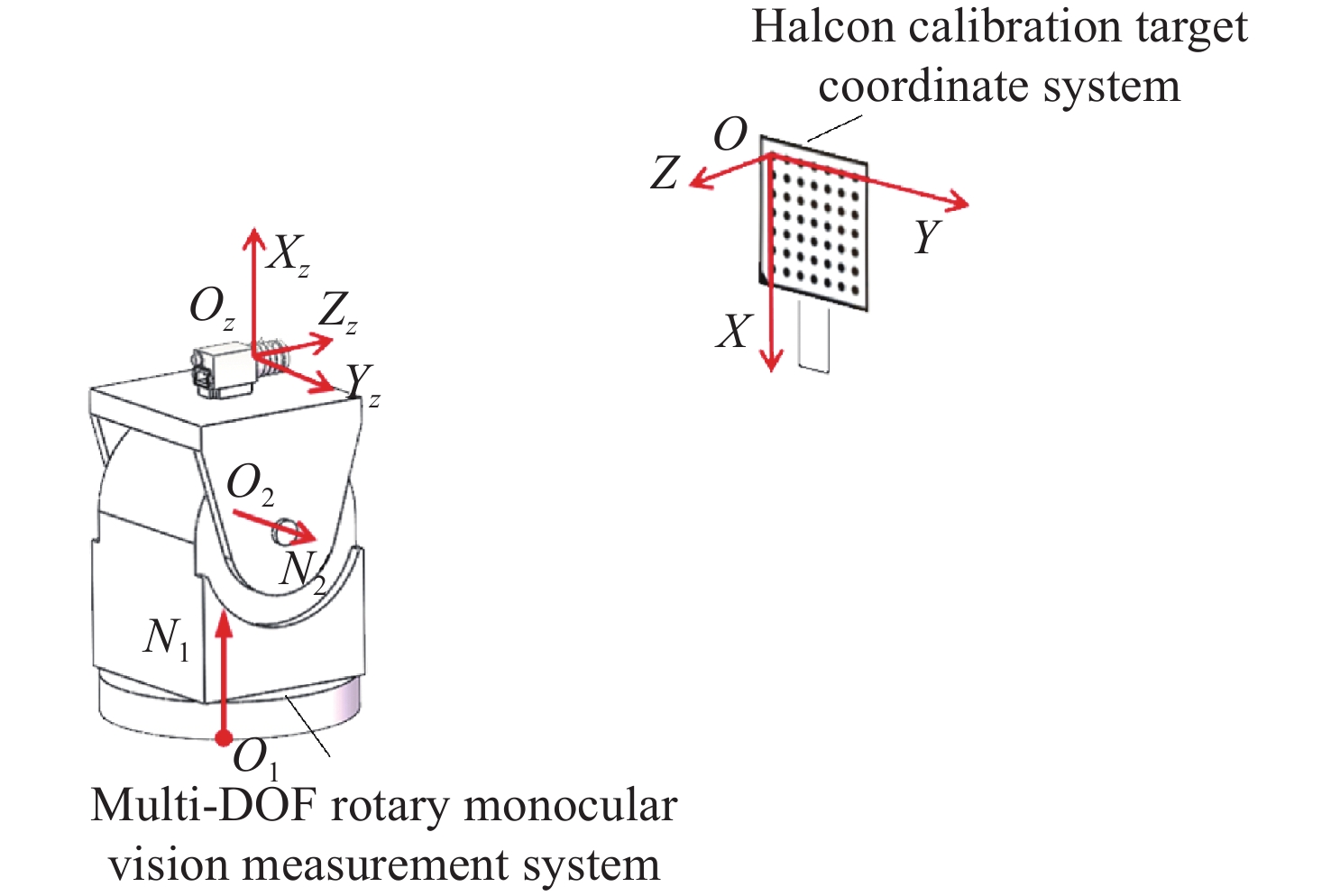

  • 图 1测量系统原理图

    Figure 1.Measurement system schematic diagram

    图 2转台转轴原理图

    Figure 2.Schematic diagram of rotary table spindle

    图 3算法流程图

    Figure 3.Algorithm flow chart

    图 4转轴参数标定原理图

    Figure 4.Schematic diagram for calibration of spindle parameters

    图 5全空间测量实验装置图

    Figure 5.Diagram of the full-space measurement experimental setup

    图 6wMPS与圆形标定板连接装置图

    Figure 6.Diagram of the connection device between wMPS and circular calibration plate

    图 7转轴标定实验装置图

    Figure 7.Diagram of the experimental setup for calibrating the spindle

    图 8角点位姿转换坐标系后拟合结果

    Figure 8.Fitting result after transforming the corner point pose data to a coordinate system

    图 9在初始位置竖直方向圆拟合结果

    Figure 9.Circle fitting results in the vertical direction at the initial position

    图 10测量精度验证实验

    Figure 10.Measurement accuracy verification experiments

    图 11wMPS、双目与本实验方法目标点路径对比

    Figure 11.Comparison of target point paths for wMPS, binocular and this experimental method

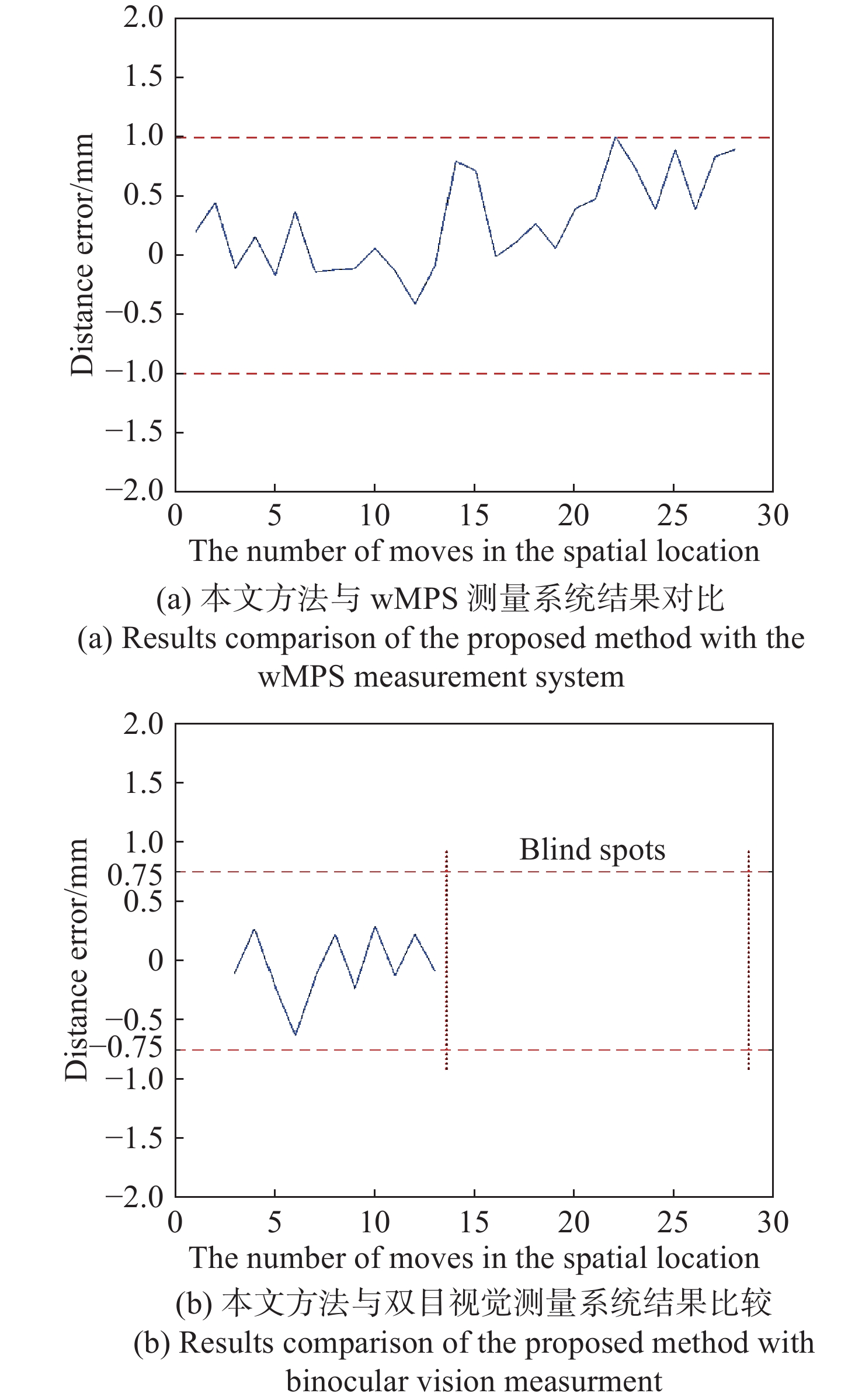

    图 12各个相邻位置的目标点之间距离误差结果

    Figure 12.Distance error results between target points at each neighboring location

    图 13本文测量方法与wMPS测量系统比较各个位置目标点位置误差结果

    Figure 13.Comparison of the measurement method described in this paper with the wMPS measurement system for each location target point position error results

    表 1拟合转台参数

    Table 1.Fitting rotary table parameters

    Rotor parameters Experimental results/mm Error/mm
    Direction of vector (−0.0161, 0.9998,−0.0110) 0.24
    Rotor position (−45.0081, −121.0576, −24.8642) 0.54
    Direction of vector (−0.0347, −0.0171, −0.9993) 0.21
    Rotor position (−20.4812, 111.8834, 75.6437) 0.43
    下载: 导出CSV

    表 2测量结果对比

    Table 2.Comparison of measurement results

    Location Laser ranging/mm The ranging method in this paper/mm Error/mm
    1 78.50 78.81 0.31
    2 166.80 167.25 0.45
    3 273.40 273.76 0.36
    4 403.70 403.98 0.28
    5 1424.50 1424.13 0.37
    6 1501.80 1501.32 0.48
    7 1612.30 1611.91 0.39
    8 1740.60 1740.25 0.35
    9 1871.40 1871.11 0.29
    下载: 导出CSV

    表 3wMPS测量系统详细参数

    Table 3.Detailed parameters of the wMPS measurement system

    Content Parameter
    Working distance 5~25 m
    System measurement accuracy 10 m working area 0.25 mm
    39 m working area 0.50 mm
    The system measures the frequency 30 Hz
    下载: 导出CSV
  • [1] 张宁, 付炜平, 孟荣, 等. 室内空间定位方法研究综述[J]. 科学技术与工程,2022,22(3):882-892.

    ZHANG N, FU W P, MENG R,et al. Review on the indoor space positioning methods[J].Science Technology and Engineering, 2022, 22(3): 882-892. (in Chinese).
    [2] 孙大洋, 章荣炜, 李赞. 室内定位技术综述[J]. 无人系统技术,2020,3(3):32-46.doi:10.19942/j.issn.2096-5915.2020.03.005

    SUN D Y, ZHANG R W, LI Z. Survey of indoor localization[J].Unmanned Systems Technology, 2020, 3(3): 32-46. (in Chinese).doi:10.19942/j.issn.2096-5915.2020.03.005
    [3] 马培兴, 王玫, 周陬, 等. 基于行人航迹推算的蓝牙峰值检测方法[J]. 计算机应用研究,2022,39(3):851-856.doi:10.19734/j.issn.1001-3695.2021.09.0366

    MA P X, WANG M, ZHOU Z,et al. Bluetooth peak detection method based on PDR[J].Application Research of Computers, 2022, 39(3): 851-856. (in Chinese).doi:10.19734/j.issn.1001-3695.2021.09.0366
    [4] NEMRA A, AOUF N. Robust INS/GPS sensor fusion for UAV localization using SDRE nonlinear filtering[J].IEEE Sensors Journal, 2010, 10(4): 789-798.doi:10.1109/JSEN.2009.2034730
    [5] ZAFARI F, GKELIAS A, LEUNG K K. A survey of indoor localization systems and technologies[J].IEEE Communications Surveys & Tutorials, 2019, 21(3): 2568-2599.
    [6] WU Y Q, JIA ZH ZH, DAI Y P,et al. Research on WiFi location fingerprint positioning algorithm based on DPC-FCM clustering[J].Wireless Communications and Mobile Computing, 2022, 2022: 8347084.
    [7] 黄正宇, 陈益强, 刘军发, 等. 基于众包数据的室内定位方法和平台[J]. 地球信息科学学报,2016,18(11):1476-1484.

    HUANG ZH Y, CHEN Y Q, LIU J F,et al. Indoor localization method and platform based on crowdsourcing data[J].Journal of Geo-Information Science, 2016, 18(11): 1476-1484. (in Chinese).
    [8] SHU Y CH, HUANG Y H, ZHANG J Q,et al. Gradient-based fingerprinting for indoor localization and tracking[J].IEEE Transactions on Industrial Electronics, 2016, 63(4): 2424-2433.doi:10.1109/TIE.2015.2509917
    [9] 江德祥, 胡明清, 陈益强, 等. 基于核岭回归的自适应蓝牙定位方法[J]. 计算机应用研究,2010,27(9):3487-3489, 3492.doi:10.3969/j.issn.1001-3695.2010.09.077

    JIANG D X, HU M Q, CHEN Y Q,et al. Adaptive Bluetooth location method based on kernel ridge regression[J].Application Research of Computers, 2010, 27(9): 3487-3489, 3492. (in Chinese).doi:10.3969/j.issn.1001-3695.2010.09.077
    [10] 崔哲, 杜进展, 刘飞, 等. UWB室内定位技术现状与应用展望[J]. 现代测绘,2022,45(2):10-15.doi:10.3969/j.issn.1672-4097.2022.02.003

    CUI ZH, DU J ZH, LIU F,et al. Current situation and application prospect of UWB indoor positioning technology[J].Modern Surveying and Mapping, 2022, 45(2): 10-15. (in Chinese).doi:10.3969/j.issn.1672-4097.2022.02.003
    [11] ZHANG D F, ROLT S, MAROPOULOS P G. Modelling and optimization of novel laser multilateration schemes for high-precision applications[J].Measurement Science and Technology, 2005, 16(12): 2541-2547.doi:10.1088/0957-0233/16/12/020
    [12] LIU ZH X, ZHU J G, YANG L H,et al. A single-station multi-tasking 3D coordinate measurement method for large-scale metrology based on rotary-laser scanning[J].Measurement Science and Technology, 2013, 24(10): 105004.doi:10.1088/0957-0233/24/10/105004
    [13] YANG L H. Novel method for spatial angle measurement based on rotating planar laser beams[J].Chinese Journal of Mechanical Engineering, 2010, 23(6): 758-764.doi:10.3901/CJME.2010.06.758
    [14] MANWILLER P E. A new modeling approach for a priori uncertainties of laser tracker angle measurements[J].Journal of Surveying Engineering, 2023, 149(4): 04023009.doi:10.1061/JSUED2.SUENG-1433
    [15] GUO Y G, LI Z CH, YANG H. Construction of precise three-dimensional engineering control network with total station and laser tracker[J].Journal of Applied Geodesy, 2023, 16(4): 321-329.
    [16] XIE Y, LIN J R, YANG L H,et al. A new single-station wMPS measurement method with distance measurement[J].Proceedings of SPIE, 2015, 9677: 96771Z.
    [17] 李勤文, 倪首军, 王志乾, 等. 非公共视场双目相机位姿标定[J]. 光学 精密工程,2020,28(12):2737-2744.doi:10.37188/OPE.20202812.2737

    LI Q W, NI SH J, WANG ZH Q,et al. Calibration of binocular camera with non-common field of view[J].Optics and Precision Engineering, 2020, 28(12): 2737-2744. (in Chinese).doi:10.37188/OPE.20202812.2737
    [18] 吕家国, 蒋晓瑜, 张鹏炜, 等. 医疗机器人双目视觉硬件系统设计与实现[J]. 中国光学,2014,7(2):307-314.

    LYU J G, JIANG X Y, ZHANG P W,et al. Hardware design and implementation of binocular vision system for a medical robot[J].Chinese Optics, 2014, 7(2): 307-314. (in Chinese).
    [19] 陈天择, 葛宝臻, 罗其俊. 重投影优化的自由双目相机位姿估计方法[J]. 中国光学,2021,14(6):1400-1409.doi:10.37188/CO.2021-0105

    CHEN T Z, GE B ZH, LUO Q J. Pose estimation for free binocular cameras based on reprojection error optimization[J].Chinese Optics, 2021, 14(6): 1400-1409. (in Chinese).doi:10.37188/CO.2021-0105
    [20] 王向军, 邓子贤, 曹雨, 等. 野外大视场单相机空间坐标测量系统的快速标定[J]. 光学 精密工程,2017,25(7):1961-1967.

    WANG X J, DENG Z X, CAO Y,et al. Fast calibration for single camera space coordinate measuring system with large field of view[J].Optics and Precision Engineering, 2017, 25(7): 1961-1967. (in Chinese).
    [21] 赵显庭, 王晋疆, 王陈光. 基于转轴参数的多自由度双目视觉系统标定[J]. 光学技术,2018,44(2):140-146.doi:10.13741/j.cnki.11-1879/o4.2018.02.003

    ZHAO X T, WANG J J, WANG CH G. Calibration of multiple degrees of freedom binocular stereo vision system based on axis parameters[J].Optical Technique, 2018, 44(2): 140-146. (in Chinese).doi:10.13741/j.cnki.11-1879/o4.2018.02.003
    [22] ZHANG ZH Y. A flexible new technique for camera calibration[J].IEEE Transactions on Pattern Analysis and Machine Intelligence, 2000, 22(11): 1330-1334.doi:10.1109/34.888718
    [23] 岳晓奎, 侯小娟. 基于Rodrigues参数的视觉相对位姿确定算法[J]. 宇航学报,2010,31(3):753-757.

    YUE X K, HOU X J. Vision-based relative position and attitude determination using rodrigues parameters[J].Journal of Astronautics, 2010, 31(3): 753-757. (in Chinese).
    [24] 朱帆, 于芳苏, 吴易明, 等. P4P法相机姿态标定精度分析[J]. 光学学报,2018,38(11):1115005.doi:10.3788/AOS201838.1115005

    ZHU F, YU F S, WU Y M,et al. Analysis of attitude calibration precision of P4P camera[J].Acta Optica Sinica, 2018, 38(11): 1115005. (in Chinese).doi:10.3788/AOS201838.1115005
    [25] 周江华, 苗育红, 王明海. 姿态运动的Rodrigues参数描述[J]. 宇航学报,2004,25(5):514-519.doi:10.3321/j.issn:1000-1328.2004.05.008

    ZHOU J H, MIAO Y H, WANG M H. Attitude representation using rodrigues parameter[J].Journal of Astronautics, 2004, 25(5): 514-519. (in Chinese).doi:10.3321/j.issn:1000-1328.2004.05.008
    [26] 冯萍, 魏振忠. 光笔式大视场三维视觉测量系统[J]. 光学 精密工程,2013,21(9):2217-2224.doi:10.3788/OPE.20132109.2217

    FENG P, WEI ZH ZH. Light probe based large FOV 3D vision measurement system[J].Optics and Precision Engineering, 2013, 21(9): 2217-2224. (in Chinese).doi:10.3788/OPE.20132109.2217
    [27] 王谭, 王磊磊, 张卫国, 等. 基于张正友标定法的红外靶标系统[J]. 光学 精密工程,2019,27(8):1828-1835.doi:10.3788/OPE.20192708.1828

    WANG T, WANG L L, ZHANG W G,et al. Design of infrared target system with Zhang Zhengyou calibration method[J].Optics and Precision Engineering, 2019, 27(8): 1828-1835. (in Chinese).doi:10.3788/OPE.20192708.1828
    [28] 浮丹丹, 周绍光, 徐洋, 等. 基于主成分分析的点云平面拟合技术研究[J]. 测绘工程,2014,23(4):20-23.doi:10.19349/j.cnki.issn1006-7949.2014.04.005

    FU D D, ZHOU SH G, XU Y,et al. Point cloud plane fitting technology based on principal component analysis[J].Engineering of Surveying and Mapping, 2014, 23(4): 20-23. (in Chinese).doi:10.19349/j.cnki.issn1006-7949.2014.04.005
    [29] WANG G, WANG F F, XIONG F,et al. Pulse signal preprocessing based on wavelet transform-principal component analysis[C].The 15th Textile Bioengineering and Informatics Symposium, Bioengineering and Informatics Society, 2022: 34-39.
    [30] HE CH M, LI X R, HU Y Y,et al. Microscope images automatic focus algorithm based on eight-neighborhood operator and least square planar fitting[J].Optik, 2020, 206: 164232.doi:10.1016/j.ijleo.2020.164232
    [31] 秦锋, 鹿松, 张振虎. 基于BFGS算法的空间圆拟合方法[J]. 城市勘测,2022(6):164-167.

    QIN F, LU S, ZHANG ZH H. Space circle fitting method based on BFGS algorithm[J].Urban Geotechnical Investigation & Surveying, 2022(6): 164-167. (in Chinese).
    [32] NI Y B, WANG X J, YIN L. Relative pose estimation for multiple cameras using Lie algebra optimization[J].Applied Optics, 2019, 58(11): 2963-2972.doi:10.1364/AO.58.002963
