Construction and application of FRET biological probe based on near infrared InP/ZnS quantum dots
-
摘要:本论文构建了基于近红外量子点InP/ZnS和Cy7（C 45H 44K 3N 3O 16S 4）的荧光共振能量转移（FRET）体系，完成了不同pH值和不同浓度下的FRET体系转换效率的检测。检测结果显示：当量子点浓度保持不变时，随着染料浓度的增加，体系转换效率也随之增加，当InP/ZnS量子点与Cy7浓度比为1:250时，转换效率高达68%。细胞测试结果表明，FRET体系对pH值有较高敏感度，对细胞微环境pH值的检测精度可达0.1，该体系可以作为敏感型FRET探针用于生物微环境检测。Abstract:In this paper, a kind of fluorescence resonance energy transfer(FRET) system based on near infrared InP/ZnS Quantum Dots and fluorescence dye Cy7 was constructed, and the conversion efficiencies of FRET system at different pH values and different concentrations were measured. Experimental results indicated that when the concentration of quanium dots remained constant, the conversion efficiency of the system increased with the increasing of the concentration of dye. When the concentration ratio of InP/ZnS and Cy7 was 1:250, the conversion efficiency was 68%. The results of cell test showed that the FRET system had a high sensitivity to pH value, and the detection accuracy of pH value for cell microenvironment was 0.1, which could be used as a sensitive FRET probe for biological microenvironment detection.
-
Key words:
- quantum dots/
- FRET/
- near infrared/
- pH sensitive
-
图 1InP/ZnS量子点和Cy7荧光染料的吸收和发射光谱对比图
Figure 1.Comparison of absorption and emission spectra of InP/ZnS quantum dots and Cy7 fluorescent dyes
图 2InP/ZnS量子点，Cy7，FRET体系的FTIR光谱
Figure 2.FTIR spectra of InP/ZnS quantum dots, Cy7 fluorescent dyes and FRET system
图 3改变InP/ZnS量子点浓度时的FRET体系(a)荧光光谱图(b)相应的FRET转换效率
Figure 3.FRET system when the InP / ZnS quantum dot concentration is changed. (a)Fluorescence spectra (b)FRET conversion efficiency
图 4改变Cy7浓度时的FRET体系(a)荧光光谱图(b)相应的FRET转换效率
Figure 4.FRET system when the Cy7 concentration is changed. (a)Fluorescence spectra (b)FRET conversion efficiency
图 5Cy7(a)和InP/ZnS量子点(b)在不同pH值溶液中的荧光光谱图
Figure 5.Fluorescence spectra of Cy7(a) and InP/ZnS quantum dots(b) in different pH solutions
图 6FRET体系在不同pH值溶液中的荧光光谱图
Figure 6.Fluorescence spectra of FRET system in different pH solutions

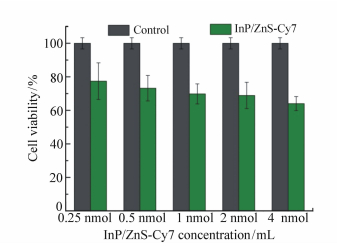

图 7FRET体系的细胞毒性测试
Figure 7.Relative cell viability of MCF-7 breast cancer cell treated with FRET system
图 8FRET体系对不同细胞微环境的检测
Figure 8.Detection result of different cell microenvironment by FRET system
-
[1] 胡珊. 荧光共振能量转移体系的研究及其在均相免疫分析中的应用[D]. 武汉: 华中科技大学, 2010.http://cdmd.cnki.com.cn/Article/CDMD-10487-1011036089.htmHU SH. Sudy on fluorescence resonance energy transfer system and its application in homogeneous immunoassay[D]. WuHan: Huazhong University of Science and Technology, 2010. (in Chinese)http://cdmd.cnki.com.cn/Article/CDMD-10487-1011036089.htm [2] FORSTER T. Intermolecular energy migration and fluorescence[J]. Ann. Physics, 1948, 2:55-75.http://www.oalib.com/references/7320187 [3] 郭尧君.荧光实验技术及其在分子生物学中的应用[M].北京:科学出版社, 1979.GUO Y J. Fluorescence Experimental Techniques and Their Applications in Molecular Biology[M]. Beijing:Science Press, 1979.(in Chinese) [4] LAKOWICZ J R. Energy Transfer:In Principles of Fluorescence Spectroscopy[M]. New York:Plenum Press, 1983. [5] CLEGG R. Fluorescence Imaging Spectroscopy and Microscopy[M]. NewYork:Wiley, 1996. [6] ANGELIS D A D. Fluorescence Resonance Energy Transfer Fret[M]. Encyclopedia of Medical Genomics and Proteomics.2004:1420. [7] FENG Y SH, LIU L W, HU S Y, et al.. Förster resonance energy transfer properties of a new type of near-infrared excitation PDT photosensitizer: CuInS2/ZnS quantum dots-5-aminolevulinic acid conjugates[J]. RSC Adv., 2016, 6:55568-55576.doi:10.1039/C6RA06937A [8] FENG Y SH, LIU L W, HU S Y, et al.. Four-photon-excited fluorescence resonance energy transfer in an aqueous system from ZnSe:Mn/ZnS quantum dots to hypocrellin A[J]. Optics Express, 2016, 24(17):19627-19637.doi:10.1364/OE.24.019627 [9] KIKUCHI K, TAKAKUSA H, NAGANO T. Recent advances in the design of small molecule-based FRET sensors for cell biology[J]. Trends in Analytical Chemistry, 2004, 23(6):407-415.doi:10.1016/S0165-9936(04)00608-9 [10] JANSSEN A, BEERLING E, MEDEMA R, et al.. Intravital FRET imaging of tumor cell viability and mitosis during chemotherapy[J]. PLoS One, 2013, 8(5):e64029.doi:10.1371/journal.pone.0064029 [11] YUAN L, LIN W, ZHENG K, et al.. FRET-based small-molecule fluorescent probes:rational design and bioimaging applications[J]. Accounts of Chemical Research, 2013, 46(7):1462-1473.doi:10.1021/ar300273v [12] TAO H L, LIAO X F, et al.. Determination of trace Hg2+ions based on the fluorescence resonance energy transfer between fluorescent brightener and CdTe quantum dots[J]. Journal of Luminescence, 2014, 146: 376-381.doi:10.1016/j.jlumin.2013.10.005 [13] JIANG G F, TANG Y. A novel two-photon fluorescent probe for hydrogen sulfide in living cells using an acedan-NBD amine dyad based on FRET process with high selectivity and sensitivity[J]. New Journal of Chemistry, 2017, 41(14):6769-6774.doi:10.1039/C7NJ01080J [14] WANG Y, SI B, LU S, et al.. Near-infrared excitation of CdTe quantum dots based on fluorescence resonance energy transfer and their use as fluorescent sensors[J]. Sensors & Actuators B Chemical, 2017, 246:127-135.https://www.sciencedirect.com/science/article/pii/S0925400516307079 [15] 张旭霞, 李斌, 张黎明, 等.有机-无机复合纳米材料的传感应用及机理[J].中国光学, 2015, 8(4):651-666.//www.illord.com/CN/abstract/abstract9330.shtmlZHANG X X, LI B, ZHANG L M, et al.. Sensing application and mechanism of organic-inorganic nanocomposites[J]. Chinese Optics, 2015, 8(4):651-666.(in Chinese)//www.illord.com/CN/abstract/abstract9330.shtml [16] 翟英歌, 楚学影, 徐铭泽, 等.ZnS:Cu-罗丹明B的荧光共振能量转移性质[J].发光学报, 2017, 38(8):1028-1032.http://www.cqvip.com/QK/92489X/199302/1022267.htmlZHAI Y G, CHU X Y, XU M Z, et al.. Properties of fluorescence resonance energy transfer of ZnS:Cu-rhodamine B[J]. Chinese Journal of Luminescence, 2017, 38(8):1028-1032.(in Chinese)http://www.cqvip.com/QK/92489X/199302/1022267.html [17] 袁曦, 郑金桔, 李海波, 等.Mn掺杂ZnSe量子点变温发光性质研究[J].中国光学, 2015, 8(5):806-813.//www.illord.com/CN/abstract/abstract9349.shtmlYUAN X, ZHENG J J, LI H B, et al.. Temperature-dependent photoluminescence properties of Mn-doped ZnSe quantum dots[J]. Chinese Optics, 2015, 8(5):806-813.(in Chinese)//www.illord.com/CN/abstract/abstract9349.shtml [18] 王英帅, 周颖, 王珺楠, 等.金纳米棒核/二氧化硅壳纳米复合结构的可控制备及细胞成像[J].中国光学, 2013, 6(5):743-749.//www.illord.com/CN/abstract/abstract9059.shtmlWANG Y SH, ZHOU Y, WANG J N, et al.. Controlled synthesis and cell imaging of gold nanorod-silica core-shell nanoparticles[J]. Chinese Optics, 20136(5):743-749.(in Chinese)//www.illord.com/CN/abstract/abstract9059.shtml [19] 刘姝妤, 钟绵增, 孟秀清, 等.ZnO/ZnS核-壳量子点的双光子吸收效应[J].发光学报, 2015, 36(2):249-255.http://www.opticsjournal.net/abstract.htm?id=OJ150215000023PmSoVrLIU SH Y, ZHONG J Z, MENG X Q, et al.. Two-photon absorption in ZnO/ZnS core-shell quantum dots[J]. Chinese Journal of Luminescence, 2015, 36(2):249-255.http://www.opticsjournal.net/abstract.htm?id=OJ150215000023PmSoVr [20] 刘惠玲. 纳米材料内部FRET体系的设计及在单/双光子光动力治疗中的潜在应用[D]. 南京: 南京工业大学, 2016.http://www.wanfangdata.com.cn/details/detail.do?_type=degree&id=Y3108216LIU H L. Design of FRET system in nanomaterials and its potential application in single/two photon photodynamic therapy[D]. Nanjing: Nanjing University of Technology, 2016. (in Chinese)http://www.wanfangdata.com.cn/details/detail.do?_type=degree&id=Y3108216 [21] REMEDIOS C G, MOENS P D. Fluorescence resonance energy transfer spectroscopy is a reliable "ruler" for measuring structural changes in proteins-dispelling the problem of the unknown orientation factor[J]. Journal of Structural Biology, 1995, 115(2):175-185.doi:10.1006/jsbi.1995.1042 [22] LIU L. Quantum dots:the new development of FRET[J]. Progress in Chemistry, 2006, 18(2):337-343.https://www.researchgate.net/publication/282707728_Quantum_dots_The_new_development_of_FRET [23] STEYER L, HAUGLANG R P. Energy transfer:a spectroscopic ruler[J]. Proceedings of the National Academy of Sciences of the United States of America, 1967, 58(2):719.doi:10.1073/pnas.58.2.719 -
