Alignment error detection method of sub-eye mounting hole for bionic compound eye system
-
摘要:仿生复眼系统是一种多子眼拼接的大视场高分辨率成像系统，由一级同心物镜和二级子眼镜头阵列组成。为实现大视场无缝隙拼接成像，必须严格保证所有子眼镜头的光轴与同心物镜球心的对准误差在光学设计允许的公差范围内。首先，基于PSM(point source microscope)定位仪的自准直原理确定PSM的基准参考零位，然后通过转接器将PSM分别固定在所有子眼镜头安装孔中，计算经同心物镜反射后像点质心位置与子眼安装孔轴线对准误差的几何关系式，最后用Lighttools软件仿真检测光路并对所有安装孔对准误差进行检测。实验结果表明：所有安装孔轴线与同心物镜球心的对准误差均小于30 μm。满足光学设计中子眼镜头光轴与同心物镜球心对准误差小于50 μm的公差要求，从而保证了仿生复眼成像系统大视场高分辨率无缝拼接影像的获取。Abstract:The bionic compound eye system is a multi-sub-eye imaging system with large-field and high-resolution, which consists of a monocentric objective lens and sub-eye lens array.In order to achieve large-field seamless stitching images, it must be strictly ensured that the sub-eye optical axes are properly aligned to the center of monocentric objective lens such that the alignment error is within the tolerances of the optical design. First, the reference zero position of PSM was determined based on the auto-collimation principle. Then the PSM was fixed to all the sub-eye mounting holes with the adapter. A geometric equation for the relationship between the distance of image centroid after reflection by the monocentric objective lens relative to the reference zero point and the alignment error of the sub-eye mounting holes was calculated. Finally, the optical detection system was simulated with Lighttools and the alignment errors of all the mounting holes were detected. Experimental results indicate that the alignment errors of all the mounting holes are less than 30 μm. It can satisfy the optical tolerance requirements of less than 50 μm, which ensures the acquisition of large-field and high-resolution seamless stitching images of bionic compound eye imaging systems.
-
Key words:
- bionic compound eye/
- large-field/
- high-resolution/
- auto-collimation/
- alignment error
-

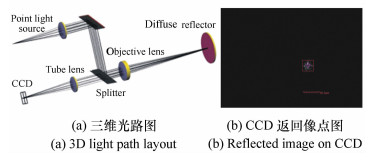

图 4基准零位仿真及实际返回像点图
Figure 4.Diagram of reference zero position simulation and real reflected image

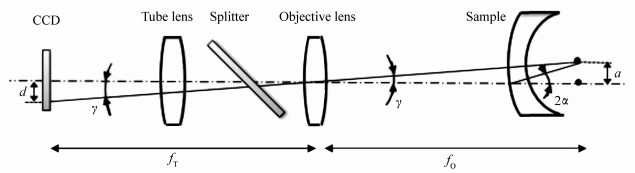

图 5子眼镜头安装孔对准误差与返回像点偏离量关系图
Figure 5.Diagram of relationship between alignment error of sub-eye mounting holes and deviation of reflected image

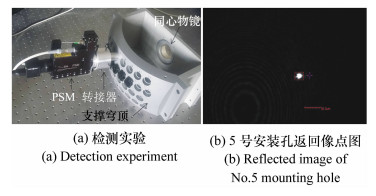

图 7子眼镜头安装孔对准误差检测实验
Figure 7.Alignment error detection experiment of sub-eye mounting holes

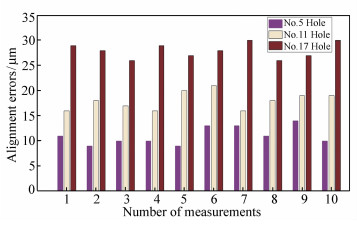

图 85、11、17号安装孔对准误差多次检测结果
Figure 8.Detection results of alignment error for NO.5、11、17 mounting holes

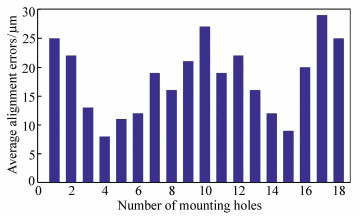

图 918个安装孔位置对准误差平均检测结果
Figure 9.Detection results of average alignment error for 18 mounting holes
-
