集成PIN光敏元的CMOS探测器光电响应特性研究

杨成财,鞠国豪,陈永平

downloadPDF
杨成财, 鞠国豪, 陈永平. 集成PIN光敏元的CMOS探测器光电响应特性研究[J]. , 2019, 12(5): 1076-1089. doi: 10.3788/CO.20191205.1076
引用本文: 杨成财, 鞠国豪, 陈永平. 集成PIN光敏元的CMOS探测器光电响应特性研究[J]. , 2019, 12(5): 1076-1089.doi:10.3788/CO.20191205.1076
YANG Cheng-cai, JU Guo-hao, CHEN Yong-ping. Study on the photo response of a CMOS sensor integrated with PIN photodiodes[J]. Chinese Optics, 2019, 12(5): 1076-1089. doi: 10.3788/CO.20191205.1076
Citation: YANG Cheng-cai, JU Guo-hao, CHEN Yong-ping. Study on the photo response of a CMOS sensor integrated with PIN photodiodes[J].Chinese Optics, 2019, 12(5): 1076-1089.doi:10.3788/CO.20191205.1076

集成PIN光敏元的CMOS探测器光电响应特性研究

doi:10.3788/CO.20191205.1076
详细信息
  • 中图分类号:TN2;O472+.8

Study on the photo response of a CMOS sensor integrated with PIN photodiodes

More Information
    Author Bio:

    YANG Cheng-cai (1992-):Tai'An, Shandong Province, Graduated from Northeastern University in 2016, and currently pursuing a master's degree in Shanghai Institute of Technical Physics, Chinese Academy of Sciences.He mainly engages in the research of CMOS image sensor design and read-out circuits design.E-mail:tomasyoung@mail.ustc.edu.cn

    CHEN Yong-ping (1963-):Professor, Shanghai Institute of Technical Physics, Chinese Academy of Sciences.His research interests are on design of high-performance CMOS image sensors.E-mail:chen_yp@mail.sitp.ac.cn

    Corresponding author:CHEN Yong-ping, E-mail:chen_yp@mail.sitp.ac.cn
  • 摘要:传统的CMOS图像传感器一般采用基于LV-CMOS工艺的N阱/P型衬底制备的PN光电二极管或者PPD二极管作为光敏元。PIN光敏元具有结电容小、量子效率高的特点。采用HV-CMOS(高压CMOS)工艺可以实现CMOS电路与PIN光敏元的单片集成。本文研究了集成PIN光敏元的CMOS探测器的光电响应特性以及NEP随像素大小和复位电压的变化关系。研究表明,将光敏元从PN光电二极管改为PIN光电二极管后,像素电荷增益可以提高一个数量级左右;同时,像素的瞬态电荷增益要大于传统认为的1/ C pd,并与二极管的大小以及复位电压紧密相关。研究发现,小像素因其更高的电荷增益和更低的等效噪声,更加适合弱信号下的短积分时间快速探测。若配合微透镜的使用,小像素在微光探测方面可以获得更大的优势。

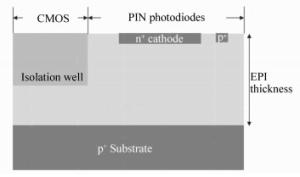

  • 图 1HV-CMOS工艺示意图

    Figure 1.Schematic diagram of HV-CMOS process

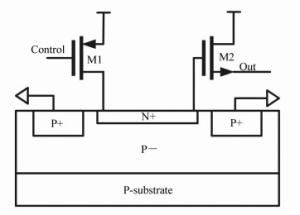

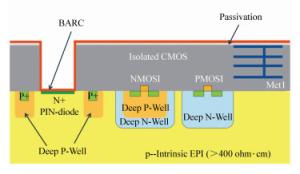

    图 2PIN光敏元与CMOS电路单片集成

    Figure 2.Monolithic integration of PIN photosensitive element and CMOS circuit

    图 3HV-CMOS工艺中的3T像素结构

    Figure 3.3T pixel structure in HV-CMOS process

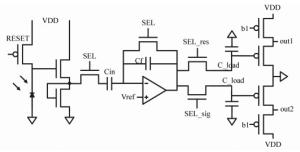

    图 4CMOS传感器读出电路

    Figure 4.Read-out circuit in CMOS sensor

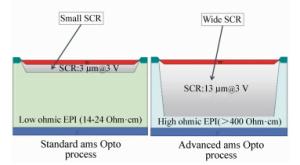

    图 5PN和PIN空间电荷区

    Figure 5.Space charge regions of PN and PIN

    图 6结电容随偏压变化关系

    Figure 6.Relationship between junction capacitance and bias voltage

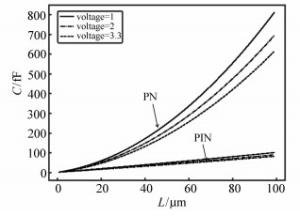

    图 7结电容与像素大小的关系

    Figure 7.Relationship between junction capacitance and pixel size

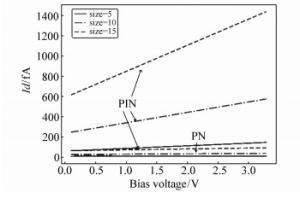

    图 8暗电流与偏置电压大小的关系

    Figure 8.Relationship between dark current and bias voltage

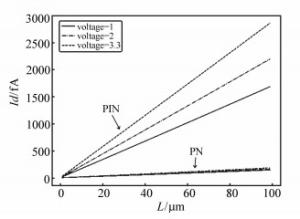

    图 9暗电流与尺寸L的变化关系

    Figure 9.Relationship between dark current and pixel size

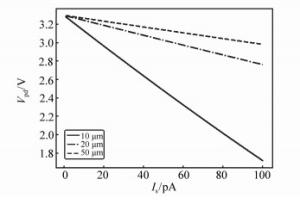

    图 10结电压与光电流关系

    Figure 10.Relationship between junction voltage and photo current

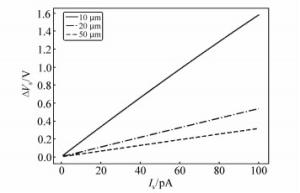

    图 11光信号电压变化与光电流关系

    Figure 11.Relationship between photo signal voltage variation and photo current

    图 12瞬态电荷转换增益随光电流变化关系

    Figure 12.Relationship between transient charge conversion gain and photo current variance

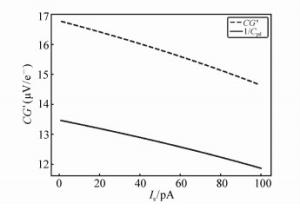

    图 13瞬态电荷增益与电容值倒数的比较

    Figure 13.Comparison between transient charge gain and the reciprocal of capacitance value

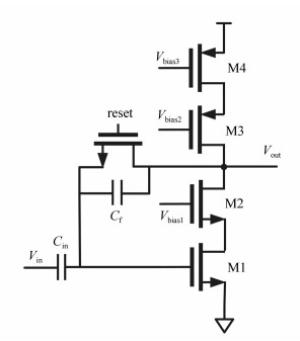

    图 14CTIA结构示意图

    Figure 14.Schematic diagram of a CTIA structure

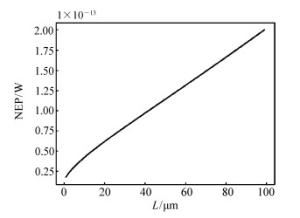

    图 15NEP与像素大小的关系

    Figure 15.Relationship between NEP and pixel size

    表 1公式参数

    Table 1.Formula parameters

    Parameter PN photodiode(LV-CMOS) PIN photodiode(HV-CMOS)
    Area junction capacitance for zero bias:CJ 97 pF/mm2 0.93 pF/mm2
    Area capacitance grading coefficient:MJ 0.31 0.05
    Area capacitance junction potentials:PB 0.42 V 0.31 V
    Perimeter junction capacitance for zero bias:CJSW 0.52 pF/mm 0.35 pF/mm
    Perimeter capacitance grading coefficient:MJSW 0.21 0.21
    Perimeter capacitance junction potentials:PBSW 0.38 V 0.16 V
    Area leakage current density:JS 1.27 pA/mm2 2.07 pA/mm2
    Perimeter leakage current density:JSSW 28.8 fA/mm 2.91 pA/mm
    Voltage dependent area leakage conductivity:GLEAK 0 pA/V/mm2 0 pA/V/mm2
    Voltage dependent perimeter leakage conductivity:GLEAKSW 44 fA/V/mm 1.29 pA/V/mm
    下载: 导出CSV
  • [1] 何家维, 何昕, 魏仲慧, 等.高灵敏度EMCCD导航相机的设计[J].光学 精密工程, 2018, 26(12):3019-3027.http://d.old.wanfangdata.com.cn/Periodical/gxjmgc201812019

    HE J W, HE X, WEI ZH H,et al.. Design of high-sensitivity EMCCD navigation camera[J].Opt. Precision Eng., 2018, 26(12):3019-3027.(in Chinese)http://d.old.wanfangdata.com.cn/Periodical/gxjmgc201812019
    [2] 何伟基, 司马博羽, 程耀进, 等.基于盖格-雪崩光电二极管的光子计数成像[J].光学 精密工程, 2012, 20(8):1831-1837.http://d.old.wanfangdata.com.cn/Periodical/gxjmgc201208025

    HE W J, SIMA B Y, CHENG Y J,et al.. Photon counting imaging based on GM-APD[J].Opt. Precision Eng., 2012, 20(8):1831-1837.(in Chinese)http://d.old.wanfangdata.com.cn/Periodical/gxjmgc201208025
    [3] 刘超, 张晓晖.超低照度下微光图像的深度卷积自编码网络复原[J].光学 精密工程, 2018, 26(4):951-961.http://d.old.wanfangdata.com.cn/Periodical/gxjmgc201804025

    LIU CH, ZHANG X H. Deep convolutional autoencoder networks approach to low-light level image restoration under extreme low-light illumination[J].Opt. Precision Eng., 2018, 26(4):951-961.(in Chinese)http://d.old.wanfangdata.com.cn/Periodical/gxjmgc201804025
    [4] 陈莹, 朱明, 刘剑, 等.高斯混合模型自适应微光图像增强[J].液晶与显示, 2015, 30(2):300-309.http://d.old.wanfangdata.com.cn/Periodical/yjyxs201502019

    CHEN Y, ZHU M, LIU J,et al.. Automatic low light level image enhancement using Gaussian mixture modeling[J].Chinese Journal of Liquid Crystals and Displays, 2015, 30(2):300-309.(in Chinese)http://d.old.wanfangdata.com.cn/Periodical/yjyxs201502019
    [5] 王田珲, 李豫东, 文林, 等.CMOS图像传感器在质子辐照下热像素的产生和变化规律[J].发光学报, 2018, 39(12):1697-1704.http://d.old.wanfangdata.com.cn/Periodical/fgxb201812008

    WANG T H, LI Y D, WEN L,et al.. Generation and annealing of hot pixels of CMOS image sensor induced by proton[J].Chinese Journal of Luminescence, 2018, 39(12):1697-1704.(in Chinese)http://d.old.wanfangdata.com.cn/Periodical/fgxb201812008
    [6] 玛丽娅, 李豫东, 郭旗, 等.CMOS有源像素图像传感器的电子辐照损伤效应研究[J].发光学报, 2017, 38(2):182-187.http://d.old.wanfangdata.com.cn/Periodical/fgxb201702009

    MA L Y, LI Y D, GUO Q,et al.. Electron beam radiation effects on CMOS active pixel sensor[J].Chinese Journal of Luminescence, 2017, 38(2):182-187.(in Chinese)http://d.old.wanfangdata.com.cn/Periodical/fgxb201702009
    [7] 徐守龙, 邹树梁, 黄有骏, 等.CCD与CMOS像素传感器γ射线电离辐射响应特性对比研究[J].发光学报, 2018, 39(6):815-822.http://d.old.wanfangdata.com.cn/Periodical/fgxb201806010

    XU SH L, ZOU SH L, HUANG Y J,et al.. Comparative study on γ-ray radiation response characteristics of CCD and CMOS pixel sensor[J].Chinese Journal of Luminescence, 2018, 39(6):815-822.(in Chinese)http://d.old.wanfangdata.com.cn/Periodical/fgxb201806010
    [8] 施敏, 伍国珏.半导体器件物理[M].耿莉, 张瑞智, 译.西安: 西安交通大学出版社, 2008.

    SHI M, WU G Y.Physics of Semiconductor[M]. GENG L, ZHANG R ZH, trans. Xi'an: Xi'an JiaoTong University Press, 2008.(in Chinese)
    [9] MARUYAMA T, MAEKITA K, LI G,et al.. High speed operation of SOI PIN photodiodes fabricated by CMOS compatible process[C]. Proceedings of 2014 OptoElectronics and Communication Conference and Australian Conference on Optical Fibre Technology, IEEE, 2014.
    [10] MITSUNO H, MARUYAMA T, IIYAMA K,et al.. Sub-μm electrode spacing SOI-PIN photodiode fabricated by CMOS compatible process[C]. Proceedings of the 21st Opto, Electronics and Communications Conference(OECC) held jointly with 2016 International Conference on Photonics in Switching, IEEE, 2016.
    [11] JONAK-AUER I, TEVA J, PARK J M,et al.. New integration concept of PIN photodiodes in 0.35μm CMOS technologies[J].Proceedings of SPIE, 2012, 8431:843115.doi:10.1117/12.922268
    [12] BIGAS M, CABRUJA E, FOREST J,et al.. Review of CMOS image sensors[J].Microelectronics Journal, 2006, 37(5):433-451.doi:10.1016/j.mejo.2005.07.002
    [13] NAKAMURA J.Image Sensors and Signal Processing for Digital Still Cameras[M]. Boca Raton:CRC Press, 2006.
    [14] OHTA J.Smart CMOS Image Sensors and Applications[M]. Boca Raton:CRC Press, 2008.
    [15] RAZAVI B.Design of Analog CMOS Integrated Circuit[M]. 2nd ed. New York:McGraw-Hill Education, 2017.
