Optical design of a wide-spectrum ultraviolet imager based on a single material

doi:10.37188/CO.2021-0127

1.
Changchun Institute of Optics, Fine Mechanics and Physics, Chinese Academy of Sciences, Changchun 130033, China
2.
University of Chinese Academy of Sciences, Beijing 100049, China

Funds:Supported by National Natural Science Foundation of China (No. 62005268)

More Information

Corresponding author:libo0008429@163.com
Received Date:05 Jun 2021
Rev Recd Date:08 Jul 2021

Available Online:01 Sep 2021

Publish Date:19 Jan 2022

Abstract

Abstract

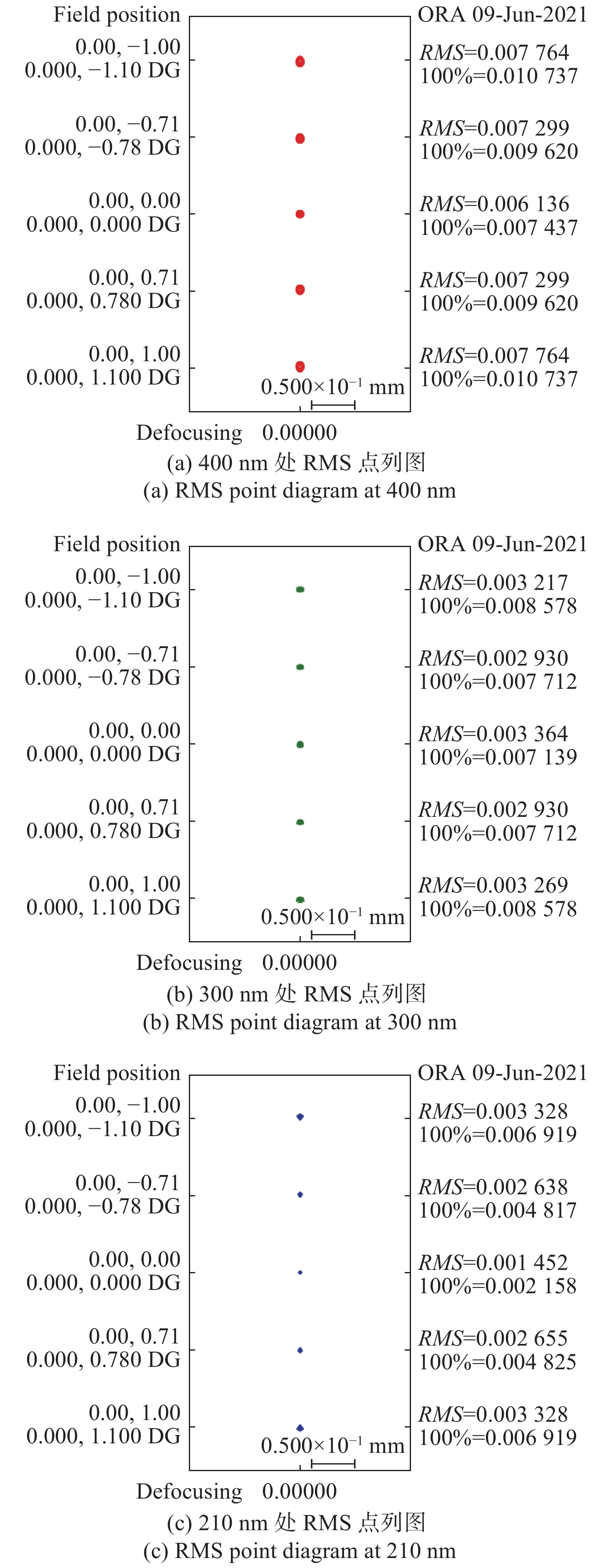

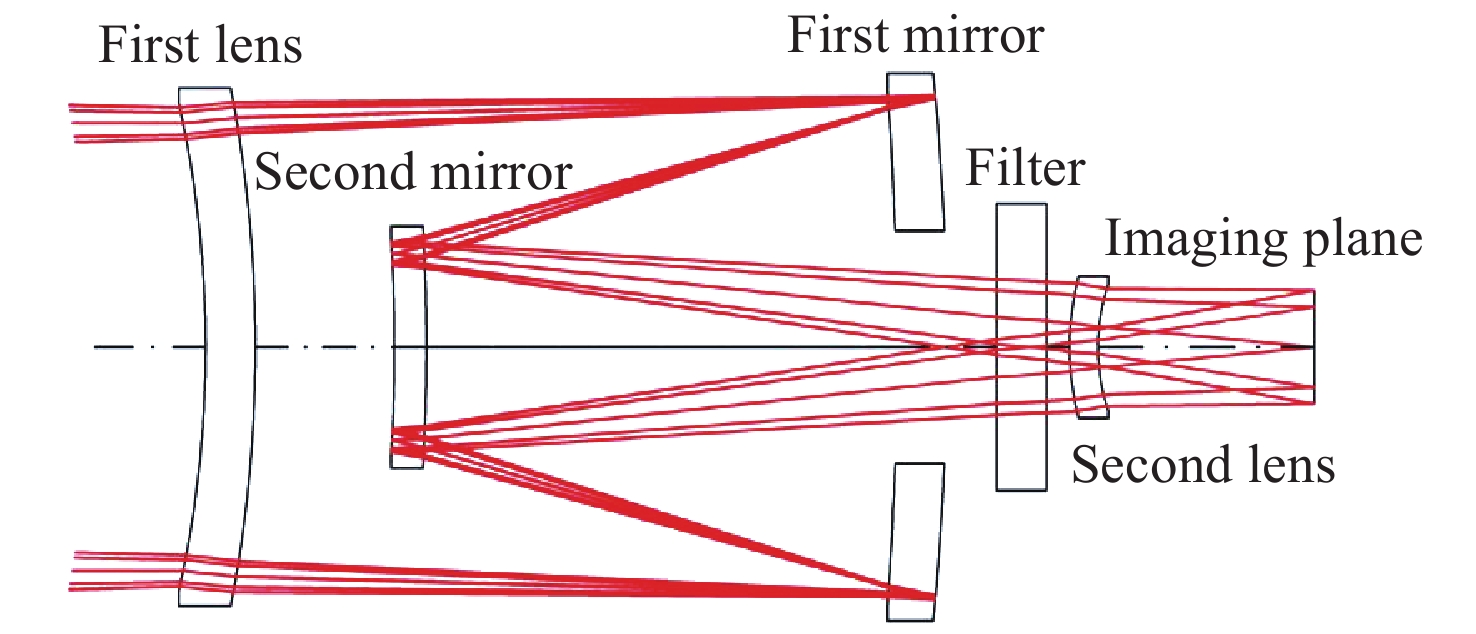

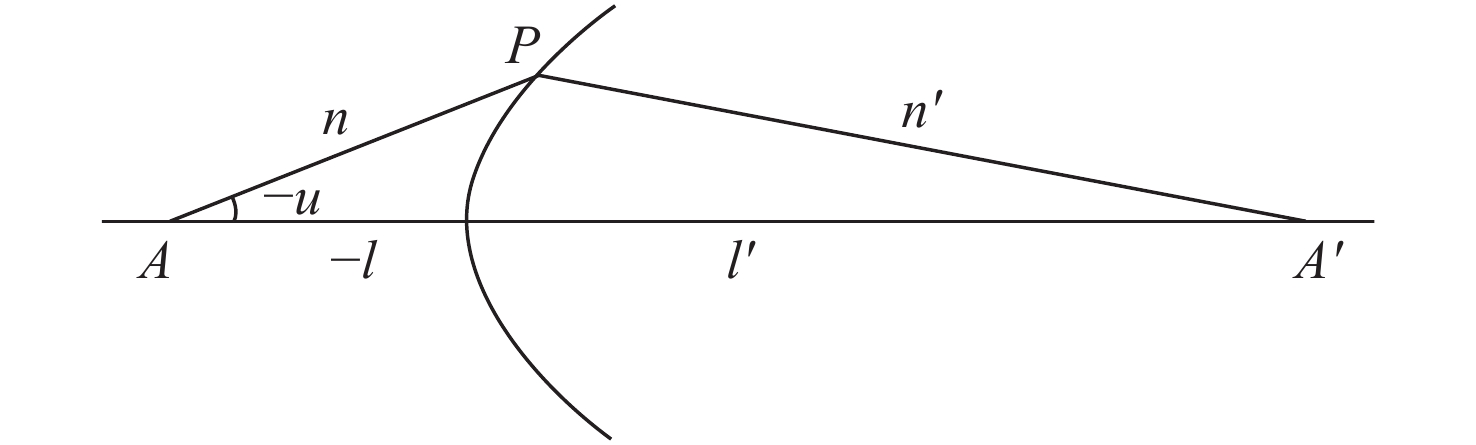

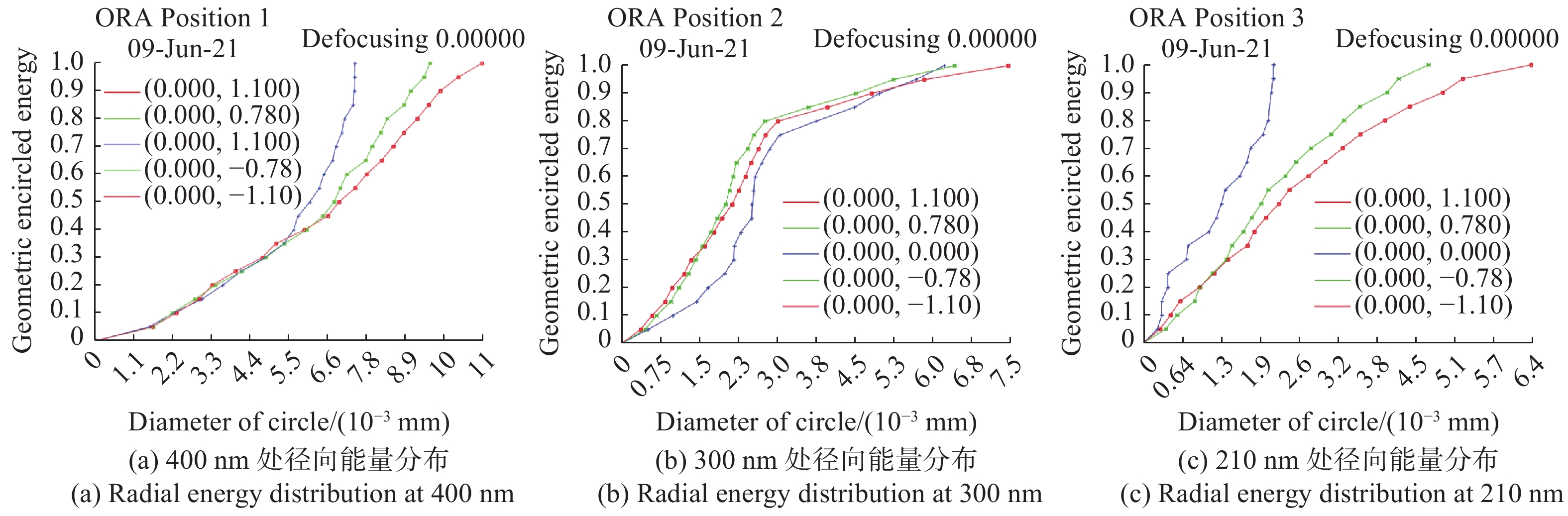

Ultraviolet detection technology is widely used in various fields of production and human life. It is thus greatly significant to study wide-spectrum ultraviolet (UV) imager systems. Through deducing the theoretical formula of chromatic aberration, a scheme for correcting the chromatic aberration of the optical system of the wide-spectrum UV imager with the lenses made of single material was proposed. Combined with the performance index of a high-sensitivity dynamic UV imaging detector, the optical system of the 210~400 nm wide-spectrum UV imager with only one lens material and all lenses being spherical was designed. The optical design software CODE V was used to optimize the system and evaluate the image quality. The results demonstrate that the Modulation Transfer Function (MTF) in the entire field of view and waveband of the system is better than 0.6 at the Nyquist frequency of 40 lp/mm and RMS<7.8 μm. Thus, the system has good imaging quality. The system does not contain aspheric optical elements, which makes it not only easy to process and assemble, but also reduces its cost and lays a technical foundation for the development of a wide-spectrum UV imaging spectrometer.
- ultraviolet imager,
- wide spectrum,
- optical design,
- chromatic correction

FullText(HTML)

References (13)

References

[1]	XUE Q SH, YANG B, TIAN ZH T, et al. Spaceborne limb hyperspectral imager for ozone profile detection[J]. Optics Express, 2019, 27(22): 31348-31361. doi:10.1364/OE.27.031348
[2]	WANG X H, XUE Q SH. Optical system design of an atmospheric detector with nadir view and omnidirectional limb view[J]. Applied Optics, 2017, 56(26): 7454-7461. doi:10.1364/AO.56.007454
[3]	崔穆涵, 田志辉, 周跃, 等. 大相对孔径紫外成像仪光学系统设计[J]. 中国光学,2018,11(2):212-218. doi:10.3788/co.20181102.0212 CUI M H, TIAN ZH H, ZHOU Y, et al. Design of large aperture ultraviolet optical system for ultraviolet camera[J]. Chinese Optics, 2018, 11(2): 212-218. (in Chinese) doi:10.3788/co.20181102.0212
[4]	丛海芳, 王春晖, 王宇. 宽波段高分辨率小型紫外成像光谱仪光学系统研究[J]. 光谱学与光谱分析,2013,33(2):562-566. doi:10.3964/j.issn.1000-0593(2013)02-0562-05 CONG H F, WANG CH H, WANG Y. Study on an optical system of small ultraviolet imaging spectrometer with high resolution in broadband[J]. Spectroscopy and Spectral Analysis, 2013, 33(2): 562-566. (in Chinese) doi:10.3964/j.issn.1000-0593(2013)02-0562-05
[5]	薛庆生, 王淑荣. 用于大气临边探测的紫外全景成像仪光学设计[J]. 光学学报,2013,33(4):0422001. doi:10.3788/AOS201333.0422001 XUE Q SH, WANG SH R. Optical design of UV panoramic imager for atmospheric sounding in limb view[J]. Acta Optica Sinica, 2013, 33(4): 0422001. (in Chinese) doi:10.3788/AOS201333.0422001
[6]	于磊, 林冠宇, 于向阳. 空间高层大气遥感远紫外成像光谱仪的光学系统[J]. 光学学报,2013,33(1):0122001. doi:10.3788/AOS201333.0122001 YU L, LIN G Y, YU X Y. Optical system of far ultraviolet imaging spectrometer for space-based upper atmosphere remote sensing[J]. Acta Optica Sinica, 2013, 33(1): 0122001. (in Chinese) doi:10.3788/AOS201333.0122001
[7]	张宗存, 丁学专, 杨波, 等. 轻小型宽谱段紫外高光谱成像仪光学系统设计[J]. 红外技术,2017,39(4):304-308. doi:10.11846/j.issn.1001_8891.201704003 ZHANG Z C, DING X ZH, YANG B, et al. Optical system design for compact wide spectrum of ultraviolet hyper-spectral imager[J]. Infrared Technology, 2017, 39(4): 304-308. (in Chinese) doi:10.11846/j.issn.1001_8891.201704003
[8]	徐苗, 梁秀玲. 中长焦透射式日盲紫外光学系统设计[J]. 光学仪器,2017,39(2):43-47. XU M, LIANG X L. Optical design of long transmission type solar blind ultraviolet system[J]. Optical Instruments, 2017, 39(2): 43-47. (in Chinese)
[9]	王嘉明. 日盲紫外信号目标模拟器光学系统设计[D]. 长春: 长春理工大学, 2016: 10-12. WANG J M. Optical design of solar blind ultraviolet signal target simulator[D]. Changchun: Changchun University of Science and Technology, 2016: 10-12. (in Chinese)
[10]	吴雁, 唐义, 刘健鹏, 等. 电离层遥感远紫外成像光谱仪光学系统设计[J]. 光学学报,2012,32(1):0122001. doi:10.3788/AOS201232.0122001 WU Y, TANG Y, LIU J P, et al. Optics design of far ultraviolet imaging spectrometer for ionosphere remote sensing[J]. Acta Optica Sinica, 2012, 32(1): 0122001. (in Chinese) doi:10.3788/AOS201232.0122001
[11]	吕博, 冯睿, 寇伟, 等. 折反射式空间相机光学系统设计与杂散光抑制[J]. 中国光学,2020,13(4):822-831. doi:10.37188/CO.2019-0036 LÜ B, FENG R, KOU W, et al. Optical system design and stray light suppression of catadioptric space camera[J]. Chinese Optics, 2020, 13(4): 822-831. (in Chinese) doi:10.37188/CO.2019-0036
[12]	张佳伦, 郑玉权, 蔺超, 等. 消像散的自由曲面棱镜光谱仪光学系统设计[J]. 中国光学,2020,13(4):842-851. doi:10.37188/CO.2019-0049 ZHANG J L, ZHENG Y Q, LIN CH, et al. Design of a freeform curved prism imaging spectrometer based on an anastigmatism[J]. Chinese Optics, 2020, 13(4): 842-851. (in Chinese) doi:10.37188/CO.2019-0049
[13]	袁旭沧. 光学设计[M]. 北京: 北京理工大学出版社, 1988: 76-79. YUAN X C. Optical Design[M]. Beijing: Beijing Institute of Technology Press, 1988: 76-79. (in Chinese)
